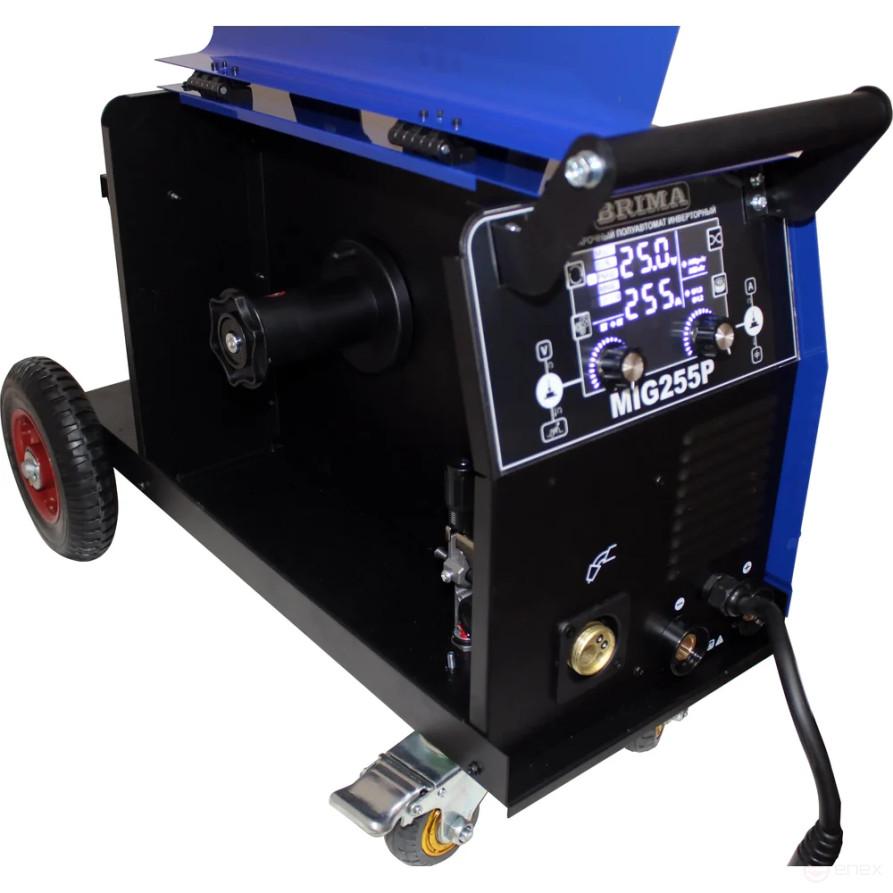

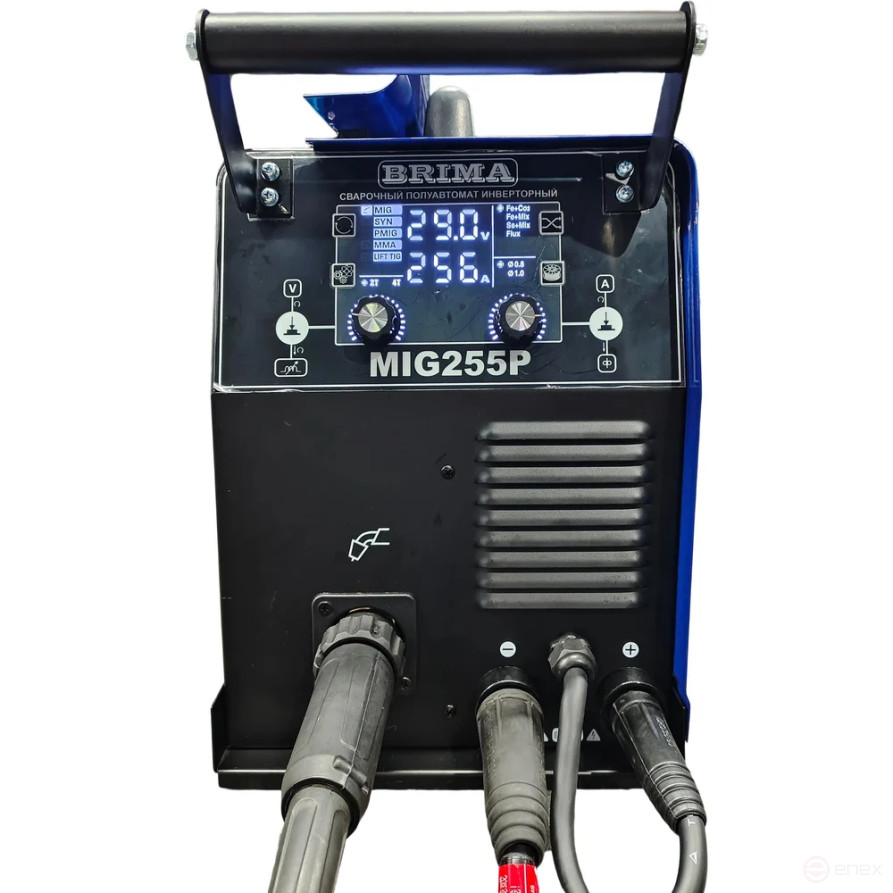

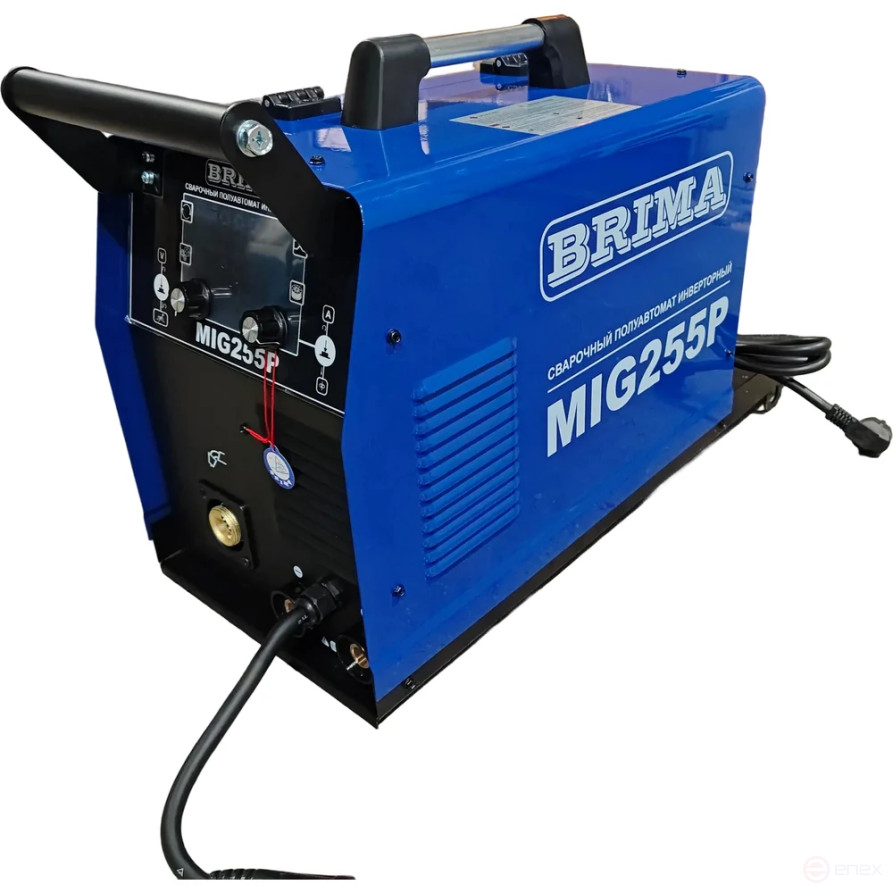

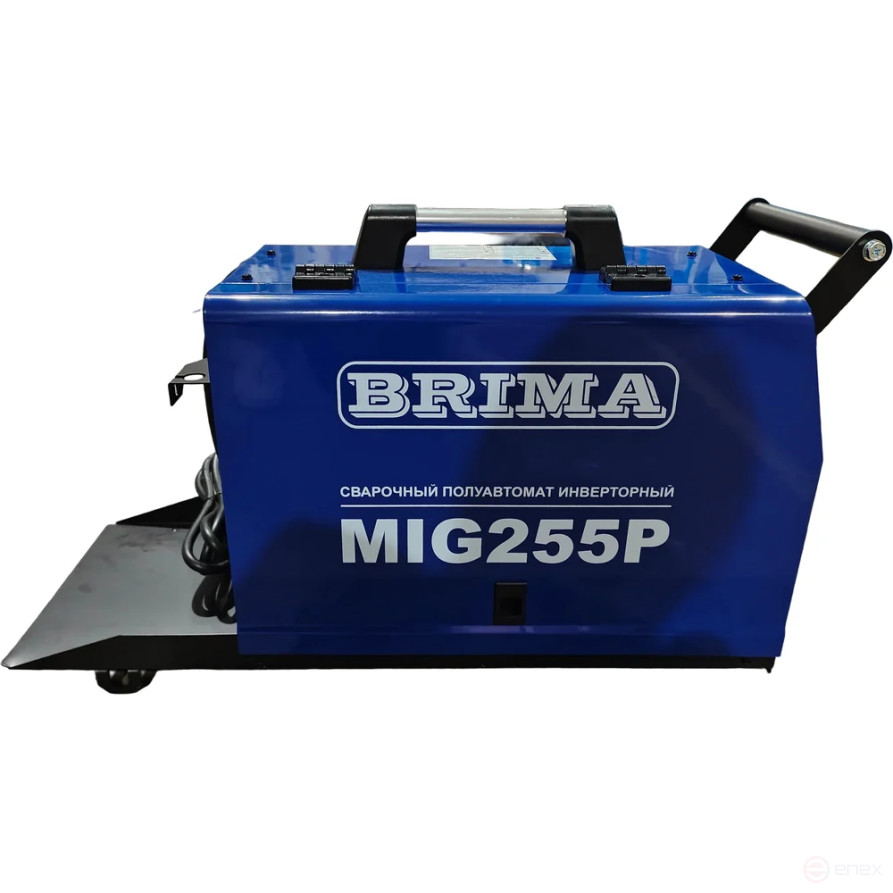

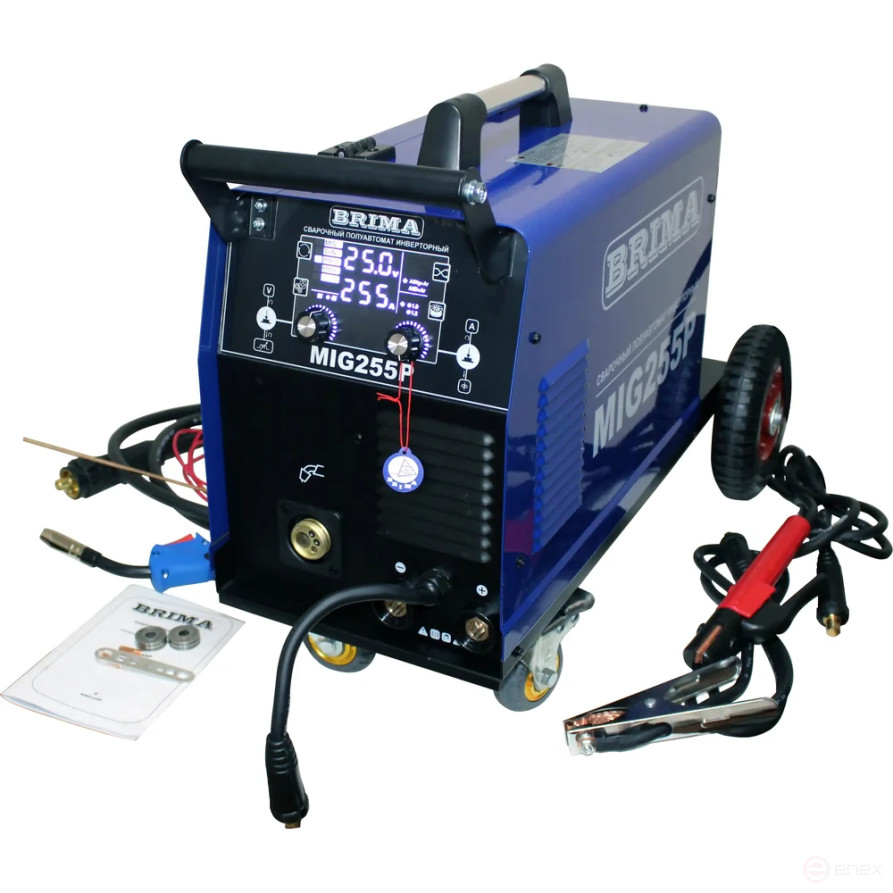

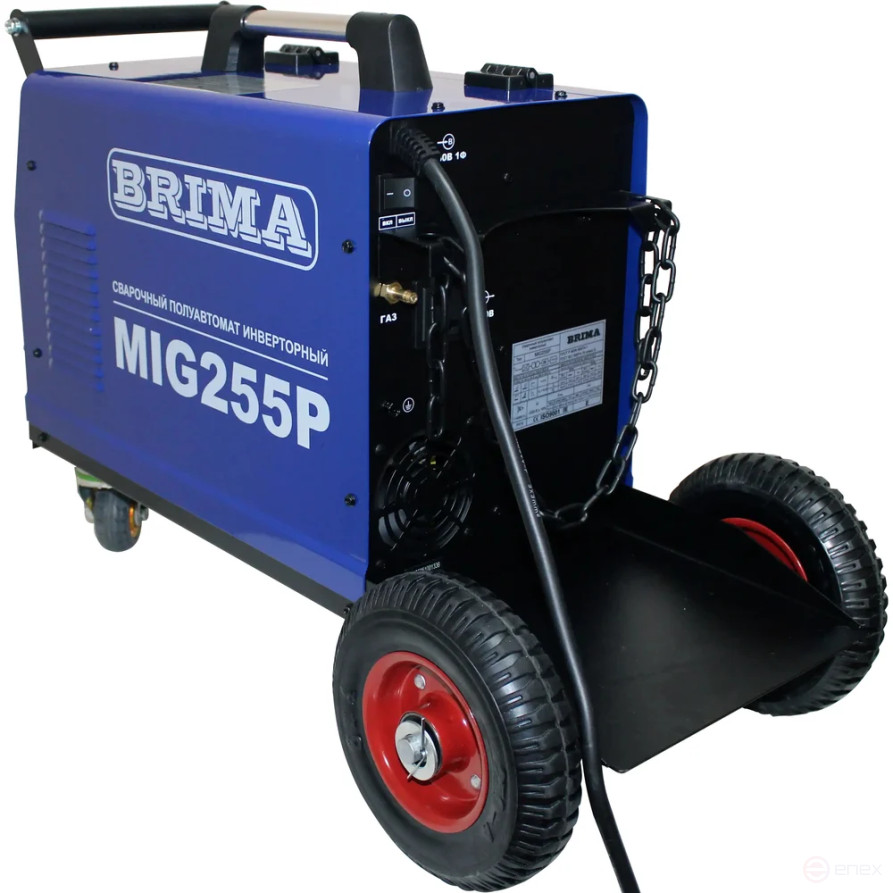

Semi-automatic inverter welding machine MIG-255P "BRIMA"
Russia
China
Description
BRIMA semi-automatic inverter welding machine MIG−255 PULSE NP000001745 is a new generation digital inverter semi-automatic welding machine that supports welding modes such as MIG/MAG, FCAW, MMA and TIG Lift (with contact ignition). It can operate in pulse mode (PMIG), as well as during welding in MIG/MAG and FCAW modes, synergetic activation (SYN) is possible.
- Reliable welding of all types of metals – aluminum, stainless steel and other types of steel, non-ferrous metals.
- Savings on welding wire (installation of a D300/15kg coil, on average the price of one coil weighing 15 kg is 30% less than the cost of three coils of 5 kg of the same wire.)
Advantages:
- The device provides mobile and autonomous semi-automatic welding in installation and inaccessible conditions.
- The device can operate in synergetic and pulse modes.
- Convenient removable burner included
- Quick and convenient change of all welding modes
- Digital welding mode selection system
- Digital system for adjusting semi-automatic welding parameters when choosing a wire diameter of 0.8 mm, 1.0 mm or 1.2 mm
- Manufactured using inverter technology, high quality of assembly
- Energy-saving technologies are used
- Excellent functional characteristics
- Stable welding performance in case of voltage fluctuations in the network
- Small amount of welding spray, excellent seam formation
- Smooth adjustment of welding current
- Malfunction/overheating indicator
- Network indicator
- Digital display with ammeter
- Compact, easy to handle, economical and practical
- A coil with steel wire is already included with the device (supports coils up to 15 kg)
- The ability to work with thin metals
- Reliable welding of all types of metals – aluminum, stainless steel and other types of steel, non-ferrous metals
Technical specifications:
- Welding mode - with or without gas
- Max current - 250 A
- Min current - 20 A
- PV at maximum current - 60 %
- No-load voltage - 55 V
- The rated input voltage is 220 V
- Low-voltage operation - no
- Degree of protection - IP21S
- Burner cooling is air-cooled
- Burner connector - EURO
- Max wire diameter - 1.2
- Min wire diameter - 0.8
- Number of feed rollers - 2
- MMA Welding - yes
- TIG welding - yes
- Pulse welding mode - yes
- Water cooling is not included.
- Welding of aluminum - yes
- Digital display - yes
- Eurocat - D200/D300
- There is no network plug
- The case is not
- Dimensions without packaging - 401x176x270 mm
- Net weight - 14.5 kg
- Max welding current MMA - 250 A
- Min welding current MMA - 20 A
- Max welding current MIG-MAG - 250 A
- Min welding current MIG-MAG - 20 A
- The permissible voltage deviation is 15 %
- The presence of synergy - yes
- Burner length - 3 m
Characteristics Semi-automatic inverter welding machine MIG-255P "BRIMA"
General Specifications
China
Russia
Dimensions of packaged product
Dimensions of product
Specifications
Indicates the degree of protection of the device body from penetration of solid objects and moisture.
-
IP21 provides protection against large particles and vertically falling droplets (suitable only for dry, indoor areas).
- IP23 means protection against oblique rain (splashes at an angle up to 60°), which allows safe operation of the device on open construction sites.
Indicates the degree of protection of the device body from penetration of solid objects and moisture.
-
IP21 provides protection against large particles and vertically falling droplets (suitable only for dry, indoor areas).
- IP23 means protection against oblique rain (splashes at an angle up to 60°), which allows safe operation of the device on open construction sites.
The voltage at the terminals is switched on before the arc is ignited. The higher this value (closer to 80-100 V), the easier and faster the initial ignition occurs, and the more stable the arc burns (especially on rusty metal or with base-coated electrodes). Low values are typical for devices with a safe voltage reduction system (VRD).
The voltage at the terminals is switched on before the arc is ignited. The higher this value (closer to 80-100 V), the easier and faster the initial ignition occurs, and the more stable the arc burns (especially on rusty metal or with base-coated electrodes). Low values are typical for devices with a safe voltage reduction system (VRD).
The minimum thickness of the supported wire. The use of 0.6–0.8 mm wire is critically important for car body repair and work with sheet metal (up to 1-1.5 mm), as this minimizes heat build-up and avoids burning of parts.
The minimum thickness of the supported wire. The use of 0.6–0.8 mm wire is critically important for car body repair and work with sheet metal (up to 1-1.5 mm), as this minimizes heat build-up and avoids burning of parts.
The maximum diameter of the welding wire for which the feeding mechanism is designed. Thick wire (from 1.2 mm and above) is used for high-performance welding of massive industrial metal structures, providing fast filling of the welding pool.
The maximum diameter of the welding wire for which the feeding mechanism is designed. Thick wire (from 1.2 mm and above) is used for high-performance welding of massive industrial metal structures, providing fast filling of the welding pool.
Maximum current for manual arc welding. Provides the ability to work with thick electrodes. The high current reserve allows the device to operate for a long time at medium currents without overheating.
Maximum current for manual arc welding. Provides the ability to work with thick electrodes. The high current reserve allows the device to operate for a long time at medium currents without overheating.
Minimum current strength for manual welding. It is important when using the thinnest electrodes (for welding elements 1-2 mm thick) and for maintaining a stable arc at low currents.
Minimum current strength for manual welding. It is important when using the thinnest electrodes (for welding elements 1-2 mm thick) and for maintaining a stable arc at low currents.
The lower threshold of current regulation. The minimum values (10-30 A) are necessary for jewelry work, restoration, welding of tinplate and automobile panels without the risk of their warping or formation of through holes.
The lower threshold of current regulation. The minimum values (10-30 A) are necessary for jewelry work, restoration, welding of tinplate and automobile panels without the risk of their warping or formation of through holes.
Maximum current in semi-automatic mode. It directly affects the maximum thickness of the metal being melted in one pass. 160-200 A is sufficient for household needs, and devices with a current of 300 to 500 A are required for welding heavy steel structures in production.
Maximum current in semi-automatic mode. It directly affects the maximum thickness of the metal being melted in one pass. 160-200 A is sufficient for household needs, and devices with a current of 300 to 500 A are required for welding heavy steel structures in production.
