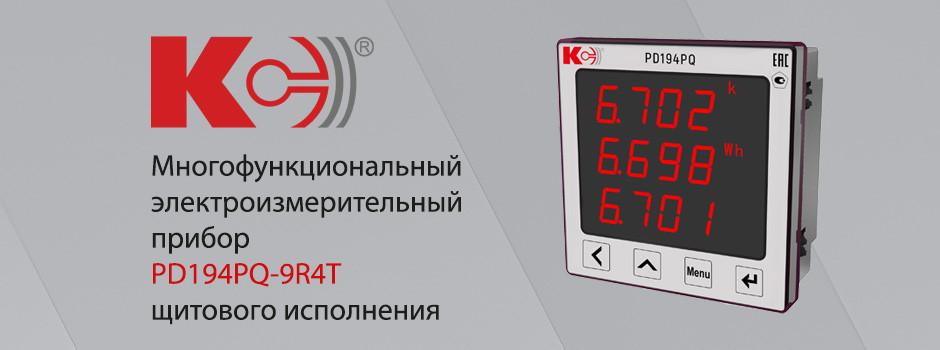

In modern low-voltage switchgear (LVSG), every centimeter on the DIN rail and panel counts. Instead of installing separate ammeters, voltmeters, wattmeters, and varmeters, a single device is all you need — the PD194PQ-9R4T from the KS® brand.
This is more than just a meter; it is a full-fledged component for telemetry and industrial automation systems (SCADA). The instrument can be configured directly from the front panel (no PC required), and its three-line LED display provides excellent readability even from a distance.
What Can It Do?

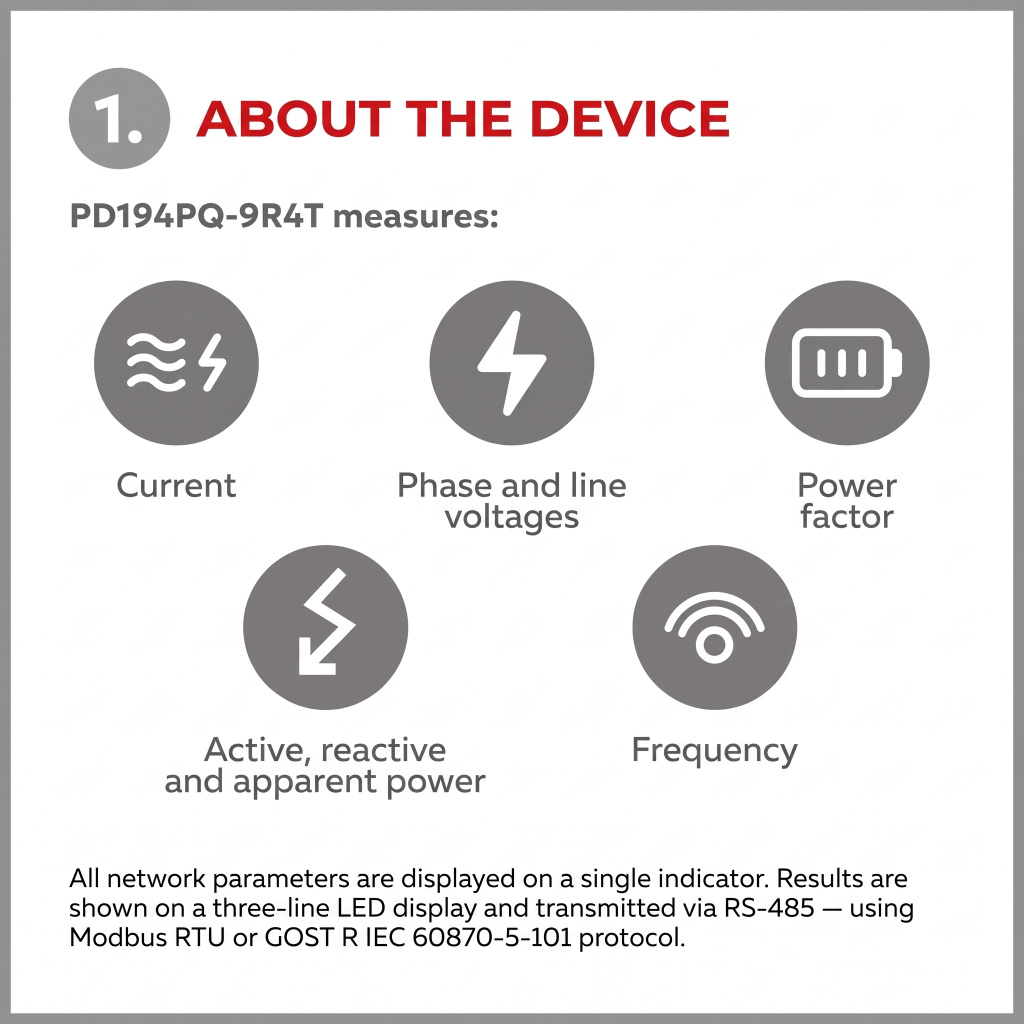

The device monitors 31 power network parameters:
-
Voltages: phase, line-to-line, average, zero-sequence.
-
Currents: phase, average, zero-sequence.
-
Power: active, reactive, apparent (per phase and total).
-
Power factors: per phase and total.
-
Frequency: 45 to 55 Hz.
All data is transmitted via the RS-485 (Modbus RTU) interface. It also features a pulse output for integration into energy metering and monitoring systems.

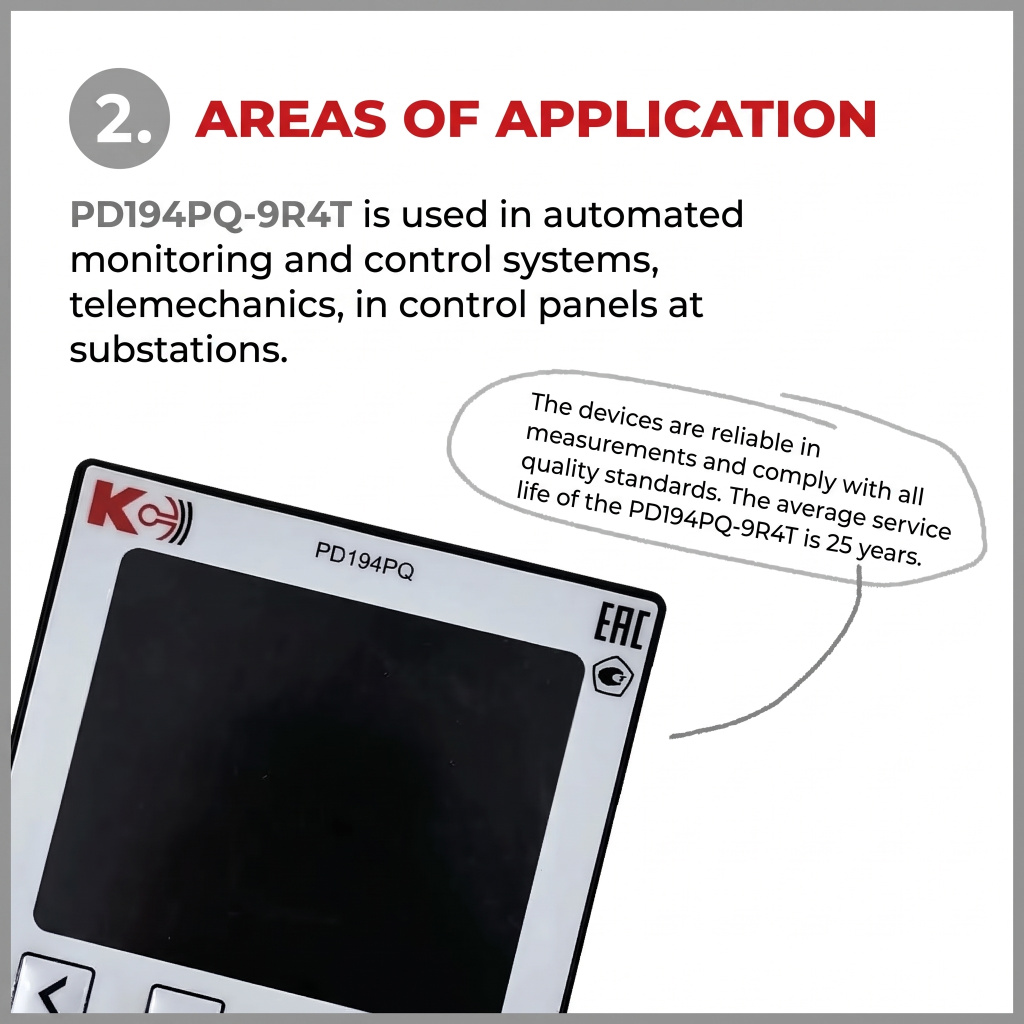

Tailored for Every Need: Who Needs the PD194PQ and Why?
We analyzed the specific challenges this instrument solves for different specialists.
|
Focus |
Benefit |
What You Get |
|---|---|---|
|
Versatility |
31 parameters. One device instead of thirty |
Instead of a clutter of separate sensors: current, voltage, power, and harmonics displayed on a three-line digital readout. |
|
Reliability / Harsh Environments |
Operates down to −40 °C |
IP66 front panel — resistant to dust, moisture, and washdowns. 25-year service life. RS-485, Modbus RTU, pulse output. |
|
For Design Engineers and SCADA Integrators |
Telemechanics without redesigns |
Direct communication with SCADA, automated metering (AMR/AMI), and data acquisition systems. Direct alternative to European metering units. |
|
For Metrologists |
State Register certified. Calibration every 8 years |
Accuracy class ±0.5%, verification interval of 8 years. |
|
Cost Efficiency |
Fewer devices — smaller enclosures |
31 parameters delivered by a single 96×96 device. 3-year warranty, 8-year calibration interval. |
Key Technical Highlights
-
Dimensions: 96×96 mm (standard panel-mount form factor).
-
Power Supply: 80...270 V (AC or DC).
-
Accuracy: Basic relative error ±0.5%.
-
Operating Conditions: −40 °C to +70 °C, relative humidity up to 95%.
-
Wiring Schemes: 3-phase 3-wire (3P3W) or 3-phase 4-wire (3P4W).
-
Service Life: Mean time between failures (MTBF) — 200,000 hours.
Fast Facts: State Register of Measuring Instruments No. 55602-13 · ±0.5% · IP66 · up to +70 °C · 25-year service life
 |
 |
 |
Technical Specifications Summary
- Measurements: 31 electrical network parameters (phase voltage, line-to-line voltage, average phase voltage, average line-to-line voltage, zero-sequence voltage; phase current, average phase current, zero-sequence current; per-phase and total active, reactive, and apparent power; per-phase and total power factor; frequency).
- Nominal AC Voltage Input (Un): 500 V.
- Nominal AC Current Input (In): 5 A.
- Communication Port: RS-485 (Modbus RTU).
- Three-line LED display (red).
- Overall Dimensions: 96×96 mm.
- Pulse Output: 1.
- Basic Relative Measurement Error: ±0.5%.
- Connection: 3-phase 3-wire or 3-phase 4-wire configuration.
- Configuration: Via front-panel push buttons.
- Auxiliary Power Supply: 80...270 V.
- Operating Temperature Range: −40 °C to +70 °C.
- Front Panel Ingress Protection: IP66 (according to GOST 14254-96 / IEC 60529).
- Average Service Life: 25 years.
- Verification Interval: 8 years.
- Warranty: 3 years.
PD194PQ-9R4T is not just another panel meter, but a complete turnkey solution handling multiple tasks at once: measurement, display, data transmission, and metering. Where you previously needed an entire array of analog meters and standalone transducers, a single 96×96 mm unit is now more than enough!
