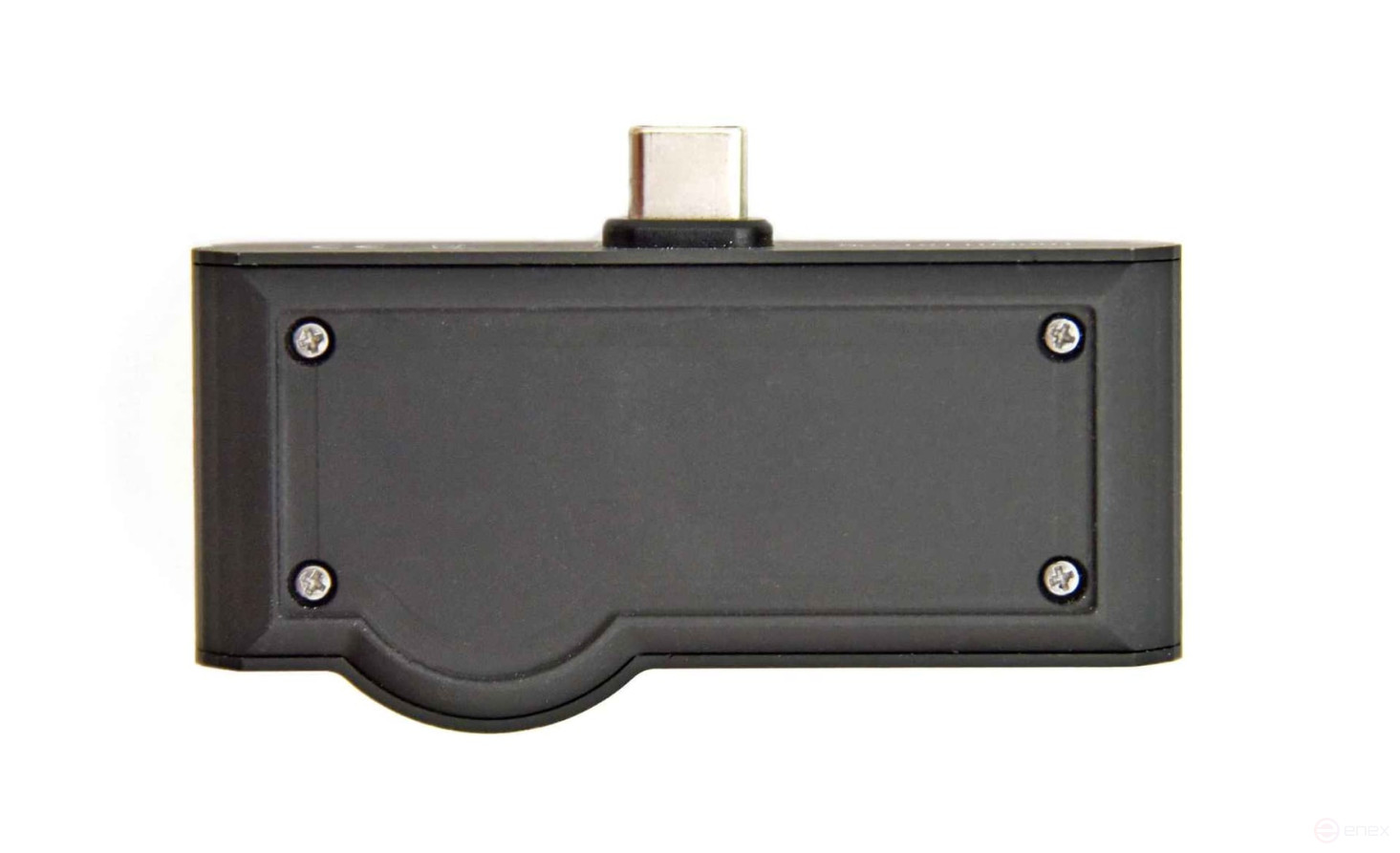

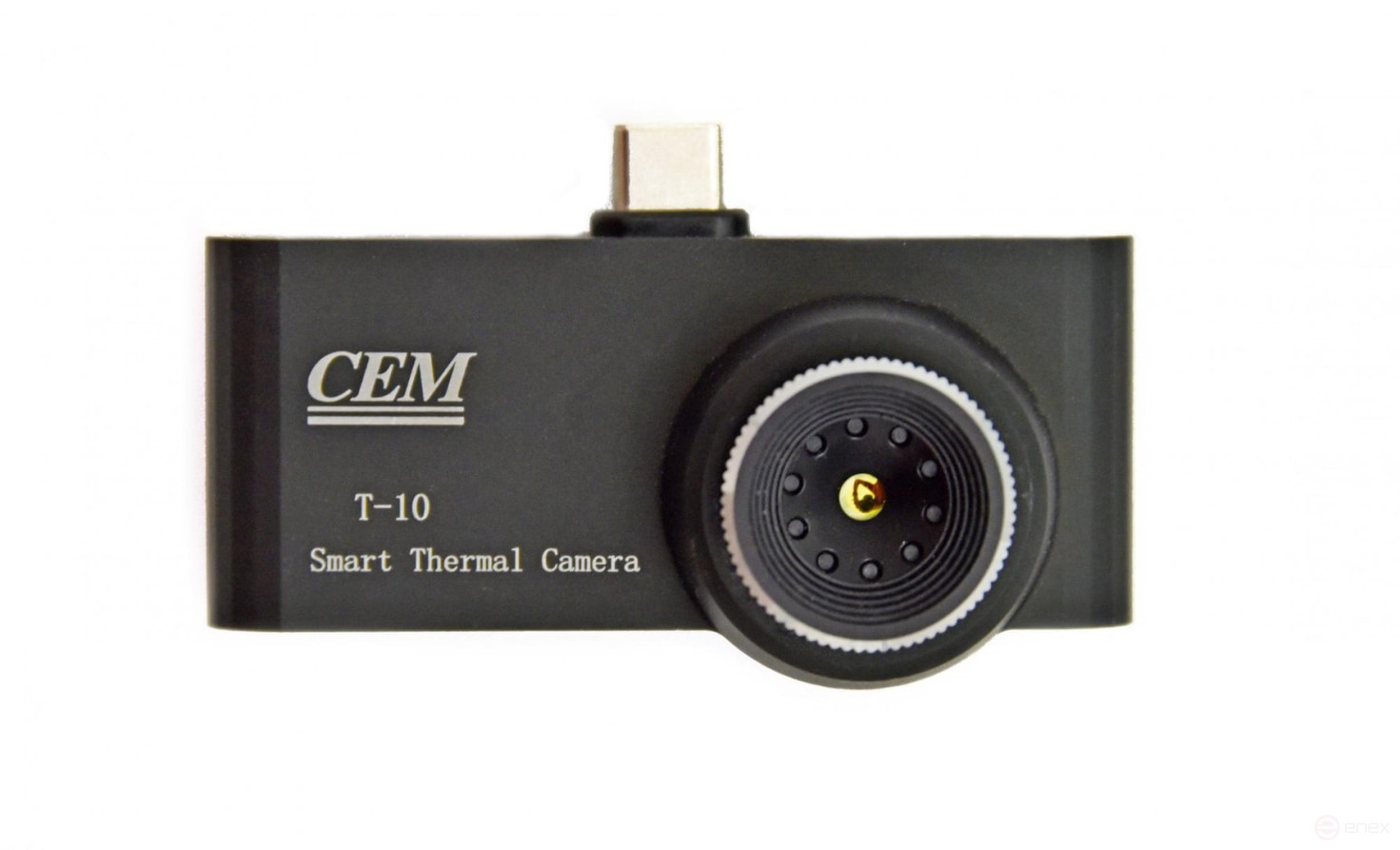

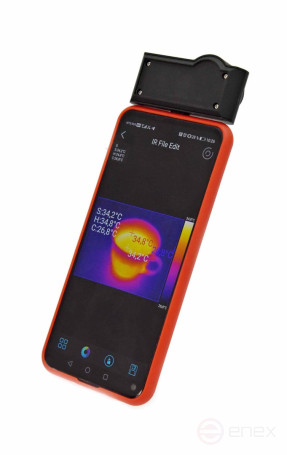

T-10 Thermal Imager Mobile
China
China
Description

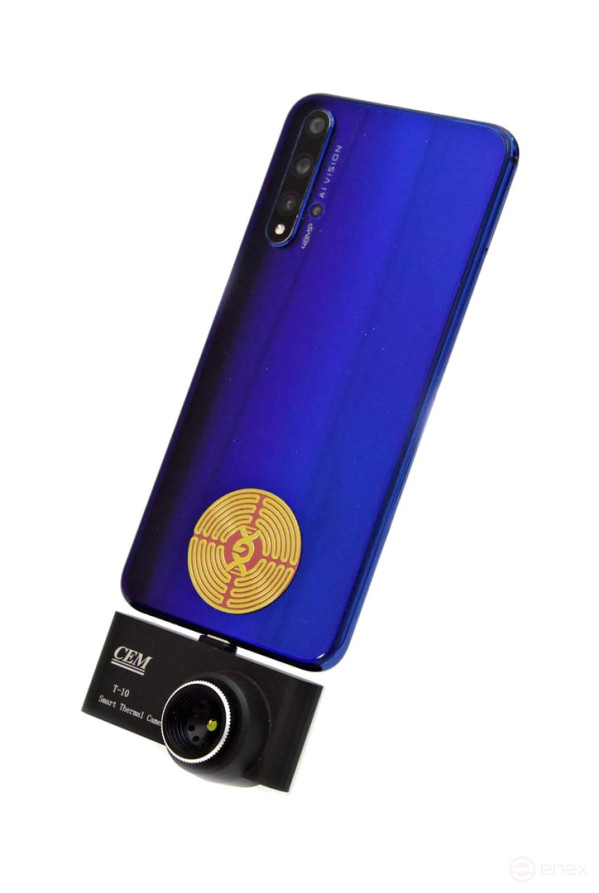

The CEM T-10 thermal imager is a universal device that allows you to accurately measure the temperature of various objects. Due to its compatibility with mobile devices and the Android operating system, as well as an intuitive interface, users can easily receive and study information.
Technical specifications
With a temperature range from -10 to +330°C and nine available color palettes, this thermal imager provides the user with a variety of options. The convenient manual focus mode and the option to enlarge the thermogram make it an ideal solution for temperature measurements using smartphones. The gadget is compatible with Android devices that have USB-C or Micro-USB connectors, which adds convenience during operation.
Creating snapshots and videos
The user can save information in HIR format, record video in MP4 format. There is also a function for selecting specific points, segments or sections for measuring temperature, and the notification system for exceeding the set range makes the use of the device more flexible and safer.

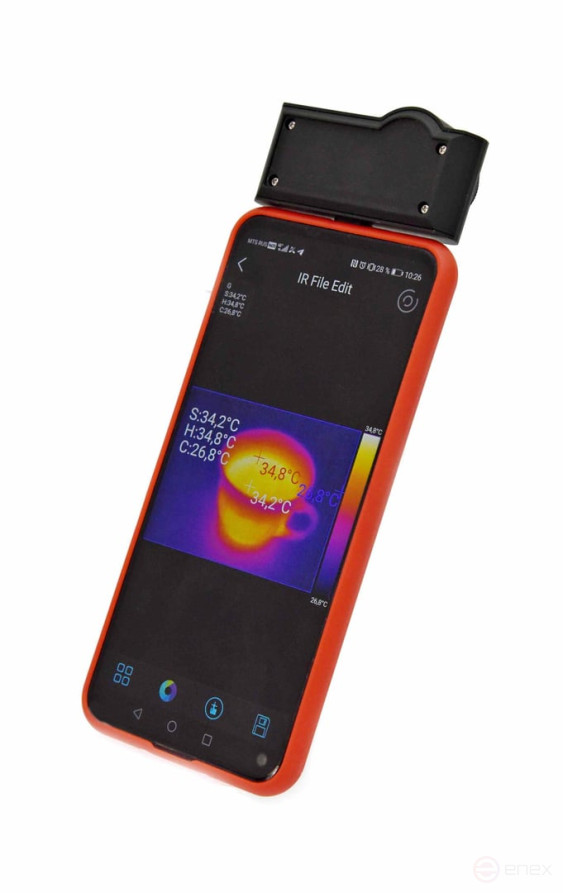

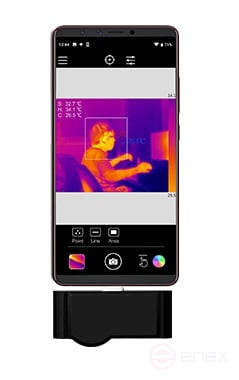

Smart Thermview APP
For convenience, the Smart Thermview APP has been developed. You can use it not only to view videos and thermograms, but also to make documentation in PDF format. Download the program from Google Play and evaluate all its functional advantages.
Reliable housing
Due to its shock-resistant housing, the thermal imager is able to withstand falls from a height of up to 2 meters, which is important for frequent use in difficult conditions.
Convenient charging
The device charges directly from your mobile phone, and therefore saves you from buying and replacing batteries.
Working distance
If you need to zoom in on the image for a thorough analysis, swipe across the smartphone display with two fingers. This way you can study small elements or monitor the temperature of objects at a distance of up to 330 meters.
Specifications:
Optical
- Resolution: IR camera 206 x 156 pixels
- Wavelength: 8 - 14 microns
- Scan frequency: 9 Hz
- Field of view, horizontal: 35.4°
- Vertical field of view: 26.8°
- Shutter: Automatic
- Focus mode: Manual
- Min. focus distance: Standard 0.5m, max. 1 m
- Detection range: 330 m
- Recognition range: 83m
- Identification range: 48m
Measurements
- Measuring range: -10° to 330°C (14° to 626°F)
- Accuracy (-10 to 100°C): ± 5°C (± 9°F)
- Accuracy (from 100 to 330 °C): ± 5%
- Temperature sensitivity:/NEDT at f / 1.0 Standard 50 mmk; max. 70mM at f / 1.2 Standard. 70mM; max. 100mM
Environmental conditions
- Operating temperature: -20° to 60°C (-4° to 140°F)
- Storage temperature: -20° to 80°C (-40° to 176°F)
- Humidity during operation/storage: <= 80%
- Mechanical impact Drop: from 2 m
Common
- Weight: 54g
- Dimensions (WxHxD): 68 x 33 x 28 mm
- Phone: Android

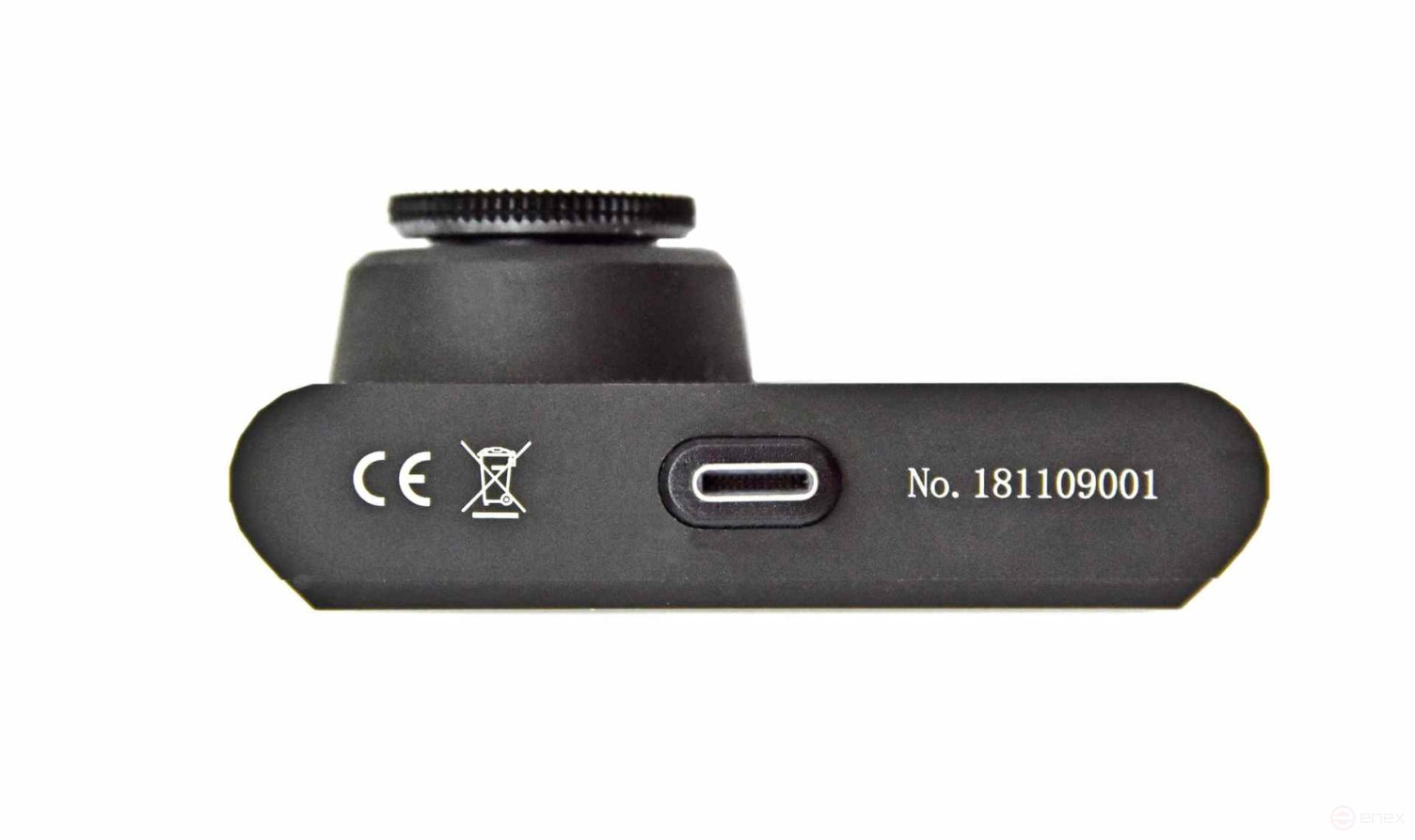

- Connections: USB-C / Micro USB
Application Features
- The color palette: 9 options
- Recording modes: Photo, Video
- File formats: HIR. Mp4
- Point: The central point
Automatic detection of hot/cold points: Markers of hot and cold points
- Temperature analysis: At a point / along a line / in an area
- PDF Report: Export and publish the report in PDF format.

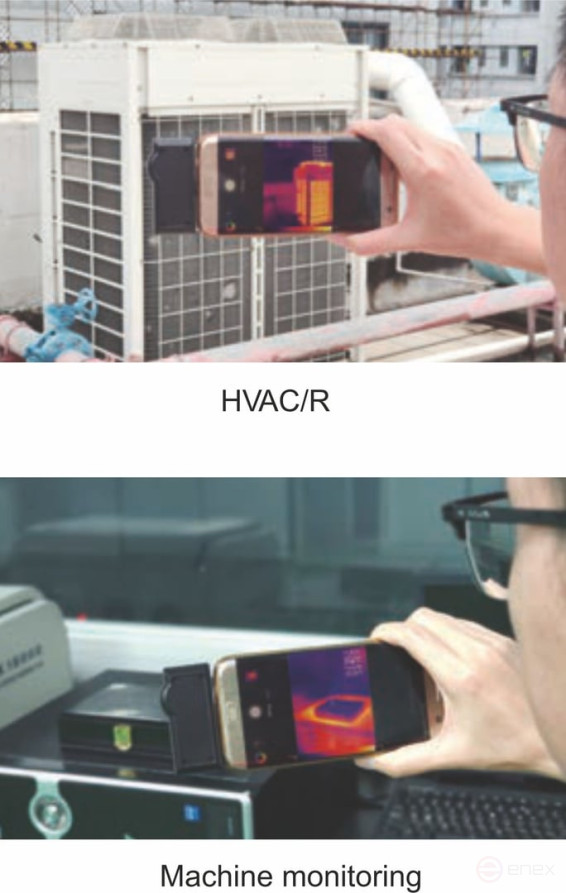

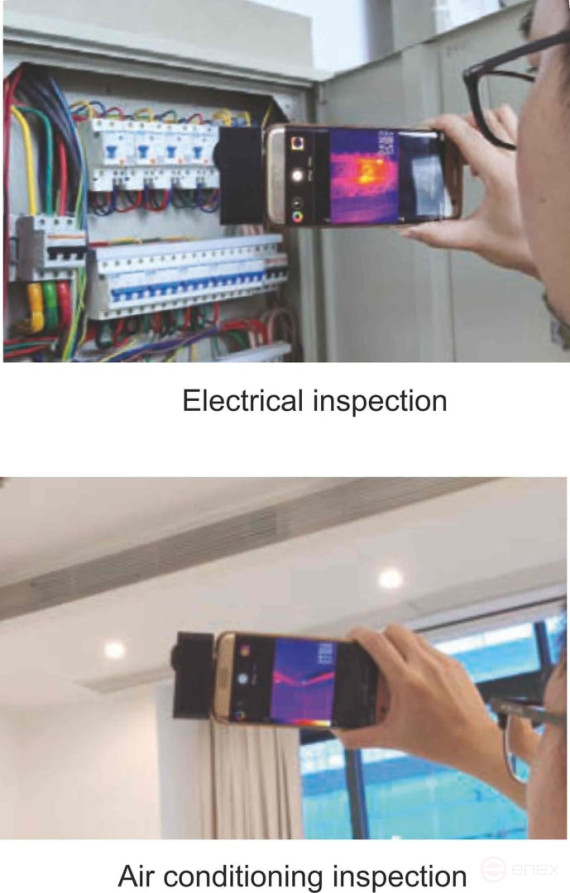

Applications
- HVAC/R electrical control
- Checking the air conditioner
- More control over the car
Package contents:
- Thermal imager CEM DT-867 - 1 pc.
- USB cable - 1 pc.
- Battery 3.7V 1300mA, Li-ion - 1 pc.
- User's Manual - 1 copy.
Characteristics T-10 Thermal Imager Mobile
General Specifications
China
China
Dimensions of packaged product
Specifications
Accuracy (or error) is the maximum allowable deviation of the measurement result from the actual temperature of the object. The smaller these numbers are, the more reliable the data you will receive.
- ±1°C / ±1% (High): Professional grade. It is necessary for energy audit, searching for microcracks in electronics and accurate scientific research. ±2°C / ±2% (Standard): The most common option. It is ideal for finding heat leaks in homes, checking the operation of underfloor heating and radiators.
- ±3°C and above (Basic): Budget models. They are suitable for household needs, when you just need to understand "hot or cold", without being tied to exact numbers.
Accuracy (or error) is the maximum allowable deviation of the measurement result from the actual temperature of the object. The smaller these numbers are, the more reliable the data you will receive.
- ±1°C / ±1% (High): Professional grade. It is necessary for energy audit, searching for microcracks in electronics and accurate scientific research. ±2°C / ±2% (Standard): The most common option. It is ideal for finding heat leaks in homes, checking the operation of underfloor heating and radiators.
- ±3°C and above (Basic): Budget models. They are suitable for household needs, when you just need to understand "hot or cold", without being tied to exact numbers.
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
Lower threshold:
- Usually -10...-20 °C: Important for finding heat leaks in winter, checking the quality of thermal insulation of walls and windows, and identifying "cold bridges" outside the building.
Upper threshold:
- Up to +120...+150 °C: Sufficient for checking heating systems, underfloor heating and finding blockages in radiators.
- Up to +300...+400 °C: Necessary for diagnostics of electrical panels, circuit breakers, loaded bearings and industrial equipment.
Lower threshold:
- Usually -10...-20 °C: Important for finding heat leaks in winter, checking the quality of thermal insulation of walls and windows, and identifying "cold bridges" outside the building.
Upper threshold:
- Up to +120...+150 °C: Sufficient for checking heating systems, underfloor heating and finding blockages in radiators.
- Up to +300...+400 °C: Necessary for diagnostics of electrical panels, circuit breakers, loaded bearings and industrial equipment.
The minimum temperature difference that the thermal imager distinguishes. The lower the value, the better.
- less than 40 mK — high sensitivity, minor heat leaks and cold bridges are visible;
- 50-70 mK is a good level for most tasks;
- more than 100 mK — only for a rough diagnosis of overheating.
For building surveys where temperature differences are low, sensitivity is more important than high resolution.
The minimum temperature difference that the thermal imager distinguishes. The lower the value, the better.
- less than 40 mK — high sensitivity, minor heat leaks and cold bridges are visible;
- 50-70 mK is a good level for most tasks;
- more than 100 mK — only for a rough diagnosis of overheating.
For building surveys where temperature differences are low, sensitivity is more important than high resolution.
- up to 120×90 — basic search for heat leaks and overheating;
- 160×120 — inspection of apartments and houses, electrical panels;
- 256×192 and 320×240 — detailed diagnostics of buildings, electrics and equipment;
- from 384×288 — professional energy audit and industrial diagnostics.
- up to 120×90 — basic search for heat leaks and overheating;
- 160×120 — inspection of apartments and houses, electrical panels;
- 256×192 and 320×240 — detailed diagnostics of buildings, electrics and equipment;
- from 384×288 — professional energy audit and industrial diagnostics.
