FTP4 CAT5E 24AWG Cu RIPO Twisted Pair Cable(200m)
Russia
China
Description

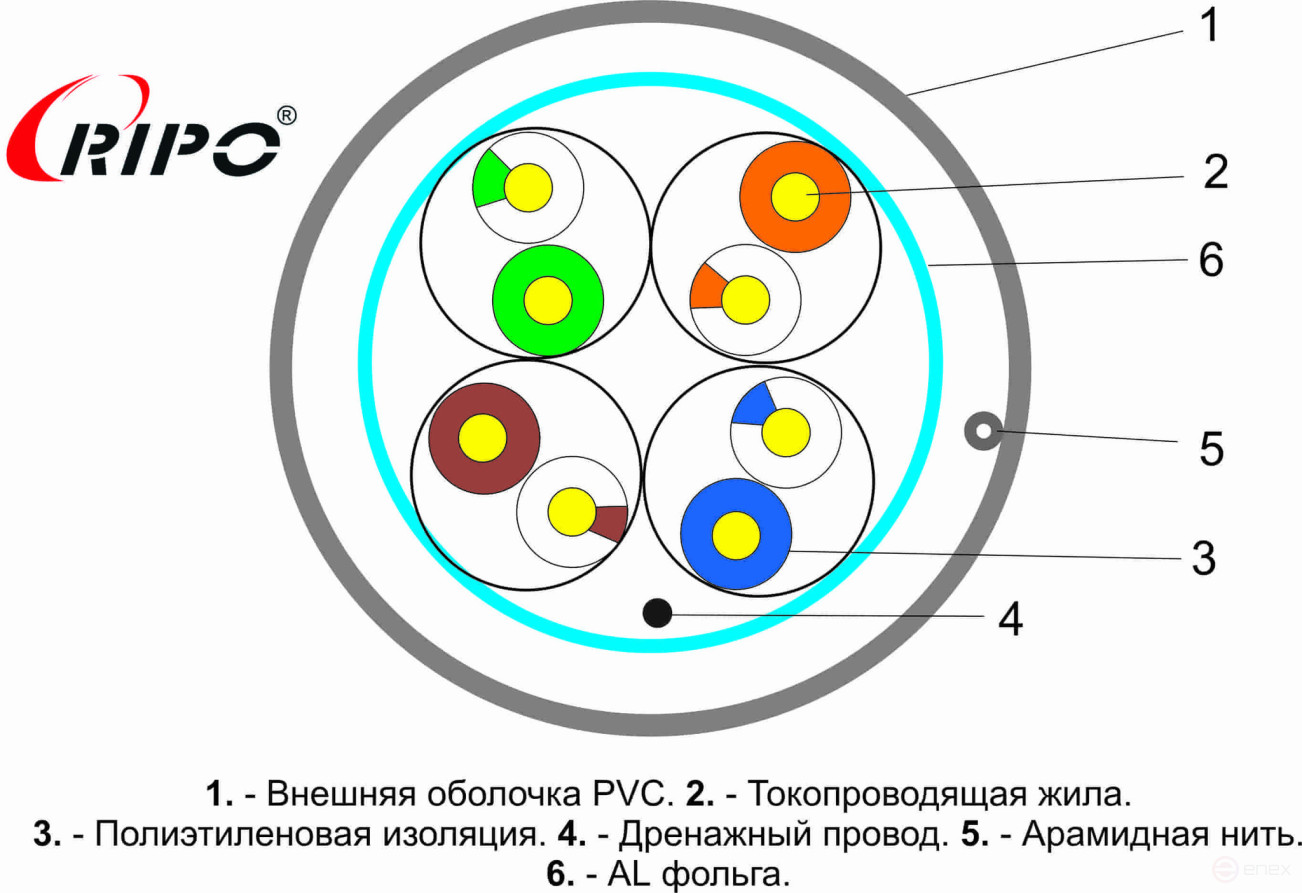

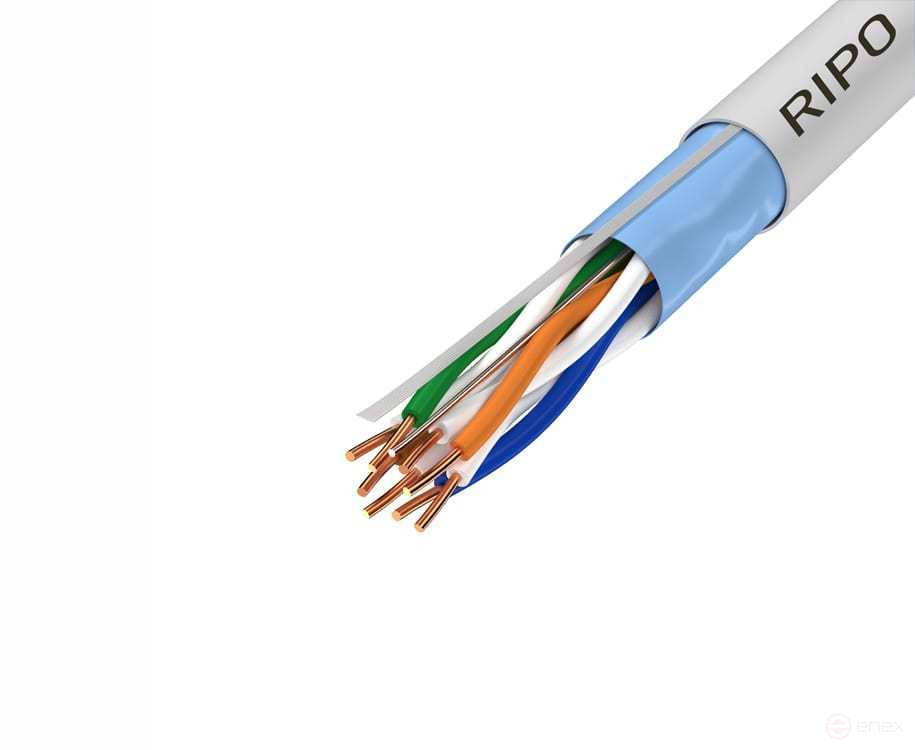

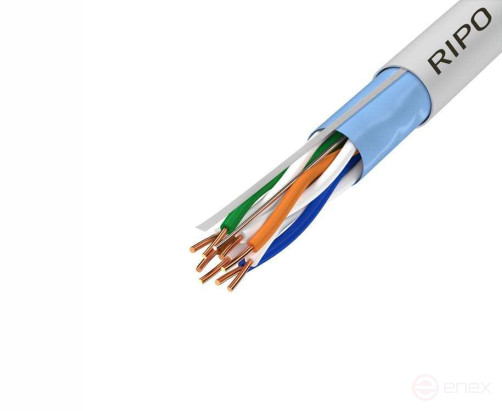

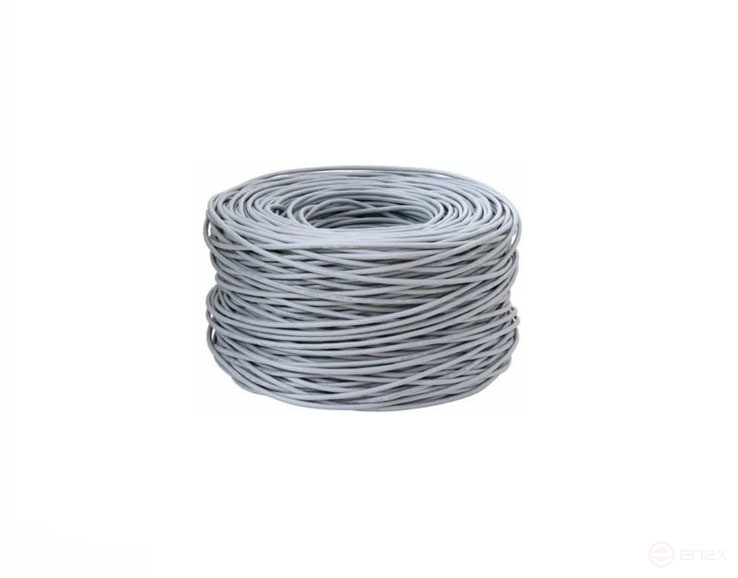

Grey Twisted Pair FTP 4 CAT5E 24AWG Cu RIPO (indoor) 200 m long shielded copper cable with four pairs of conductors. All the individual wiring inside has its own braid. The veins are covered with a shell made of dense PE. It has different color codes according to the accepted standard. There is a single-layer protective shield under the shell. The cable is protected from stray currents and interference, reliably transmits the signal over long distances.
The FTP 4 CAT5E twisted pair is designed for mounting networks for various purposes: computer, video surveillance, access control systems, telephony, and others. Today, this wire is the main one for connecting wired local area networks. The product is in high demand among Internet service providers, as it provides good signal quality at a low cost. Twisted pair FTP is mainly used indoors.
Main features:
- Simultaneous use of four pairs allows for data transfer speeds of up to 100 Gbit/sec (1000 Mbit/sec).
- Color code of this cable according to GOST 28763 - GY (color gray)
- Single-core cable (solid)
- The common name is FTP (with a screen)
- The designation according to ISO/IEC 11801 - F/UTP (there is a common foil screen, there is no screen for pairs)
- Has high strength
- Category: 5e
- Bandwidth, MHz: 100
- Number of pairs: 4
- Conductor Material: Copper (Cu)
- Conductor Type: Single Core
- Conductor diameter, mm: 0.46 ± 0.01 mm
- Conductor insulation material: High density polyethylene (HDPE)
- Outer shell material: Polyvinyl Chloride (PVC)
- Application: For internal gaskets
- Shell Color: Grey
- Protective film: Polyester (PET)
- Breaking thread: Yes
- Common screen design: AL/PET/AL
- Running weight, kg/km: 20.6
- Bending radius during laying, D: At least 8
- Bending radius during operation, D: At least 4
- Tensile force, H: Not more than 80
- Maximum allowable voltage: 80 V
- Wave resistance, Ohms: 100±15
- Compliance with standards: Meets the requirements of the following standards: ISO/IEC 11801, EN 50173 and TIA/EIA-568
- "Supported applications: 10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLAN, TR-4, TR-16 Active, TR-16 Passive"
- Length, m: 200
- Packaging: Individual - cardboard box / 2 packages in a common box
- Warranty: 1 year
The manufacturer reserves the right to change the appearance and characteristics of the product without reducing its consumer properties.
Electrical characteristics:
- The frequency range is up to 100 MHz.
- The electrical capacity of the pairs is not more than 56 nF/km.
- The resistance of the conductive core is not more than 96 ohms/km.
- The insulation resistance of the conductor is at least 5 GOm/km.
The wire is combined with the widely used 8P8C connector. When installing the cable, it is important not to bend it too much. If the bending radius is greater than 8 external bends of the cord itself, it will damage and fail faster. The unnatural position of the twisted pair also leads to a decrease in signal quality due to external interference.
During the installation process, experienced craftsmen check the integrity of the external cable shield and prevent it from bending. Strong tension can also damage the protection. In this case, there is a high probability that the wire will no longer be able to send a signal without interference. How long should the wire sheath be removed during installation? There are no strict requirements in this regard.
