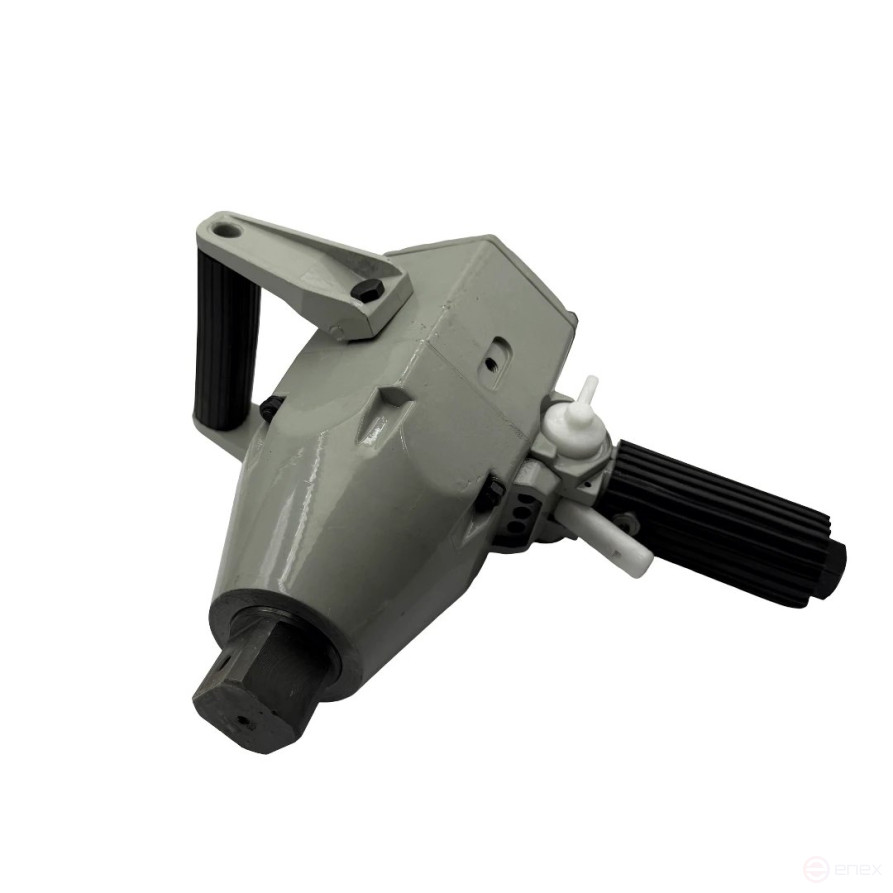

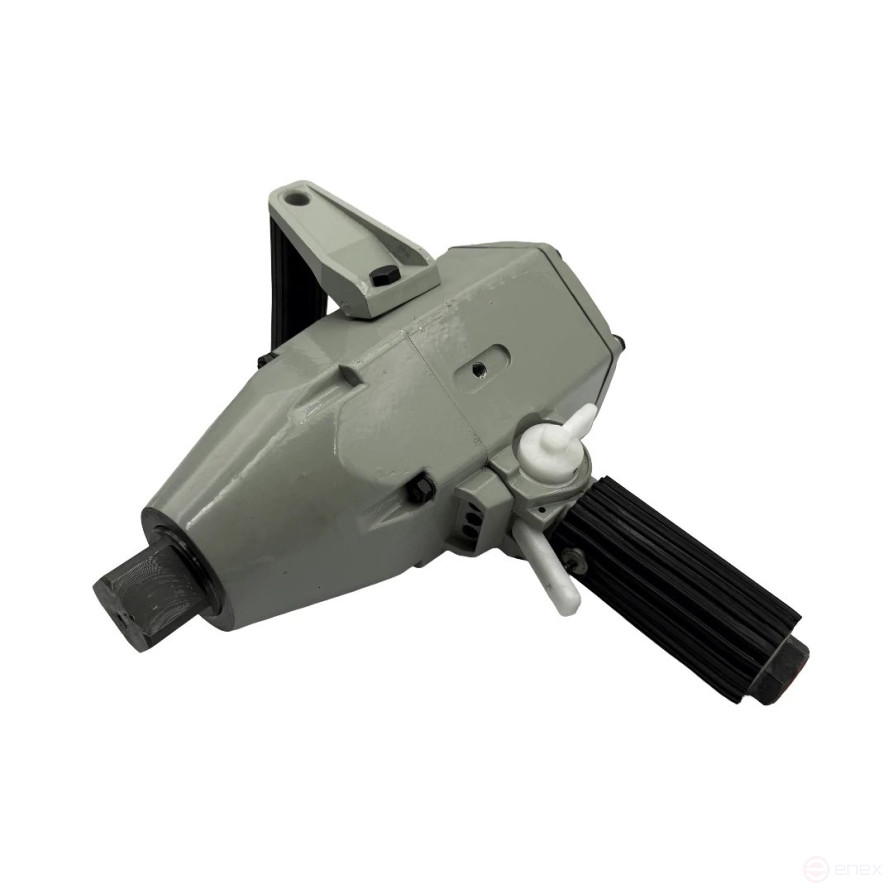

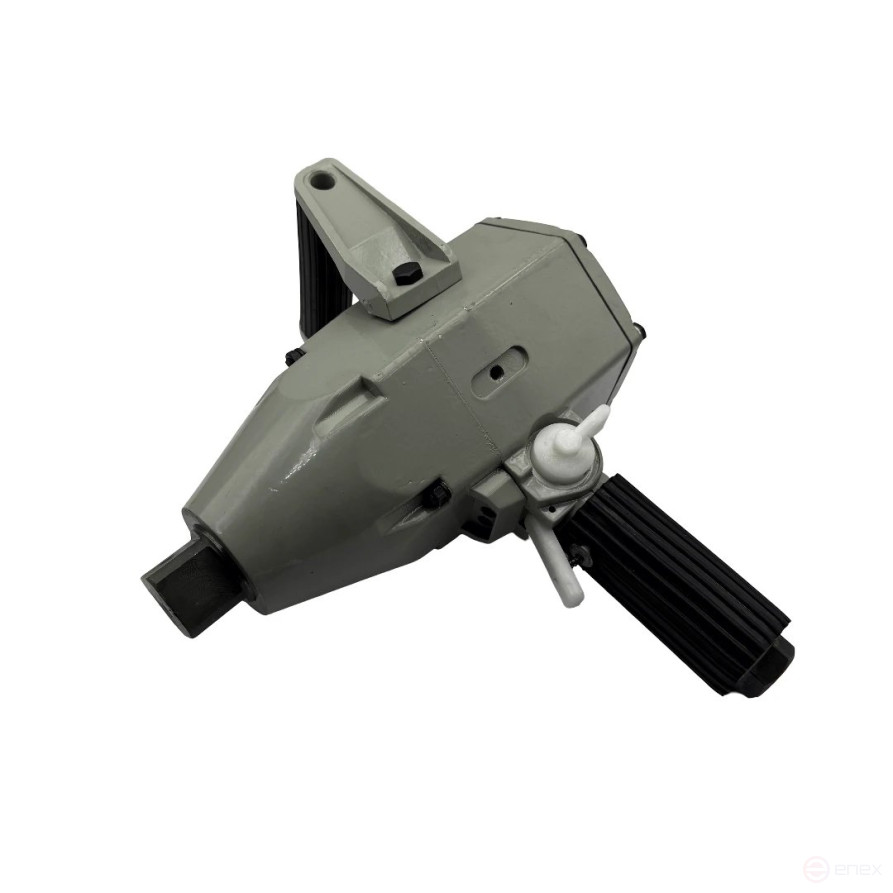

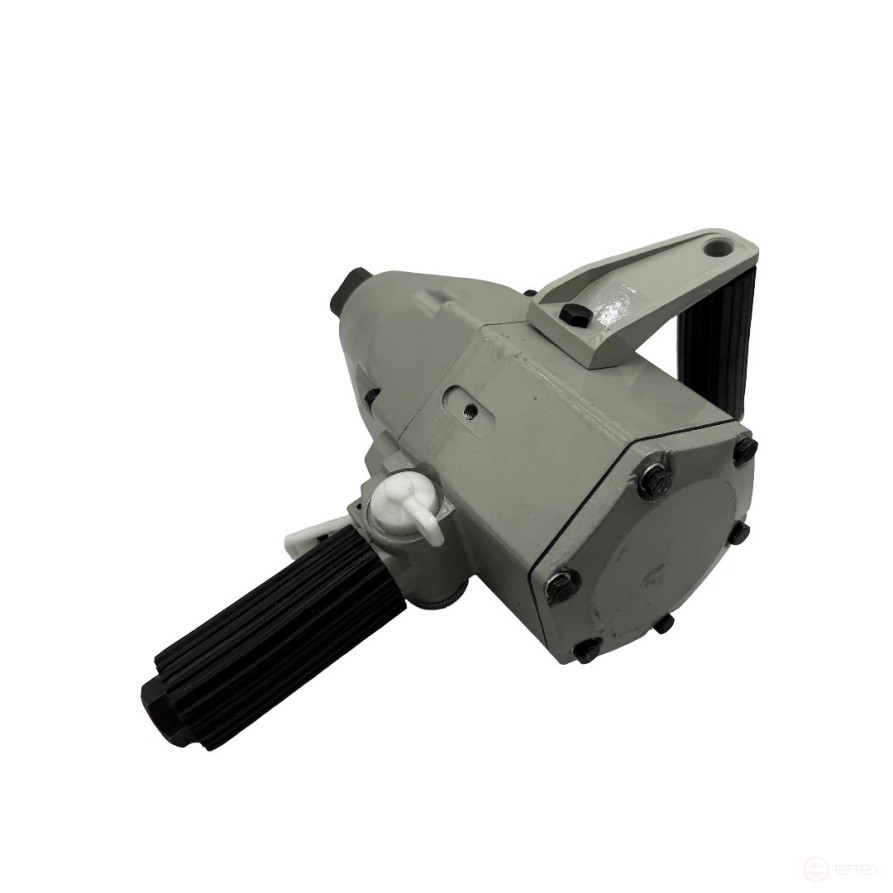

Pneumatic impact wrench IP-3128MC TORNERI T027579
Russia
China
Description
Pneumatic impact wrench IP-3128MC— it is a modern professional tool used for fast and efficient screwing and unscrewing of fasteners by shock-pulse method. The use of this device is justified in cases where standard methods are ineffective, and additional torque is required, created through short-term powerful impacts.
It is the optimal solution for removing rusted, tight or heavily secured fasteners widely used in automotive service, industrial production, construction and installation of large structures.
Construction and working units:
- Body: made of durable steel alloys, protected by high-quality paintwork and anodized aluminum housing, resistant to external influences.
- Pneumomechanism: includes a system for transferring air flow from the compressor to the tool motor, creating constant rotational movements complemented by a series of strong impacts.
- Impact mechanism: equipped with an internal valve assembly that automatically activates impact functions when there is increased resistance to ingrowth of fasteners.
The principle of operation:
The compressor pumps compressed air passing through the connecting line and entering the chambers of the instrument distribution unit. The air circulates in two directions, set by the position of the switch ("screw" or "unscrew"). With simple normal rotation, the mechanism operates in the usual way, however, when significant resistance occurs, shock pulses are activated, dramatically increasing the torque.
Materials used:
It is made mainly of special grades of metal with anti-corrosion treatment, and polymer compounds are used for some elements, which give additional strength and resistance to wear.
Applicability:
The IP-3128MC pneumatic impact wrench is popular in car centers, industrial enterprises, construction and repair works, providing high performance and accuracy of fixing fasteners. This tool saves time and improves the quality of operations performed, especially in situations where difficult mounting cases have to be dealt with.
Characteristics Pneumatic impact wrench IP-3128MC TORNERI T027579
General Specifications
China
Russia
Specifications
The inlet air pressure at which the wrench produces the rated torque. The standard is 6.2–6.3 bar (90 psi).
If the compressor holds less pressure, the torque drops almost proportionally: at 5 bar, the wrench may not unscrew the stuck nut. Adjust the compressor gearbox to the operating pressure of the wrench and use a hose with sufficient diameter so as not to lose pressure along the length.
The inlet air pressure at which the wrench produces the rated torque. The standard is 6.2–6.3 bar (90 psi).
If the compressor holds less pressure, the torque drops almost proportionally: at 5 bar, the wrench may not unscrew the stuck nut. Adjust the compressor gearbox to the operating pressure of the wrench and use a hose with sufficient diameter so as not to lose pressure along the length.
The maximum torque that the wrench develops in the unscrewing mode. The main parameter in the selection.
- 300-600 Nm — passenger wheels, body and engine repairs;
- 800-1400 Nm — SUVs, minibuses, stuck fasteners; 1500-3000 Nm and above — trucks, special equipment, metal structures.
The tightening torque of the wrench is noticeably lower than the maximum, so the wheels and critical connections are tightened with a torque wrench.
The maximum torque that the wrench develops in the unscrewing mode. The main parameter in the selection.
- 300-600 Nm — passenger wheels, body and engine repairs;
- 800-1400 Nm — SUVs, minibuses, stuck fasteners; 1500-3000 Nm and above — trucks, special equipment, metal structures.
The tightening torque of the wrench is noticeably lower than the maximum, so the wheels and critical connections are tightened with a torque wrench.
The method of fixing the head on the wrench shaft.
- Locking ring (hog ring) — the heads change quickly, without tools;
- Ring pin (pin detent) — the head is fixed rigidly, does not fly off under high loads, standard for 3/4" and 1"; The ball lock is a compromise between replacement speed and reliability.
The method of fixing the head on the wrench shaft.
- Locking ring (hog ring) — the heads change quickly, without tools;
- Ring pin (pin detent) — the head is fixed rigidly, does not fly off under high loads, standard for 3/4" and 1"; The ball lock is a compromise between replacement speed and reliability.
