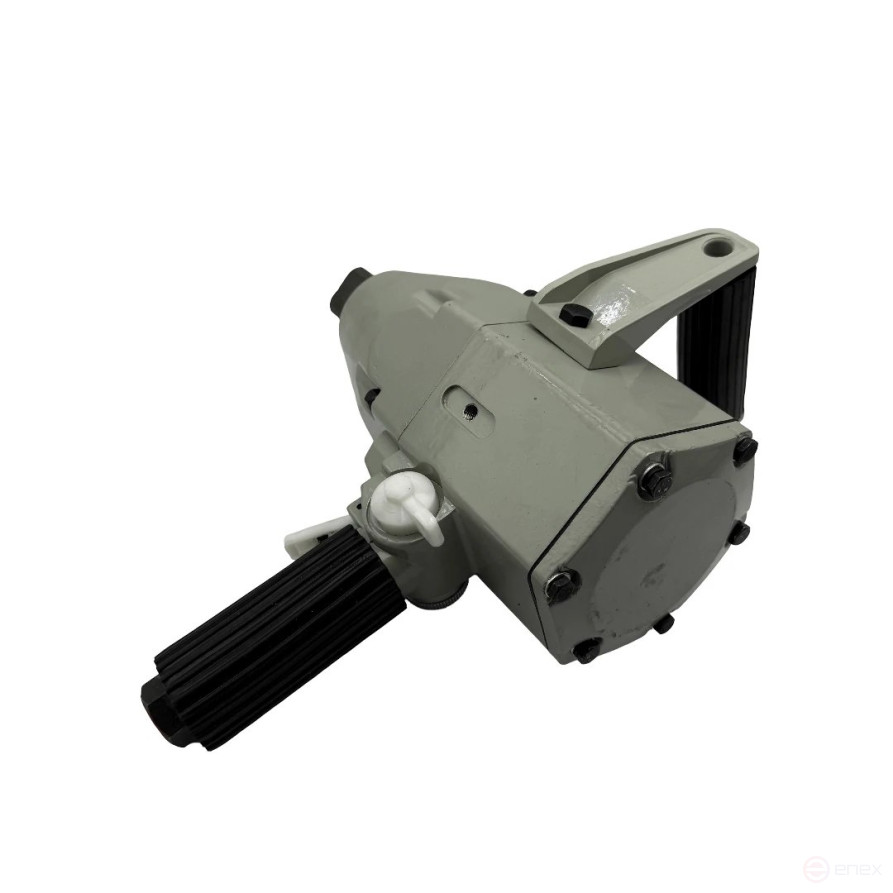

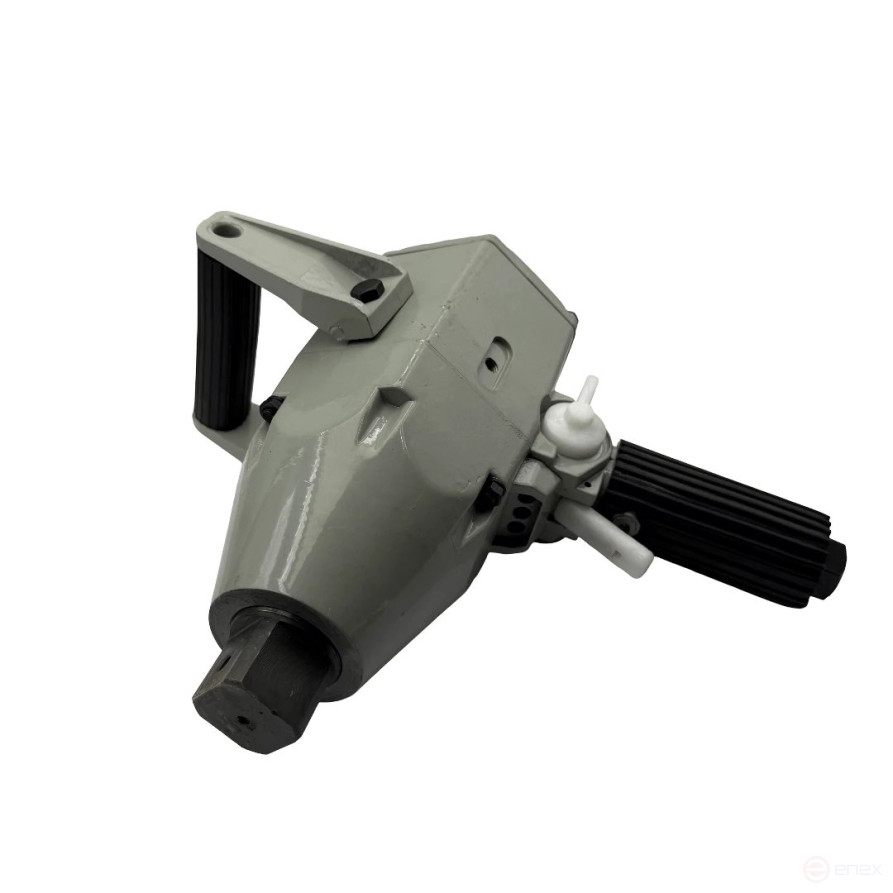

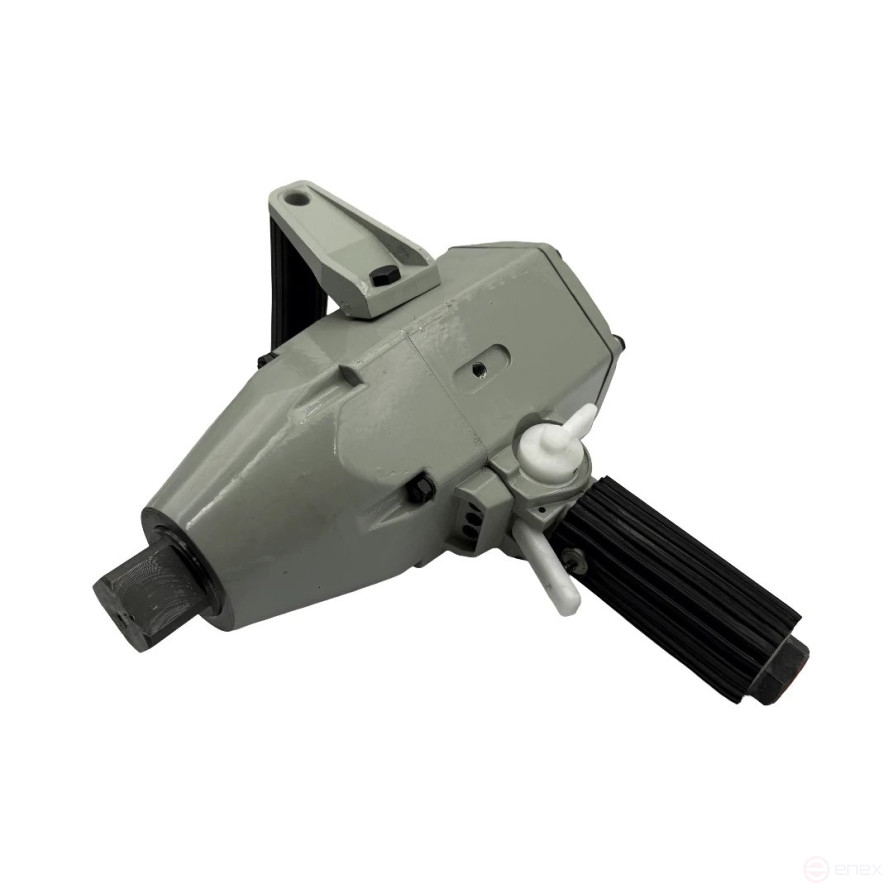

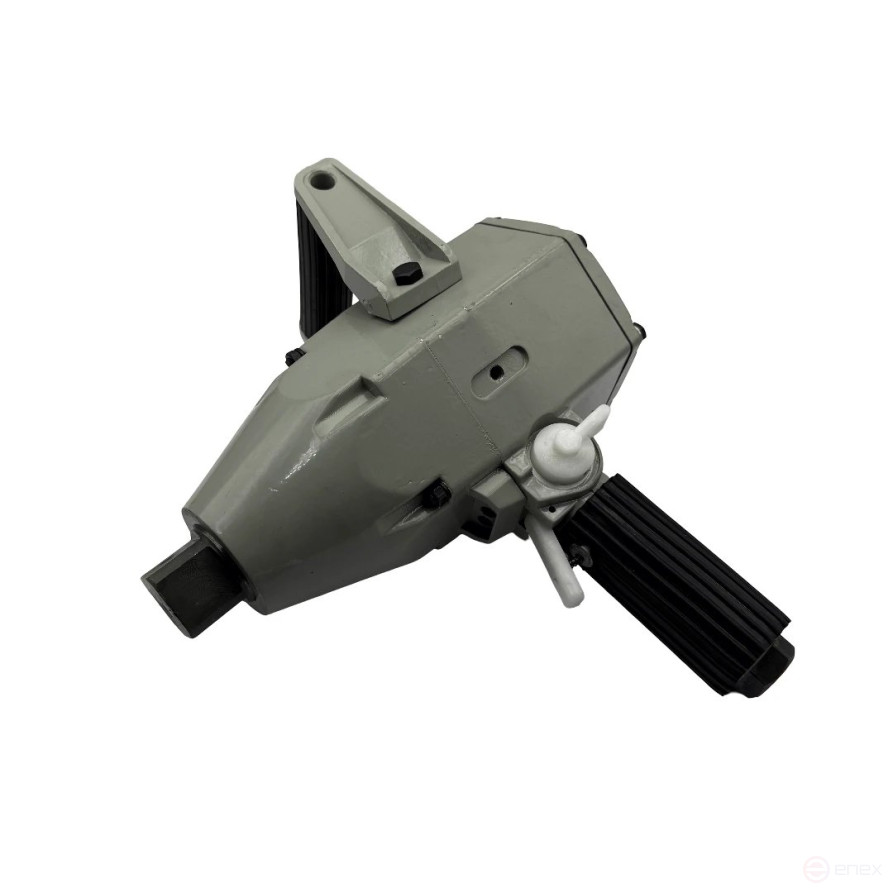

Pneumatic impact wrench IP-3115 TORNERI T027578
Russia
China
Description
Pneumatic impact wrench IP-3115— it is a specialized tool designed for fast and reliable screwing and unscrewing of bolts, nuts and other fasteners. A distinctive feature is the use of the shock-pulse method, which makes it possible to create short-term powerful impacts that increase the torsional force required to release rusted or heavily tightened joints.
This tool is indispensable where high speed operation and significant effort are required when unscrewing old fasteners. A special feature of the impact wrench is the ability to work in confined spaces, due to its compact dimensions and the possibility of using elongated attachment cartridges.
Device and design solution:
- Body: made of metal, coated with an anti-corrosion zinc layer, has plastic inserts for convenience and reliable grip by the operator.
- Pneumatic motor: provides compressed air coming from the compressor through a hose and converts the airflow into a useful rotational motion of the tool head.
- Impact mechanism: activates automatically when the maximum rotational resistance is reached, forming additional pulses of force aimed at loosening the fastener.
Operation of the tool:
Compressed air passes into the wrench through the connecting hose and is distributed inside the housing by two channels arranged in such a way as to ensure either clockwise rotation (twisting) or counterclockwise rotation (unscrewing). The driving mode is set by a special switch on the device body. When the tool feels a strong resistance to movement, an additional impact mechanism is triggered, which increases the overall force and helps to quickly cope with difficult fasteners.
Execution materials:
- The main material is galvanized metal, protected from corrosion.
- Additional parts and inserts are made of plastic, providing a light and comfortable grip.
Characteristics Pneumatic impact wrench IP-3115 TORNERI T027578
General Specifications
China
Russia
Specifications
The inlet air pressure at which the wrench produces the rated torque. The standard is 6.2–6.3 bar (90 psi).
If the compressor holds less pressure, the torque drops almost proportionally: at 5 bar, the wrench may not unscrew the stuck nut. Adjust the compressor gearbox to the operating pressure of the wrench and use a hose with sufficient diameter so as not to lose pressure along the length.
The inlet air pressure at which the wrench produces the rated torque. The standard is 6.2–6.3 bar (90 psi).
If the compressor holds less pressure, the torque drops almost proportionally: at 5 bar, the wrench may not unscrew the stuck nut. Adjust the compressor gearbox to the operating pressure of the wrench and use a hose with sufficient diameter so as not to lose pressure along the length.
The maximum torque that the wrench develops in the unscrewing mode. The main parameter in the selection.
- 300-600 Nm — passenger wheels, body and engine repairs;
- 800-1400 Nm — SUVs, minibuses, stuck fasteners; 1500-3000 Nm and above — trucks, special equipment, metal structures.
The tightening torque of the wrench is noticeably lower than the maximum, so the wheels and critical connections are tightened with a torque wrench.
The maximum torque that the wrench develops in the unscrewing mode. The main parameter in the selection.
- 300-600 Nm — passenger wheels, body and engine repairs;
- 800-1400 Nm — SUVs, minibuses, stuck fasteners; 1500-3000 Nm and above — trucks, special equipment, metal structures.
The tightening torque of the wrench is noticeably lower than the maximum, so the wheels and critical connections are tightened with a torque wrench.
The method of fixing the head on the wrench shaft.
- Locking ring (hog ring) — the heads change quickly, without tools;
- Ring pin (pin detent) — the head is fixed rigidly, does not fly off under high loads, standard for 3/4" and 1"; The ball lock is a compromise between replacement speed and reliability.
The method of fixing the head on the wrench shaft.
- Locking ring (hog ring) — the heads change quickly, without tools;
- Ring pin (pin detent) — the head is fixed rigidly, does not fly off under high loads, standard for 3/4" and 1"; The ball lock is a compromise between replacement speed and reliability.
