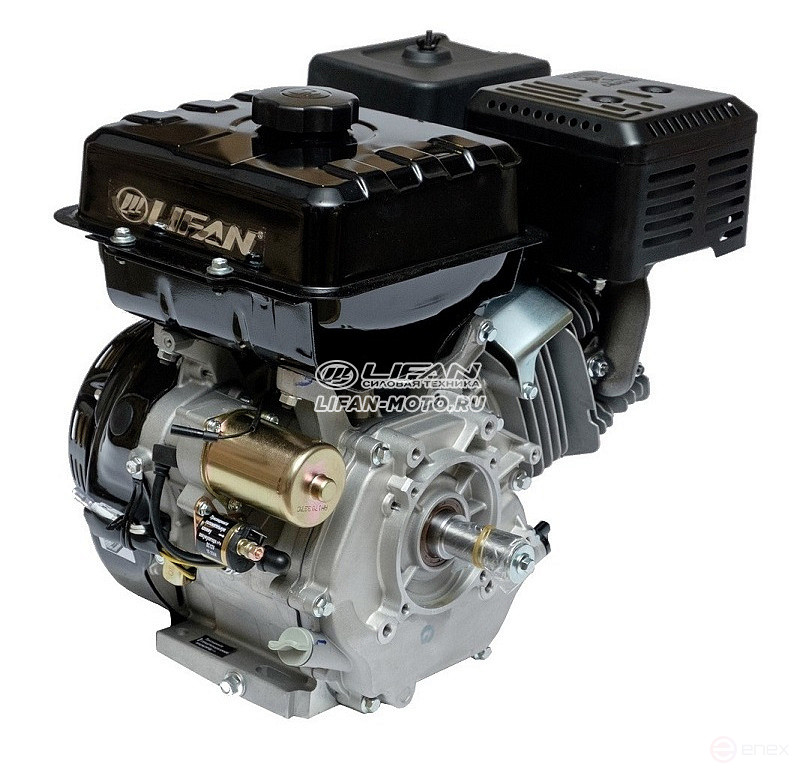

Lifan 190FD-C engine, 25mm shaft, 18 Amp coil
Russia
China
Description
The Lifan 190FD-C gasoline engine of the Pro series (coil 18A) is designed for installation on various household appliances. This model combines durability, cost-effectiveness with moderate cost and ease of use. The engine also has manual and electric start, which is very convenient and provides additional features when operating the engine. The motor is equipped with an 18 Amp lighting coil, which allows you to connect useful electrical equipment with a capacity of up to 216 watts. It is a four-stroke single-cylinder internal combustion engine.
The working volume of the cylinder is 420 cubic centimeters. The cylinder diameter and the type of gas distribution mechanism make it possible to ensure the compact size of the engine. This model uses widely used AI-92 gasoline as fuel, so there will be no problems with fuel. The crankshaft has a horizontal arrangement. The torque reaches 25 Nm at 2500 rpm, while maintaining high stability and low gasoline consumption. The fuel tank capacity is 6.5 liters, one refueling is enough for long-term continuous operation. The lubricant used is 10x30, 10x40 engine oil, which is accessible and well-known to every motorist. No more than 1.1 liters are required for one oil filling. The transistor ignition system is easy to maintain and durable, it contributes to the stable operation of the engine under all conditions.
The Lifan 190FD-C engine of the PRO series has a mass of 33 kilograms. Its simple design will not create problems during installation or maintenance, the use of efficient air cooling allows you to actively operate the engine even in hot weather, a convenient starting cable ensures easy engine start.
Advantages of the Lifan 190FD-C PRO series engine (18 Ampere):
- 4-stroke engine, single cylinder, OHV, horizontal shaft, air cooling.
- The ignition is electronic.
- The launch system is a manual start.
- Easy start-up, thanks to the decompression system.
- Thoughtful design and compact dimensions.
- 18 Amp coil, rectifier.
- Threaded gas tank cap, attached to a chain.
- The fuel tank is mounted on a vibrating plate.
- It is resistant to additional vibrations and shocks.
Technical specifications:
- Maximum power, hp: 15
- Shaft location: Horizontal
- Shaft diameter, mm: 25
- Cylinder diameter, mm: 90
- Stroke of the piston, mm: 66
- Working volume, cm3: 420
- Compression ratio: 8.2:1
- Power, kW/rpm: 10.5 kW at 3600 rpm in min.
- Torque: 25 Nm at 2500 rpm in min.
- Ignition System: Contactless electronic
- Starting: Electric and manual start
- Fuel tank capacity, L: 6.5
- Fuel consumption, g/kWh: 374
- Engine oil volume, l: 1.1
- Dimensions, mm: 500x410x440
- Package dimensions, mm: 520x445x525
- Lighting Coil: 18 Ampere
- Gearbox availability: None
- Engine type: Petrol 4-stroke single cylinder
- Engine Model: 190FD-C
- Idle speed, rpm: 1350 (+/-50)
- Fuel supply system: carburetor
- Shaft type: LS type
- Shaft length, mm: 60
- Weight (gross), kg: 36
- Weight (net), kg: 33
