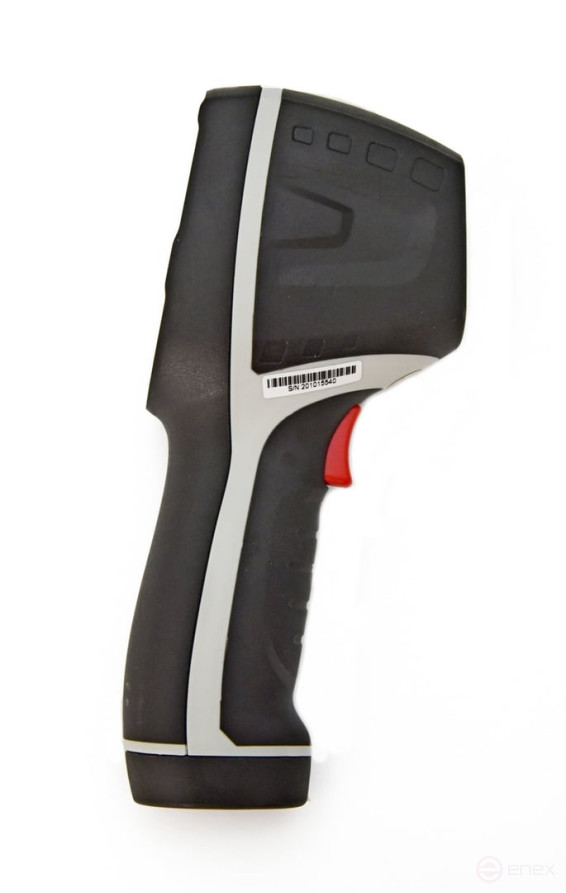

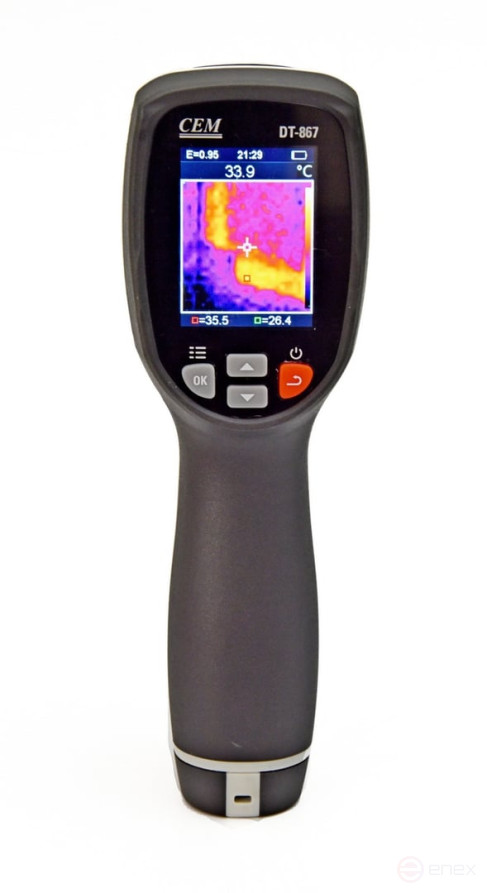

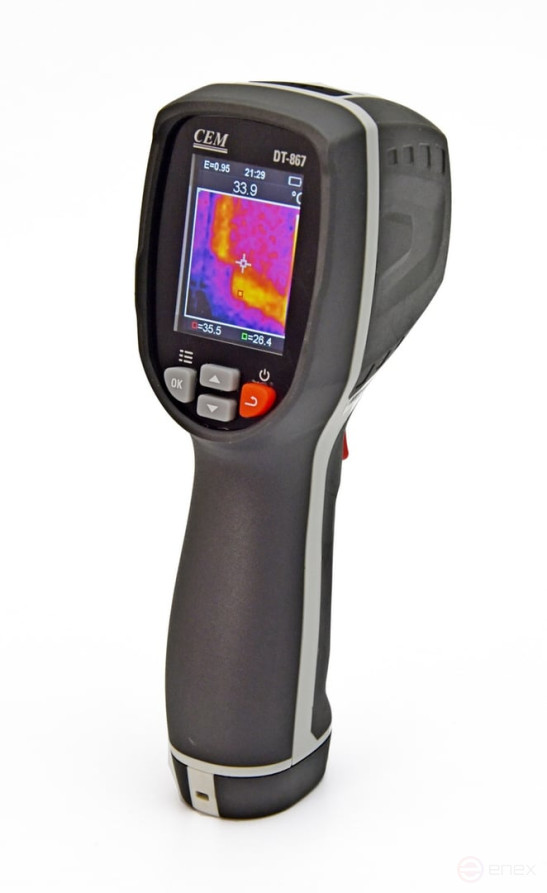

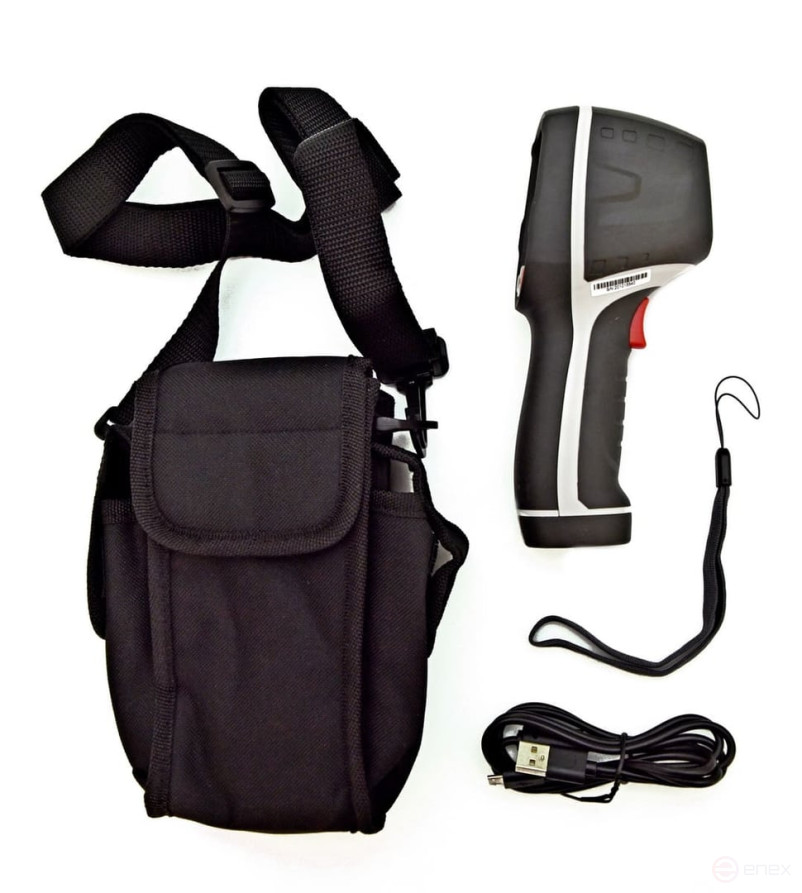

DT-867 Compact Thermal Imager
China
China
Description
A pocket thermal imager with a 32x32 matrix is a portable device for determining the temperature of various objects and their surfaces. It is operable at temperatures from -20 to 600 °C. The maximum possible difference between the results is ±3°C.
Due to its compact size, the device can be used for taking measurements in difficult conditions, as well as as an alternative to other measuring equipment.
How it is used
The CEM DT-867 thermal imager is used for maintenance and inspection of industrial equipment, electrical networks, as well as for:
- Transport repairs.
- Assessment of the correct storage of products in warehouses, as well as in chambers operating at low temperatures.
- Commissioning and diagnostics of equipment of different groups.
- Control of technological processes, as well as products in the food sector.
Technical features
The dimensions of the device are 175x58x70 mm. The thermal sensitivity is less than 347 mK. The built-in battery provides up to four hours of continuous operation of the device. The weight of the device is 0.5 kg.
Functional
The compact thermal imager captures the temperature while simultaneously recording the highest and lowest values. There are special frames for peak values. You can also configure warnings about indicators going beyond the set limits. The color palette allows you to adjust the image to different conditions, makes it easier to read the image.
Documentation
The device simultaneously stores up to one hundred images. Exporting to a PC is done using a USB cable. To simplify data sorting, it is enough to correctly enter the survey data (date and time). The warranty for the device is 2 years.
Specifications:
- Entered in the state register No
- There is no verification
- Dimensions, mm 175x58x70
- Probe type infrared
- Error, °C,± 3
- Matrix resolution, px 32x32
- Batteries original replaceable battery
- Number and voltage of 1x3.7B batteries
- Number of batteries included 1
- There is no automatic mountain/cold spot recognition
- Manual focus No
- Operating temperature, °C from 0 to +40
- There is no telephoto lens
- Weight, kg 0.5
- Measuring range, °C -20 to +600
Characteristics DT-867 Compact Thermal Imager
General Specifications
China
China
Dimensions of packaged product
Specifications
Accuracy (or error) is the maximum allowable deviation of the measurement result from the actual temperature of the object. The smaller these numbers are, the more reliable the data you will receive.
- ±1°C / ±1% (High): Professional grade. It is necessary for energy audit, searching for microcracks in electronics and accurate scientific research. ±2°C / ±2% (Standard): The most common option. It is ideal for finding heat leaks in homes, checking the operation of underfloor heating and radiators.
- ±3°C and above (Basic): Budget models. They are suitable for household needs, when you just need to understand "hot or cold", without being tied to exact numbers.
Accuracy (or error) is the maximum allowable deviation of the measurement result from the actual temperature of the object. The smaller these numbers are, the more reliable the data you will receive.
- ±1°C / ±1% (High): Professional grade. It is necessary for energy audit, searching for microcracks in electronics and accurate scientific research. ±2°C / ±2% (Standard): The most common option. It is ideal for finding heat leaks in homes, checking the operation of underfloor heating and radiators.
- ±3°C and above (Basic): Budget models. They are suitable for household needs, when you just need to understand "hot or cold", without being tied to exact numbers.
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
- up to 120×90 — basic search for heat leaks and overheating;
- 160×120 — inspection of apartments and houses, electrical panels;
- 256×192 and 320×240 — detailed diagnostics of buildings, electrics and equipment;
- from 384×288 — professional energy audit and industrial diagnostics.
- up to 120×90 — basic search for heat leaks and overheating;
- 160×120 — inspection of apartments and houses, electrical panels;
- 256×192 and 320×240 — detailed diagnostics of buildings, electrics and equipment;
- from 384×288 — professional energy audit and industrial diagnostics.
