The SPFL-LEVEL spotlight is a professional series of outdoor/industrial floodlights designed for uniform and energy efficient illumination of large open spaces: sports facilities, construction sites, quarries, warehouses and industrial areas. Modern LEDs provide high light output, and the cast aluminum housing design with an improved radiator guarantees reliable heat dissipation and durability. The universal power supply range of 100-277 V and surge protection up to 10 kW increase resistance to unstable networks. The swivel bracket and cantilever pipe adapter make it easier to mount on various supports.
Key features of the SPFL-LEVEL spotlight
- Power: 500-1300 watts with the option of switchable/step-by-step power modes.
- Wide power supply range: 100-277 V.

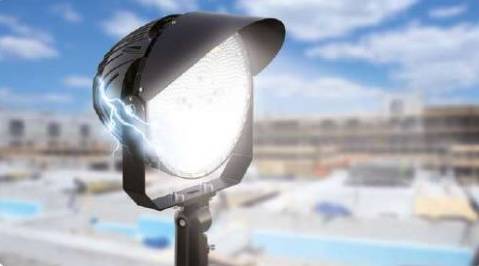

- Surge protection up to 10 kW.
- The body is made of cast aluminum with an improved radiator.
- Enclosure protection class: IP66 - high level of tightness and dust/moisture protection.
- Glow angle: 40-45° - concentrated illumination over long distances.
- Mounting: swivel bracket, adapter for cantilever pipe - vertical and horizontal mounting.
- Color temperature: 5000 K (neutral-cold light).
- Dimming: 0-10 V (depending on model/configuration).
|
|
|
|
| High color rendering index CRI80 | Degree of protection IP66 | Wide voltage range of 100 - 277 V | Surge protection up to 10 kW; |
Technical characteristics of SPFL-LEVEL (basic models)
Luminous flux (lm), luminous efficiency (lm /W), dimensions and color rendering index (CRI) depend on the specific configuration and configuration - check with the supplier or in the technical data sheet of the model.
Application of the SPFL-LEVEL spotlight
- Stadiums;
- Sports complexes;
- Training grounds;
- Quarry and construction sites;
- Open industrial areas;
- Industrial zones;
- Warehouses and logistics hubs;
- Lighting of perimeters and high-risk areas where reliability and resistance to weather and electrical influences are important.
Advantages of using an SPFL-LEVEL spotlight
- Effective illumination of large spaces with fewer fixtures due to high power and narrow angle of illumination.
- Rugged reliability: IP66 and surge protection up to 10 kW.
- Versatile mounting thanks to the swivel bracket and console adapter. The wide power supply range of 100-277 V simplifies integration into different power grids.
- Dimming capability (0-10 V) to optimize energy consumption and lighting scenarios.
When choosing equipment, consider the following features:
- Check the availability and dimming parameters for the selected configuration.
- Request information about luminous flux, luminous efficiency, and CRI in the technical data sheet to calculate illumination.
- Select the mounting kit and adapter for the necessary support (cantilever pipe or wall).
- Consider corrosion protection and coatings for use in harsh environments.
