Volkel

VOLKEL - Thread cutting solutions.

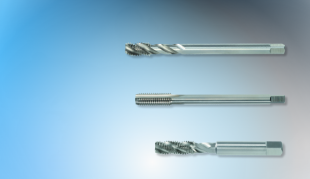

VOLKEL (Germany) - thread cutting. Taps, dies, thread restoration tools, equipment.

Based on 95 years of experience in the manufacture of metal cutting tools, VOLKEL has now become one of the well-known successful manufacturers of thread-cutting tools.

Four important aspects of VOLKEL that make the company successful:

• Specialization. VOLKEL concentrates on what it does best - thread repair tools.
• Quality. VOLKEL guarantees consistent, good industrial quality.
• Price. VOLKEL offers the best price for its range of products.
• Service. VOLKEL guarantees the possibility of delivering more than 99% of the order directly from the warehouse. The sale of products is organized exclusively from the central warehouse in Remscheid (Germany). This ensures the quality of the goods and, what is no less important, the quality of deliveries. The range of products is more than 7,000 different names of almost all international thread shapes.

V-COIL thread restoration.

V-COIL (VOLKEL) (Germany) - Thread restoration technology. Taps, drills, inserts, technical equipment.

Used to restore threaded holes in body parts, complex-shaped parts, large-sized parts or high-cost parts. Repair of threaded holes is performed by installing spiral or solid V-shaped thread inserts. This allows for a stronger thread than the original.

The existing V-COIL technology allows for repair of threads: М2 (6Н) - М36 (6Н); G1/8" - G1"; UNC2" - UNC 1 1/2"; UNF 1/2" - UNF 1 1/2"; BSW 1/8" - BSW 1"; BSF 3/16" - BSF 1.

The main advantage of V-COIL technology is its compactness, due to which no structural changes to the repaired unit are required!

The procedure for repairing threaded holes:

• After determining the basic parameters of the threaded hole to be repaired, such as the type, size, thread pitch, and hole depth, the completeness of the repair kit is determined.
• This is a drill of a certain diameter, the required number of threaded inserts (in case of repairing several holes) for a given type of thread and hole length, a tap for cutting threads for the insert (Attention! The taps are marked with the nominal size of the thread being repaired), a special tool for installing the insert.

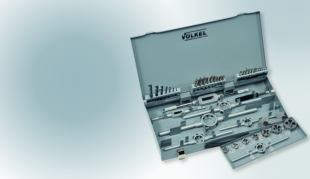

• For ease of use, the V-COIL range includes sets of all the necessary tools for thread repair.
• Drill out the damaged thread using any available method.
• Cut the thread for the insert. It is recommended to use coolant.
• Using a special tool, screw in the insert without applying much force.
