Fork grip with adjustable feet ZVPL 1.5
Russia
Russia
Description

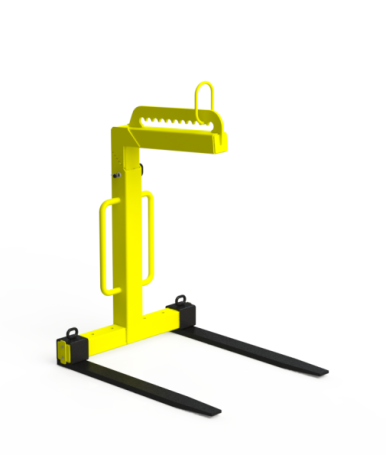

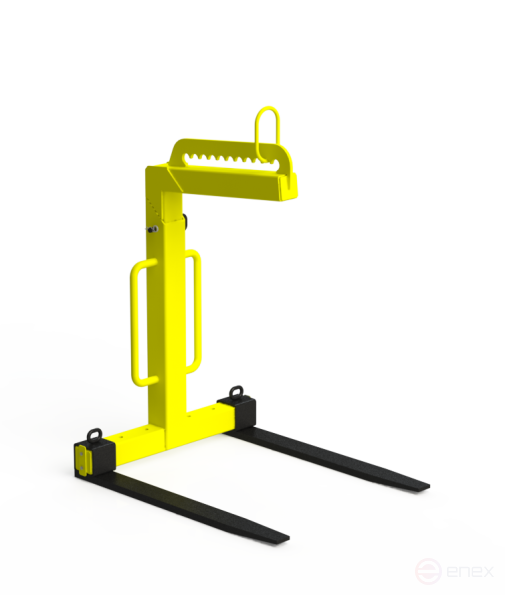

The ZVPL rack gripper is a lifting device for lifting and moving loads on pallets and in containers adapted for fork gripping. The model with a lifting capacity of 1.5 tons (1,500 kg) is used in warehouses, production sites, logistics centers and shopping malls. The design with adjustable legs allows you to adjust the width of the grip for different sizes of loads.
Advantages:
- 1,500 kg load capacity — suitable for handling heavy loads on pallets.
- Adjustable grip width — adapts to different sizes of pallets and loads.
- Safety — reliable fixation of the load prevents it from shifting or falling during movement.
- Durability — made of high-strength structural steel, designed for intensive use.
- Anti—corrosion protection - coating (galvanized or powder coated) protects against rust and prolongs service life.
- Versatility — compatible with different types of lifting equipment (cranes, hoists, loaders).
- User—friendliness - easy adjustment of the paws position without additional tools.
- Compact when folded, it simplifies storage and transportation of the gripper.
- Wide temperature range — operable at temperatures from -40 °C to +40 °C.
- Russian production is a guarantee of quality, availability of spare parts and service.
Technical specifications:
- Model: ROMEK ZVPL.
- Load capacity: 1.5 t (1,500 kg).
- Grip type: fork, with adjustable paws.
- Fork length: 1,000 mm.
- Grip width (adjustable): 380-900 mm.
- Fork thickness: 40 mm.
- Working height: 1 300-2 000 mm.
- Total height: 1,572-2,272 mm.
- Body material: high-strength structural steel.
- Coverage: anti-corrosion (galvanized or powder coated).
- Weight: 189 kg.
- Package dimensions (L×W×H): 1,500×1,000×600 mm.
- Color: yellow or orange (please specify when ordering).
- Country of manufacture: Russia.
- Warranty: 18 months.
- Operating temperature range: -40 °C to +40 °C.
Design features:
- Adjustable feet — allow you to adjust the width of the grip to work with different sizes of pallets and loads.
- Reinforced forks — withstand high loads, resistant to deformation.
- Locking mechanisms — securely hold the paws in a given position, eliminating spontaneous displacement.
- The bracket for fastening is compatible with hooks of lifting mechanisms, provides fast connection.
- The marking on the body contains information about the load capacity, model, production date and batch number.
- Ergonomic design — simplifies the installation and removal of the gripper, reduces operator fatigue.
- Thickened fork walls — increase strength and resistance to impact loads.
ZVPL rack gripper is used for:
- lifting and moving loads on standard Euro pallets and industrial pallets;
- work on warehouse complexes with different types of pallets;
- transportation of packaged goods, building materials, and equipment;
- cargo movement in production halls and logistics terminals;
- used as part of lifting systems (cranes, hoists, winches);
- works in conditions of limited space due to the compact design;
- loading/unloading of goods in open areas and in enclosed spaces;
- for use in various climatic conditions (including low temperatures up to -40 °C).
Operating and maintenance recommendations
To ensure that the gripper serves for a long time and safely:
- Before each use, check the forks, paws and locking mechanisms for cracks, deformations and corrosion.
- Make sure that the lifting capacity of the gripper corresponds to the weight of the load (no more than 1,500 kg).
- Before lifting, perform a trial test: lift the load to a small height and make sure that the gripper securely locks the pallet.
- Install the gripper symmetrically relative to the center of gravity of the load — this will ensure an even distribution of the load.
- Avoid sudden jerks and bumps when lifting and lowering — this reduces the life of the mechanism.
- Do not exceed the load capacity of 1,500 kg: overloading can lead to deformation or destruction of the structure.
- Use only serviceable lifting mechanisms and fixtures that comply with safety standards.
- After work, clean the gripper from dust, dirt, moisture and aggressive substances.
- Store in a dry place, avoid prolonged exposure to high humidity and chemicals.
- If cracks, chips, jamming of mechanisms or signs of corrosion are found, stop using and send the gripper for inspection.
