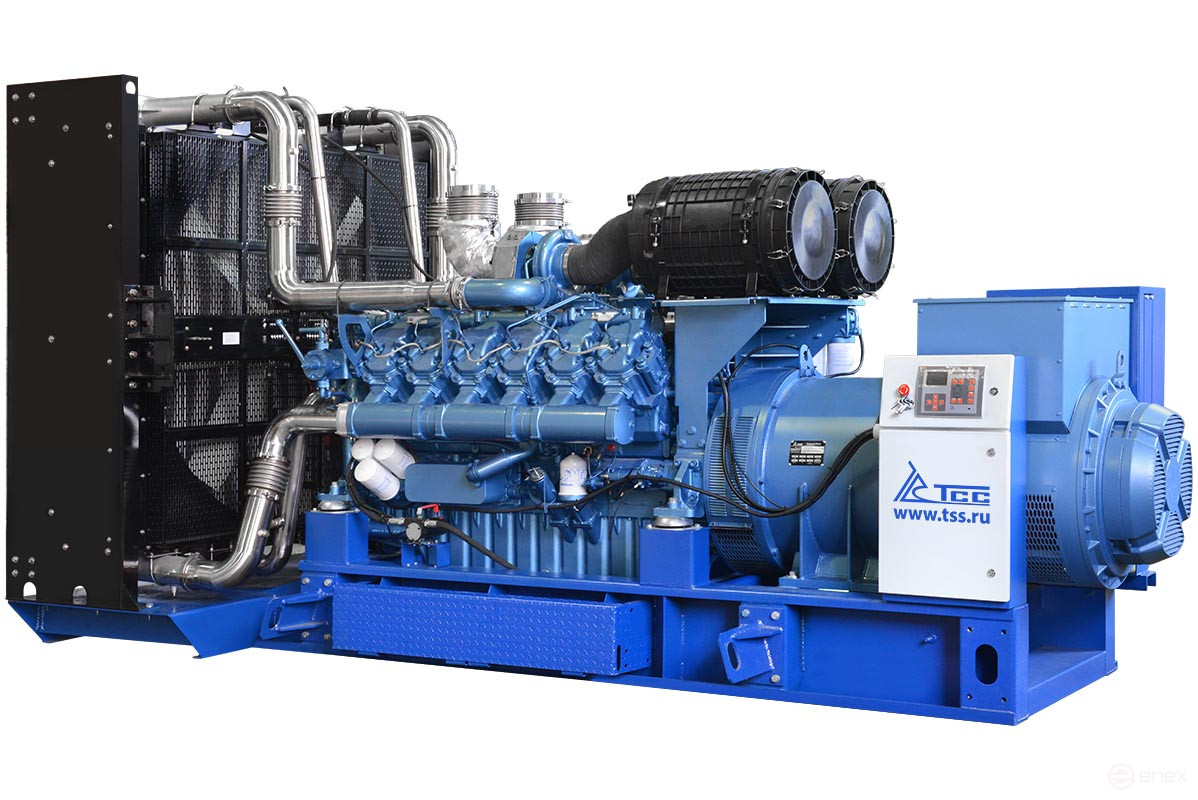

High voltage diesel generator TSS AD-900S-T10500-1RM9
Russia
Russia
Description
The 900 kW TBd 1240TS-10500 high-voltage diesel power plant (AD-900C-T10500–1RM9 is an example of a technical name) is a new series of Premium high-voltage diesel generator sets based on modern high-tech Moteurs Baudouin engines (France) developed by engineers of the TSS Group of Companies in 2016 as an extension of the high-quality product line. and, at the same time, inexpensive power plants designed for the widest range of applications.
The high-voltage diesel generator is recommended for autonomous power supply of industrial facilities when powerful power supplies with a voltage of 10.5 kV (10500V) are required.
In terms of their technical, economic and operational characteristics, the 900 kW 10500V Premium series high-voltage DGS are comparable to diesel power plants from the most famous manufacturers.
Baudouin 12M33G1250/5e2 engine
- Engine reliability and high resource efficiency;
- Compact size, low weight;
- Easy to maintain;
- Low fuel consumption.
Generator TSS-SA-900(E) SAE 0/18 (10.5 kV)
- 10.5 kV Brushless Synchronous Generator (10500 V);
- The voltage adjustment accuracy is +/-0.5% over the entire load range.
The Control panel:
- An intelligent control panel with network parameter control and autorun.
- A simple and user-friendly operator interface.
- Large splash-proof, scratch-resistant, LCD display
- Accounting of generated electricity and other parameters, event log.
- RS-485 interfaces for wired remote monitoring, WiFi for wireless monitoring.
- Trouble-free operation at low temperatures -30C
An integrated approach:
- We carry out design surveys of facilities, with the identification of connection points for high-voltage thermal power plants, the approval of the installation site, and the definition of plans for laying cable lines;
- We design high-voltage power plants and power complexes, including according to the requirements of Government Decree No. 87;
- We carry out the approval and protection of the project in the expertise and other regulatory organizations.;
- Installation or installation supervision, commissioning with complex tests, adjustment of the REA and the logic of the complex;
- We provide training for the customer's service personnel;
- We offer our customers the signing of long-term service contracts to maintain the uninterrupted operation of the commissioned high-voltage power complexes.
Service support:
- The standard warranty is 3 years or 2000 operating hours.
- Technical support of the equipment by the service services of TSS Group and its dealers, full provision of warranty and post-warranty operation and possible repairs with spare parts from its warehouse.
Technical specifications:
- Rated power, kW - 900
- Rated power, kVA - 1125
- Maximum power, kW - 900
- Maximum power, kVA - 1237.5
- The power factor is 0.8
- Voltage (V) - 10500
- Number of phases - 3
- Frequency, Hz - 50
- Cooling system volume (l) - 233
- Fuel separator - yes
- Fuel consumption at 50% capacity l/h - 119.4
- Fuel consumption at 75% capacity l/h - 174.9
- Fuel consumption at 100% capacity l/h - 236.1
- Degree of automation - 1 (manual start-up)
- Emergency stop system - Yes
- Fuel level sensor - Yes
- Execution - Open
- Noise level (dB/7m) - 102
- Silencer - industrial
- Radiator dimensions (rast. from the floor, H, W, mm) - 433. 1800x2045
- Overall dimensions (L; W; H; mm) - 5345x2194x2433
- Service life up to capital repairs (h) - 32000
- Ecological class - Stage II
- Engine Manufacturer - Baudouin
- Engine - Baudouin 12M33G1250/5
- Maximum engine power, kW - 1108
- Number of cylinders - 12
- The arrangement of the cylinders is V-shaped
- Engine displacement (L) - 39.2
- Air intake system - turbocharged
- The speed control is electronic
- The recommended oil type is SAE 15W40/10W30
- Oil system capacity (L) - 146
- Generator power, kW - 900
- Excitation system - PMG
- Winding pitch - 2/3
- Number of bearing bearings - 1
- The winding protection class is IP23
- Degree of insulation - H
- The language of the controller interface is Russian
- Weight, kg - 7000
- Complete set - muffler, battery, control panel with digital panel, oil and coolant locking station
- Frame height (mm) - 320
