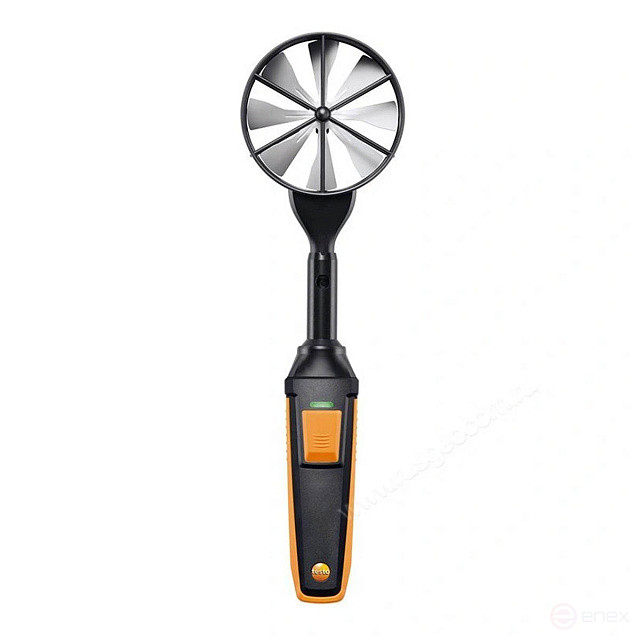

High-precision probe impeller (Oslash 100 mm) with Bluetooth including Testo temperature sensor
Russia
China
Description
The purpose of the high-precision probe is a 100 mm diameter impeller with Bluetooth, including a temperature sensor 0635 9371:
Ideal for measurements on ventilation grilles in clean rooms: use a high-precision impeller probe (with a compatible measuring device) to measure low-range air velocity, volume flow and temperature. Exceptional convenience: the results are transmitted to your measuring device via Bluetooth.
Features of the 100 mm diameter high-precision impeller probe with Bluetooth, including temperature sensor 0635 9371:
- Intuitive operation: a clearly structured measurement menu for measuring volume flow and simultaneously determining air velocity, volume flow and air temperature.;
- High-precision: allows air velocity measurements in the low range of +0.1 m/s and is therefore ideal for measuring laminar flows in clean rooms.;
- Convenient: Bluetooth connection of the probe to the measuring device and a practical button on the handle for saving individual values, convenient measurement on ceiling ventilation grilles thanks to an optional telescopic handle with a scale (up to 1 m long);
- The concept of intelligent calibration.
Description of a 100 mm diameter high-precision impeller probe with Bluetooth, including a temperature sensor 0635 9371:
The measurement results are transmitted from the probe to your measuring device via Bluetooth at a distance of up to 20 m. A well-structured measurement menu for volume flow measurement provides intuitive control of the device. The convenient function of entering the size and shape of the duct cross-section allows you to accurately calculate the volume flow. The display shows the measurement results, averaged over time and number of measurements, average volume flow, current readings and minimum/maximum values.
Extremely convenient: press the button on the impeller probe to control the measuring device. For example, to save individual values for calculating the average result over the number of measurements, or to start and end a series of measurements to calculate the average result over time.
Versatility and wireless technology: more tasks, less hardware
Flexibility: Any probe tips can be connected to the universal probe handle, which allows you to solve more tasks with less equipment and save space in your case. With a Bluetooth handle, it's easier to take measurements, and there will be fewer tangled cables in your case.
You can order a handle with a cable for testo probe tips. This handle will allow you to take measurements where Bluetooth is prohibited. If you need to replace the impeller in the future, you can simply replace the probe tip.
If necessary, you can connect the impeller probe to a telescopic handle with a 90° angle bracket and to a telescopic extension cable (to be ordered separately; in combination, you can increase the length of the probe to 2 m). This way you can easily take measurements on the ceiling ventilation grilles.
The concept of intelligent calibration
With a digital probe, you will get exceptionally accurate measurement results, leaving such a thing as measurement uncertainty in the past. You only need to send a probe for calibration, and you can still use the measuring instrument with other probes.
Applications of the 100 mm diameter high-precision impeller probe with Bluetooth, including temperature sensor 0635 9371:
Ventilation grilles:Use an impeller probe to determine the air velocity and volume flow on the ventilation grilles. Due to the ability to measure speeds in the low range of 0.1 m/s, the impeller probe is ideal for measuring laminar flows in clean rooms. When measuring the cross-section of the ventilation grate by looping movements, the air velocity values are summed up to calculate the average value immediately over a large area of 100 mm. As a result, the accuracy of measurements by looping movements is significantly increased. For measurements on ceiling grilles: a telescopic handle (up to 1 m long) with a well-readable scale and a 90° angle bracket can be easily attached to the probe. The 90° angle bracket allows the probe to be positioned correctly under the ceiling. For high ceilings, you can use a telescopic extension that extends the length of the probe up to 2 meters (the telescopic handle and the telescopic extension must be ordered separately).
Poppet valves and ventilation grilles:For convenient and accurate measurements on poppet valves and ventilation grilles, we recommend using an impeller probe with a set of funnels.testovent 417(to be ordered separately). This ensures effective measurement of incoming/outgoing air, for example, in residential controlled ventilation systems. If you add a flow rectifier (also to be ordered separately), you can achieve exceptional accuracy in measurements on vortex diffusers.
