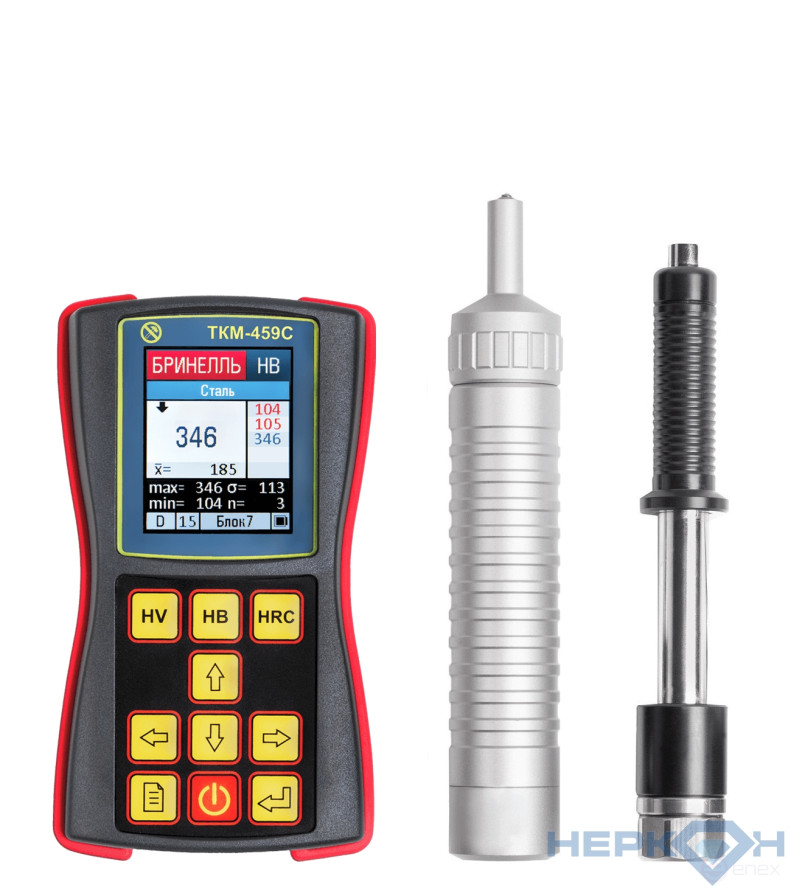

Ultrasonic hardness tester TKM-459C “Universal”
Russia
Russia
Description

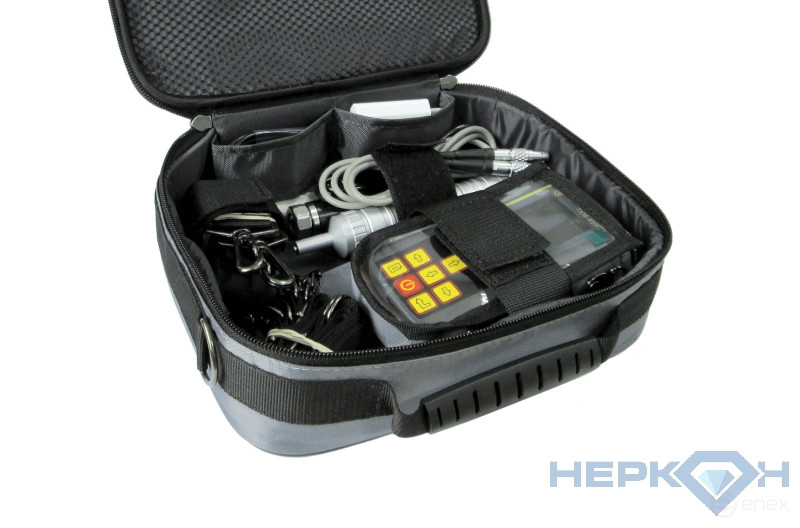

The combined hardness tester TKM-459C "Universal" manufactured by NPP Mashproekt is now supplied in a new configuration — "Universal" and "Universal+", which significantly expands the range of work on measuring the hardness of metal and alloy products.
In these kits, additional dynamic sensors can be connected to the electronic unit of the TKM-459C ultrasonic hardness tester, which makes your possibilities almost unlimited!
Working with the TKM-459C "Universal" or "Universal+" hardness tester kit, you will be able to take full advantage of 2 hardness testing methods.:
- UCI method (Ultrasonic Contact Impedance) — ultrasonic contact impedance,
- The Leeb method is a dynamic method.
The TKM-459C "Universal" hardness tester performs hardness testing of
- carbon and structural steels,
- surface-hardened products (cementation, nitriding, hardening of HDPE, etc.),
- heat-resistant, corrosion-resistant, stainless and other steels,
- electroplating (chrome), surfacing,

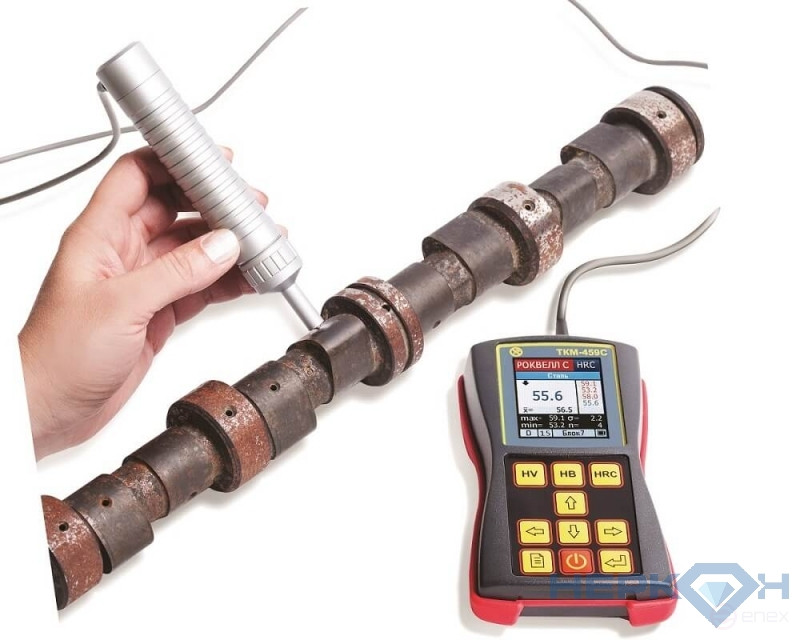

- products of complex configuration (gear teeth, shafts),
- thin-walled and small-sized products,
- products made of fine-grained materials in the local study of the properties of materials.
The combined hardness tester TKM-459C "Universal" is included in the State Register of SI of the Russian Federation.
Complies with the requirements of TR CU 004/2011 and TR CU 020/2011.
Advantages of the ultrasonic hardness tester TKM-459C
- Stable readings regardless of the force and time of pressing the sensor to the controlled surface.
- Hardness measurement in hard–to-reach places - the spatial position of the sensor does not affect the measurement result.
- The ultra–small area of the control zone is from 1 mm.
- Control in slots and blind holes – from 5 mm.
- An almost imperceptible imprint on "mirrored" surfaces.
- Low sensitivity to surface curvature, thickness and weight of the product.
Design features of TKM-459S
- Shock-resistant, dust- and moisture-proof housing.
- The intuitive interface is organized according to the "TURN ON AND WORK" principle.
- The color display with adjustable backlight functions even at subzero temperatures.
- A unique statistical data processing system.
- Simple calibration of hardness tester scales by 1st or 2nd hardness measures.
- Creation of additional calibrations to hardness tester scales based on 1st or 2nd control samples.
- Self-programming of additional scales.
Technical specifications:
The range of hardness measurements on the main scales:
- according to Brinell 90 — 450 NV
- according to Rockwell From 20 — 70 HRC
- according to Vickers 240 — 940 HV
Limits of absolute error when measuring hardness according to the main scales:
According to Brinell:
- in the range (90...150) HB ± 10 HB
- in the range (150...300) HB ± 15 HB
- in the range (300...450) HB ± 20 HB
according to Rockwell With
- ±2
Vickers HRC:
- in the range (240...500) HV ±15 HV
- in the range (500...800) HV ±20 HV
- in the range (800...940) HV ±25 HV
The diameter of the platform on the product for installing the sensor

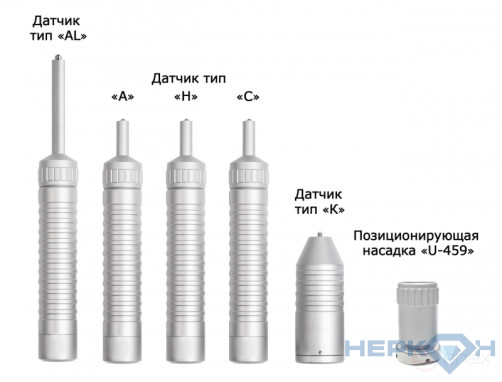

For ultrasonic sensor:
- from 1 mm on the plane,
- from 5 mm in the blind hole (groove)

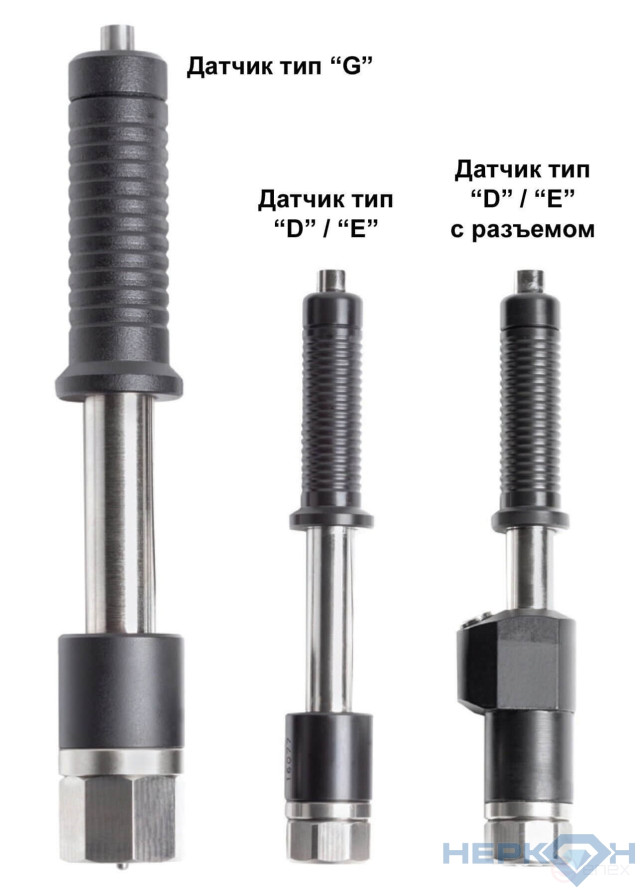

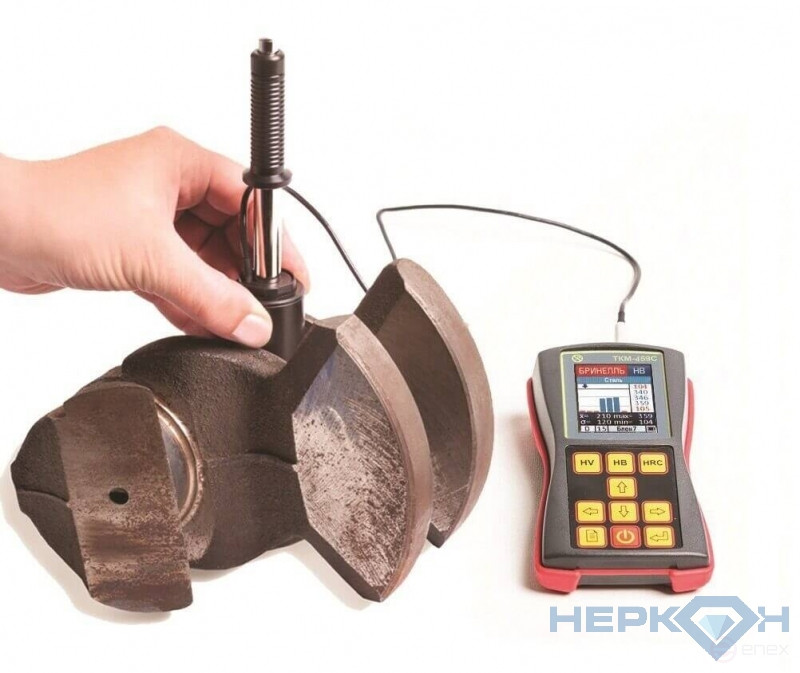

For dynamic sensor:
- from 7 mm on the plane
- The number of possible additional calibrations to the hardness tester scales is 5 for each scale
- The number of additional scales is 3
- The time of one hardness measurement is 2 seconds.
- The number of measurements for calculating the average value is 1-99
- The number of algorithms for discarding deliberately false measurement results when calculating the average value is 3
- Measurement results memory capacity 12,900
- The maximum number of nominal blocks of measurement results created in memory is 100
- USB connection to computer
- Powered by a LI-ion battery (built into the device)
- The dimensions of the electronic unit of the hardness tester are 121x69x41 mm
- The mass of the electronic unit of the hardness tester is 300 g
- Operating temperature range -15 ... + 35 °C
- The presence of precious metals is absent
- The warranty period is 32 months from the date of sale,
- but not more than 36 months from the date of release.
- The verification interval of the hardness tester is 1 year
