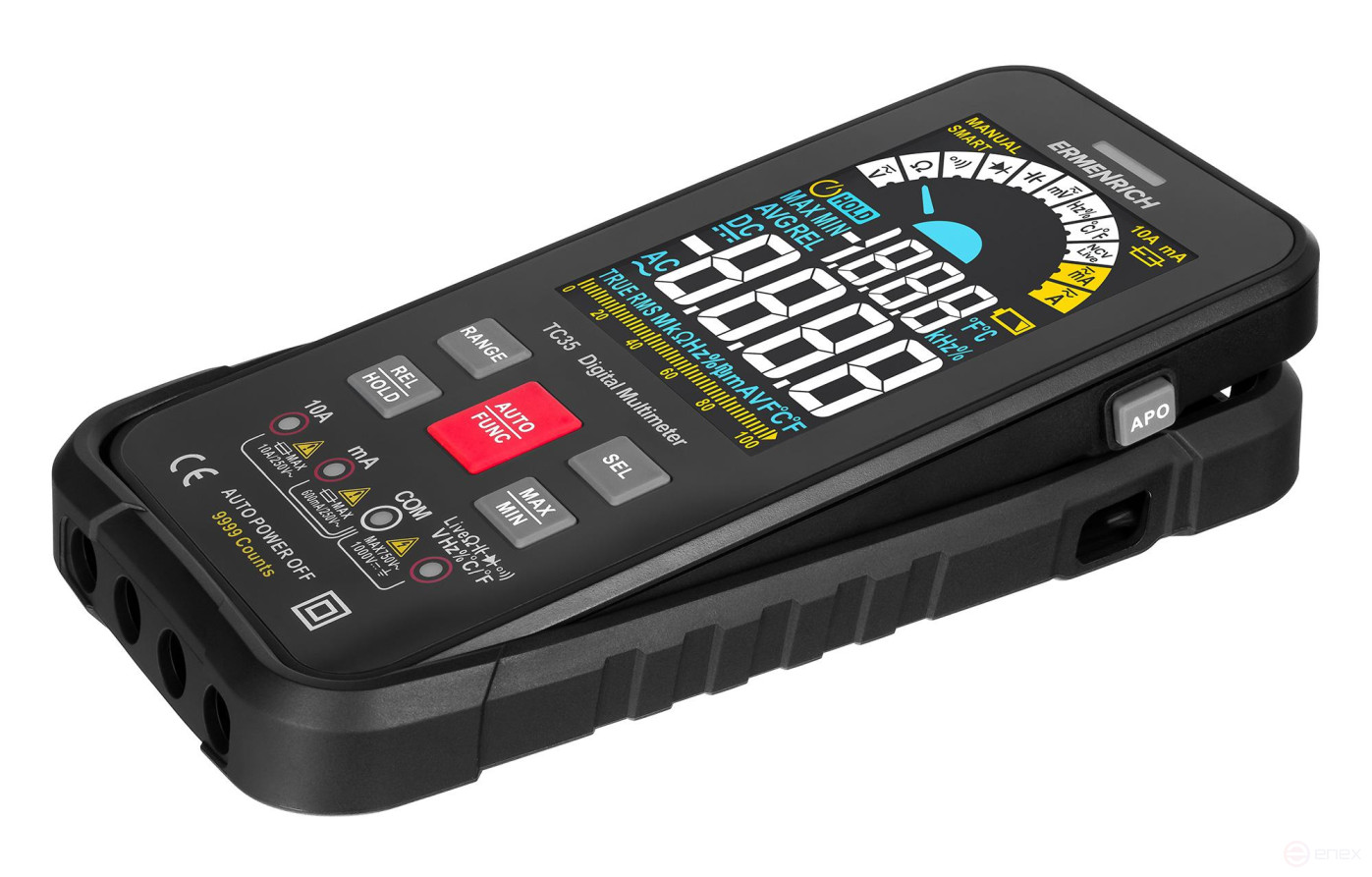

Ermenrich Zing TC35 Digital Multimeter
Russia
China
Description

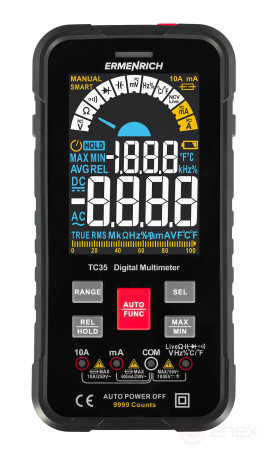

Ermenrich Zing TC35 is a multifunctional digital instrument for measuring voltage, resistance, amperage, capacitance, frequency and duty cycle. It also has the function of measuring temperature using a thermocouple, the value is displayed in °C or °F, at the user's choice. In addition, the device is used as a tester to check the integrity of the cable line (cable ringing), the condition of the diodes (searching for breakdowns and breaks). Using a multimeter, you can detect hidden live wires and determine the phase. The device has a large color display with numerical or graphical display of the results.
A special feature of this model is the Relative Measurement function based on a reference value that is recorded in the internal memory. Voltage and resistance measurements, as well as cable ringing, can be performed automatically: the device itself determines the type of incoming signal and the measurement range. Manual mode selection is also available using the buttons. It is possible to save minimum and maximum values. If the result cannot be viewed immediately (for example, the screen is turned away from the observer during measurement), then it can be fixed on the display using the Hold button and viewed later.

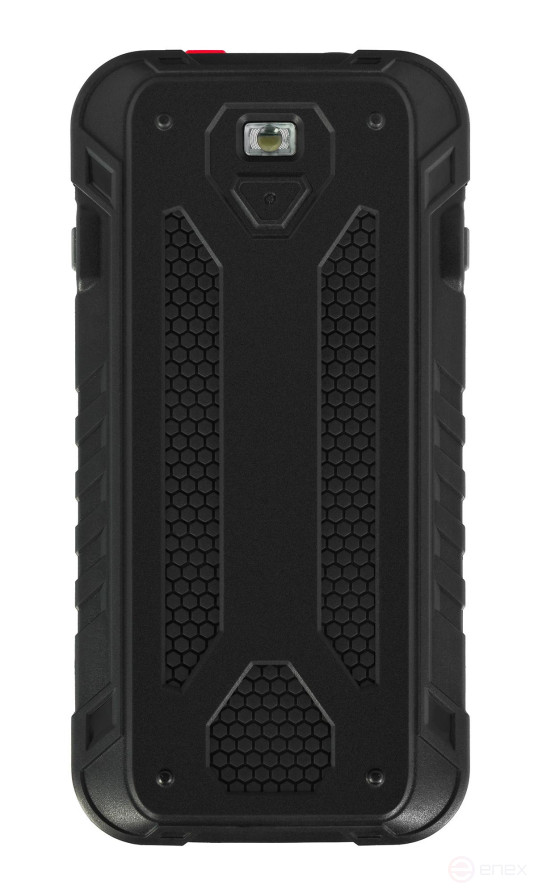

The device is characterized by its small size and weight. You can carry it in your jacket pocket while working. The case is made of plastic, with ribs on both sides to make it easier to hold the device in your hand. There is a built-in flashlight to illuminate the cable, shield or electrical appliance. The multimeter is powered by 3 AAA batteries (not included). When idle, the device turns off automatically and does not waste battery power.
Main Features:
- It measures 7 quantities: voltage, current, resistance, conductor capacity, frequency, duty cycle, temperature
- Automatic range selection (Smart) when measuring voltage and resistance, as well as when ringing cables
- , testing the working condition of diodes (detecting breakdowns and breaks)
- Cable ringing (search for breakage and short circuit)
- Hidden Wiring Search (NCV), phase detection
- Reference value measurement function (REL)

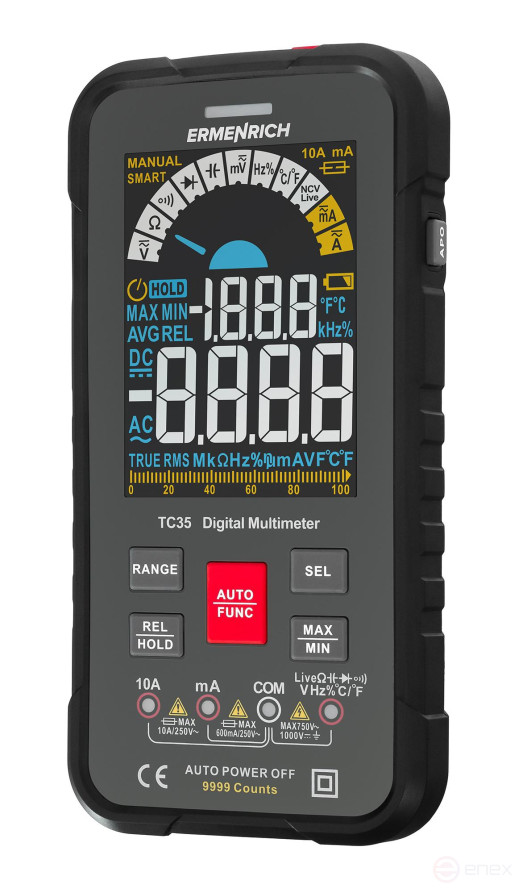

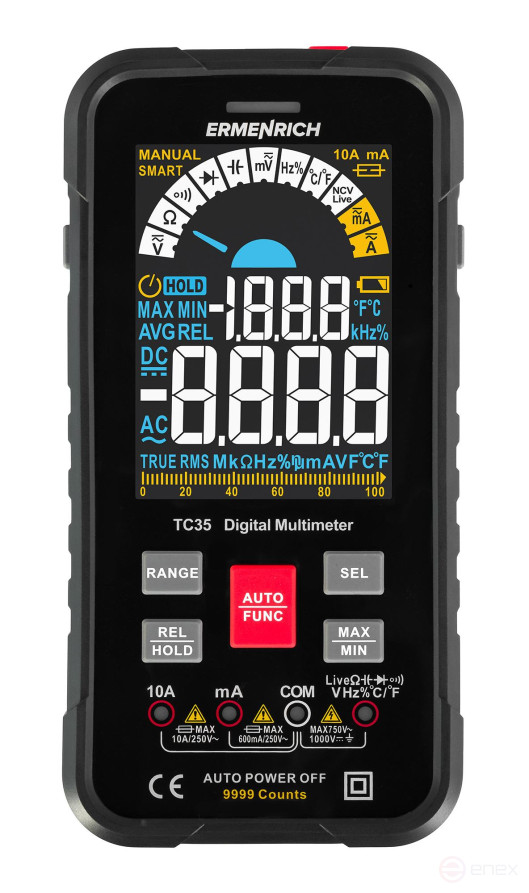

- Color display with graphical interface and backlight
- Holding the result on the display (Hold button)

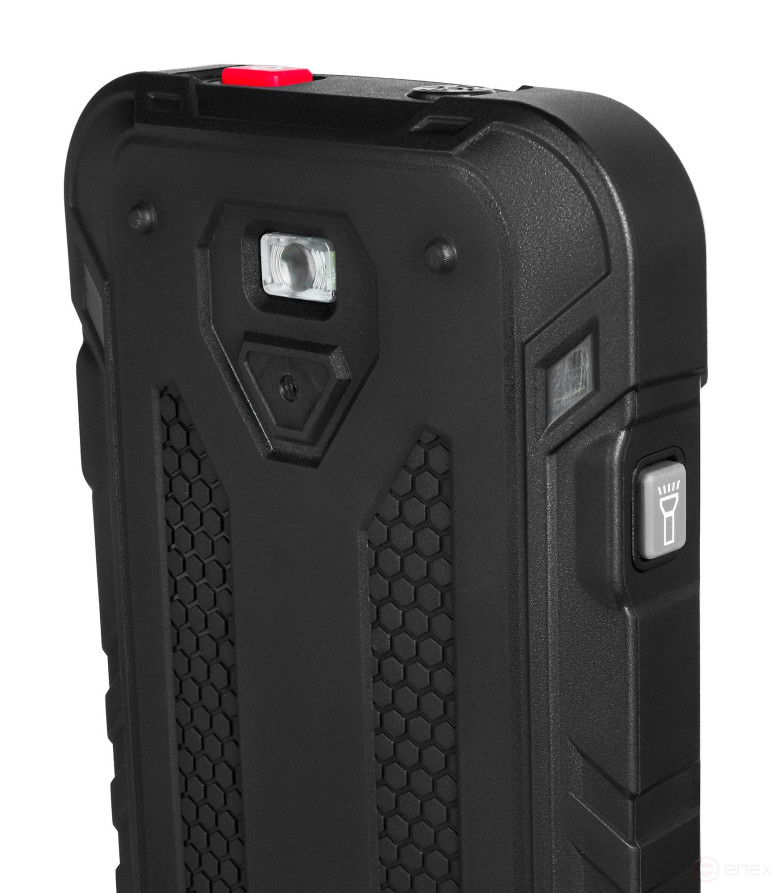

- Built-in LED flashlight

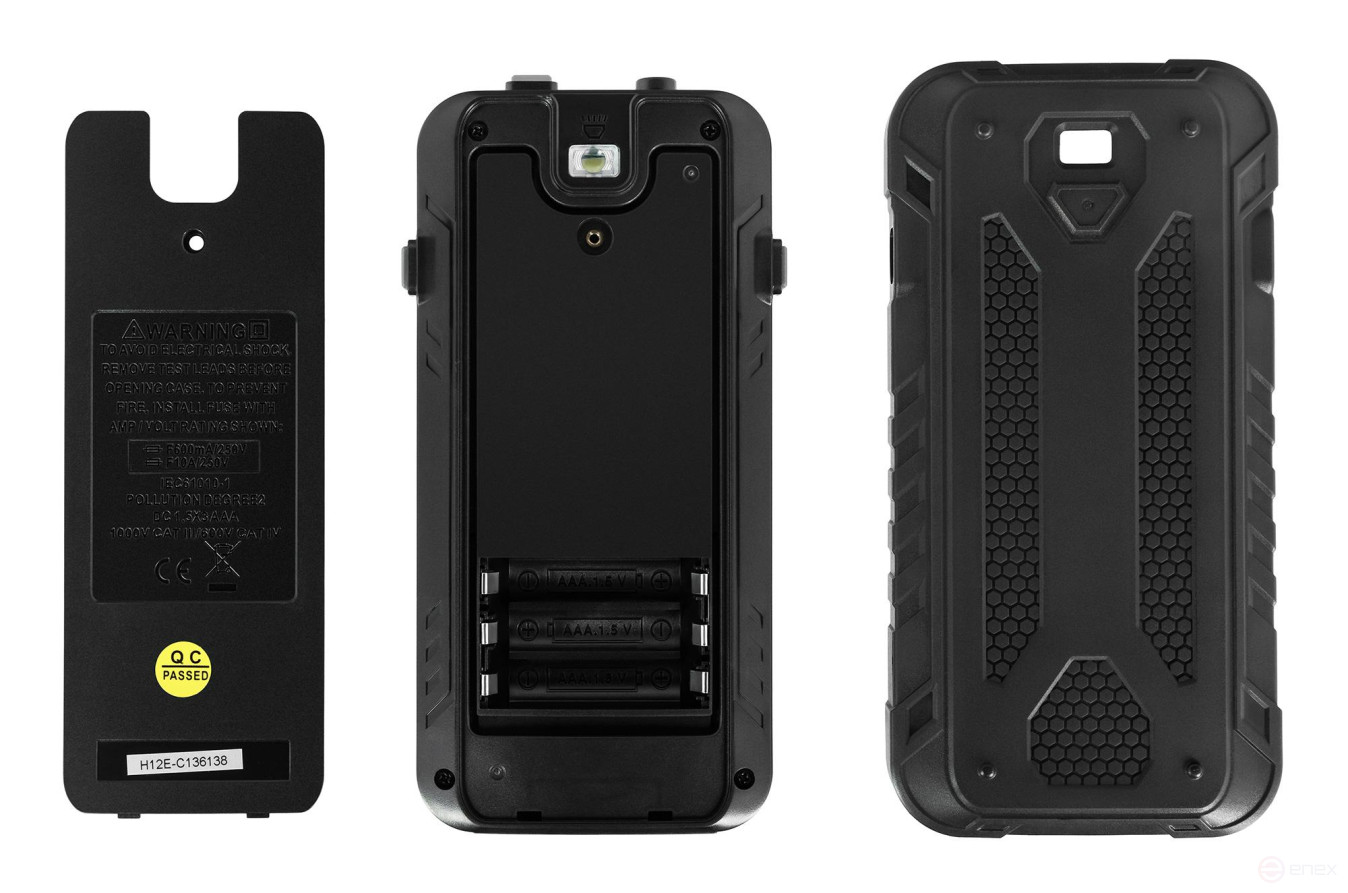

- Powered by 3 AAA batteries

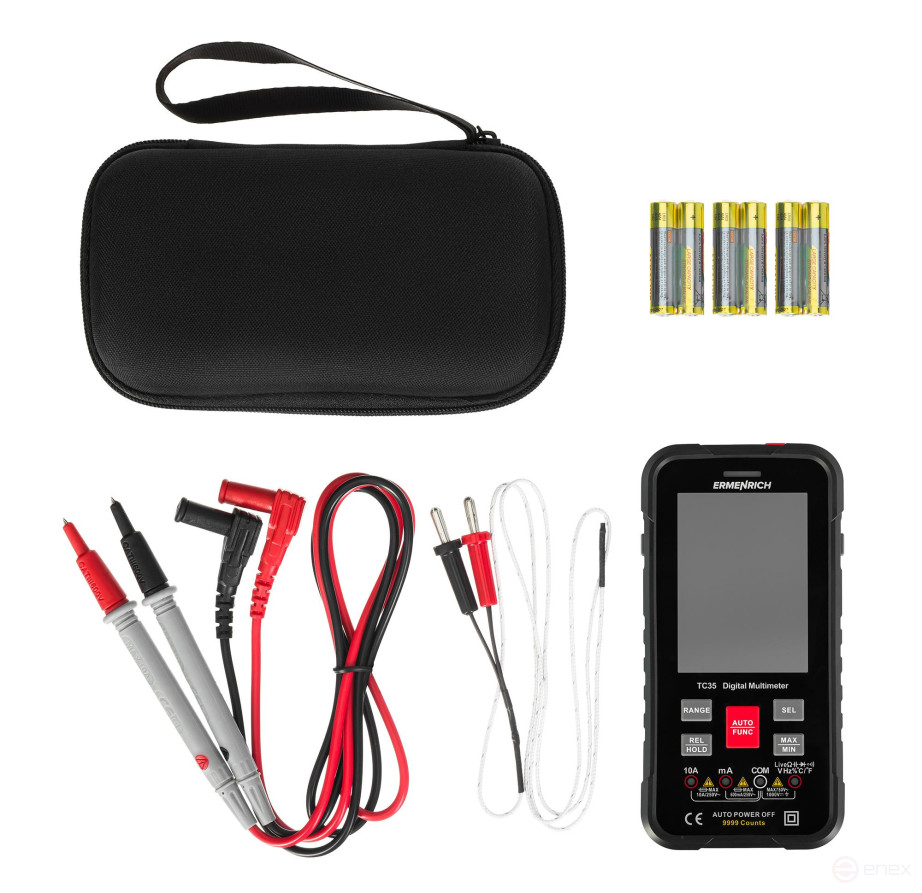

Equipment:
- Digital Multimeter
- Probes

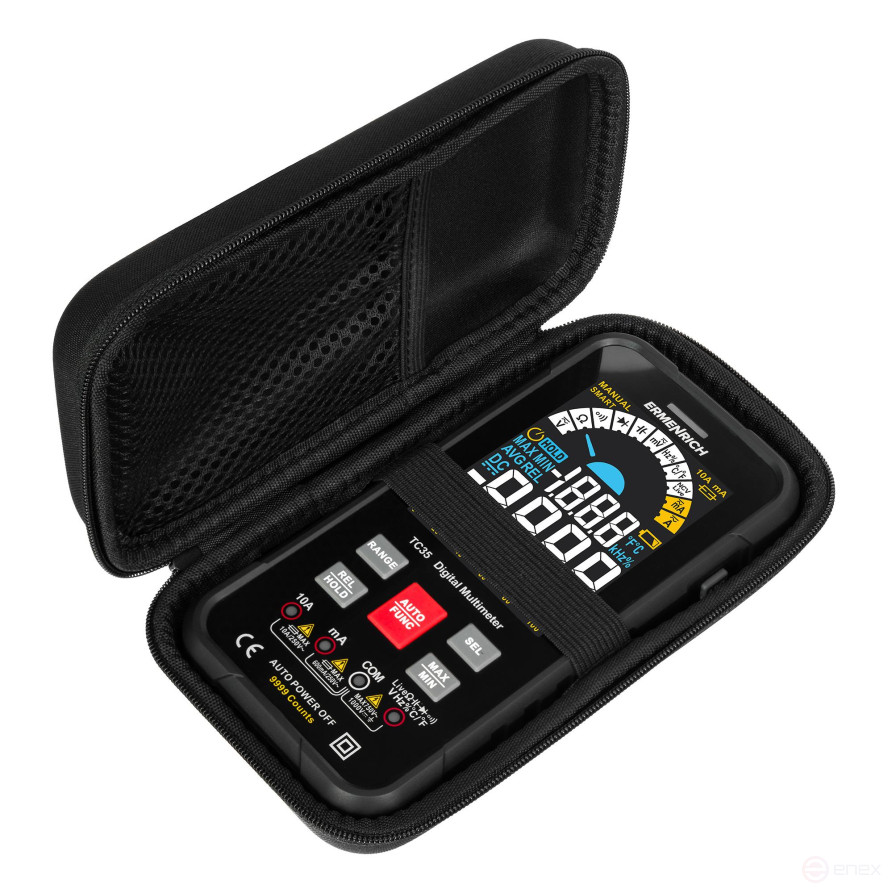

- Case
- Operating instructions and warranty card
Specifications:
- EAN: 5905555017709
- Measurement limit selection: automatic, manual
- Main Functions: ammeter, ohmmeter, voltmeter, capacitance meter, duty cycle meter, thermocouple, frequency meter
- DC voltage measurement limits: 99.99 mV/999.9 mV/9.999 V/99.9 V/1000 V: error ±(0.5%+3)
- AC voltage measurement limits: 99.99 mV/999.9 mV/9.999 V/99.9 V/750 V: error ± (0.8% + 3)
- DC current measurement limits: 9.999 A: error ±(1,2%+3), 9,999/99,99/999,9 mA: error ±(0.8%+3)
- AC current measurement limits: 9.999 A: error ±(1,5%+3), 9,999/99,99/999,9 mA: accuracy ±(1.0%+3)
- Resistance measurement limits: 9.999 mOhm/99.99 mOhm: error ±(1.2%+3), 99.99 ohms/999.9 ohms/9.999 kOhm/99.99 kOhm/999.9 kOhm: error ±(0.8%+3)
- Capacitance measurement limits: 9.999 mF/99.99 mF: error ±(5.0%+5), 9.999 nF/99.99 nF/999.9nF/9.999 UF/99.99 UF/999.9 UF: error ±(4.0%+3)
- Frequency measurement limits: 99.99 Hz/999.9 Hz/9.999 kHz/99.99 kHz/999.9 kHz/9.999 MHz: error ±(1.0%+3)
- Duty cycle measurement range: 1-99%: error ±(1.0%+2)
- Cable integrity check (ringing) function : Yes
- Diode Test: Yes
- Non-contact Voltage Detection (NCV): yes
- True RMS: Yes
- The function of holding readings (Hold): yes
- Limit value storage function (Min/Max): Yes
- Relative Measurement Function (REL): Yes
- Automatic recognition function (Smart): Yes (only for DC and AC voltage, resistance and ringing)
- Phase Detector (Live): Yes
- Overvoltage category: cat. III 1000 V, cat. IV 600 V
- Display: VA
- Number of counts: 10000
- Graphic scale: yes
- Flashlight: Yes
- Safety standards: EN61010-1,-2-030; EN61010-2-033; EN61326-1
- Operating temperature range, °C: -40... +1000 °C: accuracy ±(1.0%+3)
- Power supply: 3 AAA batteries (not included)
- Low battery indicator: Yes

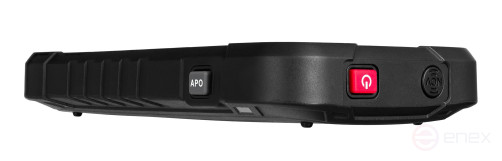

- Auto-off: Yes
