Ermenrich Zing TC33 Digital Multimeter
Russia
China
Description
Ermenrich Zing TC33 is a portable electrical parameter meter and cable line tester. It can be used to measure voltage, current, resistance, duty cycle, capacitance, frequency. The multimeter is also equipped with a thermocouple for measuring temperature in two units: °C or °F. The device has cable ringing, diode testing, phase detection and short circuit detection modes. Using the Ermenrich Zing TC33, live wires hidden in the floor or in the walls are also found. The model is recommended for both professional electricians and those who need a simple and functional device for self-diagnosis of wires (including the automotive power grid).

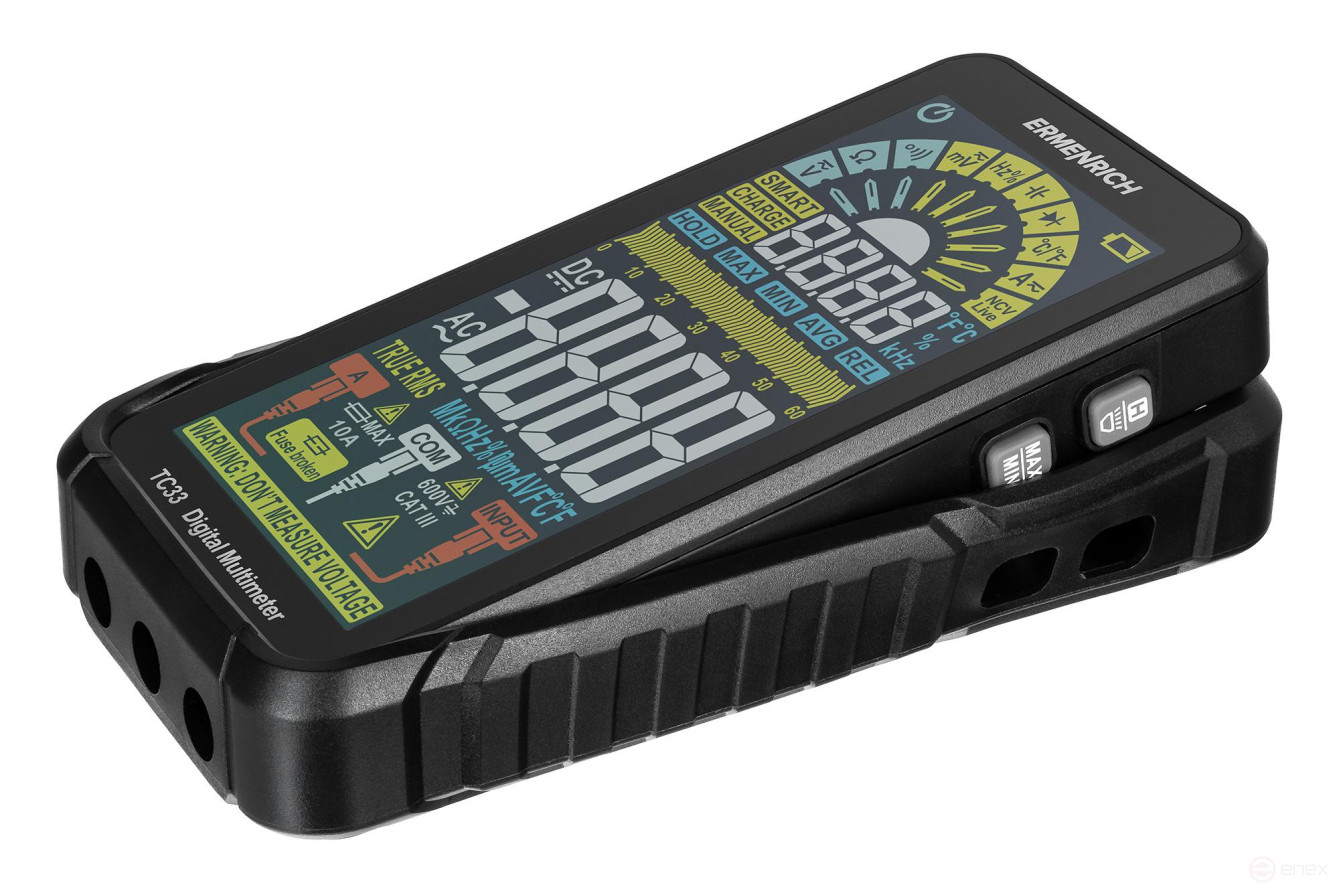

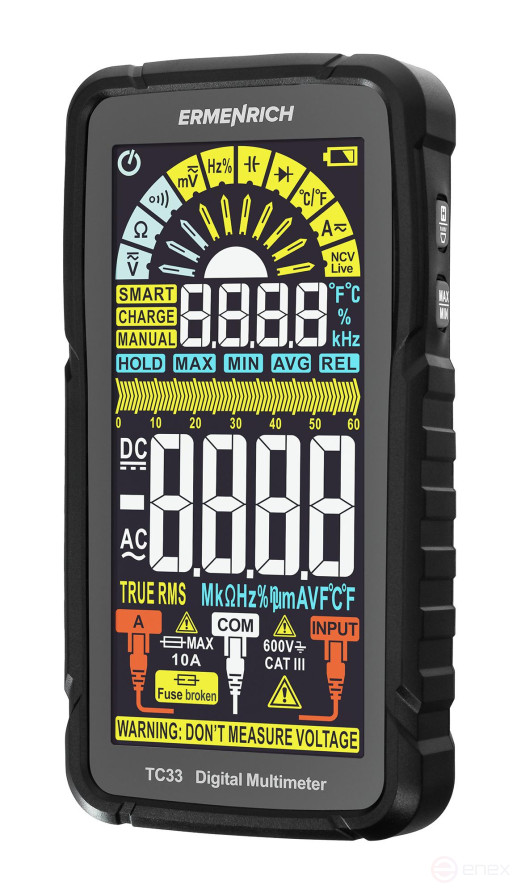

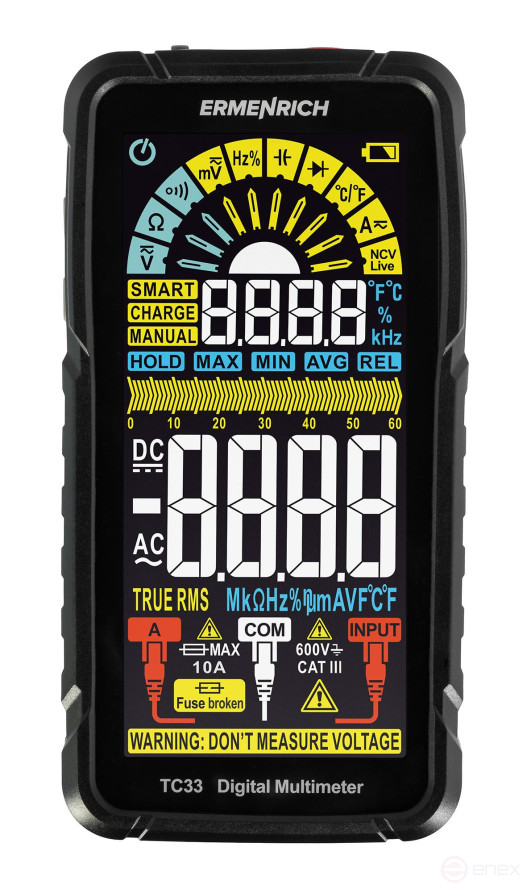

The measurements are performed using the True RMS method and have very low errors. The multimeter is equipped with a large color display with two options for displaying the result: in numerical form or on a graphical scale. The incoming signal and measuring range are determined automatically (Smart function), and manual selection can also be set. The last result is held on the display using the Hold button if it cannot be viewed immediately.

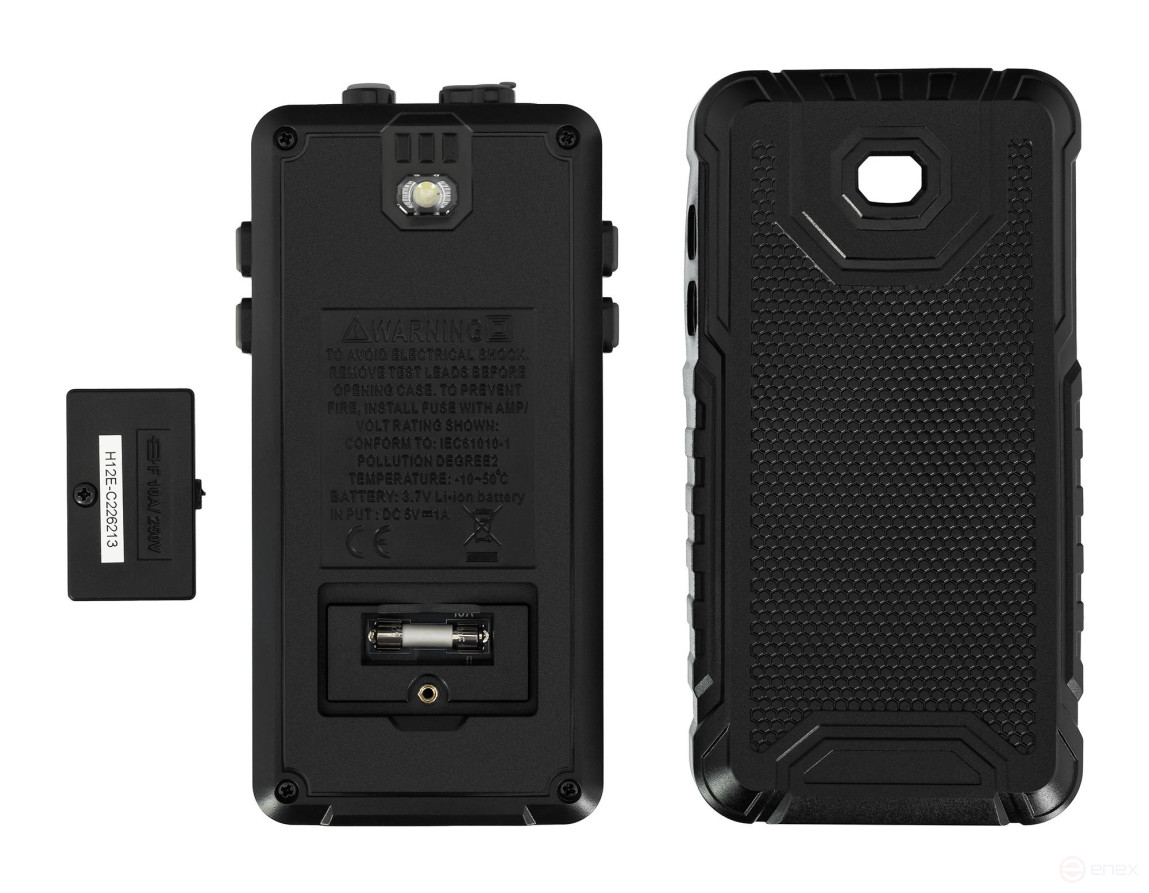

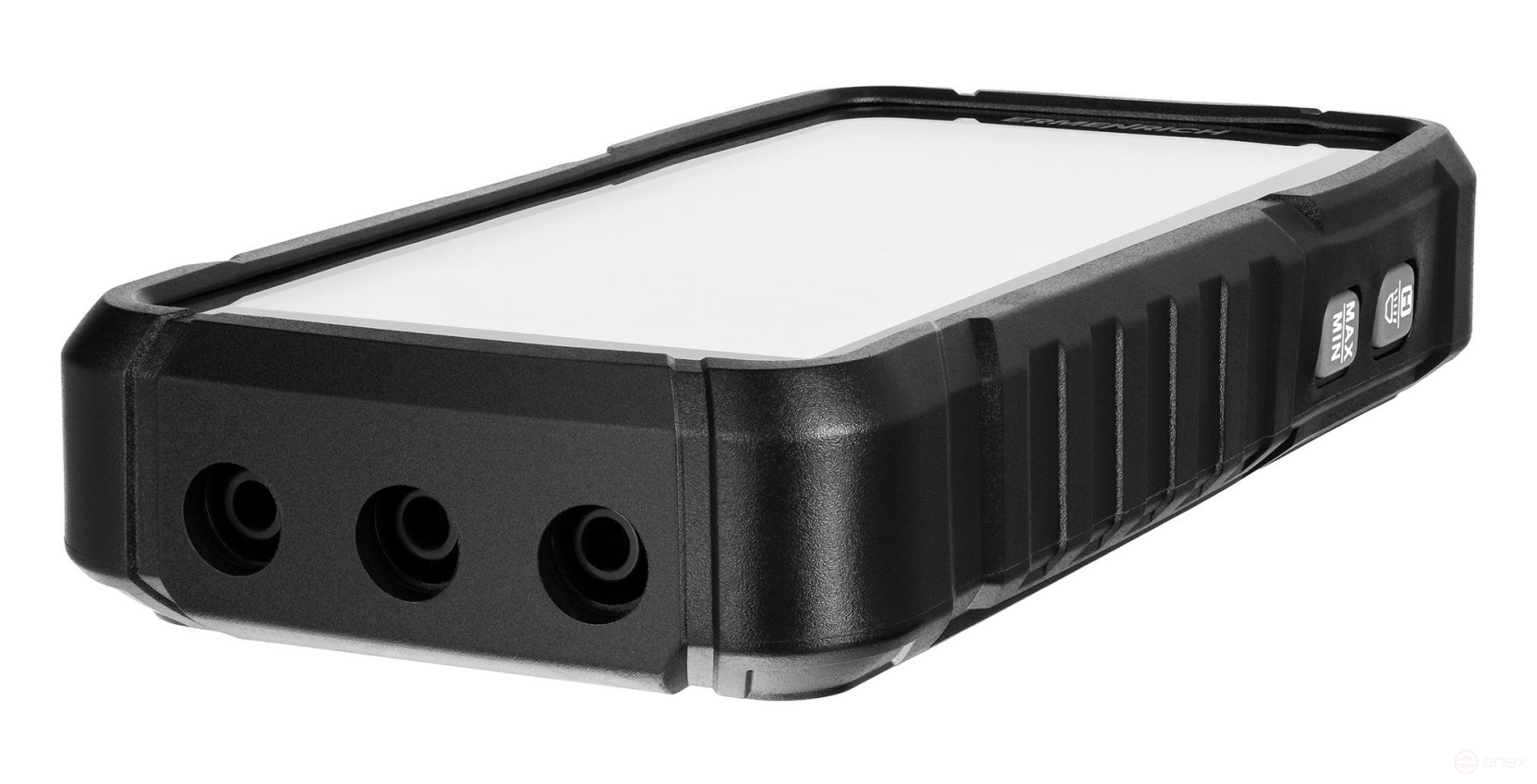

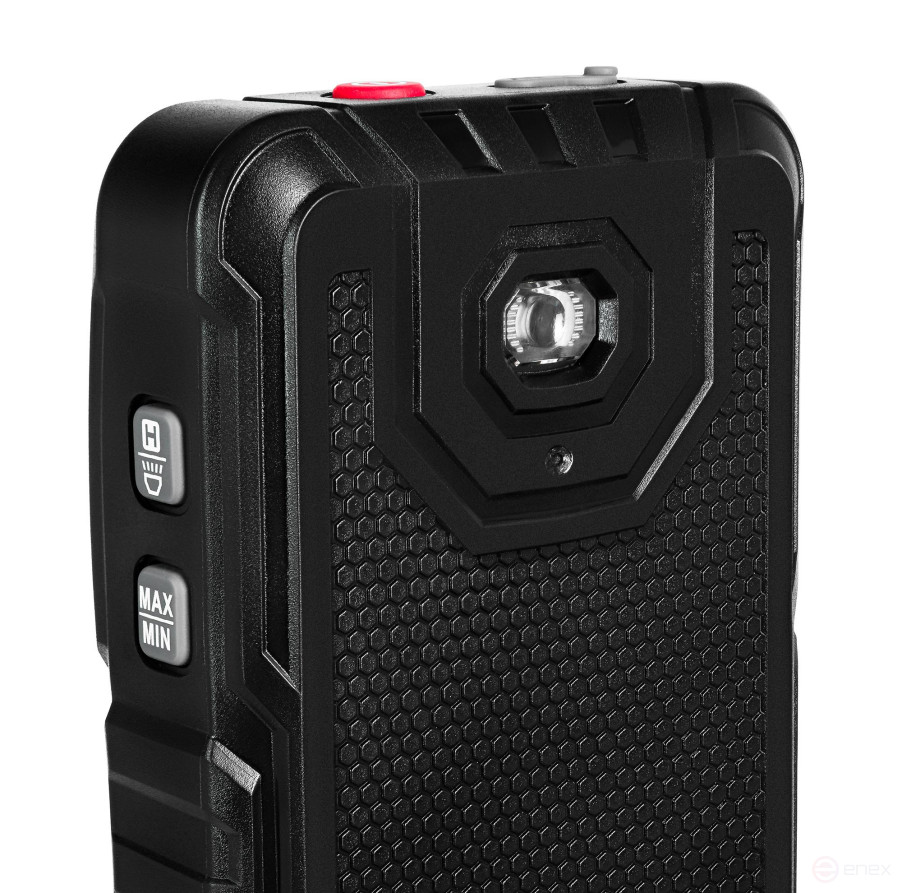

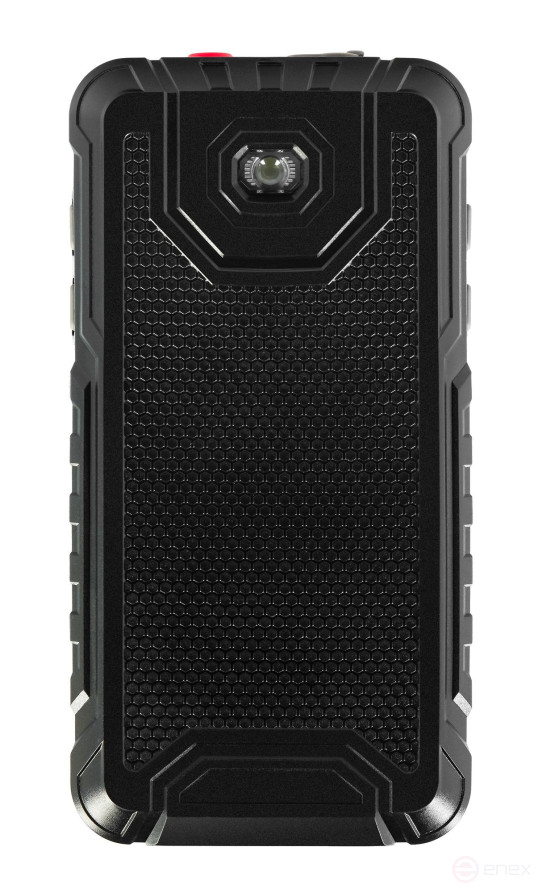

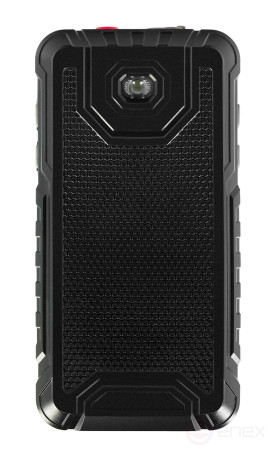

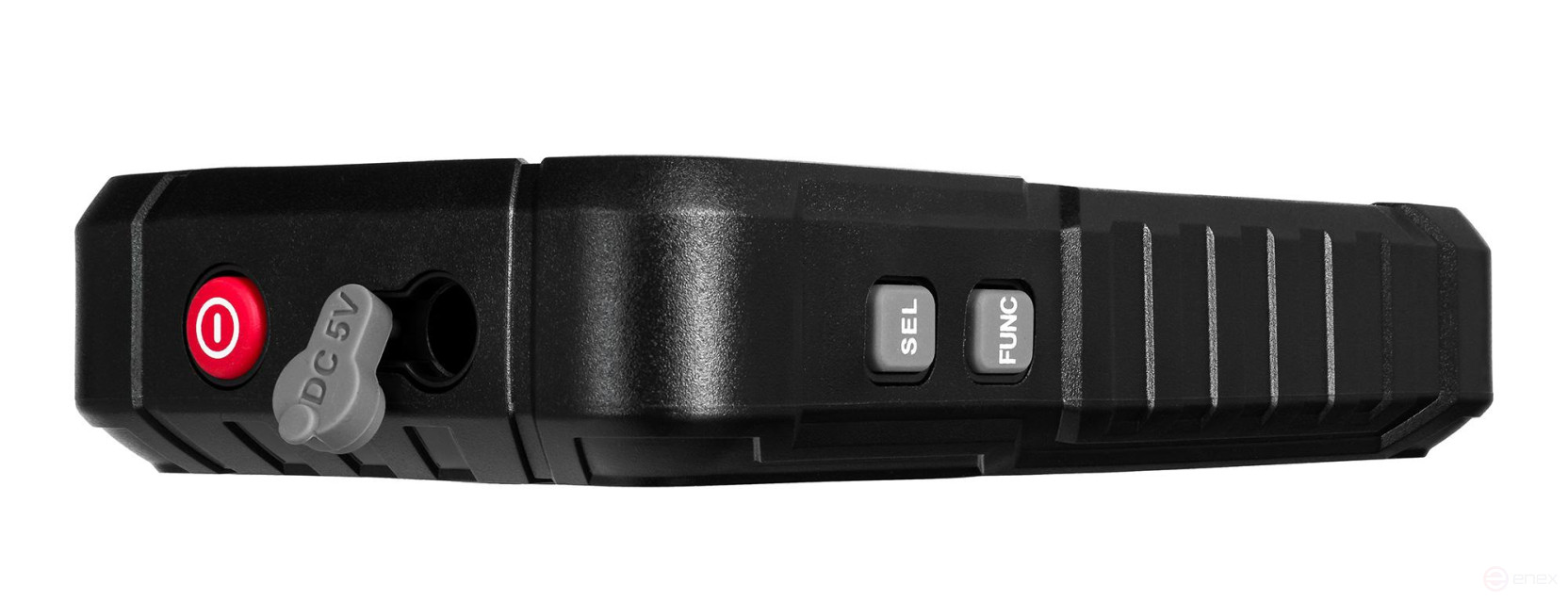

The multimeter body is made of plastic, has fins and fits comfortably in your hand. An LED flashlight is used to illuminate the cable or shield. The device is powered by a built-in lithium-ion battery. The battery saving function is provided: the multimeter turns off automatically when idle.
Main features:
- Color display with numerical or graphical display of the results
- of the calculation using the True RMS method (true RMS values)
- Measurement of voltage, resistance, amperage, capacitance, frequency, duty cycle
- Temperature measurements using a thermocouple
- Diode testing, breakdown and breakage detection
- Diagnostics of cable lines, detection of breaks
- Searching for wiring in walls or in the floor in a non-contact way (NCV)
- Powered by a built-in Li-Ion battery

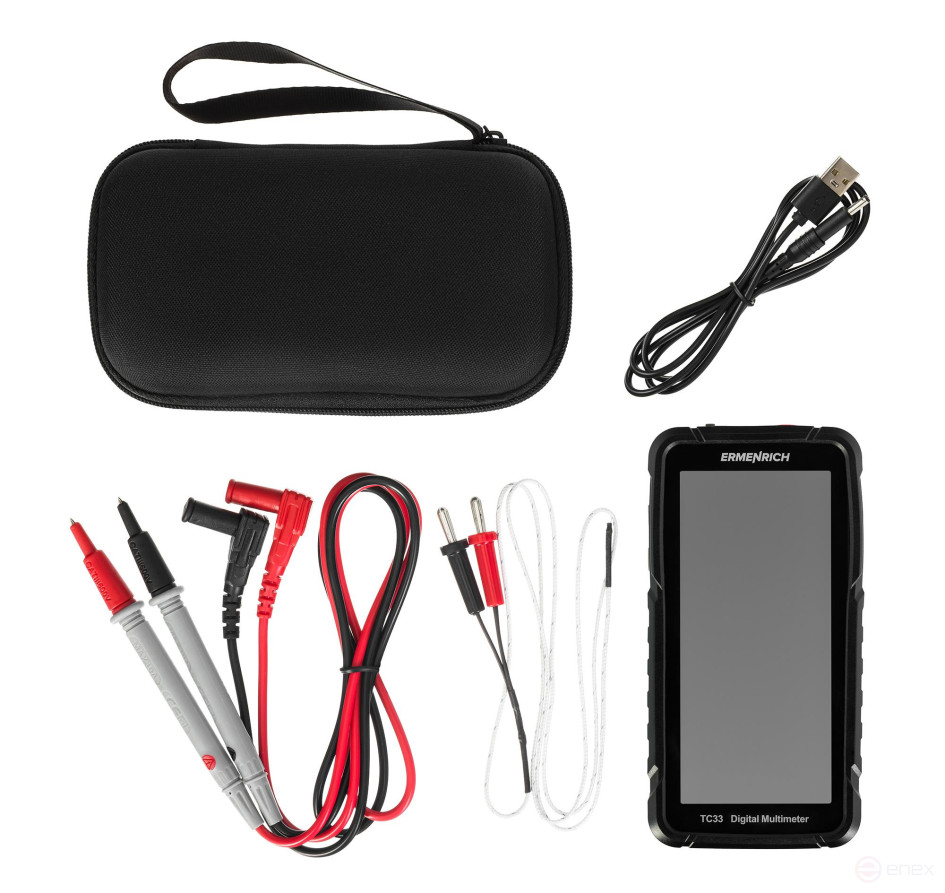

Equipment:
- Digital Multimeter
- Probes

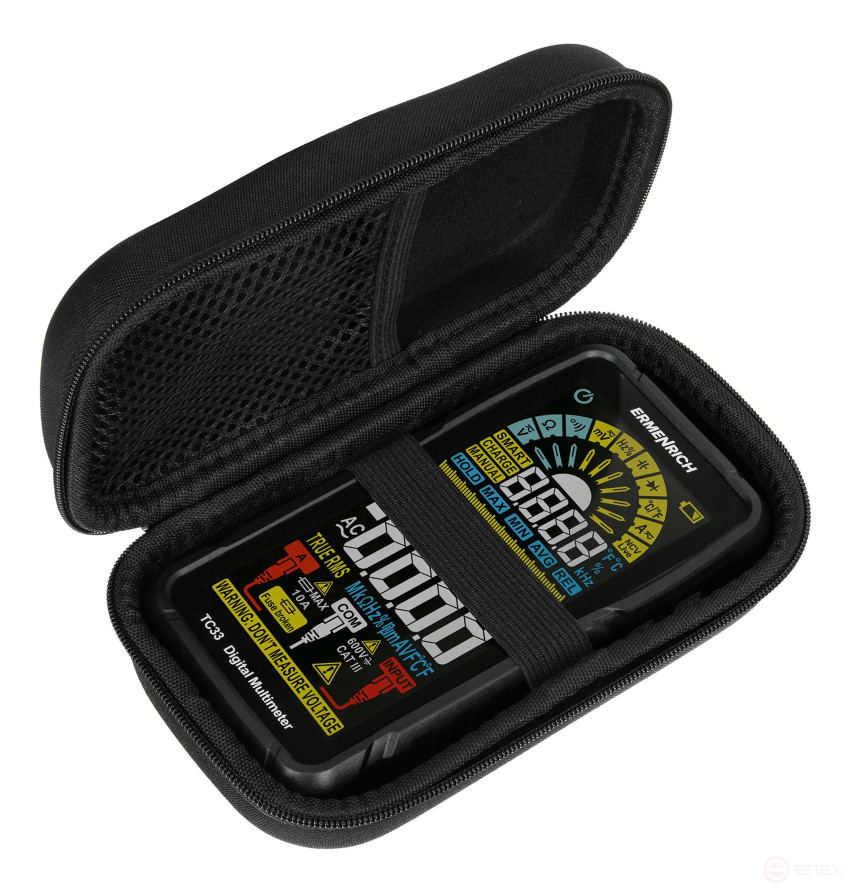

- Case
- USB charging Cable
- Operating instructions and warranty card
Specifications:
- EAN: 5905555017693
- Measurement limit selection: automatic
- Main Functions: ammeter, ohmmeter, voltmeter, capacitance meter, duty cycle meter, thermocouple, frequency meter
- DC voltage measurement limits: 60 mV/600 mV/6 V/60 V/600 V: error ±(0.5%+3)
- AC voltage measurement limits: 60 mV/600 mV/6 V/60 V/600 V: error ±(1.0%+3)
- Limits of direct current measurement: 10 A: error ±(1.5%+3), 600 mA/6 A: error ±(1.2%+3)
- AC current measurement limits: 10A: error ±(2.0%+3), 600mA/6A: error ±(1.5%+3)
- Resistance measurement limits: 600 ohms/6 kOhm/60 kOhm/600 kOhm/6 mOhm/60 mOhm: error ±(1.0%+3)
- Capacitance measurement limits: 6 nF/60 nF/600 nF/6 UF/ 60 UF/600 UF/6 mF/60 mF: error ±(4.0%+5)
- Frequency measurement limits: 60 Hz/600 Hz/6 kHz/60 kHz/600 kHz/6 MHz/10 MHz: error ±(1.0%+3)
- Duty cycle measurement range: 1-99%: error ±(3.0%+3)
- Cable integrity check function : yes
- Diode Test: Yes
- Non-contact Voltage Detection (NCV): yes
- True RMS: Yes
- Bandwidth: 40-1 kHz
- The function of holding readings (Hold): yes
- Limit value storage function (Min/Max): Yes
- Automatic recognition function (Smart): Yes (only for DC and AC voltage, resistance and ringing)
- Phase Detector (Live): Yes
- Overvoltage category: cat. III 600 V
- Display: VA
- Number of counts: 6000
- Display backlight: Yes
- Graphic scale: yes
- Flashlight: Yes
- Safety standards: EN61010-1,-2-030; EN61010-2-033; EN61326-1
- Operating temperature range, °C: -20... +1000 °C: accuracy ±(1.0%+3)
- Power supply: 3.7V lithium-ion battery
- Low battery indicator: Yes
- Auto Power off: Yes
