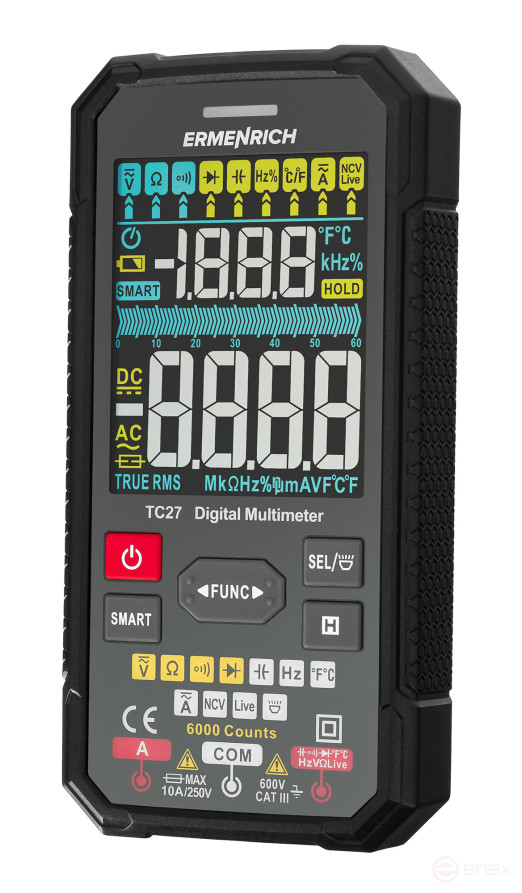

Ermenrich Zing TC27 Digital Multimeter
Russia
China
Description
The Ermenrich Zing TC27 digital multimeter is a portable meter of electrical parameters: current, frequency, resistance, temperature, capacitance and duty cycle. Measurements are made with minimal errors due to the True RMS method. Using the device, you can ring cables to detect breaks, check the condition of diodes, detect hidden live wires and short circuits, and determine the phase. The device is recommended for professional electricians for daily work, and can be used in everyday life to diagnose apartment wiring.
The multimeter selects the operating mode and measurement limit automatically, according to the type of signal received (Smart function). You can also select the mode and range manually. The measurement results and operating parameters are displayed on a two-level color display with a graphical scale. Using the Hold button, you can temporarily save the measurement result on the display and view it later. The screen has a backlight for low-light operation.
The Ermenrich Zing TC27 multimeter is compact and lightweight, easily fits in a jacket pocket. The edges of the case are grooved to make the tester comfortable to hold in your hand. Using the built-in flashlight, you can highlight a section of the cable. 4 AAA batteries are used for power supply. Auto-off is provided to save charge.
Main Features:
- Measurements with maximum accuracy using the True RMS method
- Color LCD display with backlight
- Automatic detection of the input signal and selection of the measuring range (during cable testing and resistance and voltage measurements)
- Hidden wiring search, phase detection
- Checking diodes for breakdowns and breaks
- Search for network breaks (cable ringing)
- Powered by batteries
Equipment:
- Digital Multimeter
- Probes
- Case
- Operating instructions and warranty card
Specifications:
- EAN: 5905555017679
- Measurement limit selection: automatic
- Main Functions: ammeter, ohmmeter, voltmeter, capacitance meter, duty cycle meter, thermocouple, frequency meter
- DC voltage measurement limits: 60 mV/600 mV/6 V/60 V/600 V: error ±(0.5%+3)
- AC voltage measurement limits: 6/60/600 V: error ±(0.8%+3)
- DC current measurement limits: 600 mA/10 A: error ±(1.2%+3)
- AC current measurement limits: 600 mA/10 A: error ±(1.5%+3)
- Resistance measurement limits: 600 ohms/6 kOhm/60 kOhm/600 kOhm/6 mOhm/60 mOhm: error ±(1.0%+3)
- Capacitance measurement limits: 6 nF/60 nF/600 nF/6uF/60uF/600uF/6uF: error ±(3.0%+5)
- Frequency measurement limits: 60 Hz/600 Hz/6 kHz/60 kHz/600 kHz/6 MHz/10 MHz: error ±(1.0%+3)
- Duty cycle measurement range: 1-99%: error ±(3.0%+3)
- Ringing mode: yes, combined with resistance measurement mode (<50 ohms)
- Diode Test: Yes (0-3 V)
- Non-contact Voltage Detection (NCV): Yes
- True RMS: Yes
- The function of holding readings (Hold): yes
- Automatic recognition function (Smart): Yes (only for DC and AC voltage, resistance and ringing)
- Phase Detector (Live): Yes
- Overvoltage category: cat. III 600 V
- Display: VA
- Number of counts: 6000
- Display backlight: Yes
- Graphic scale: yes
- Flashlight: Yes
- Safety standards: EN61010-1,-2-030; EN61010-2-033; EN61326-1
- Operating temperature range, °C: -40... +1000 °C: accuracy ±(1.0%+3)
- Power supply: 4 AAA batteries (not included)
- Low battery indicator: Yes
- Auto-off: Yes
