Ermenrich Zing TC19 Digital Multimeter
Russia
China
Description

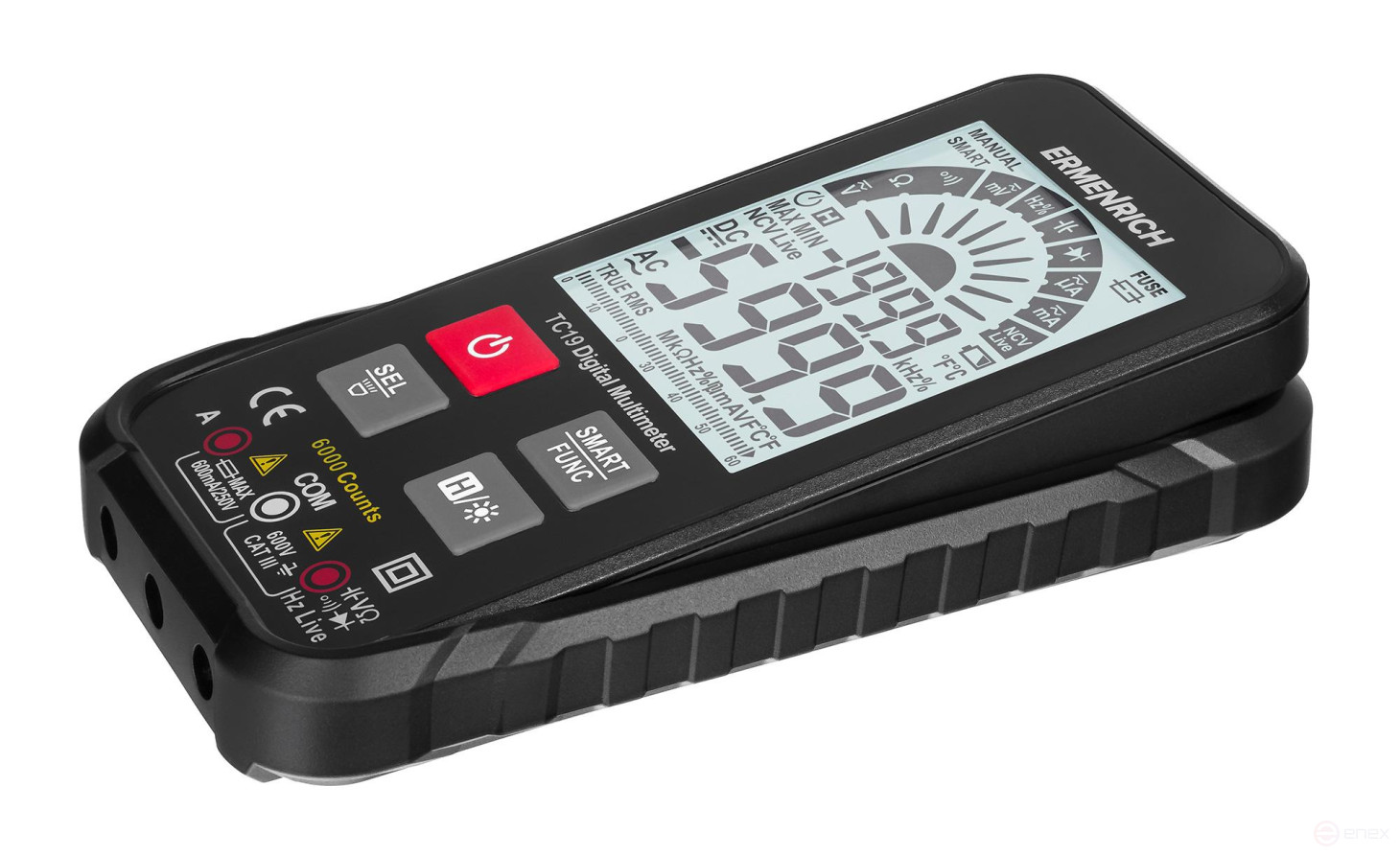

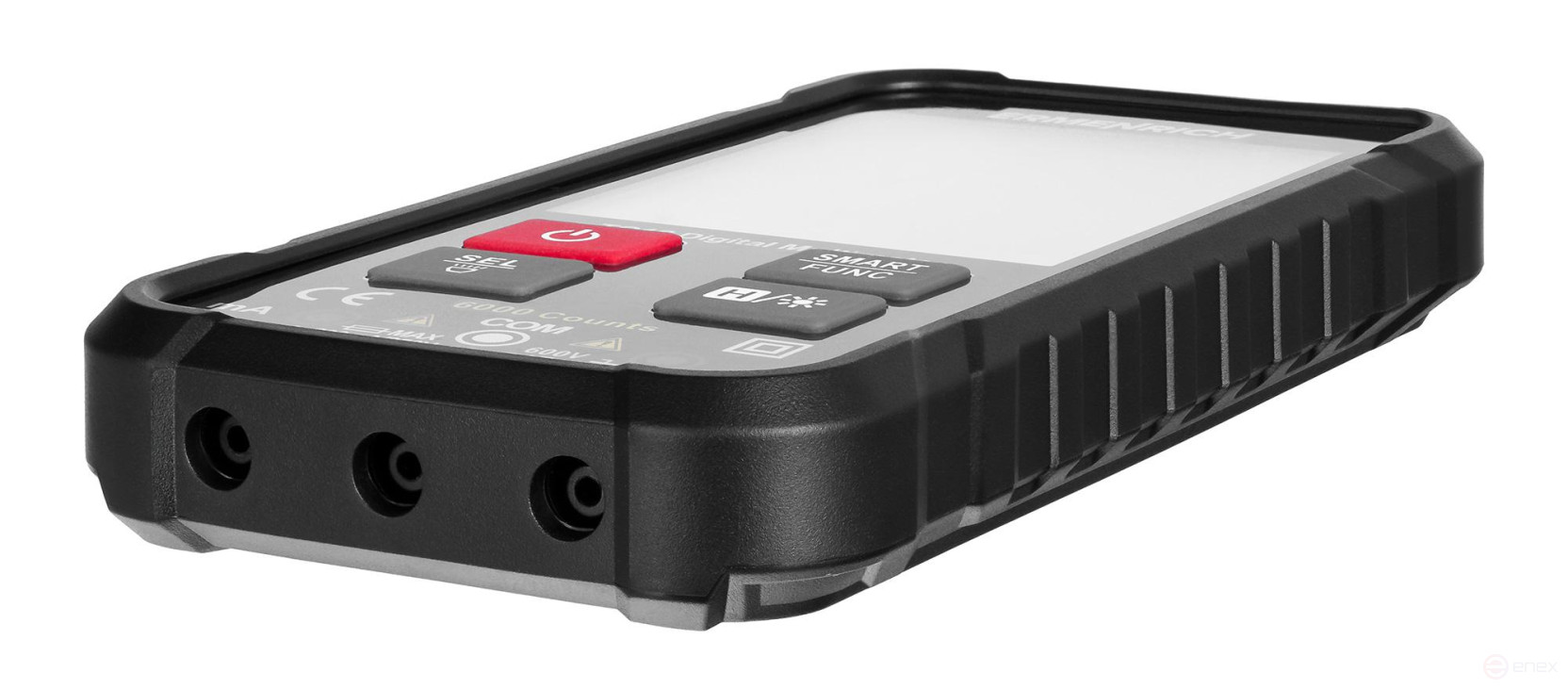

The Ermenrich Zing TC19 digital multimeter measures various parameters of an electrical network: voltage, amperage, resistance, capacitance, frequency, duty cycle. It also serves to determine the integrity of the line (cable ringing), check diodes for breakdowns and breaks, contactless search for hidden wiring (NCV) and detect dangerous voltage. The device is the size of a mobile phone and fits completely in your pocket. The case is made of plastic, has ribs for a comfortable grip and does not slip in the hand during operation.

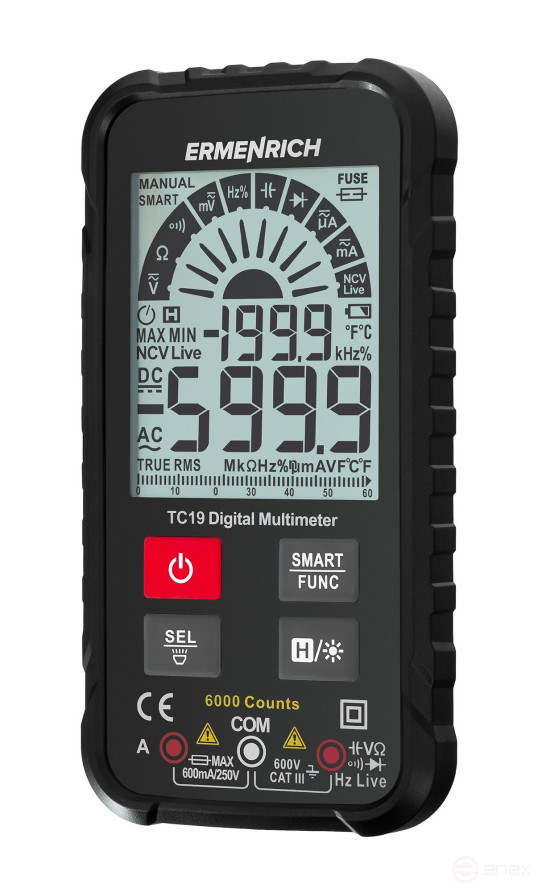

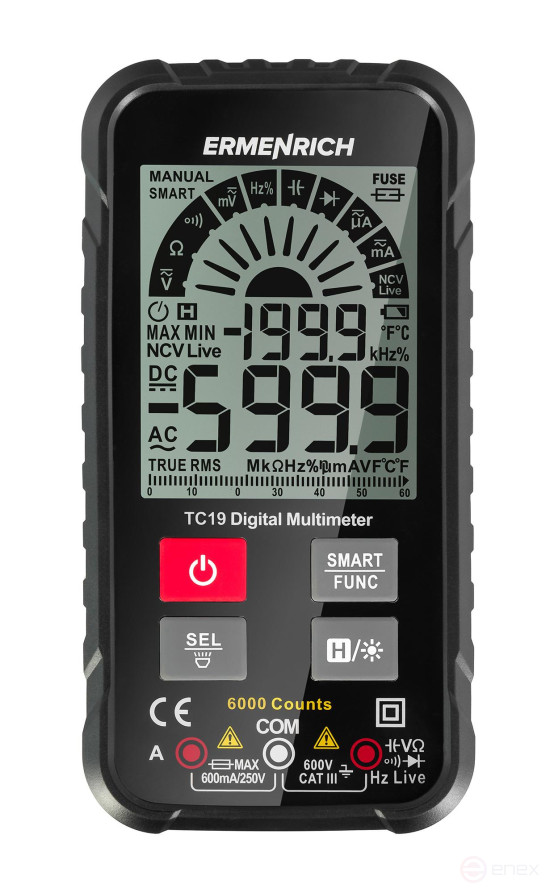

Measurements are performed using the high-precision True RMS method. The device automatically recognizes the input signal and performs the measurement of the desired parameter. It is possible to select the operating mode manually. The multimeter is equipped with a monochrome display with graphical display of modes and four function buttons. There is a separate Hold button on the display to hold the value.
The Ermenrich Zing TC19 meter is powered by 2 replaceable AAA batteries (not included). The charge level is shown on the display. If the device is not in use, it turns off automatically. A built-in LED flashlight is provided for night work. The meter is designed for both domestic and professional use. It can also be used to check the electrical wiring in the car.
Main Features:
- Measurement of current, resistance, voltage, capacitance, frequency, duty cycle
- Detection of cable breakage, short circuit
- Checking diodes for breaks and breakdowns
- Contactless Hidden Wiring Search (NCV), phase detection
- High-precision True RMS measurement
- Large screen with graphical interface
- Powered by replaceable batteries

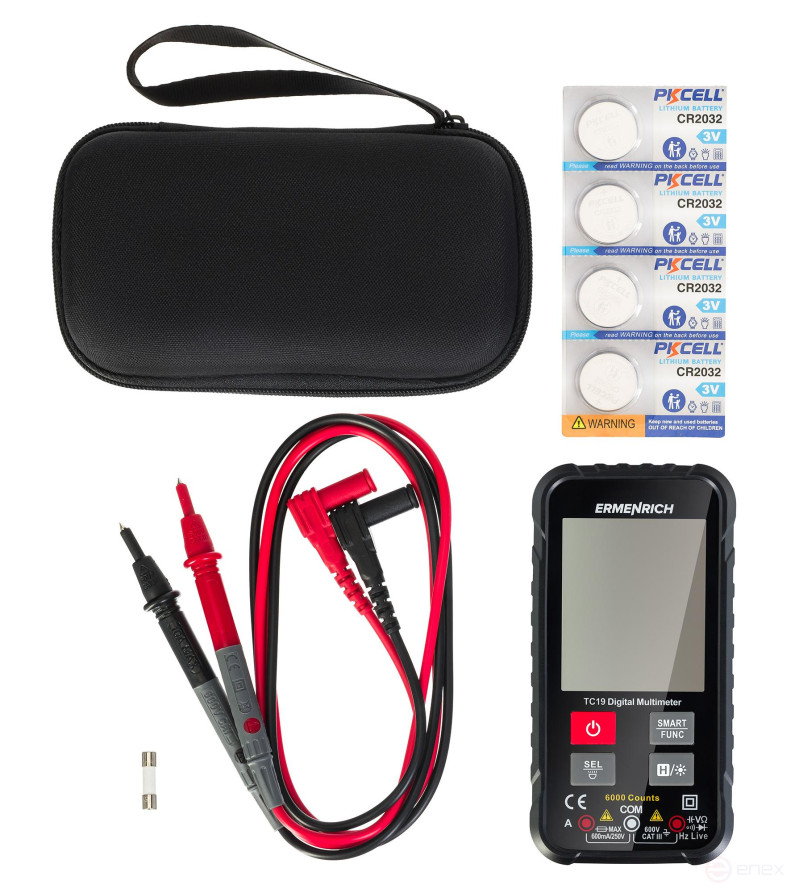

Equipment:
- Digital Multimeter
- Probes

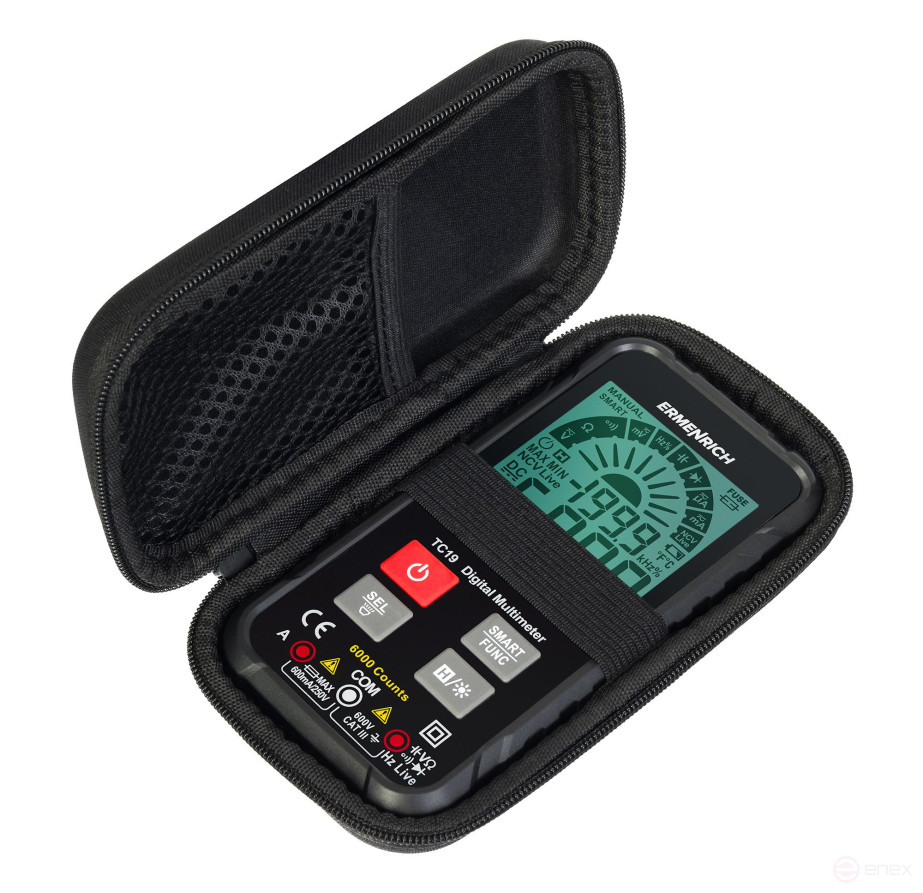

- Case
- Operating instructions and warranty card
Specifications:
- EAN: 5905555017631
- Measurement limit selection: automatic
- Main Functions: ammeter, ohmmeter, voltmeter, capacitance meter, duty cycle meter, frequency meter
- DC voltage measurement limits: 60 mV/600 mV/6 V/60 V/600 V: error ±(0.5%+3)
- AC voltage measurement limits: 60 mV/600 mV/6 V/60 V/600 V: error ±(1.0%+3)
- DC current measurement limits: 6000mA/60mA/600mA: error ±(1.2%+5)
- AC current measurement limits: 6000mA/60mA/600mA: error ±(1.5%+5)
- Resistance measurement limits: 600 ohms/6 kOhm/60 kOhm/600 kOhm/6 mOhm/60 mOhm: error ±(1.0%+5)
- Capacitance measurement limits: 6 nF/60 nF/600 nF/6 UF/ 60 UF/600 UF/6 mF/60 mF: error ±(4.0%+5)
- Frequency measurement limits: 10 Hz/100 Hz/1000 Hz/10 kHz/100 kHz/1000 kHz/10 MHz: error ±(1.0%+5)
- Duty cycle measurement range: 1-99%: error ±(3.0%+5)
- Cable integrity check function : Yes
- Diode test: Yes
- Non-contact Voltage Detection (NCV): yes
- True RMS: Yes
- The function of holding readings (Hold): yes
- Automatic recognition function (Smart): Yes (only for DC and AC voltage, resistance and ringing)
- Phase Detector (Live): Yes
- Overvoltage category: cat. III 600 V
- Number of counts: 6000
- Display backlight: Yes
- Graphic scale: yes

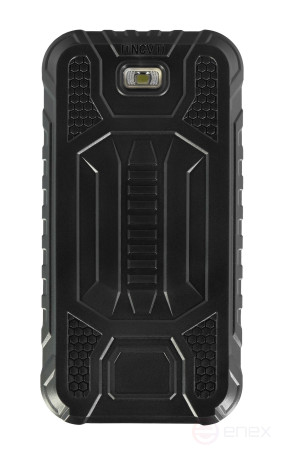

- Flashlight: Yes
- Safety standards: EN61010-1,-2-030; EN61010-2-033; EN61326-1
- Power supply: 2 CR2032 type batteries (not included)
- Low battery indicator: Yes
- Auto Power off: Yes
