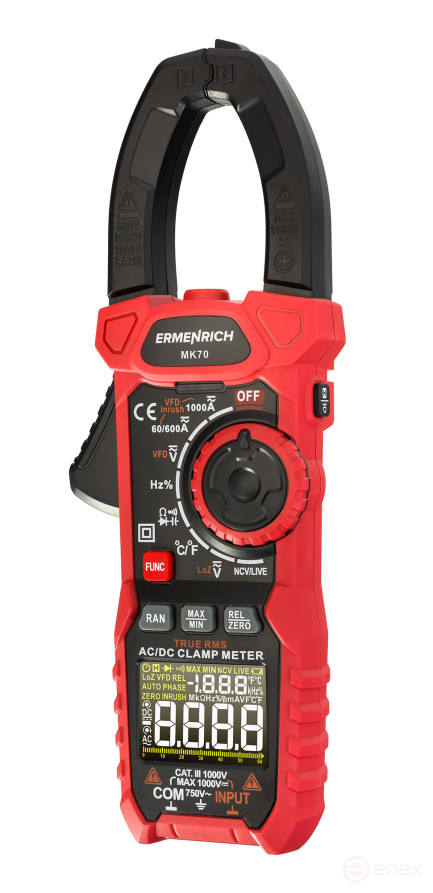

Ermenrich Ping MK70 Current Measuring pliers
Russia
China
Description
The Ermenrich Ping MK70 current measuring pliers are a portable measuring device for safe and fast determination of current strength, including direct current, without breaking the circuit. This device can also measure voltage, resistance, electrical capacity, frequency, duty cycle. Thanks to the thermocouple, the temperature can be measured with the result displayed in °C or °F. Ermenrich Ping MK70 current clamps are used to detect breaks and short circuits in a cable line, breakdowns and diode breaks, and detect live wires hidden in the floor or wall (NCV function).
Other functions in this model:
- Frequency conversion
- Inrush current measurement
- Measuring voltage at low resistance (low-resistance voltmeter) to reduce interference
- Zeroing at DC measurements (DCA Zero) to compensate for residual magnetism
The calculation of variables is performed using True RMS values, which guarantees high accuracy. The results are displayed on a color LCD display in numerical form or on a graphical scale. The result can be delayed on the screen and viewed later (Hold function). It is possible to perform measurements based on reference values (REL function) and save minimum and maximum values in the device memory.
The meter has a plastic case with fins, fits in a jacket pocket. When working in the dark, you can use the built-in flashlight to illuminate the wire or shield. 3 AAA batteries (not included) are used for power supply. There is an indication of battery charge, there is an automatic shutdown to save charge.
Main Features:
- Determination of the current value (AC, DC, starting) without opening the circuit
- Measurement of voltage (DC, AC), resistance, capacitance, frequency, duty cycle
- Temperature measurement using a thermocouple
- Ringing cables, testing diodes, searching for hidden sockets and live wiring (NCV)
- Frequency conversion, low-resistance voltmeter
- Relative measurements (REL), fixing the result of readings on the display, saving minimum and maximum values
- Built-in flashlight, powered by 3 batteries, energy saving (automatic shutdown when idle)
Package contents:
- Current measuring pliers Probes
- Case
- Operating instructions and warranty card
Specifications:
- EAN: 5905555017495
- Measurement limit selection: automatic, manual
- Main Functions: ammeter, ohmmeter, voltmeter, capacitance meter, duty cycle meter, thermocouple, frequency meter
- DC voltage measurement limits: 600 mV/6 V/60 V/600 V/1000 V: error ±(0.5%+3)
- AC voltage measurement limits: 600 mV/6V/60V/600V/750V: error ±(0.8%+3)
- DC current measurement limits: 60/600/1000 A: error ±(2.5%+5)
- AC current measurement limits: 60/600/1000 A: error ±(2.5%+5)
- Resistance measurement limits: 600 ohms/6 kOhm/60 kOhm/600 kOhm/6 mOhm/60 mOhm: error ±(0.8%+3)
- Capacitance measurement limits: 10 nF/100 nF/1 UF/10 UF/100 UF/1 mF/10 mF/100 mF: error ±(3.0%+3)
- Frequency measurement limits: 10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz: error ±(0.5%+5)
- Duty cycle measurement range: 1-99%: error ±(1.0%+2)
- Cable integrity check (ringing) function : yes
- Diode Test: Yes
- Non-contact Voltage Detection (NCV): Yes
- True RMS: Yes
- The function of holding readings (Hold): yes
- Limit value storage function (Min/Max): Yes
- Relative Measurement Function (REL): Yes
- DC Zero Setting (DCA Zero): Yes
- Low Resistance Voltage Measurement (LowZ): Yes
- Frequency Converter (VFD): Yes
- INRUSH current measurement: yes
- Overvoltage category: cat. III 1000 V, cat. IV 600 V
- Number of counts: 6000
- Display backlight: Yes
- Flashlight: Yes
- Safety standards: EN61010-1,-2-030; EN61010-2-033; EN61326-1
- Operating temperature range, °C: -40... +1000 °C: accuracy ±(1.0%+2)
- Power supply: 3 AAA batteries (not included)
- Low battery indicator: Yes
- Auto Power off: Yes
