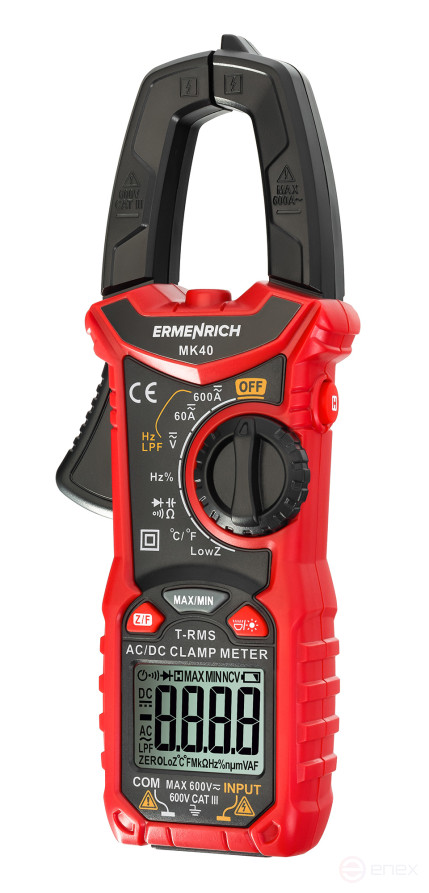

Ermenrich Ping MK40 Current Measuring pliers
Russia
China
Description
The Ermenrich Ping MK40 current measuring pliers are designed to measure direct and alternating current without breaking the circuit. In addition, they have functions for measuring voltage, resistance, capacitance, frequency and duty cycle. There is also a thermocouple for temperature measurement. Other features of the meter include ringing the cable to detect short circuits and breaks, checking diodes, contactless voltage detection, and detecting hidden wiring and sockets.
The pliers are suitable for both professional and domestic use, for example, for wiring in an apartment or for troubleshooting an electrical network. The special feature of this model is the low-resistance voltmeter (Low-Z) function. In this mode, the voltage is measured at a minimum resistance. This reduces electromagnetic interference and increases measurement accuracy. In addition, the Ermenrich Ping MK40 current clamps have a low-pass filter (LPF), which also increases the accuracy of the final result. There is a reset function when measuring direct current (DCA Zero).
The measurement results are displayed on a backlit LCD display. You can hold the result on the display to view it later. It is also possible to save and view minimum and maximum values. The current meter body is made of plastic, fits comfortably in the hand and does not slip due to the fins on the sides. The device is powered by 2 AAA batteries (not included). There is a low charge indicator, and the device turns off automatically when idle.
Main Features:
- Measurement of current, including direct current, without opening the circuit
- Measurements of voltage, resistance, capacitance, frequency, duty cycle
- Low-resistance voltage measurement (LowZ)
- Temperature measurement using a thermocouple
- Detection of short circuits and open circuits in the network (cable ringing)
- Low-pass filter (LPF) to reduce interference and improve the accuracy of results
- Calculated using the True RMS method, low measurement error
- Recording the measurement result on the display (Hold function)
Package contents:
- Current measuring pliers Probes
- Case
- Operating instructions and warranty card
Specifications:
- EAN: 5905555017471
- Measurement limit selection: automatic, manual
- Main Functions: ammeter, ohmmeter, voltmeter, capacitance meter, duty cycle meter, thermocouple, frequency meter
- DC voltage measurement limits: 600 mV/6V/60V/600V: error ±(0.5%+5)
- AC voltage measurement limits: 4/40/400/600 V; 6/60/600/600 V: error ±(0.8%+5)
- DC current measurement limits: 60/600 A: error ±(2.5%+5)
- AC current measurement limits: 60/600 A: error ±(2.5%+5)
- Resistance measurement limits: 600 ohms/6 kOhm/60 kOhm/600 kOhm/6 mOhm/60 mOhm: error ±(1.0%+5)
- Capacity measurement limits: 4nF/40nF/400nF/4uF/40uF/400UF: error ±(4.0%+5)
- Frequency measurement limits: 10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz: error ±(1.0%+3)
- Duty cycle measurement range: 1-99%: error ±(3.0%+3)
- Cable integrity check function : yes
- Diode test: Yes
- Non-contact Voltage Detection (NCV): yes
- True RMS: Yes
- The function of holding readings (Hold): yes
- Limit value storage function (Min/Max): Yes
- DC Zero Setting (DCA Zero): Yes
- Low-pass filter (LPF): Yes
- Low Resistance Voltage Measurement (LowZ): Yes
- Overvoltage category: cat. III 600 V
- Number of counts: 6000
- Display backlight: Yes
- Flashlight: Yes
- Safety standards: EN61010-1,-2-030; EN61010-2-033; EN61326-1
- Operating temperature range, °C: -40 — 1000
- Power supply: 2 AAA batteries (not included)
- Low battery indicator: Yes
- Auto Power off: Yes
