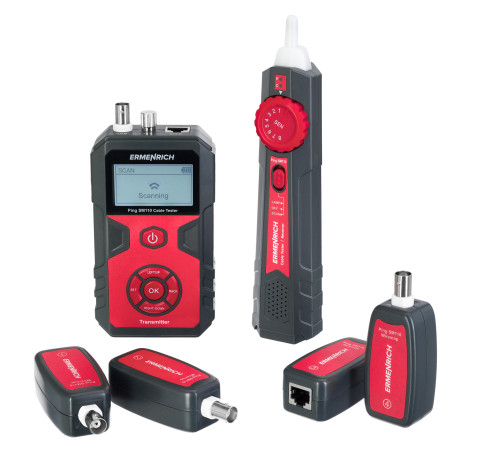

Ermenrich Ping SM110 Cable Line Tester
Russia
China
Description
A device for testing cable lines, tracing, measuring cable length, and detecting faults. It works with STP/UTP network cables of categories 5/6, as well as telephone and coaxial cables. Using the tester, you can quickly find the right cable in the bundle (VFL function), determine the location of an open or short circuit, and the polarity of the telephone line. There is a Port Flash function to identify the port to which the cable is connected. The PoE test is used to determine the voltage on a twisted pair.
The Ermenrich Ping SM110 model is suitable for cable diagnostics up to 2000 m long. Up to 5 test and measurement results can be stored in the internal memory. The tester kit includes a transmitter with a display and buttons, a receiver with sensitivity control and 4 remote modules. In addition, the tester is equipped with headphones to work with high noise, and the headphone jack is located on the receiver. The receiver and transmitter are powered by 1,400 mAh lithium batteries. A microUSB cable for charging the batteries is included.
Main Features:
- Searching for the right cable in the bundle and tracing
- Finding the location of an open and short circuit
- Measuring cable length (up to 2000 m)
- Determining the polarity of a telephone cable
- Determining the cable connection port
- Up to 5 test and measurement results are stored in memory
- Headphones included
Equipment:
- The receiver
- The transmitter
- Remote module – 4 pcs.
- Headphones
- Crocodile clip Type
- Network Patch Cord
- Telephone Patch Cord
- 6P4C Telephone Adapter (RJ11 module)
- BNC-RJ11 Adapter
- microUSB Cable
- Bag
- Operating instructions and warranty card
Specifications:
- EAN: 5905555016979
- Ports: BNC, RJ45, microUSB
- Types of cables tested: coaxial, network STP/UTP of categories 5/6, telephone
- Maximum length of the tested cable, m: 2000
- Cable length measurement: yes
- Checking the serviceability of the cable: yes
- Checking the serviceability of the cable: +
- Flash Indicator function (Port Flash): Yes
- Flash indicator function (Port Flash): +
- Cable Tracing: Yes
- PoE Test: Yes
- Polarity detection: Yes
- Checking the condition of telephone lines: yes
- Checking the condition of telephone lines: +
- Measuring range, m: 10 — 2000
- Visual Fault Detection (VFL) function: Yes
- Signal frequency, kHz: 130
- Data transfer: + (5 memory slots)
- Display: LCD
- Display resolution, pixels: 128x64
- Display backlight: Yes
- Power supply: 1400 mAh lithium polymer battery, 3.7V
- Low battery indicator: Yes
- Auto power off: 15 min, 30 min, 60 min
- Operating temperature range, °C: -10... +60
