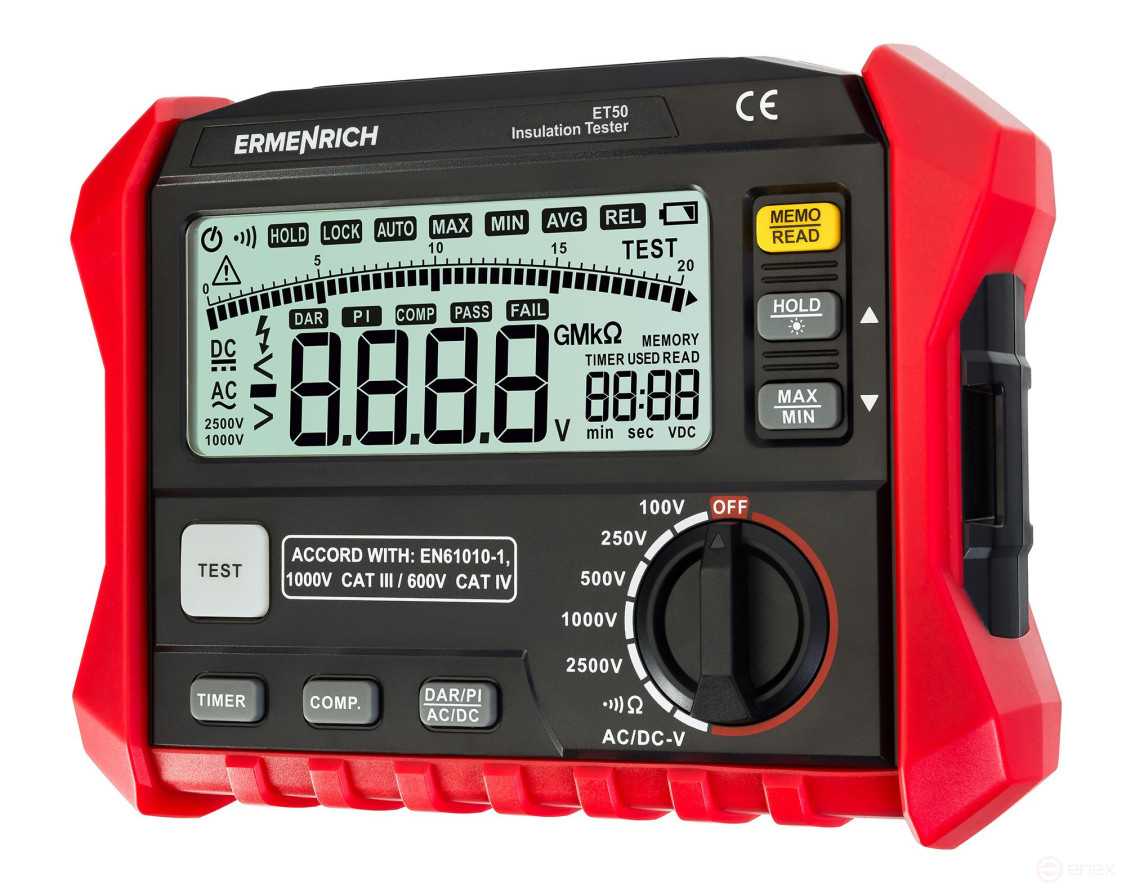

Ermenrich Ping ET50 Insulation Tester
Russia
China
Description
Ermenrich Ping ET50 is a megaohmmeter (insulation resistance meter) with 5 test voltages and an upper measurement limit of 200 gω. It is designed to determine the humidity of insulation (absorption coefficient, DAR) and residual resource (polarization index, PI). Periodic measurements of these parameters make it possible to identify cables with damaged insulation in time, dry or replace them, and prevent short circuits and fires in the power grid.

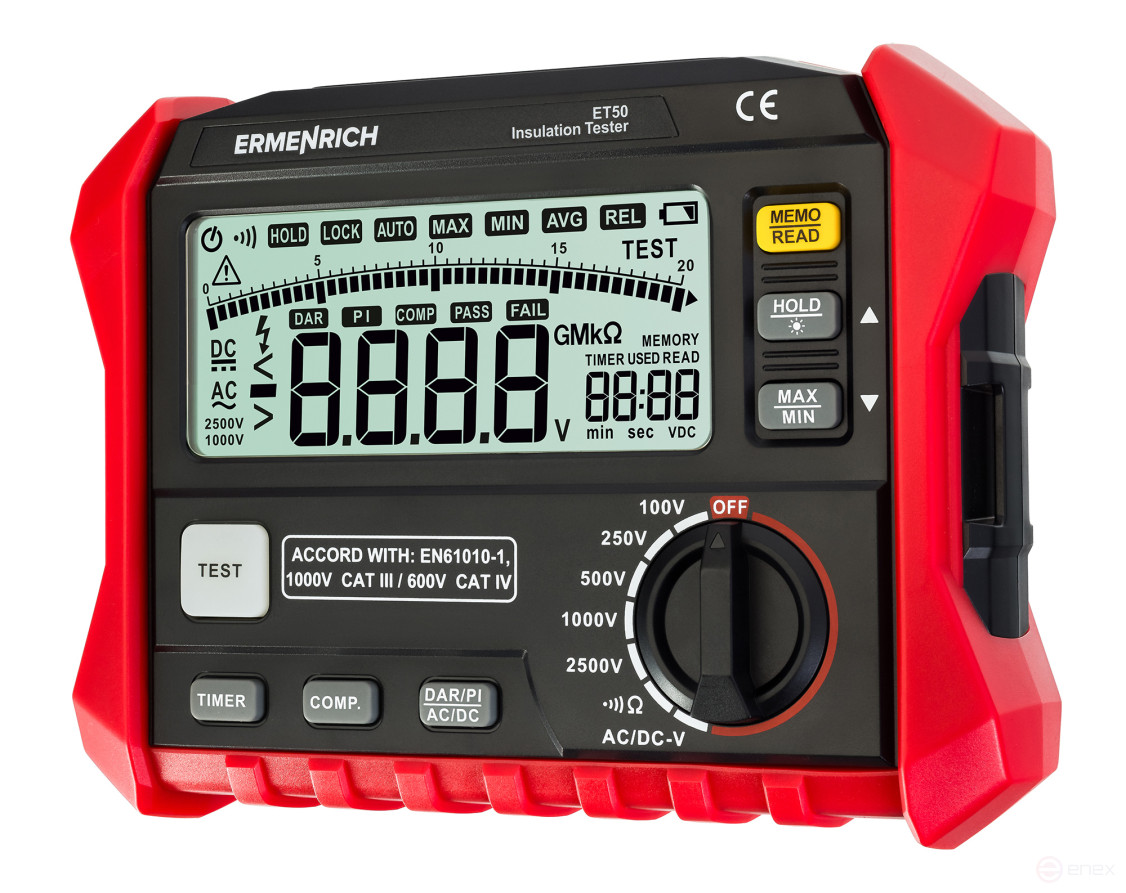

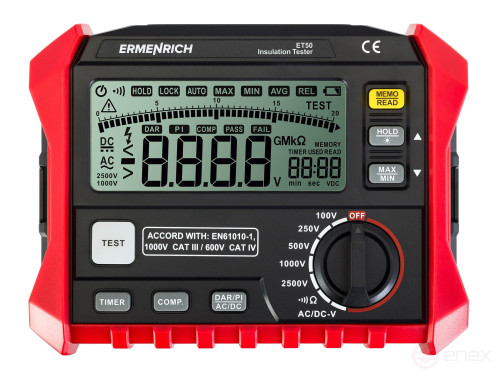

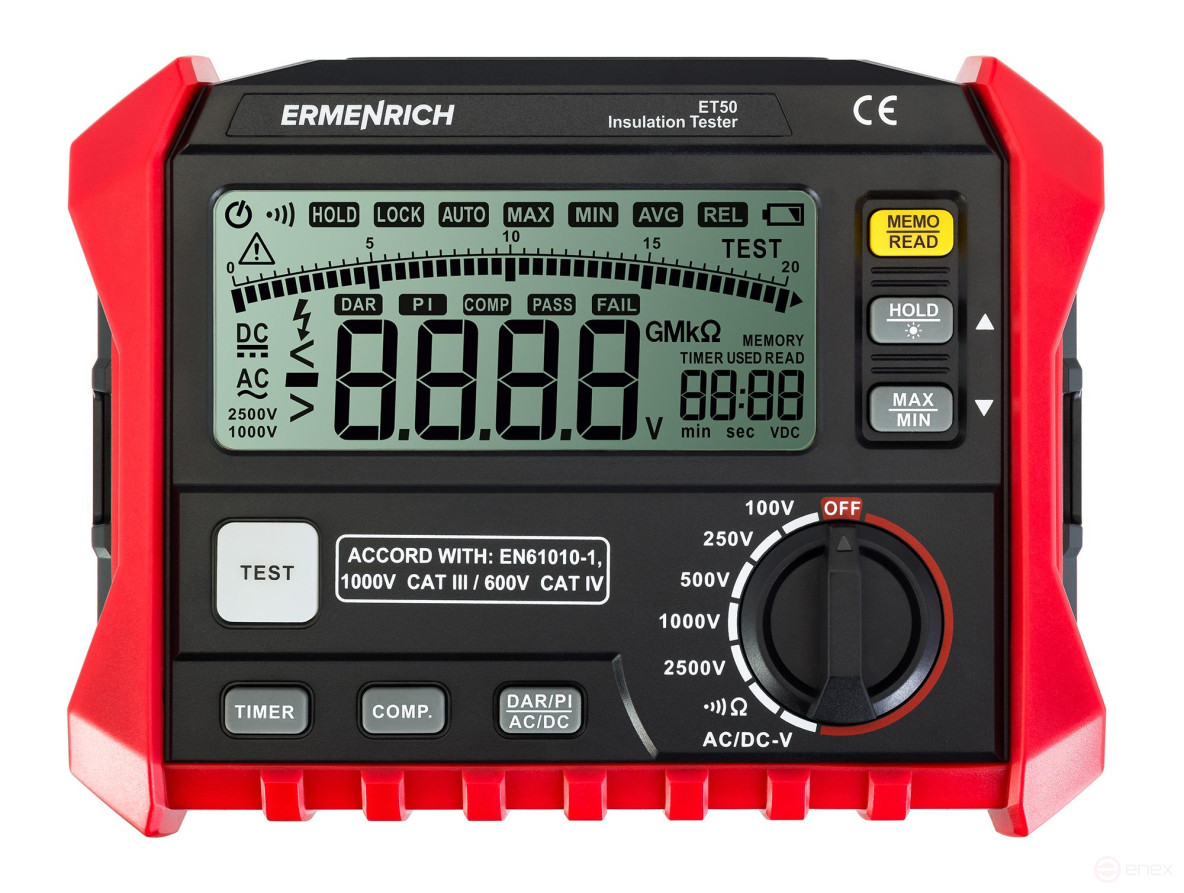

In addition to the main functions, the tester has additional ones. It can be used to measure DC and AC voltage or to ring the cable to detect an open or short circuit. Measurement results and active modes are displayed on a backlit LCD display. It is possible to keep the result on the display if it is not possible to view it immediately (Hold function). The minimum and maximum values, as well as the operating settings, can be stored in the device's internal memory. There is a built-in flashlight to illuminate the workspace.
Main Features:
- Operating voltages: 100, 250, 500, 1000 and 2500 V
- Measuring resistance in the range of 0-200 GH
- Calculation of absorption and polarization coefficients
- Timer resistance measurement, storing results in device memory
- Determination of DC and AC voltage
- Cable ringing mode, detection of network interruptions
- Built-in flashlight, battery-powered, auto-off when idle

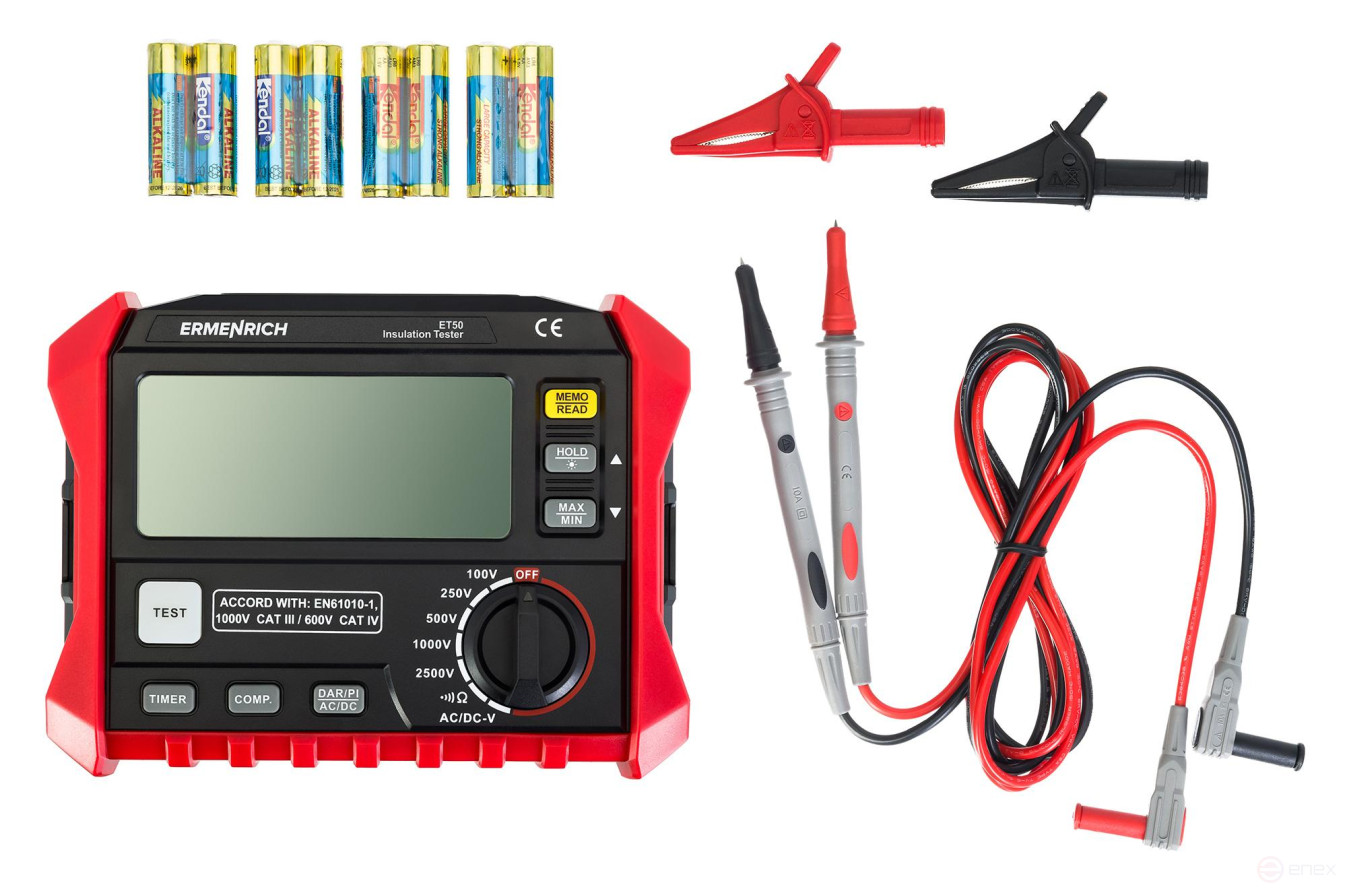

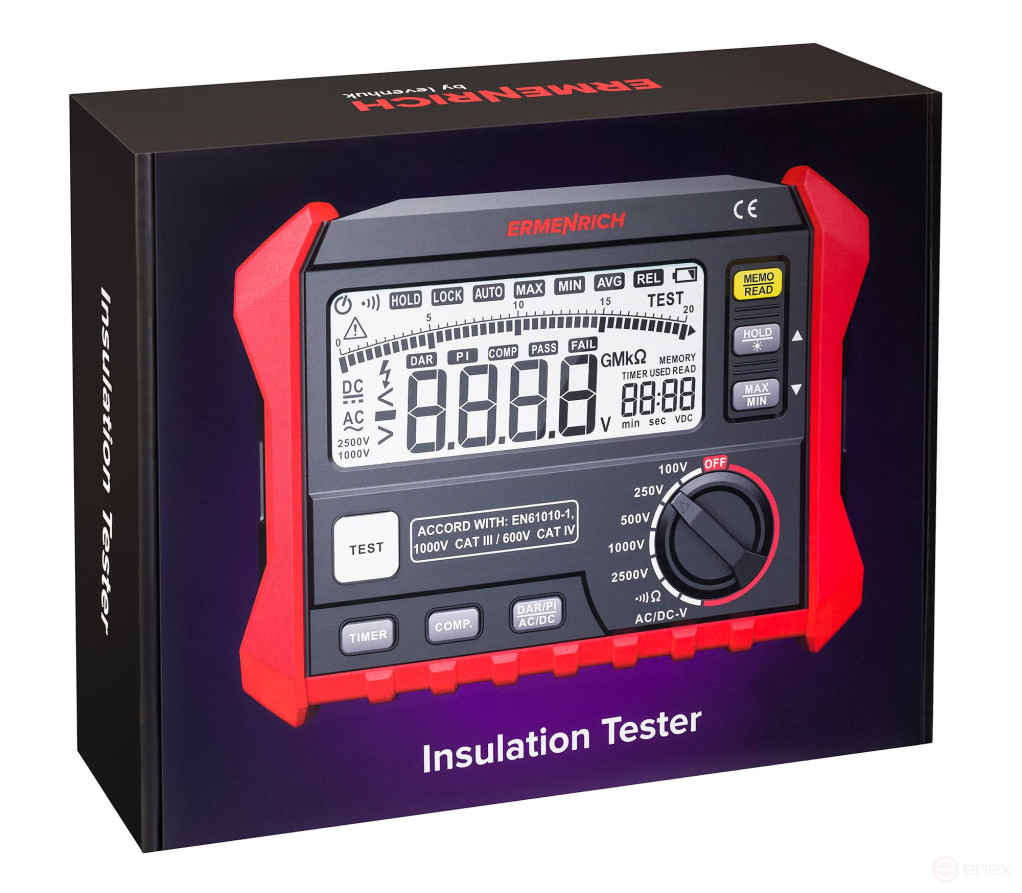

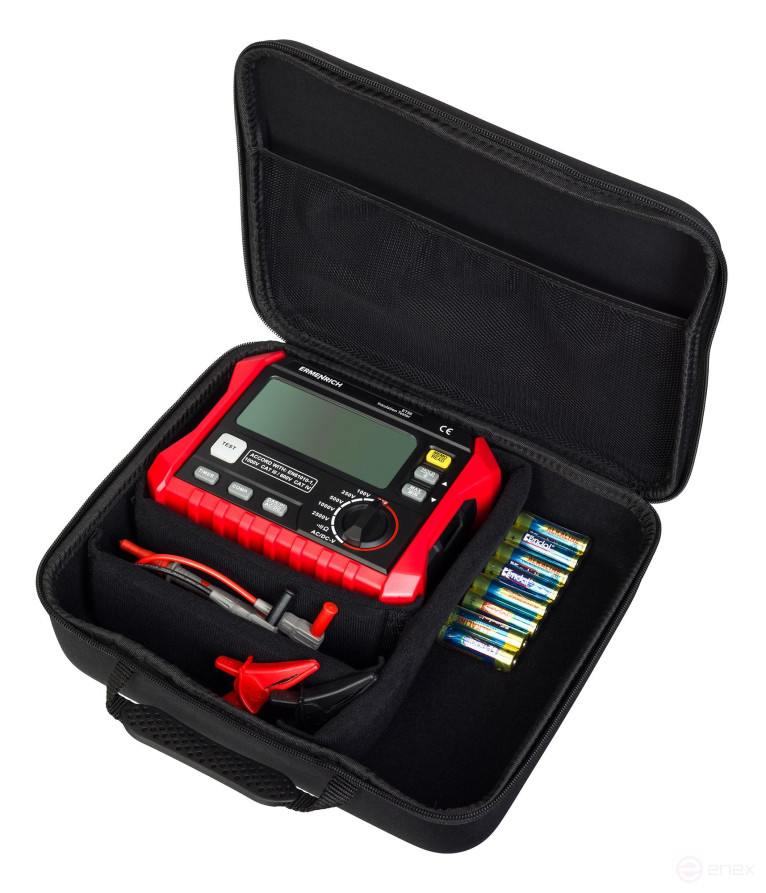

Package Contents:
- Insulation Tester
- Probes
- Crocodile clips
- Carrying bag
- Operating instructions and warranty card
Specifications:
- EAN: 5905555017419
- Test voltages, In: 100, 250, 500, 1000, 2500
- Resistance measurement range at 100 V: 0-1 GOhm: error ±(3%+5)
- Resistance measurement range at 250 V: 0-2 ohms: error ±(3%+5)
- Resistance measurement range at 500 V: 0-20 GOhm: error ±(3%+5)
- Resistance measurement range at 1000 V: 0-20 GOhm: error ±(3%+5); 20-100 GOhm: error ±(5%+5)
- Resistance measurement range at 2500 V: 0-20 GOhm: error ±(3%+5); 20-200 GOhm: error ±(8%+5)
- Short circuit current: 3mA
- Constant voltage measurement range: 0-1000 V: error ±(1%+5)
- AC voltage measurement range: 0-750 V: error ±(1%+5)
- Ringing mode: yes, combined with resistance measurement mode (0-200 ohms: error ±(1%+5))
- Overvoltage category: cat. III 1000 V, cat. IV 600 V
- Display: yes
- Graphic scale: yes
- Flashlight: Yes

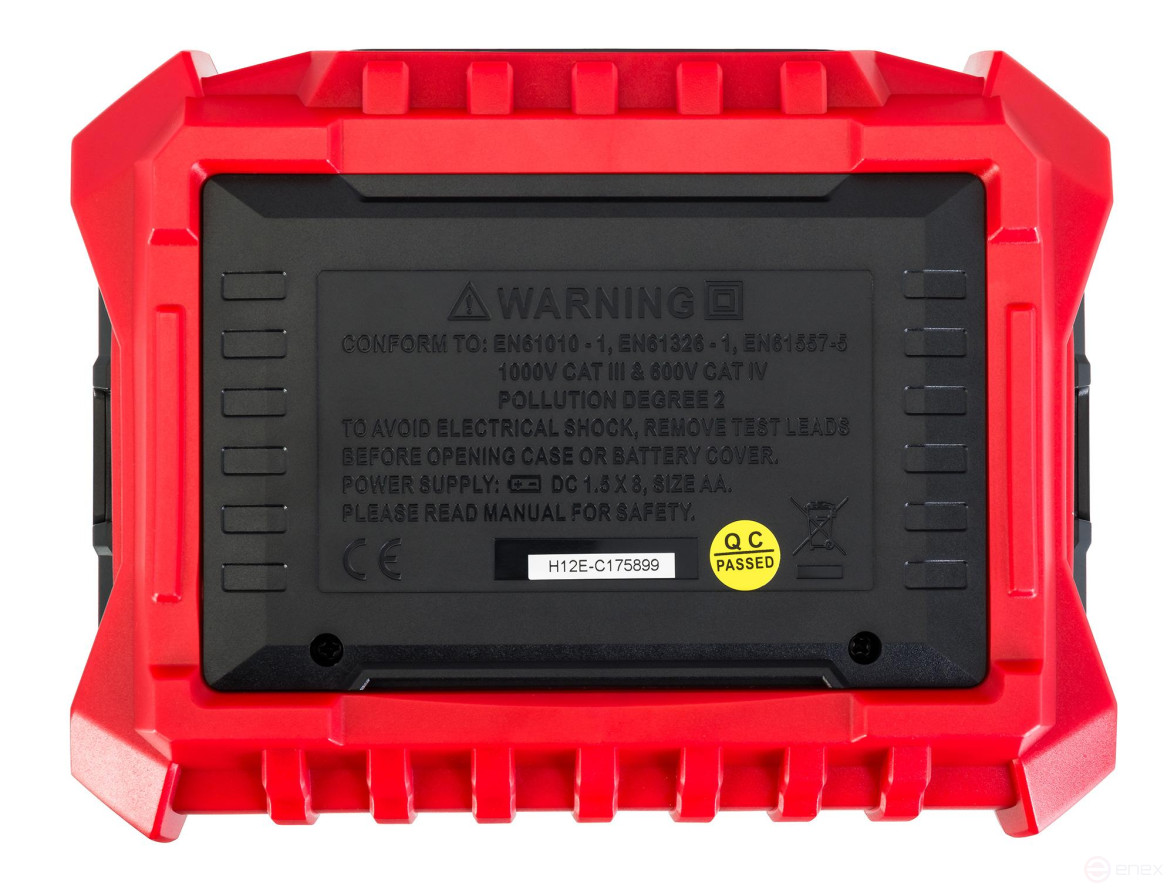

- Safety standards: IEC/EN 61010-1
- Absorption Coefficient (DAR) measurement: yes
- Polarization Index (PI) measurement: yes
- Data saving/reading function: Yes
- The function of holding readings (Hold): yes
- Limit value storage function (Min/Max): Yes
- Timer function for measuring resistance: Yes

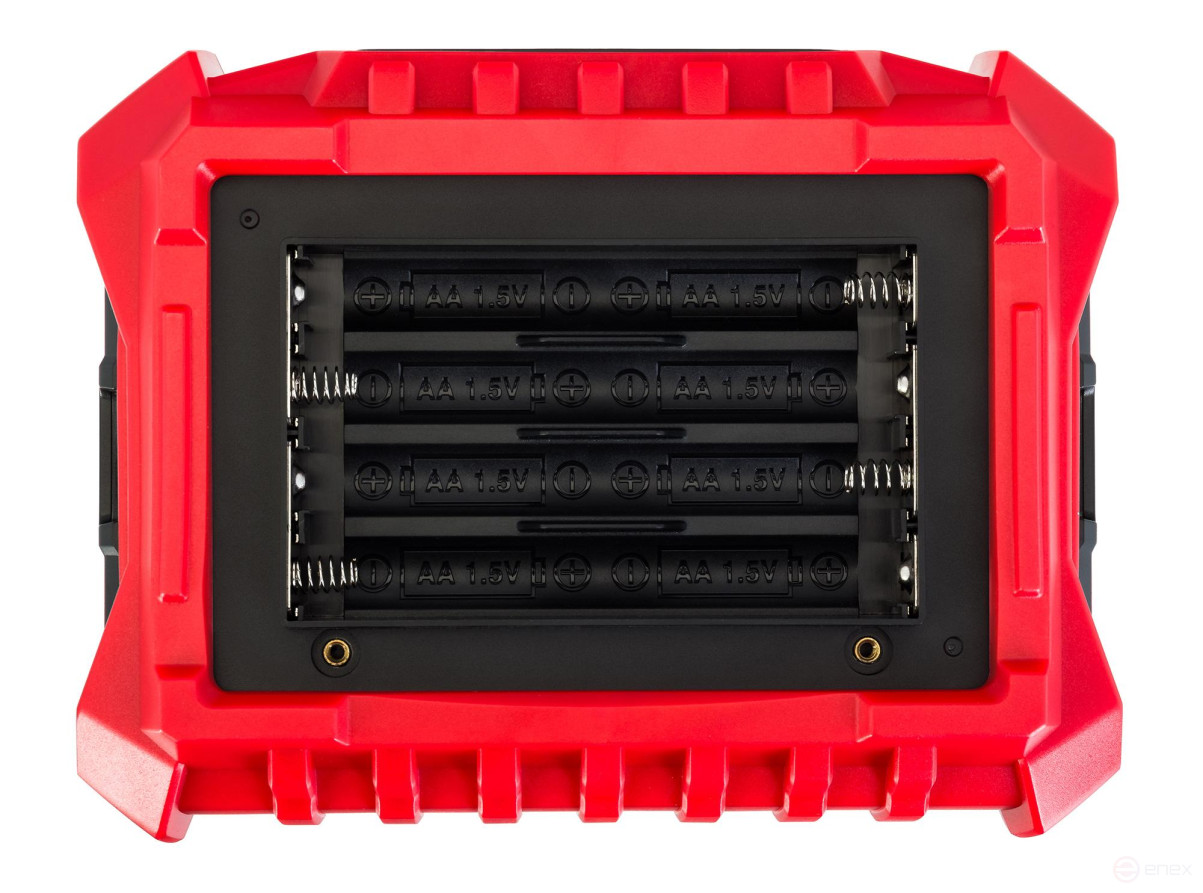

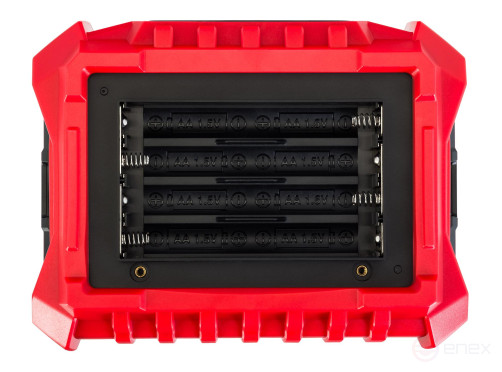

- Power supply: 6 AA batteries (not included)
- Low battery indicator: Yes
- Auto-off: Yes
