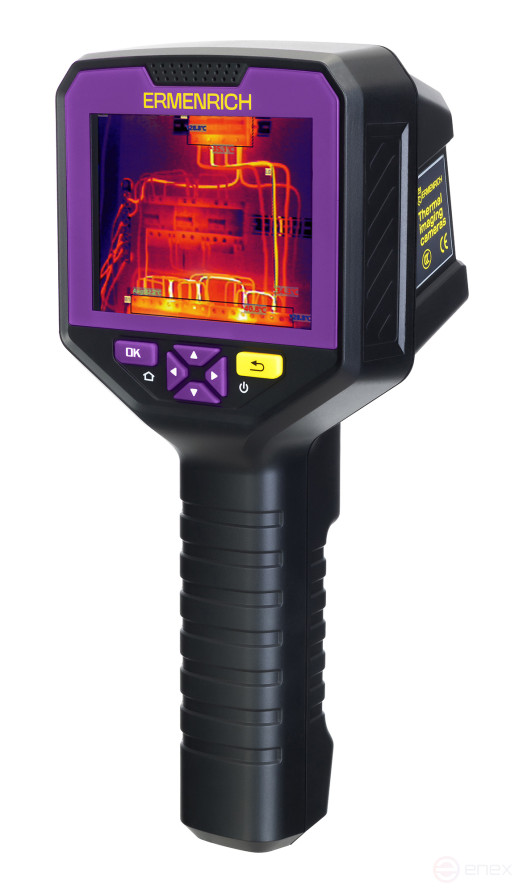

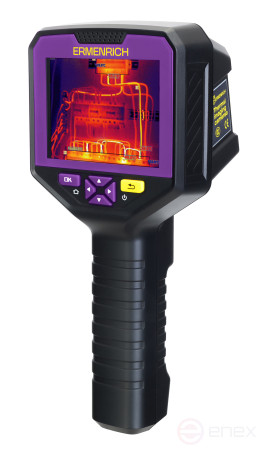

Thermal imager construction Ermenrich Seek TV90
Russia
China
Description
Ermenrich Seek TV90 is a construction thermal imager that is used to monitor the operation and serviceability of industrial, electrical and heating equipment, during the installation of heating systems, and in car repairs. It can also be used in construction to find heat leaks in foundations and facades.
The device is based on a 256x192 pixels thermal imaging sensor and a visible light camera. The measured temperature range is -20 to +400 ° C, the measurement step is 0.1 degrees. High measurement accuracy – the error is no more than 2 ° C (at temperatures up to 100 ° C).
The image is shown in the selected mode: visible light, infrared mode, merging edges and superposition of infrared and visible light. There is a picture-in-picture feature.
The color screen allows you to choose from 8 color modes. The screen resolution is 240x320 pixels, the diagonal is 3.5 inches. It is possible to capture an image on a photo or video, recordings are saved to an internal memory of 8 GB. There is also a special application for processing captured thermograms (thermal imaging images) – it is used to change the color palette, contrast level and orientation of images. The application allows you to leave text comments on top of pictures and save the final frames for their use in future work.
A lithium battery is used to power the thermal imager, one charge of which is enough for 4 hours of continuous operation. Automatic shutdown helps to save energy, and the charge level indicator helps to charge the device in a timely manner.
Main Features:
- Thermal imager with 256x195 pixels sensor and visible light camera
- The measured temperature range is -20 to +400 °C
- Multiple display modes, including visible and infrared light overlay
- 3.5" color screen with 240x320 pixels resolution, 8 color palettes
- Lithium battery 2600 mAh, 3.7V, charging via USB Type-C cable
- Up to 4 hours of operation on a single charge, automatic shutdown when the device is idle
- An application for processing and saving thermograms
Package contents:
- Thermal imager
- USB Type-C Cable
- Case
- Operating instructions and warranty card
Specifications:
- EAN: 5905555020808
- Thermal Imager Type: Manual
- Spectral range, µm: 8-14
- Frame rate: 25 Hz
- Temperature measurement range, °C: -20 — 400
- Temperature error, %: resolution: 0.1 °C, accuracy: <100 °C: ±2 °C; ≥100 °C: ±2%;
- Temperature sensitivity (NETD), mK: <70
- Color palettes: high contrast, hot white, hot green, hot red, hot black, red iron, lava, rainbow
- Field of view angle (horizontal)x(vertical), °: 56x42. 3.75 mrad (instantaneous)
- Fusion of optical and thermal images: yes
- Display: LCD
- Display diagonal, inch: 3.5
- Display resolution, pixels: 240x320
- Resolution of the microbolometric matrix, pixels: 256x192
- Operating modes: IR image, IR edge display, visual image, IR and visual image fusion
- Power source: 2600 mAh lithium battery, 3.7V; charging via USB Type-C cable (included)
- Battery life, hours: 4
- Maximum impact load, g: falling from a height of up to 1 meter
- Operating temperature range, °C: -10 — 60
- Built-in recorder: Yes
- Memory: built-in, 8 GB
- Video recording file format: *.mp4
- Photo file format: *.jpg
- Interface connectors: USB Type-C
- Tripod mounting: Yes
- Mounting: Standard 1/4" mount
- Optional: auto-off, response time: 12 ms, emissivity: adjustable from 0.1 to 0.99, low battery indicator, thermogram application, camera resolution: 1 Megapixel, picture-in-picture mode
Characteristics
General Specifications
China
Russia
Dimensions of packaged product
Specifications
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
Lower threshold:
- Usually -10...-20 °C: Important for finding heat leaks in winter, checking the quality of thermal insulation of walls and windows, and identifying "cold bridges" outside the building.
Upper threshold:
- Up to +120...+150 °C: Sufficient for checking heating systems, underfloor heating and finding blockages in radiators.
- Up to +300...+400 °C: Necessary for diagnostics of electrical panels, circuit breakers, loaded bearings and industrial equipment.
Lower threshold:
- Usually -10...-20 °C: Important for finding heat leaks in winter, checking the quality of thermal insulation of walls and windows, and identifying "cold bridges" outside the building.
Upper threshold:
- Up to +120...+150 °C: Sufficient for checking heating systems, underfloor heating and finding blockages in radiators.
- Up to +300...+400 °C: Necessary for diagnostics of electrical panels, circuit breakers, loaded bearings and industrial equipment.
