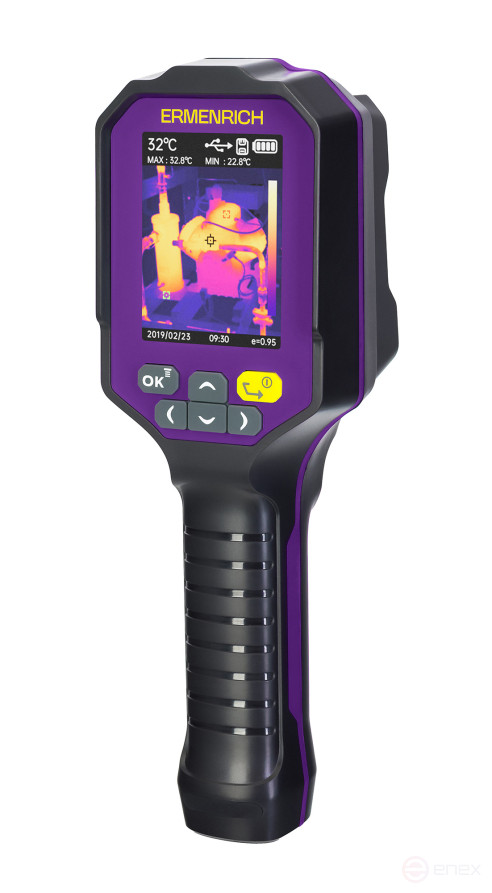

Thermal imager construction Ermenrich Seek TV60
Russia
China
Description
The Ermenrich Seek TV60 construction thermal imager is a compact and functional device in an impact–resistant housing that is useful to professionals in the fields of construction and repair for various diagnostics related to the detection of excess heat or its leaks. The tool is used in the assessment of brickwork defects, troubleshooting of electrical networks, installation of sources of drafts, for monitoring the installation of heating communications in the house, and so on. This model is capable of detecting temperatures in the range from -10 to +400 °C with an error of ± 2° when measuring up to 100 °C. The user can choose from alternative temperature scales – Fahrenheit and kelvin are provided in the settings.
Thermal vision of the device is provided by a microbolometric matrix with a resolution of 120x90 pixels and a NETD of <60 mm. The image is displayed on a 2.8" 240x320 pixels LCD screen, featuring bright colors, informative content, and a frame rate of 25 Hz that is comfortable for viewing and working. The color scheme of the thermal image can be changed according to personal preferences – a total of 8 palettes are available, including both black and white and color variations. Please note that the Ermenrich Seek TV60 has only one mode of operation – IR image. The spectral range of the thermal imager is 8-14 microns.
One of the main features of the Ermenrich Seek TV60 is the built-in photo and video recorder, as well as the device's 8 GB internal memory, which stores the footage. Files can be transferred to a PC using a USB Type-C cable (included). Other useful features include a laser designator with a red beam and a range of up to 2 meters, a low battery indicator, and automatic shutdown of the thermal imager during prolonged inactivity.
The device can be used in the temperature range from -10 to +45 °C. The device is powered by a built-in 2600 mAh lithium battery, 3.7 V. A full battery charge is enough for 4 hours of continuous use.
Main features:
- 2.8" color LCD screen with a resolution of 240x320 pixels and a frame rate of 25 Hz
- Built–in recorder for taking photos and videos, internal device memory - 8 GB
- Temperature measurement: highest, lowest and center points
- Highly sensitive thermal imaging sensor 120x90 pixels and NETD <60mM
- 8 image color palettes: black and white and color options to choose from
- Class 2 laser designator with a wavelength of 505-550 nm, red color, power <1 mV
Package contents:
- Thermal imager
- USB Type-C Cable
- Case
- Operating instructions and warranty card
Specifications:
- EAN: 5905555024738
- Thermal Imager Type: Manual
- Spectral range, µm: 8-14
- Frame rate: 25 Hz
- Temperature measurement range, °C: -10 — 400
- Temperature error, %: resolution: 0.1 °C, accuracy: <100 °C: ±2 °C; ≥100 °C: ±2%;
- Temperature sensitivity (NETD), mK: <60
- Color palettes: high contrast, hot white, hot green, hot red, hot black, red iron, lava, rainbow
- Laser designator: 505-550 nm, Class 2, red
- Field of view angle (horizontal)x(vertical), °: 38x50, 7.39 mrad (instant)
- Display: LCD
- Display diagonal, inches: 2.8
- Display resolution, pixels: 240x320
- Resolution of the microbolometric matrix, pixels: 120x90
- Operating modes: IR image
- Power source: 2600 mAh lithium battery, 3.7V; charging via USB Type-C cable (included)
- Battery life, hours: 4
- Operating temperature range, °C: -10 — 45
- Built-in recorder: Yes
- Memory: built-in, 8 GB
- Video recording file format: *.mp4
- Photo file format: *.jpg
- Interface connectors: USB Type-C
- Case/Briefcase/Bag included: Briefcase
- Optional: response time: 12 ms, emissivity: adjustable from 0.1 to 0.99, low battery indicator, Class 2 laser with a wavelength of 505-550 nm, auto-off function
Characteristics
General Specifications
China
Russia
Dimensions of packaged product
Specifications
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
Lower threshold:
- Usually -10...-20 °C: Important for finding heat leaks in winter, checking the quality of thermal insulation of walls and windows, and identifying "cold bridges" outside the building.
Upper threshold:
- Up to +120...+150 °C: Sufficient for checking heating systems, underfloor heating and finding blockages in radiators.
- Up to +300...+400 °C: Necessary for diagnostics of electrical panels, circuit breakers, loaded bearings and industrial equipment.
Lower threshold:
- Usually -10...-20 °C: Important for finding heat leaks in winter, checking the quality of thermal insulation of walls and windows, and identifying "cold bridges" outside the building.
Upper threshold:
- Up to +120...+150 °C: Sufficient for checking heating systems, underfloor heating and finding blockages in radiators.
- Up to +300...+400 °C: Necessary for diagnostics of electrical panels, circuit breakers, loaded bearings and industrial equipment.
