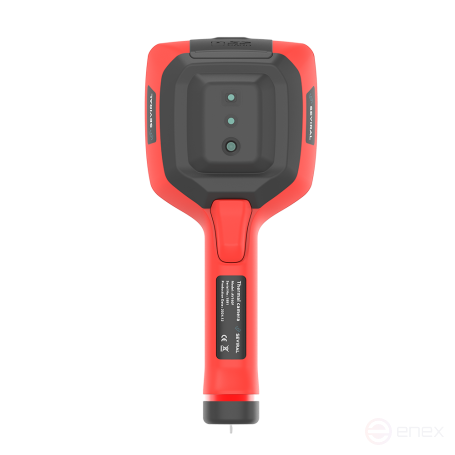

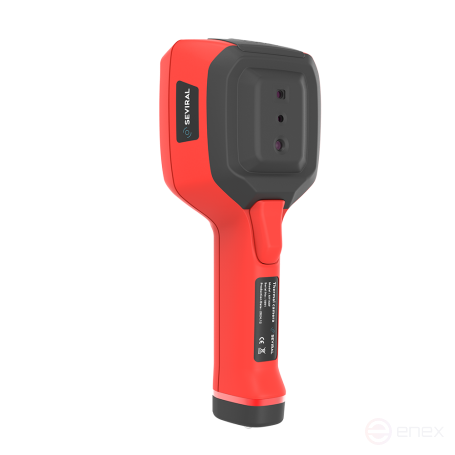

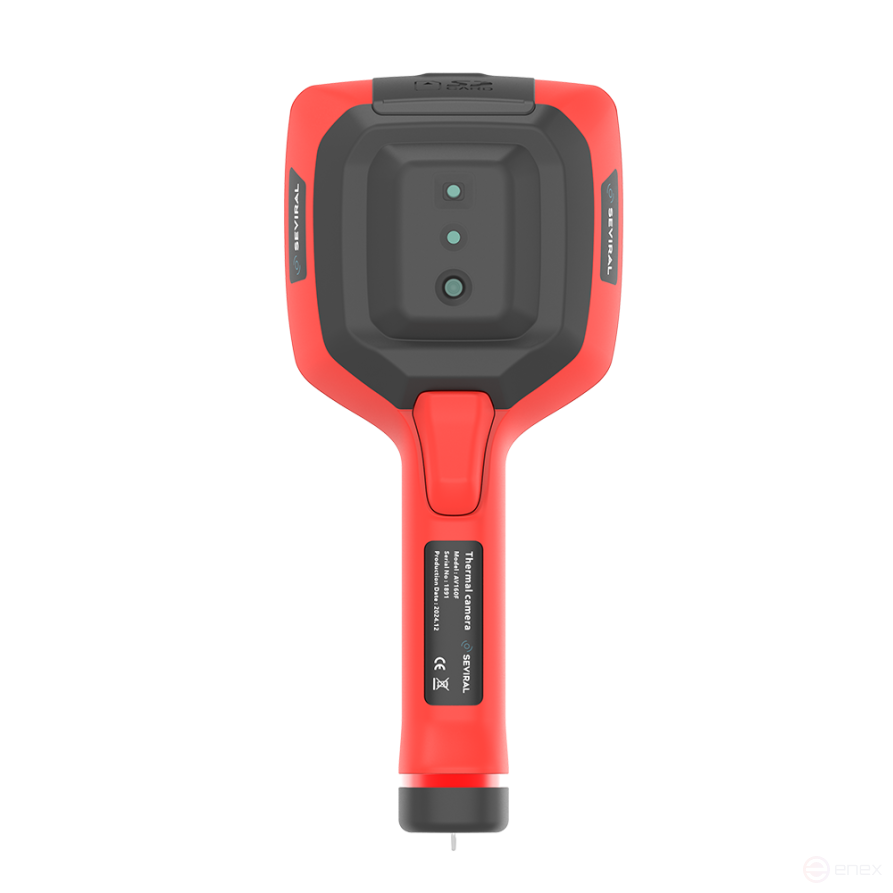

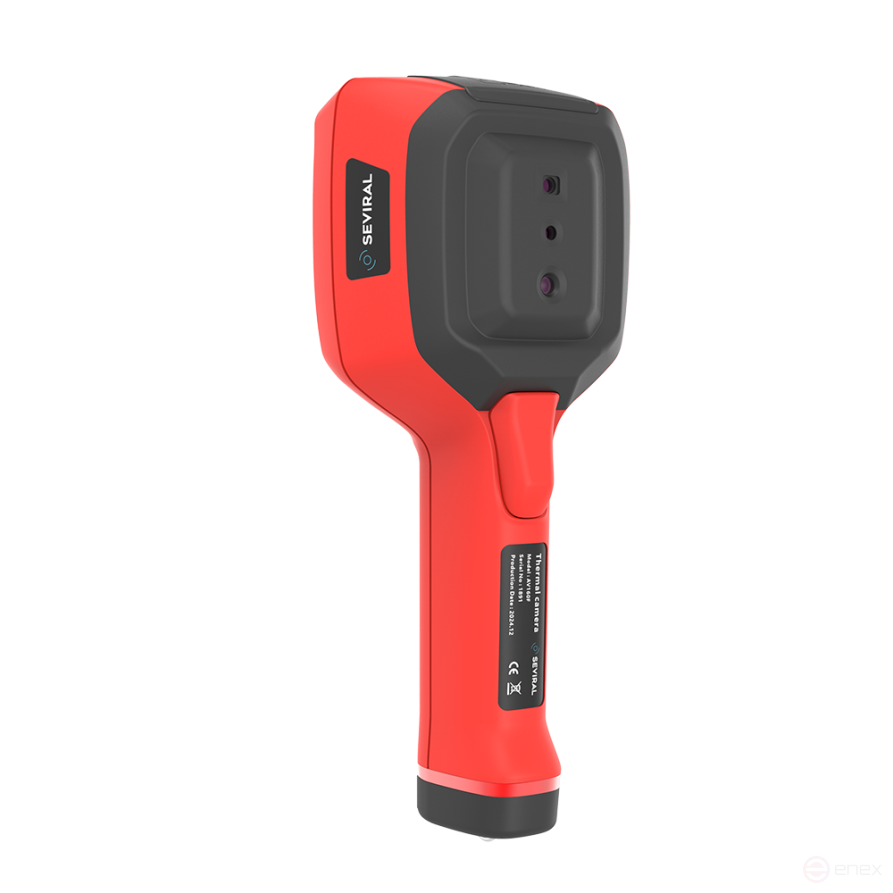

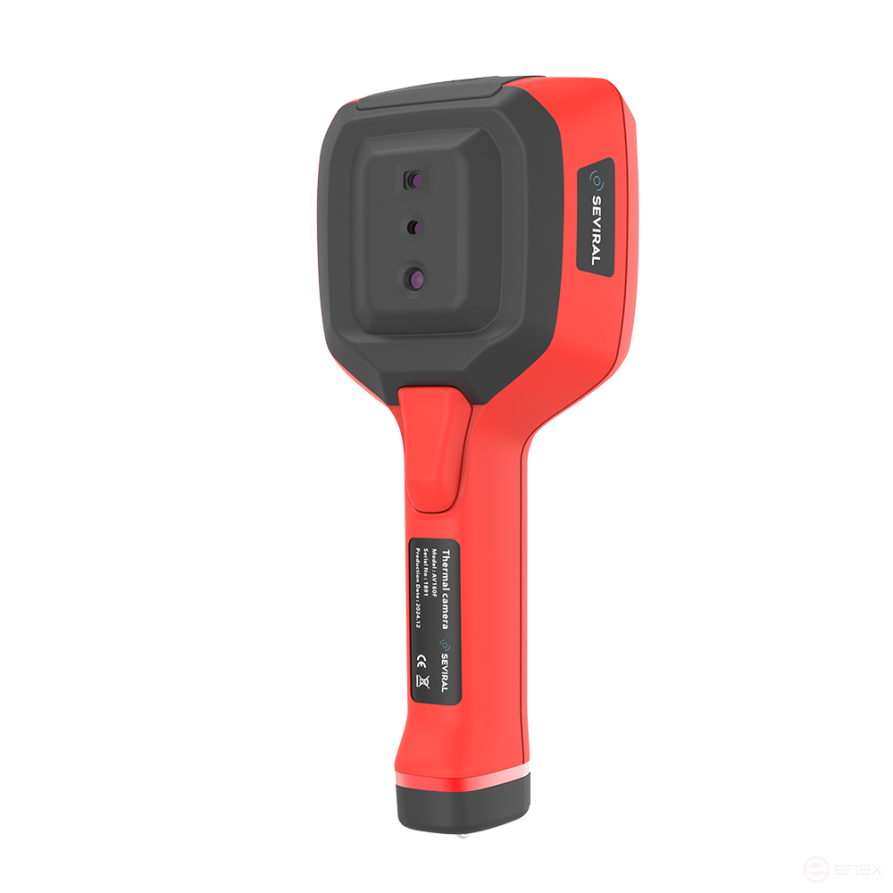

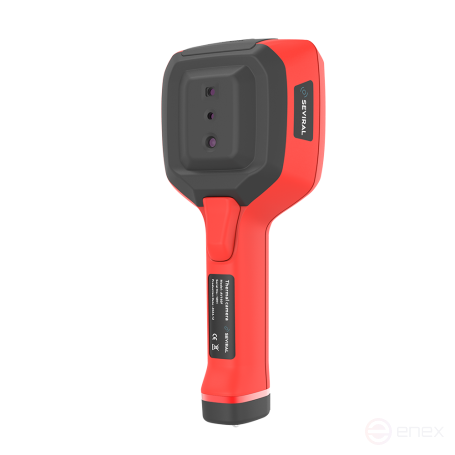

SEVIRAL AV2 fireman thermal imager
Russia
Russia
Description
The SEVIRAL AV2 is a rugged and reliable infrared camera designed for firefighting and rescue teams. The camera has an intuitive interface and large buttons that are easy to press even with special gloves. A bright and clear image will help you navigate through the smoke and quickly complete your tasks!
The camera is made of fire-resistant polymer, has a protective tempered glass, can withstand a fall from a height of 2 meters and the degree of protection of the housing according to the IP67 standard.
Advantages
- Easy to use. Comfortable use of the IR camera in a special glove. The intuitive interface of the SEVIRAL AV2 allows you to focus on your work. The camera is controlled by just three large buttons at the top of the device.

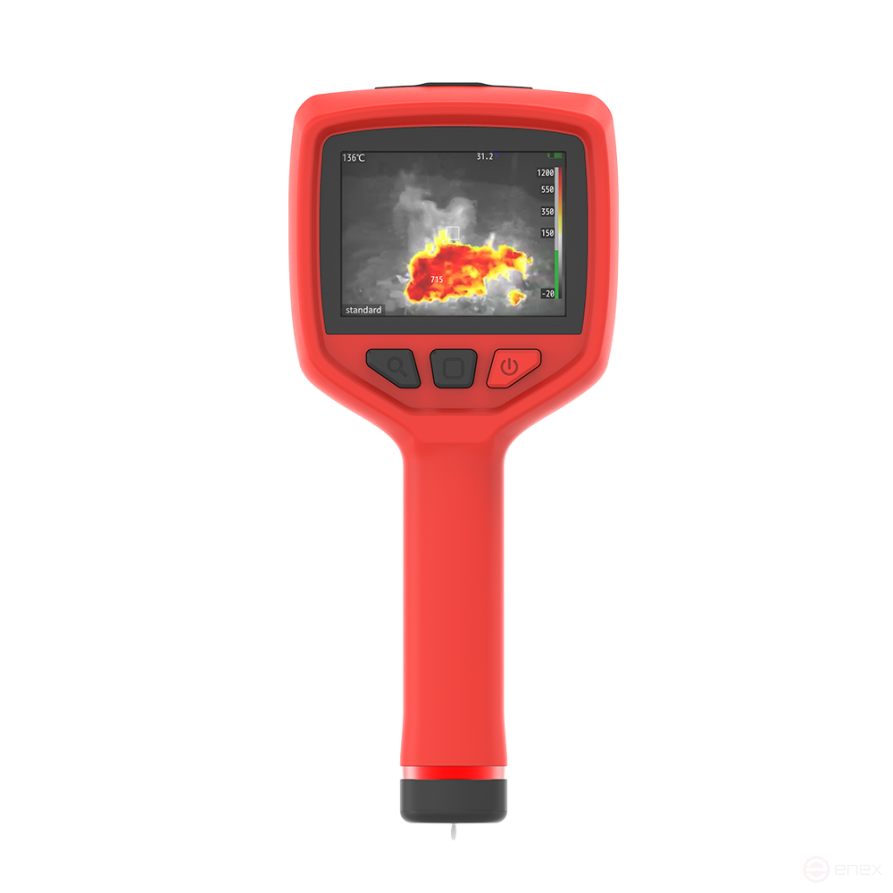

- A clear and bright 9-centimeter screen will provide an informative thermal image.
- Designed for special purposes, the SEVIRAL AV2 has a fire-fighting enclosure that can be exposed to elevated temperatures.
- Video recording capability
Optical data
- The IR resolution is 256x192 pixels
- Thermal sensitivity / (NETD) < 0.05 °C at 30 °C / <50 mK
- Field of view 56°x42.2°
- The minimum focusing distance is 0.5 m.
- Spatial resolution (IFOV) 3.82 mrad
- Frame rate 30 Hz
- Fixed Focus
- Digital zoom of 1x – 4x
Information about the IR detector
- Detector Type Uncooled Microbolometer
- Spectral range 7.5 – 14 microns
Information about the display
- Display Type Color LCD Display
- Display resolutions 320 x 240 pixels
- Display size 3.5 inches / 8.89cm
- Display brightness 400 cd/m2
- Sunlight Visual Glass Coating Technology
Image Modes
- Image Modes Infrared
- Temperature measurement
- The measured temperature range is -20 °C to +650 °C
- Temperature measurement error ±4°C or ±4%
Image Analysis
- Isotherm is lower or higher
- Temperature markers Automatically track the point with the highest temperature
- Analyzed objects Automatic measurement of maximum temperature in the center of the screen
Image Settings
- Color palettes of 6 pieces
- Data storage
- is an image format.jpg (radiometric)
- H.264 video format (radiometric)
Digital Camera
- The focus is Fixed
- The resolution of the digital camera is 5 MP
- Field of view 55°x42°
- Data transmission interfaces
- Transfer data to a PC Using an SD card
- Memory capacity
- SD Card Type Micro SD
- The memory capacity is 32 GB
Power supply system
- Battery Type Removable Lithium polymer battery
- Supply voltage 11.1 V
- Battery capacity 1000 mAh
- The operating time of the thermal imager is at least 4 hours
- Charging method Two-piece 12V charger
- Charging time is 2 hours
Environmental data
- Enclosure protection class IP67 (IEC 60529)
- Operating temperature range -20 °C to + 260 °C
- 80°C: 30 minutes, 120°C: 10 minutes, 260°C: 5 minutes
- Storage temperature -40°C to 70°C
- 2G Vibration resistance (IEC 60068-2-6)
- Shock resistance 25G (IEC 60068-2-27)
- Drop resistance Safe fall from 2 meters
Physical data
- Weight 610 g.
- Dimensions 245x107x60 mm
- The color is Red
- Material: Shockproof plastic (polycarbonate), wear-resistant rubber, vandal-proof glass
Guarantee
- 12 months warranty from the moment of commissioning
Delivery Information
- Packing type Cardboard box
- Package weight 3 kg
- Package dimensions 365x300x185 mm
- Country of manufacture Russian Federation
- Scope of delivery
- Thermal imaging camera – 1 piece
- Transportation shockproof plastic case – 1 piece
- Battery pack – 2 pieces
- Two–piece charger - 1 piece
- Power supply for the charger – 1 piece
- 32 GB SD card – 1 piece
- Card reader – 1 piece
- User Manual – 1 piece
- Factory calibration certificate – 1 piece
- Technical data sheet – 1 piece
- Electronic software - 1 piece
Thermal imaging data processing
- Software Free software of "SEVIRAL IR Research"
- Compatibility of Windows-based OS versions XP and higher
- The number of simultaneous users is unlimited
Characteristics
General Specifications
Russia
Russia
Dimensions of packaged product
Dimensions of product
Specifications
- The first digit (from 0 to 6): Protection from dust and solid particles.
- The second digit (from 0 to 9): Protection from moisture and water.
- The first digit (from 0 to 6): Protection from dust and solid particles.
- The second digit (from 0 to 9): Protection from moisture and water.
Accuracy (or error) is the maximum allowable deviation of the measurement result from the actual temperature of the object. The smaller these numbers are, the more reliable the data you will receive.
- ±1°C / ±1% (High): Professional grade. It is necessary for energy audit, searching for microcracks in electronics and accurate scientific research. ±2°C / ±2% (Standard): The most common option. It is ideal for finding heat leaks in homes, checking the operation of underfloor heating and radiators.
- ±3°C and above (Basic): Budget models. They are suitable for household needs, when you just need to understand "hot or cold", without being tied to exact numbers.
Accuracy (or error) is the maximum allowable deviation of the measurement result from the actual temperature of the object. The smaller these numbers are, the more reliable the data you will receive.
- ±1°C / ±1% (High): Professional grade. It is necessary for energy audit, searching for microcracks in electronics and accurate scientific research. ±2°C / ±2% (Standard): The most common option. It is ideal for finding heat leaks in homes, checking the operation of underfloor heating and radiators.
- ±3°C and above (Basic): Budget models. They are suitable for household needs, when you just need to understand "hot or cold", without being tied to exact numbers.
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
- What it affects: When going beyond the specified limits (for example, in severe frost or in a hot workshop), the screen may start to "slow down", the battery will run out in a matter of minutes, and the measurement error will increase dramatically.
- For outdoor work in winter: Choose models with a lower threshold of -20°C or -30°C. Conventional appliances (from -10°C) can switch off at the most crucial moment.
- To inspect roofs in summer or industrial facilities: Pay attention to the upper limit (+50°C or +60°C), as the device body heats up in the sun or from the equipment.
Lower threshold:
- Usually -10...-20 °C: Important for finding heat leaks in winter, checking the quality of thermal insulation of walls and windows, and identifying "cold bridges" outside the building.
Upper threshold:
- Up to +120...+150 °C: Sufficient for checking heating systems, underfloor heating and finding blockages in radiators.
- Up to +300...+400 °C: Necessary for diagnostics of electrical panels, circuit breakers, loaded bearings and industrial equipment.
Lower threshold:
- Usually -10...-20 °C: Important for finding heat leaks in winter, checking the quality of thermal insulation of walls and windows, and identifying "cold bridges" outside the building.
Upper threshold:
- Up to +120...+150 °C: Sufficient for checking heating systems, underfloor heating and finding blockages in radiators.
- Up to +300...+400 °C: Necessary for diagnostics of electrical panels, circuit breakers, loaded bearings and industrial equipment.
