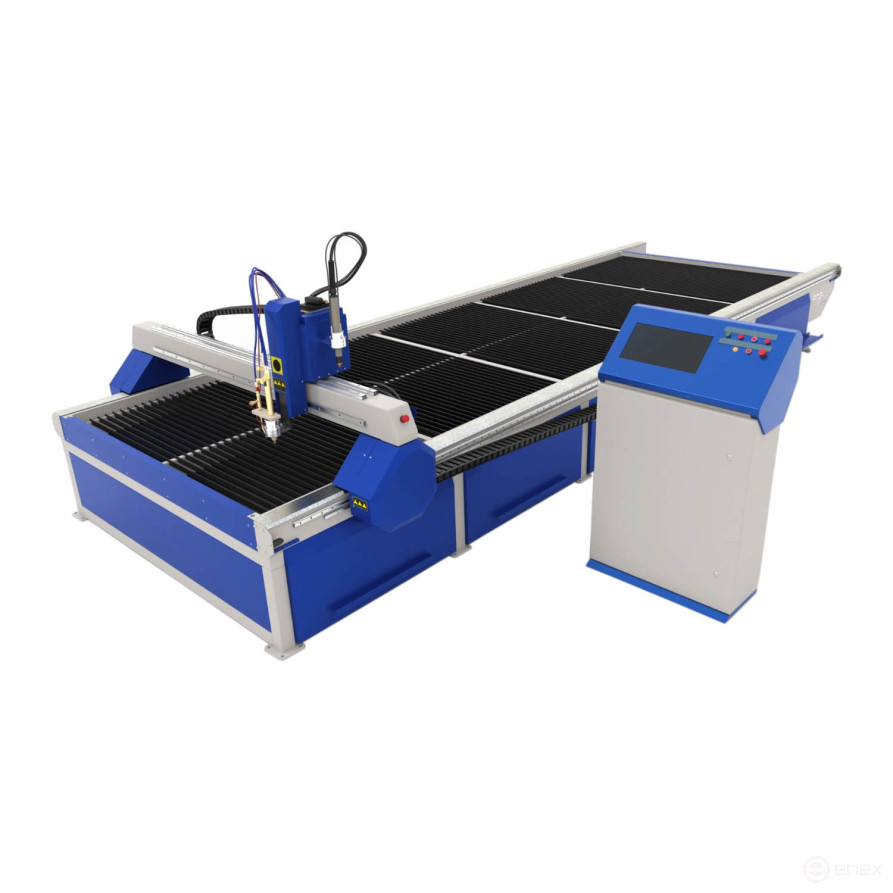

UPMR-1 CNC Plasma Cutting Machine
Russia
Russia
Description
The UPMR plasma cutting machine is the most powerful in the line. It copes with solving diverse tasks without problems.
He will confidently work for you in any conditions. It will cut both thin metal from 0.5 mm and metals up to 250 mm thick. On UPMR machines with FMG software, it is easy to create cutting maps, cut, and enjoy working.
The updated "SUV"
In 2019, FMGroup engineers made 16 significant changes to the model. The UPMR machine leaves production completely different, with improved functional properties. A new approach to choosing suppliers, expanding the range of parts, assemblies, and materials of its own production, allow the company to strictly control their quality and reliability of manufactured equipment.
Improving the cutting speed and idle movements
The machine has new X-axis synchronous motors and a TNC system developed by FMGroup to effortlessly cut thin and thick metals, confidently overcome metal irregularities of any height without violating the cutting geometry.
Increasing reliability
Fully welded frame made of thick-walled milled metal. The portal beam is solid, milled along its entire length. Additional overlaps and strengthening of the portal increased the reliability of the machine several times. The service life of the machine is 15 years.
Improving ergonomics
The shape of the CNC rack has been changed. Which makes it possible to enjoy hours of work. Paying special attention to the experience of operating plasma cutting machines by the owners, the designers took out a replaceable gas cutter on a spring-loaded cutter holder. This makes it possible to make a cutting change within 12 seconds. The software is adapted for gas-plasma cutting. The mode change from plasma cutting to gas cutting and vice versa occurs at the touch of a button on the CNC remote control. The change of cutters takes place quickly, without exerting extra effort.
Changing the approach to design creation
FMGroup offers several versions of the design of the UPMR series plasma cutting machine for people with different views on life and the use of equipment. Black is a good option for conservatives. Blue is suitable for innovators. For those who discover new possibilities of plasma cutting.
UPMR is a powerful machine for large and precise orders.
Technical specifications:
- The maximum load on the table, kg/m2 - 350
- The thickness of the processed metal, mm up to - 250
- The distance from the table to the portal beam, mm, at least - 300
- Type of table - exhaust
- Positioning speed, m/min - 25
- Positioning accuracy, mm - 0.1 DIN 28206
- The size of the working field (LxW), mm - 3000*1500, 6000*1500, 6000*2000, 8000*3000, 12000*4000
- Table height, mm - 800
- X, Y, Z axis drive - servo motor
- Moving along the X, Y axes is a bevel-toothed rack-gear
- Moving along the Z axis is a ball-screw pair
- CNC - FMGroup
- Voltage/frequency of current, V/Hz - 380/50
- Power consumption (without source), kW - 3
- Overall dimensions (LxWxH) UPMR -3015, mm - 4300x3000x1900
- Weight, kg - 1500
Design features:
- Milled bed and portal.
- High-precision linear guides.
- Covers to protect the guides.
- Skew gears on the X and Y axes.
- Ballscrews on the Z axis.
- Servomotors on the X, Y, and Z axes.
