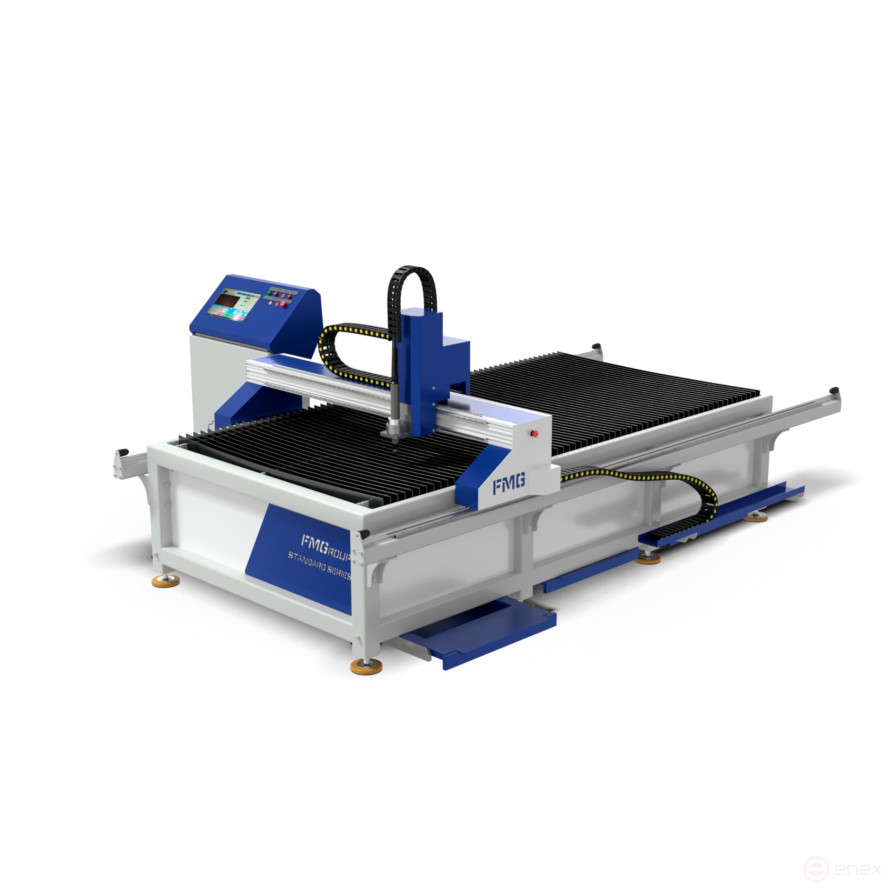

CNC Plasma Cutting Machine SPR-3015
Russia
Russia
Description
The SPR plasma cutting machine is an economical "hard worker", it will provide comfort when cutting metal, thickness up to 35 mm and weight up to 6000 kg is not a problem for it. The SPR 2020 model year is equipped with a new portal with an increased stroke. The thermal expansion module of the bed allows the machine to work without interruption 24/7/365. Thanks to a wide range of settings, you can choose the optimal operating mode, and quickly change the settings when metal cutting conditions change. In 2022, the entire line of plasma cutting machines will receive a new modern design, which will emphasize their nepotism, modernity, practicality and economy.
Work comfortably
When creating models of machines of the SPR line, we took into account the wishes of customers: we made it not just a "workhorse", but the very machine on which you can comfortably work and perform multi-kilometer metal cutting offline.
Maneuvering is easy
The lightweight portal made of aluminum alloys became the basis for the creation of a new family of plasma cutting machines of the SPR series. Combined with a sturdy frame, the lightweight construction guarantees the reliability of the machine. The plasma cutting machine demonstrates excellent handling when cutting complex contours. The correct placement of the nodes made the machines of the FMGroup brand balanced in weight. Maneuvering is easy with the new TNS system.
Operator convenience
The designers rethought the ergonomics of the operator's workplace, made the CNC rack higher. For the convenience of the operator, a slide-out keyboard and an optional operator touchpad are installed in the basic configuration.
The plasma cutting machine has a SPR model with four servo motors (on the Y, Z axes and dual on the X axis). An optional portal cooling system for working with large metal thicknesses and a laser pointer for precise positioning.
Operation in harsh conditions
When creating the line of plasmarezers of the SPR series, we paid special attention to the adaptation of the installation for operation in harsh climatic conditions. Specially selected equipment allows you to work at low temperatures.
The model is equipped with built-in software, a multifunctional panel, and a new control unit.
Are you a diligent consumer who appreciates efficiency and practicality in technology? Then the plasma cutting machine of the SPR series is for you.
Technical specifications:
- The maximum load on the table, kg/m2 - 320
- The thickness of the processed metal, mm up to - 35
- The distance from the table to the portal beam, mm, not less than 200
- Type of table - exhaust
- Positioning speed, m/min - 15
- Positioning accuracy, mm - 0.1 DIN 28206
- The size of the working field (LxW), mm - 3000*1500, 6000*1500, 6000*2000, 8000*3000, 12000*4000
- Table height, mm - 800
- X, Y, Z axis drive - servo motor
- Moving along the X, Y axes is a straight-toothed rack-gear
- Moving along the Z axis is a ball-screw pair
- CNC - FMGroup
- Voltage/frequency of current, V/Hz - 380/50
- Power consumption (without source), kW - 3
- Overall dimensions (LxWxH) UPMR -3015, mm - 4000x2450x1800
- Weight, kg - 800
Design features:
- Straight-toothed rail on the X and Y axes.
- BALLSCREWS on the Z axis.
- Servomotors on the X, Y, and Z axes.
- The TNS system.
- Adapted software.
- The thermal expansion module.
