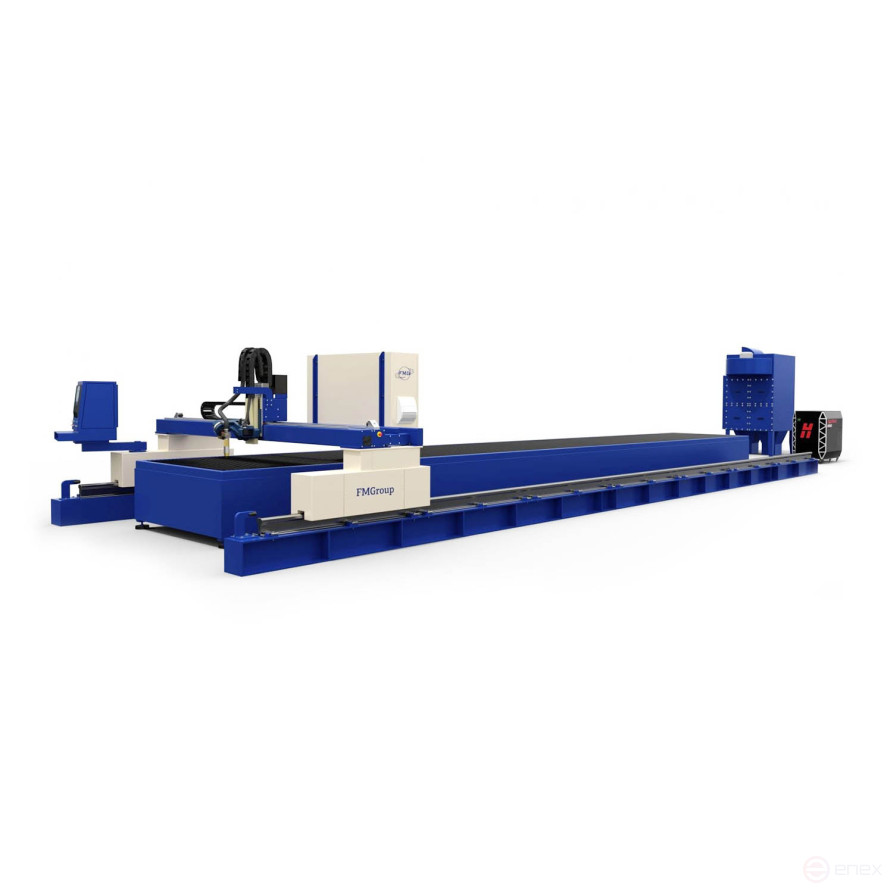

CNC plasma cutting machine ULTRA SPR-12020
Russia
Russia
Description
The ULTRA series CNC plasma cutting machine belongs to the professional equipment of high precision class.
- The rigid welded bed, with many overlaps, allows you to increase the load capacity of the table by 4 times.
- The milled portal beam and the milled bed along the entire length allows you to get the product at the output with an accuracy of 0.1 mm.
- The cutting quality on these machines, provided that premium plasma cutting sources are used, is comparable to laser cutting, and at thicknesses over 20 mm and surpasses in quality.
- The machines have two parking areas for an additional support and a portal, which allows you to freely feed a sheet of metal to the coordinate table, avoiding deformations.
- A particularly durable milled bed, specialized precision guides and powerful servos make it possible to accelerate from 0 to 30,000 mm/min in 0.76 seconds.
- The portal beam is made of a 6 mm profile tube, which is able to withstand the weight of nine calipers without deflection and torsion.
- The thermal compensation unit allows you to work on the machine 24 hours a day, 7 days a week, because it prevents the portal from jamming during the cutting process from heating. The thermal compensation unit is an in-house development of the FMGroup company and has no analogues in Russia and the world. As is the THC system.
- The cutter height control system (TNS system) operates according to the arc voltage, but unlike the cheap versions on the market, it is metric. Which is very important, as this is one of the main requirements of manufacturers of plasma cutting sources.
- The machines are equipped with an intelligent sectional exhaust system, the flaps are opened in the area where the cutter is located and are fully controlled by the CNC. Pneumatics of the sectional system manufactured in Italy.
- Each section of the table is equipped with drawers for collecting small parts without stopping the cutting process.
- The FMG-Vision CNC stand is an all-metal ventilated housing, all electronics are protected from mechanical and electromagnetic influences.
- Cables and wires ensure reliable transmission of energy and data. And they are protected from abrasion during operation. All wires comply with international standards: VDE, HAR, GOST-R and CCC.
- The FMGroup company uses only flexible cables with copper shielding braid in the production of machine tools.
Equipment:
- A set of servos (dual drive on the X axis);
- Planetary gearboxes;
- Milled bed;
- Milled portal beam;
- Specialized guides;
- Gear/rail;
- The cutter mount is spring–loaded - to protect the plasmatron from collisions;
- The height control system of the cutter "TNS-FMGroup" (arc voltage);
- The cutter protection system against impact on the workpiece "NO DAMAGE";
- Ohmic surface search sensor;
- The thermal compensation unit.
Portal beam with independent calipers:
- plasma/gas;
- gas/gas.
Automatic ignition system
Coordinate table for plasma cutting machine:
- Central exhaust system;
- Sectional exhaust system;
- Water filling table.
FMGroup Vision Industrial CNC Stand with Integrated Control System:
- ICNC®XT Control Program;
- The "Techtran" software package for the preparation of cutting maps and generation of control programs (+postprocessor);
- All-metal ventilated housing, protection against mechanical and electromagnetic influences;
- Coordinate reversal system (quick search for blank zero);
- A system for remote diagnostics of equipment without the departure of a service specialist.
Plasma Cutting Source:
- Thermal Dynamics;
- Hypertherm;
- Kjellberg.
Additional options:
- Software PractiCam, Intech, Techtran, PRONEST;
- Harris Gas Cutter;
- Plasma cutting module for round and shaped pipes (pipe cutter);
- Piston compressor;
- Refrigerator dehumidifier;
- Filter and ventilation system;
- The fan is radial.
Technical characteristics:
- Effective working field, mm - 6000*1500; 6000*2000; 8000*2000; 12000*3000; 24000*4000
- Repositioning accuracy, mm - ± 0.3
- Positioning speed max, mm/min - 15,000
- Type of drive - electric drive
- Metal thickness (plasma cutting) up to - 70 mm
- Metal thickness (gas cutting) up to - 250 mm
- The software is licensed
- Overall dimensions (L*W*C),mm - 14500*4500*2000
- Weight, kg - 8,000
