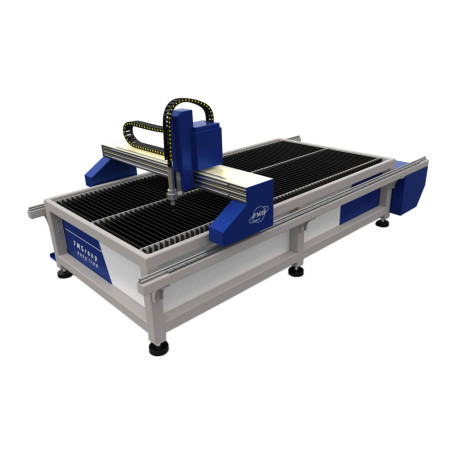

Kontur-3015 Plasma cutting machine
Russia
Russia
Description
The KONTUR-3015 plasma cutting machine is a professional installation for plasma cutting of sheet metal with CNC for industrial purposes.
Precise and clean cut
The drive is protected from step loss and incoming errors. High-precision precision guides, preload bearings, and luftless gearboxes ensure smooth running and high accuracy. Due to this, finished products, even complex shapes, have a minimum error.
- Positioning accuracy: 0.5mm/m
- Program accuracy: 0.02mm/m
- Automated accuracy: 0.005 mm/m
Height control cutting (TNS)
The TNS arc voltage system monitors the irregularities of the surface of the metal being cut and automatically sets the required gap. This makes the cut smoother, cleaner and saves consumables.
High speed and easy operation
The control system allows you to accumulate cutting modes for various metals and reuse them. In case of an unscheduled stop, for example, a power outage, the cutter can be returned to the previous frame, rather than starting over.
- Maximum free movement speed: 15 m/min
Reinforced construction and protection systems
The rigidity of the frame and the portal ensure the absence of vibrations and high dynamic characteristics. The protective casing and the lower location of the teeth on the rail provides protection from damage by the metal sheet and eliminates the accumulation of dust.
- The maximum thickness of the sheet is 50 mm
Protection of the cutter from impact on the workpiece
During operation, the plasma torch may collide with a protruding part.
The protection system stops the portal in emergency mode, eliminating damage, with the subsequent possibility to continue cutting without spoiling the workpiece.
Package contents:
- 3x1.5 m working field
Desktop
- A desktop with a gas and burning removal system
- A table with a centralized hood
- The table is divided into sections and equipped with pallets for collecting waste and failed parts (optional)
The composition of the coordinate axes
- Feedback servo motors
- Direct drive
- Straight-tooth gear rack gears
Cutting systems
- Air-plasma
- The source of plasma cutting of the brand "FMG-100"
- Mains voltage, V - 380
- Cutting current, A - 30...100
- Thickness, mm - 3-45
- 100% duty cycle at 100 A
- The thickness of the mechanized burn (for breakdown), mm - 20
- Plasma-forming gas - air
- Recommended flow rates and pressures are 300 liters, no more than 6 atm
Number of cutters
One cutter
Programs for creating cutting maps
- SheetCam
CNC system
- Based on Mach3
