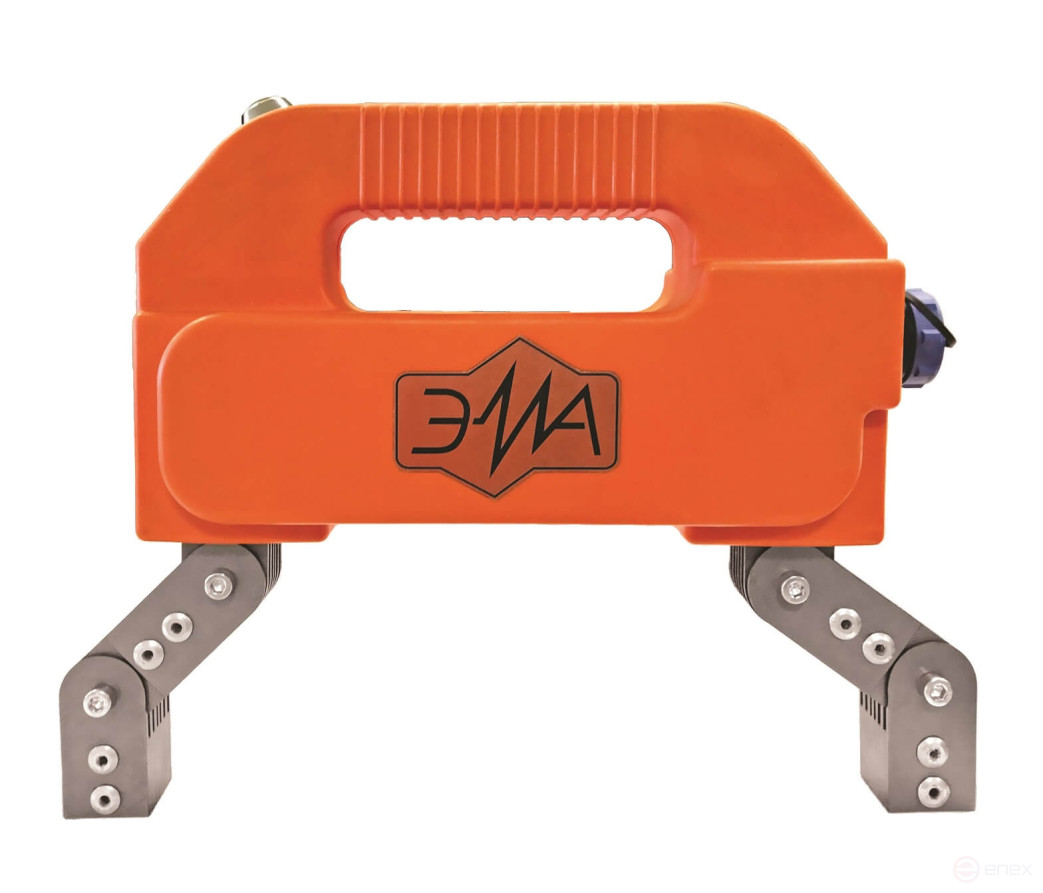

Portable electromagnet for magnetic particle flaw detection EMA-100
Russia
Russia
Description

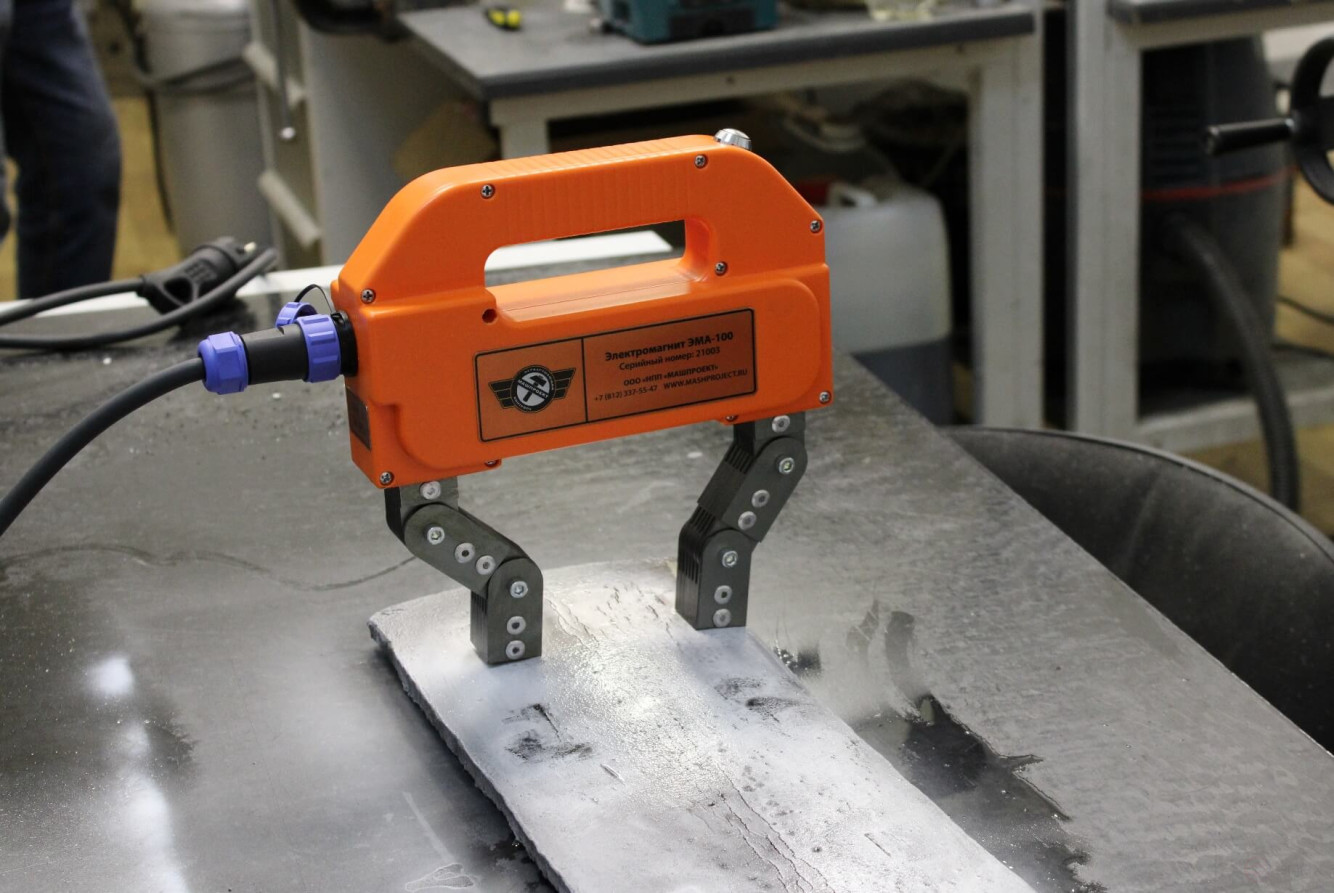

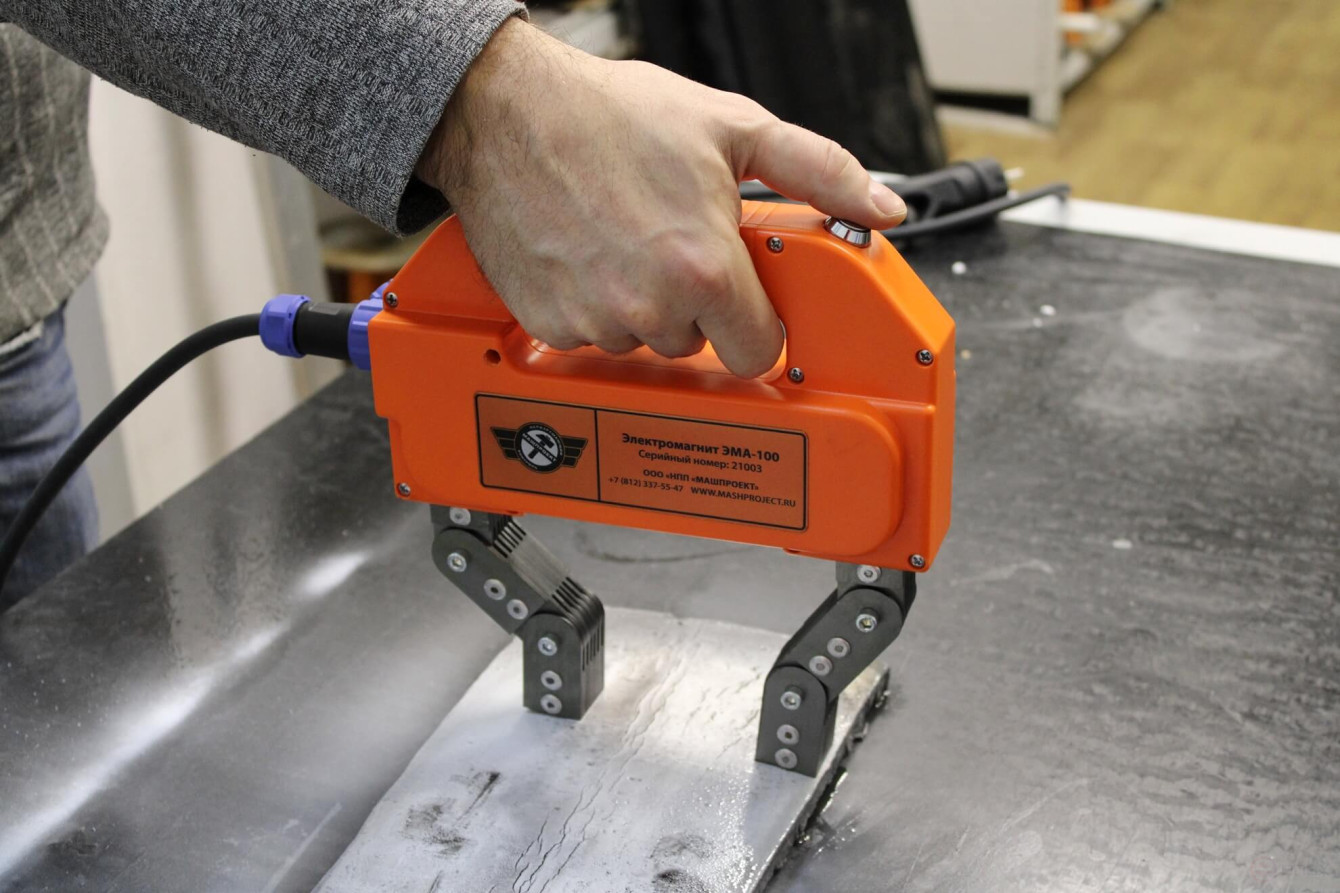

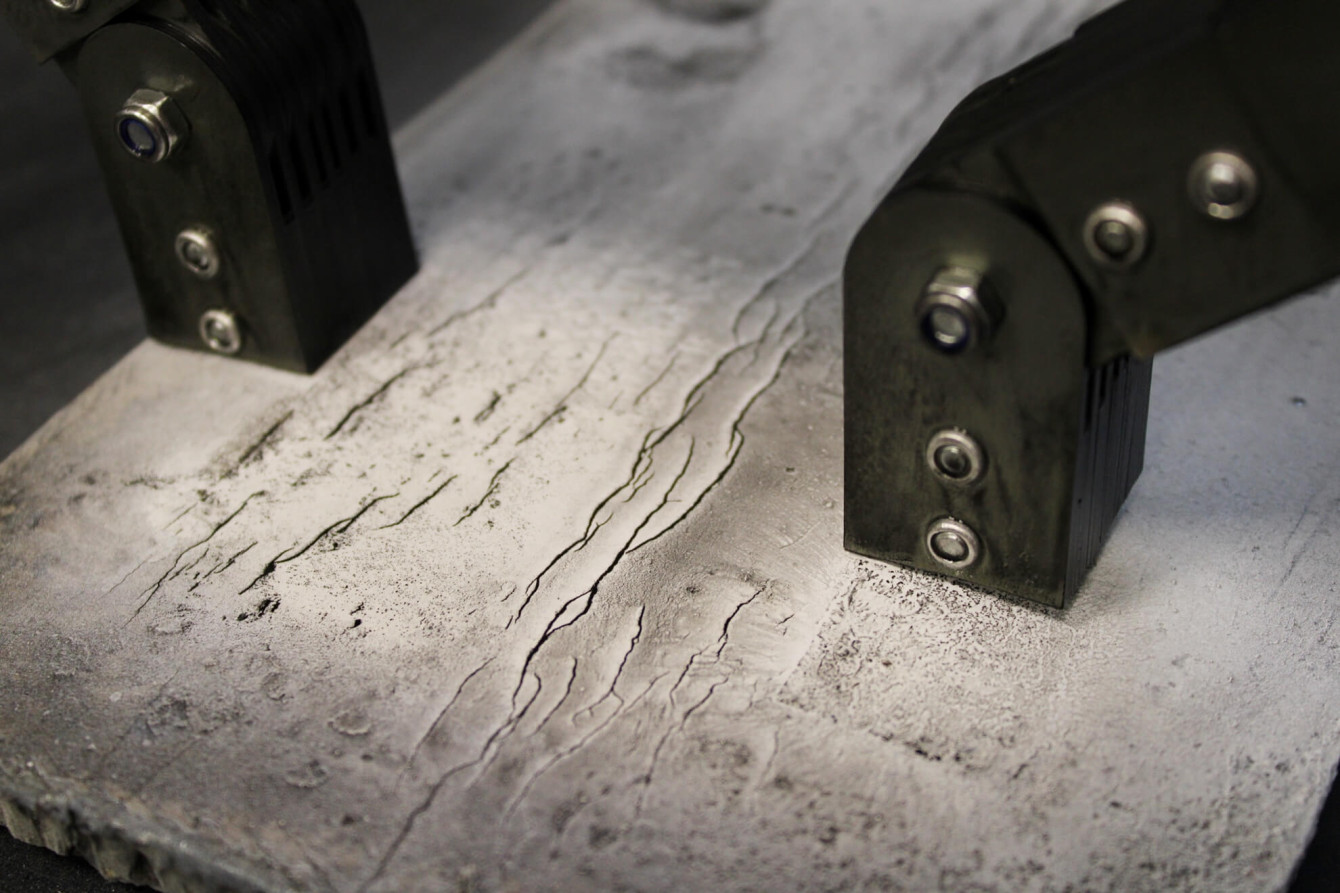

The electromagnetEMA-100manufactured by NPP Mashproekt is used to implement the magnetic powder method of non-destructive testing of metal products according to GOST R 56512-2015. The device detects surface and subsurface defects in the main material (cracks, hairlines, tears) and welded joints (non-welded).
The objects under study must be made of ferromagnetic metals and alloys with a relative magnetic permeability of at least 40. The control is carried out using an electromagnetic yoke powered by alternating current.
Portable electromagnet EMA-100. Purpose:
- magnetization of products, including welds, by an alternating current magnetic field;
- demagnetization of products or individual zones by gradually removing the switched-on device from the surface of the control object.
The device meets the requirements set out in GOST R 53700-2009 part 3.
Portable electromagnet EMA-100. Features:

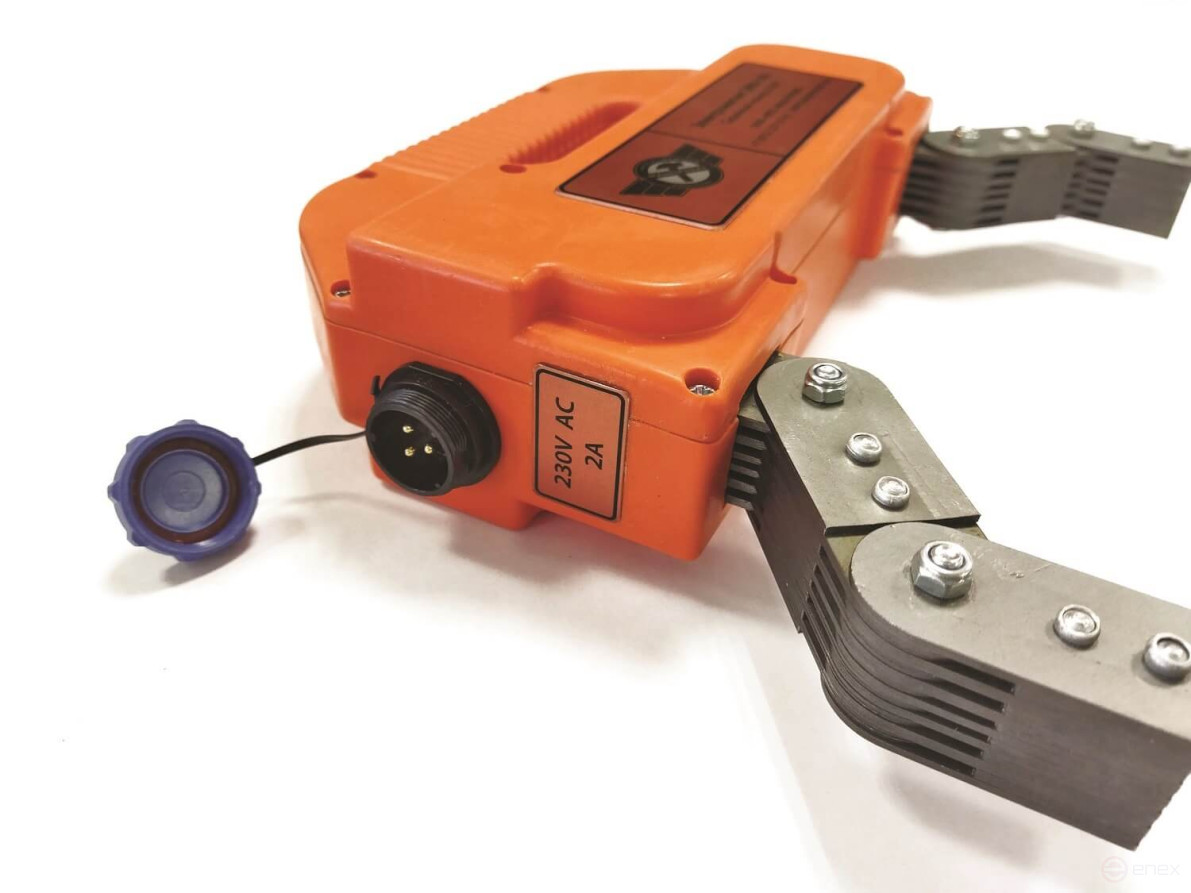

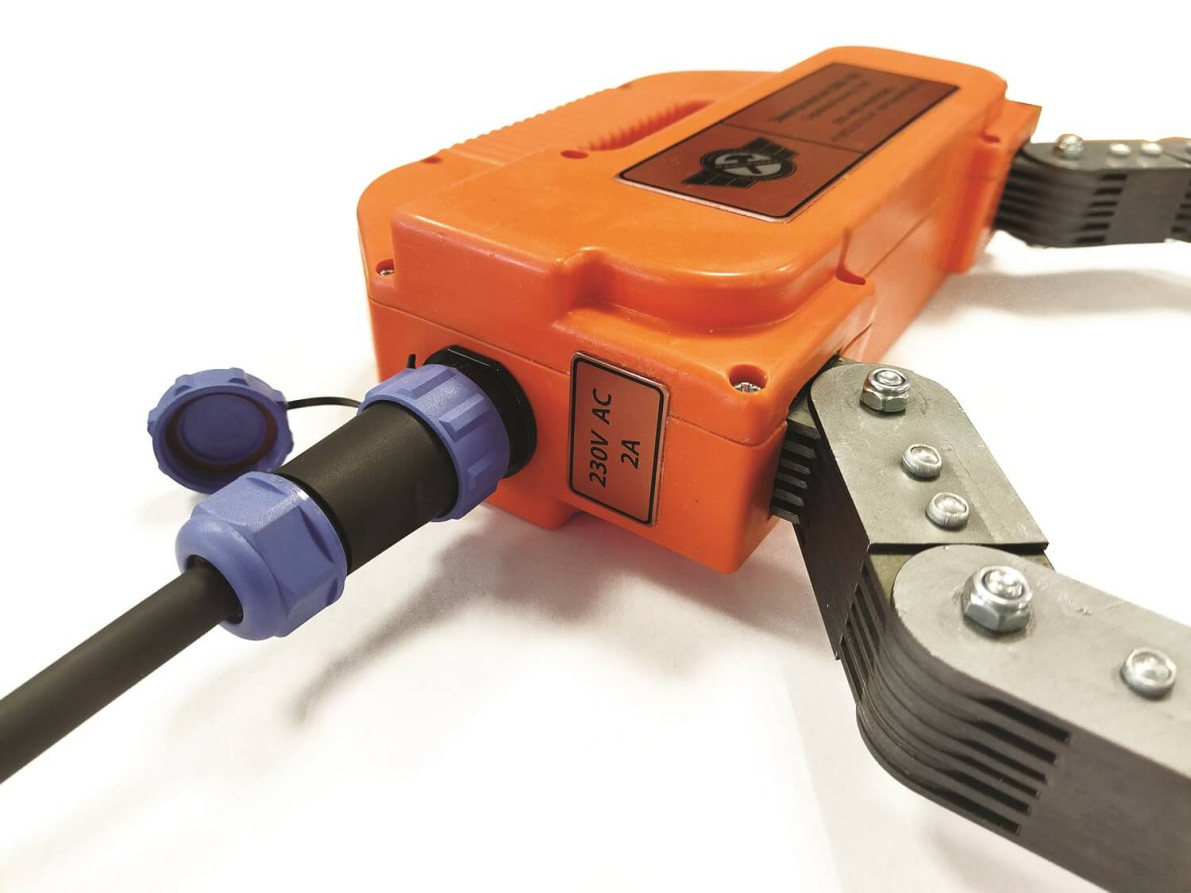

- The main difference of the EMA-100 electromagnet isa separate power cable. It is connected via a special connector that ensures complete tightness of the connection. The possibility of disconnecting the cable greatly facilitates the operation and transportation of the electromagnet.
- The rugged, dust- and moisture-proof housing with IP54 protection class allows you to work in difficult industrial or field conditions.

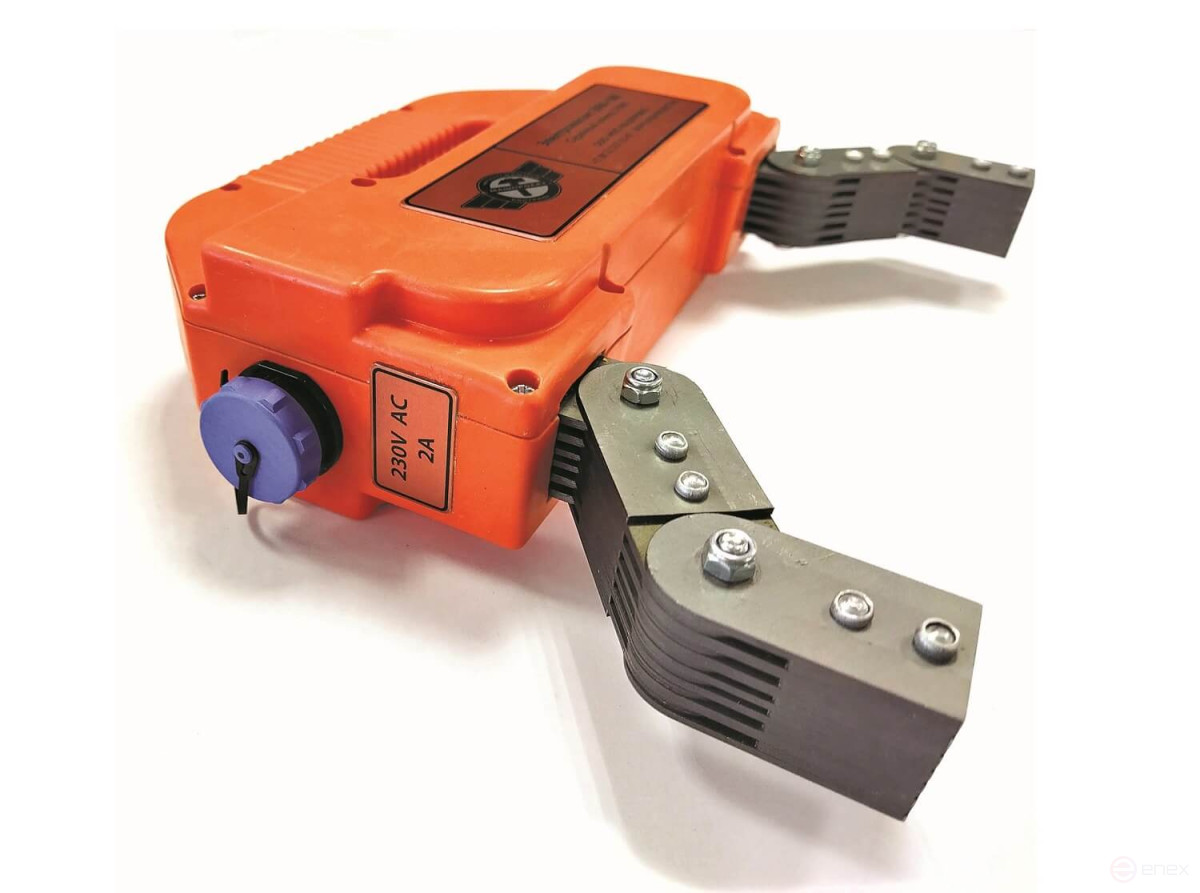

- The adjustable hinge design of the electromagnet yoke ensures efficient operation on parts of any configuration and orientation. The interpolar distance variesfrom 42 to 242 mm.
- It is possible to control various objects and their welds by magnetizing the entire product or its individual sections.
Portable electromagnet EMA-100. Typical control objects:
- Welds
- Details of machines and mechanisms
- Building metal structures
- Pipelines
- Metal products
- Castings
Technical specifications:
- The average distance between the poles is 142 mm
- The maximum pole-to-pole distance is 242 mm.
- Minimum pole spacing 42 mm
- Pole cross-section, at least 26x25 mm
- Lifting force (at the standard distance between the poles), not less than 10 kg
- Power supply AC 230V, 50Hz
- AC working magnetic field
- Operating alternating current 2.5 A
- Duty cycle 50 %
- The maximum power-on time is 6 seconds.
- Overall dimensions, not more than 229 x 243 x 61 mm

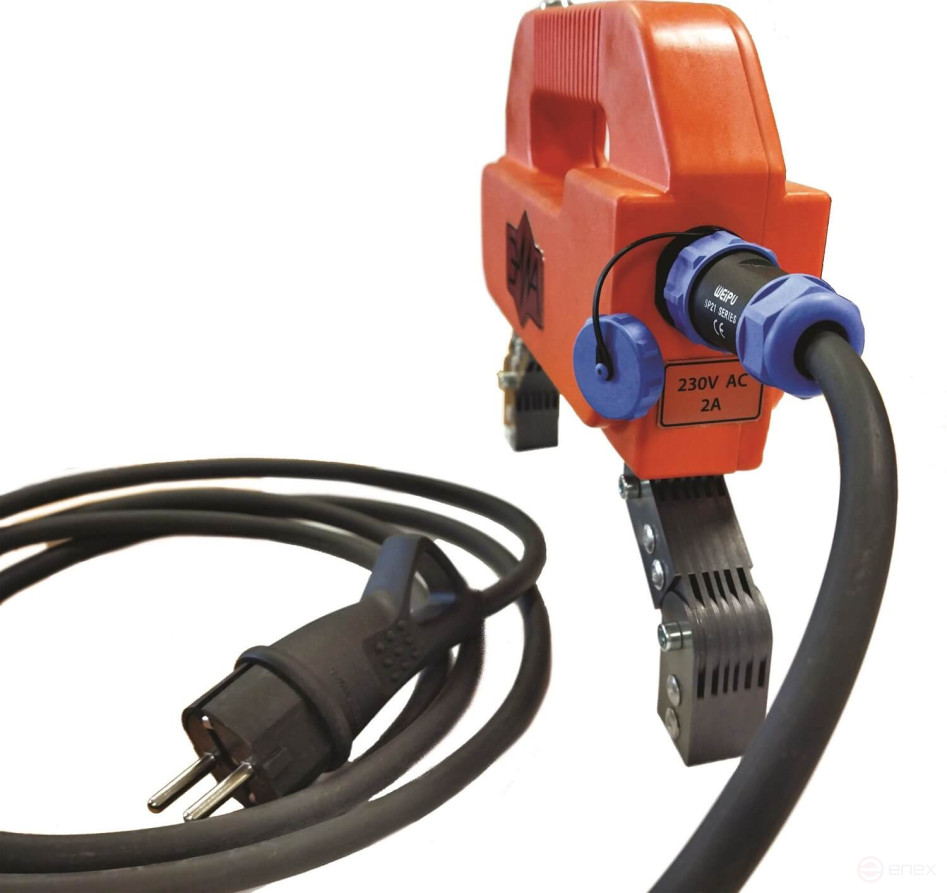

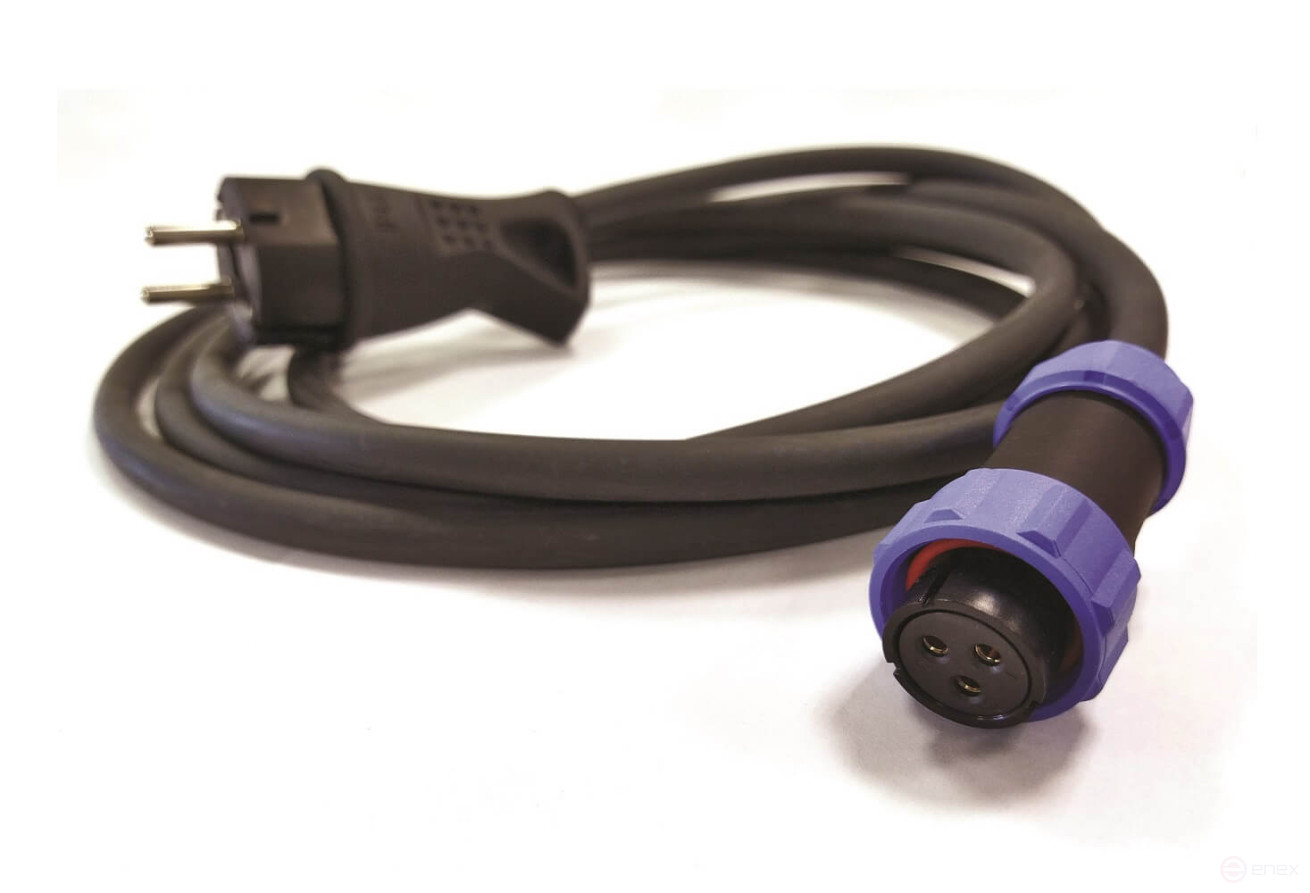

- The network cable is removable, 3 m. Waterproof connector
- Protection class IP54
- Weight, not more than 3.5 kg
- Operating temperature range -30 ... +55 °C
- The service life is 5 years
- The warranty period is 12 months from the date of sale, but not more than 14 months from the date of issue.
