Battery cleaning machine with operator's seat I 38 UE, with battery Gel 280 Ah
Italy
Italy
Description

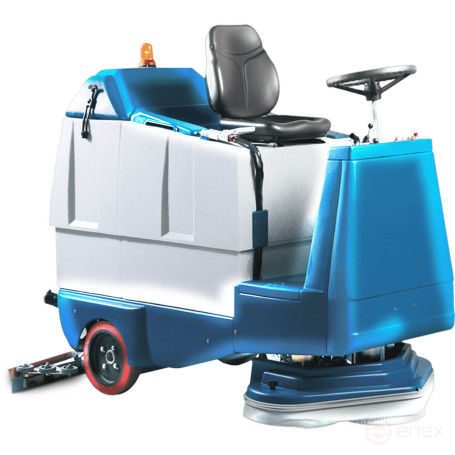

An industrial scrubbing machine with an operator's seat, equipped with three disc brushes and designed for long-term operation in harsh conditions. The model is one of the most reliable and proven solutions for professional cleaning of large areas: its service life in Russian operating conditions has been confirmed by practice —more than 15-20 years of continuous operation. VersionThe ICM 38UE-N1is an updated modification of the classic I38UE-N1 model with an improved design, improved ergonomics and increased operating life.
Purpose and scope of application
The machine is designed formechanized cleaning of floorswith various types of hard coatings: concrete, tiles, self-leveling and epoxy floors, linoleum, stone and others. Due to the possibility of installing brushes of different stiffness and pad holders, the model is versatile and suitable for both deep cleaning and regular maintenance cleaning in commercial, industrial, warehouse and logistics premises.
The large volume of tanks and high-capacity rechargeable batteries allow the machine to operatefor 5-9 hours without interruptionsfor water change and recharging, providing real productivity ofup to 10,800 m2/h(in the version with the Max Drive system).
Design features

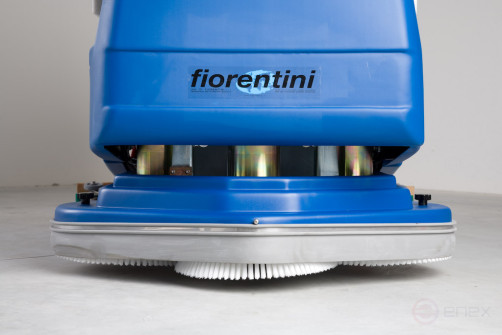

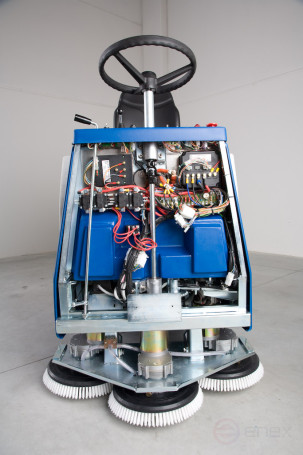

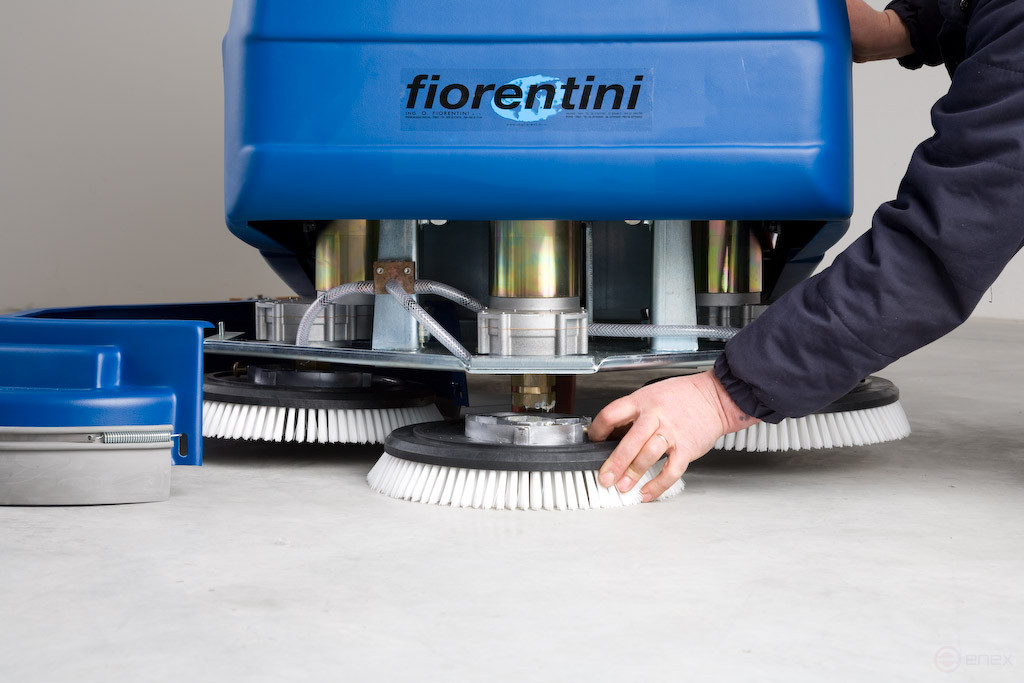

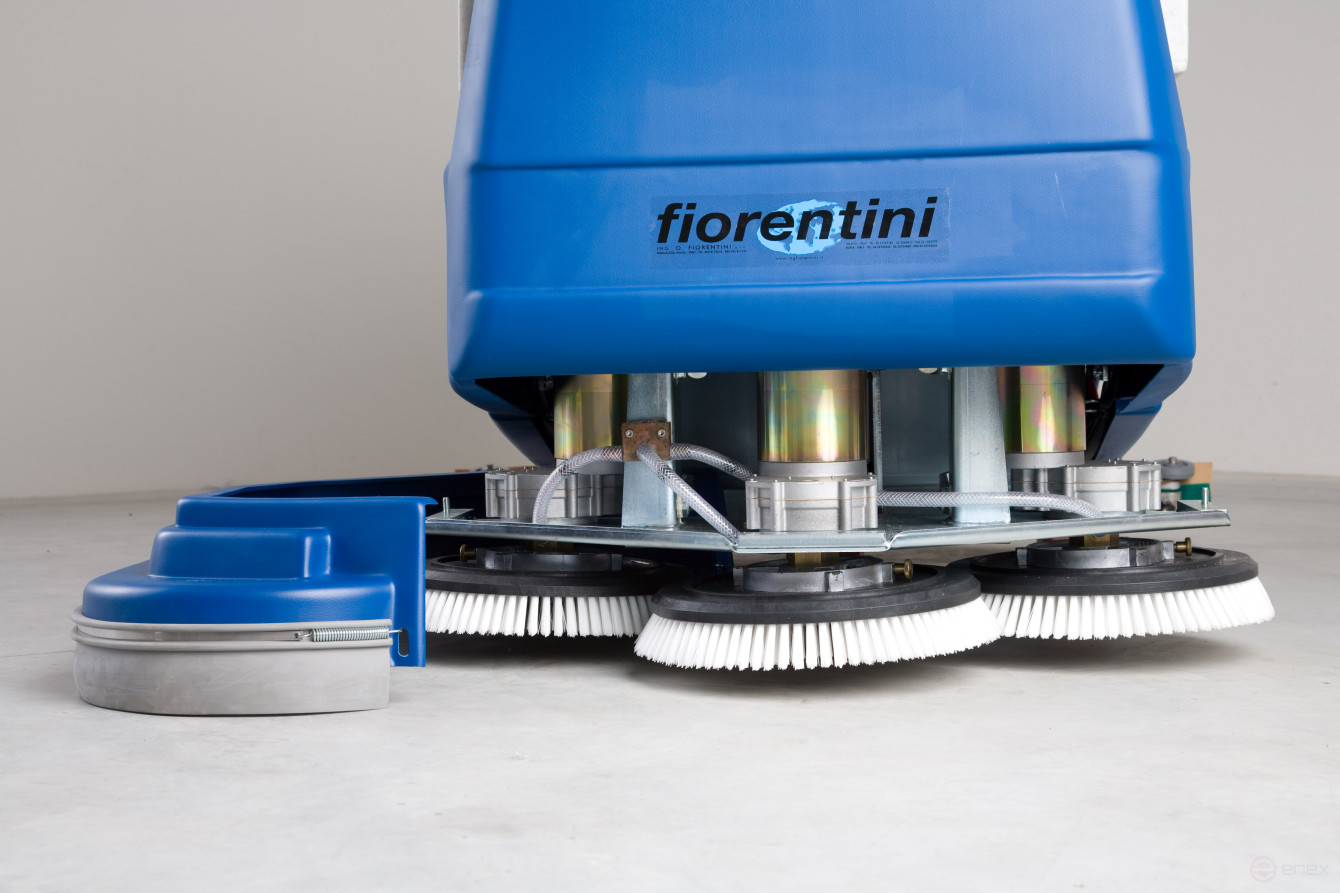

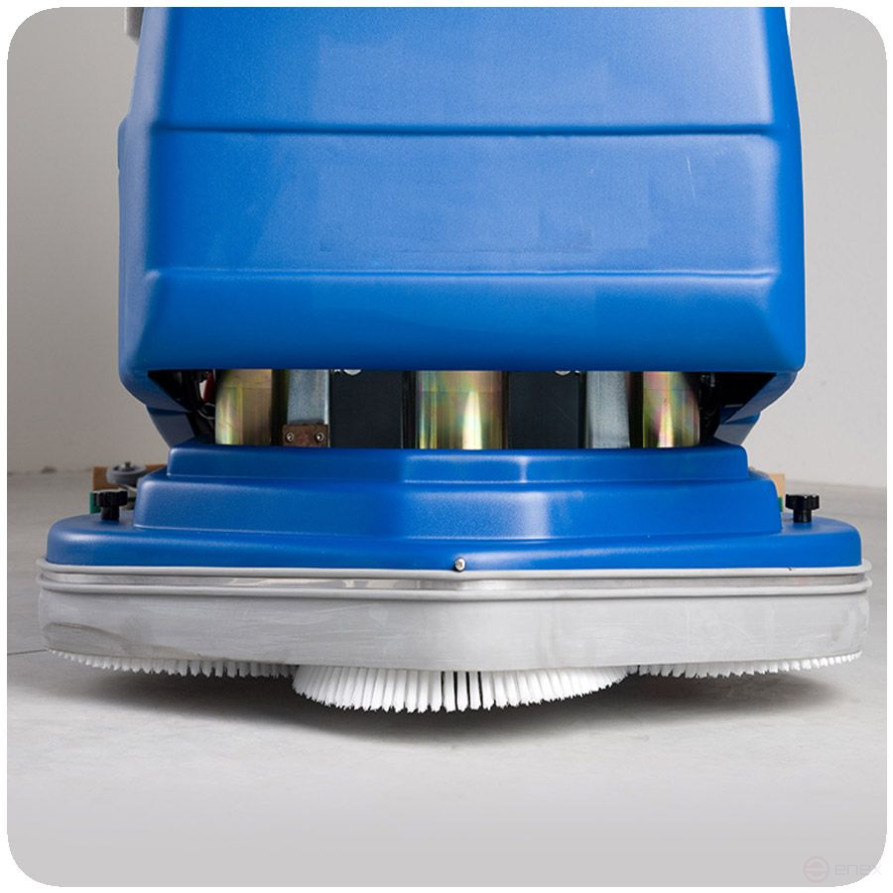

The working part of the machine is representedby three disc brusheswith a diameterof 350-360 mmeach. Each brush is powered by a separate motor housed in a single housing witha high-precision planetary gearboxin an oil bath. Such a scheme ensures reliability, stable torque and long-term operation without loss of productivity, even under intense loads.
The brush unit is locatedin the front of the housing, which allows cleaning close to walls and hard-to-reach areas. The brush pressureis adjusted by the operator from the control panelin the range from0 to 150 kg, which makes it possible to effectively eliminate even stubborn dirt in one pass of the machine.

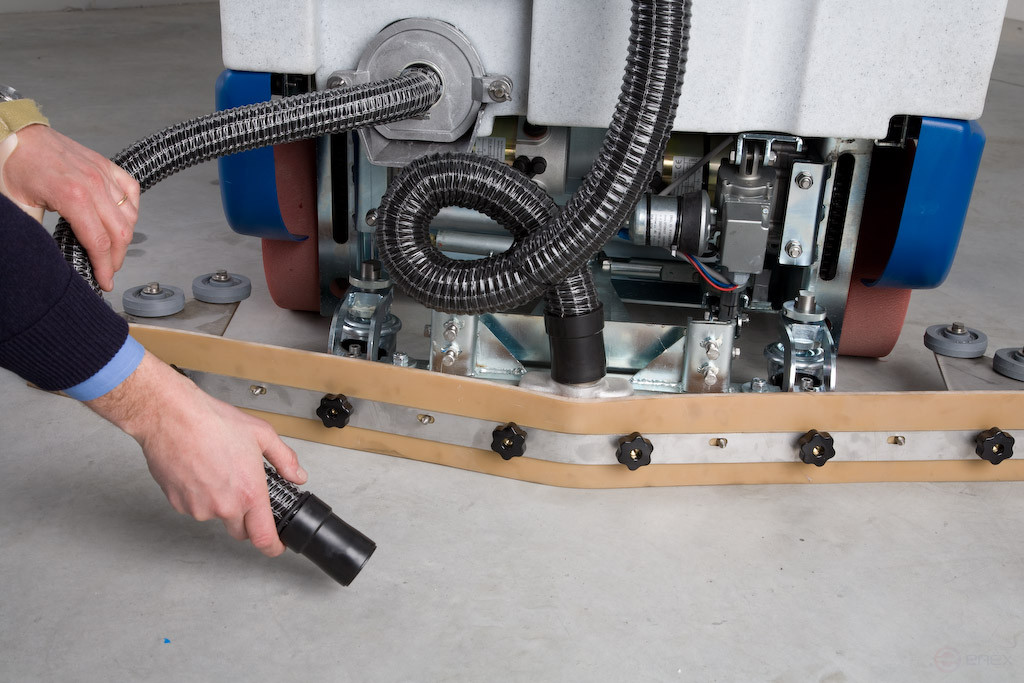

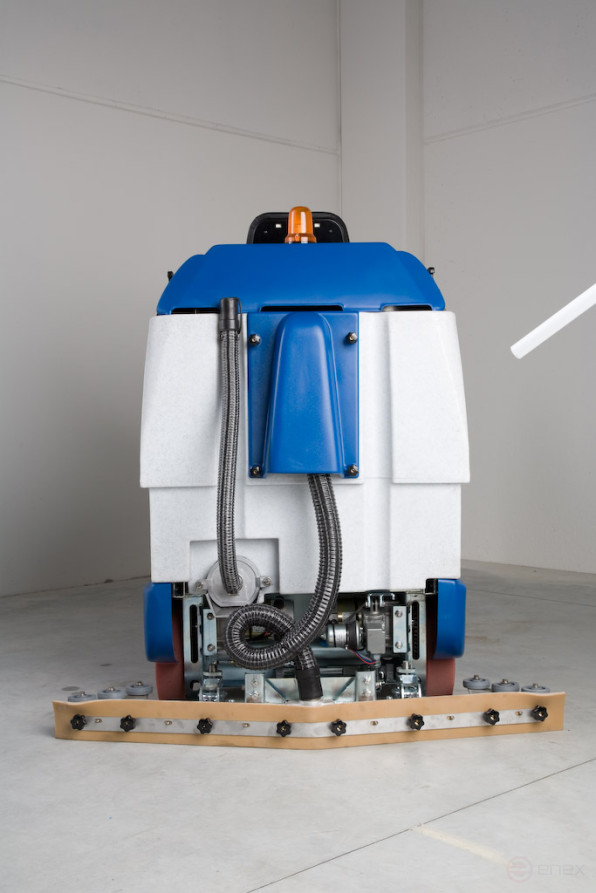

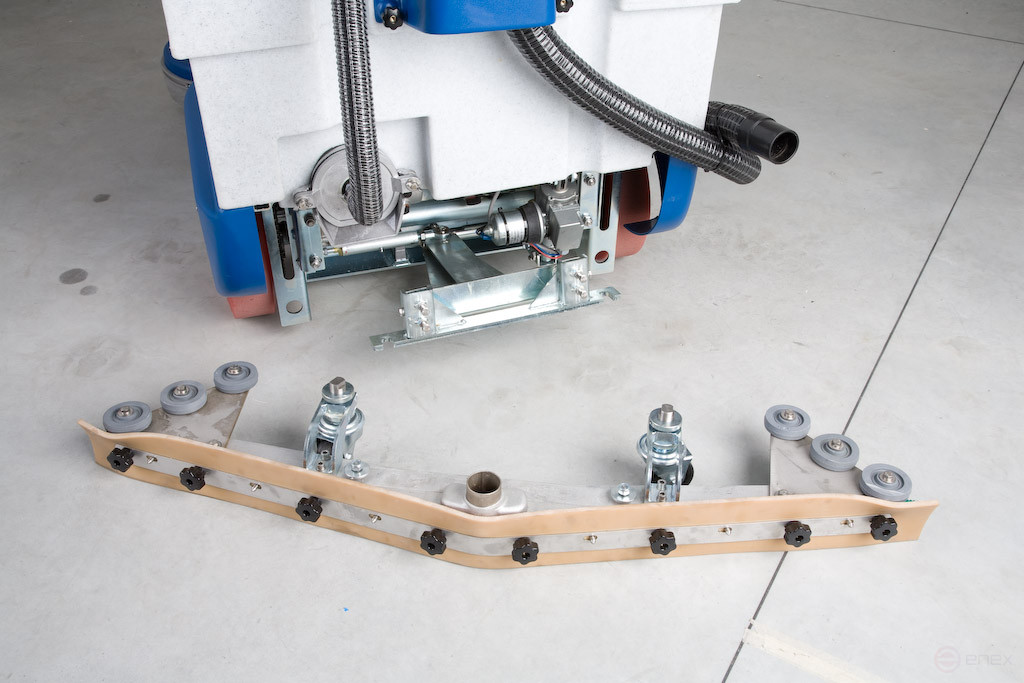

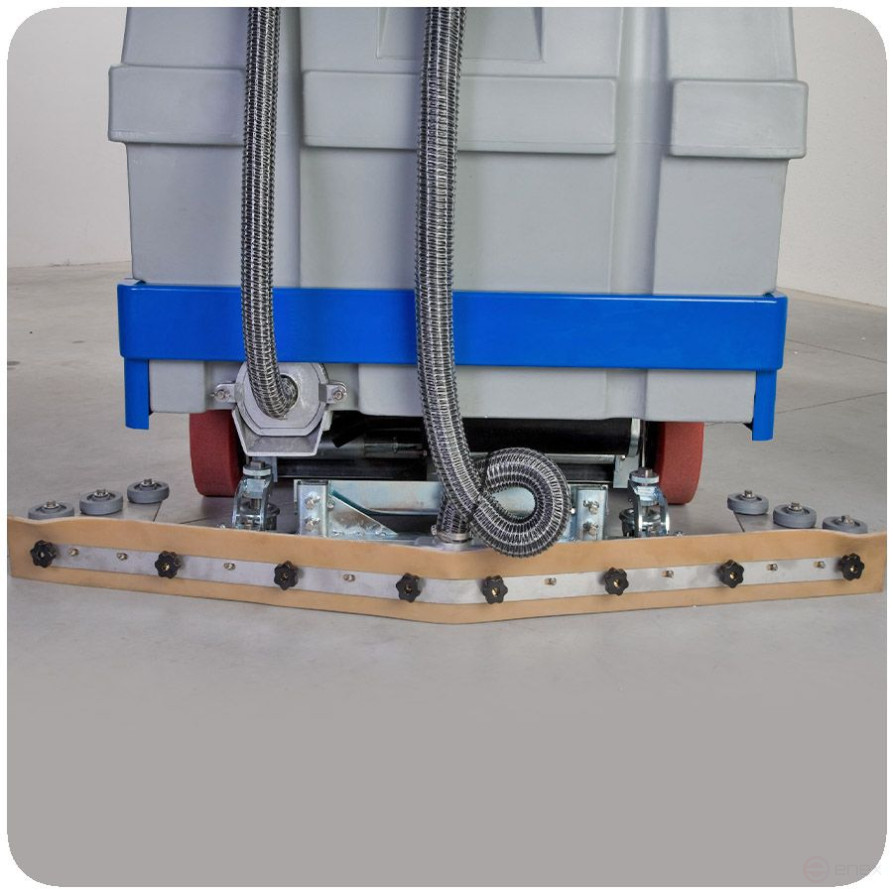

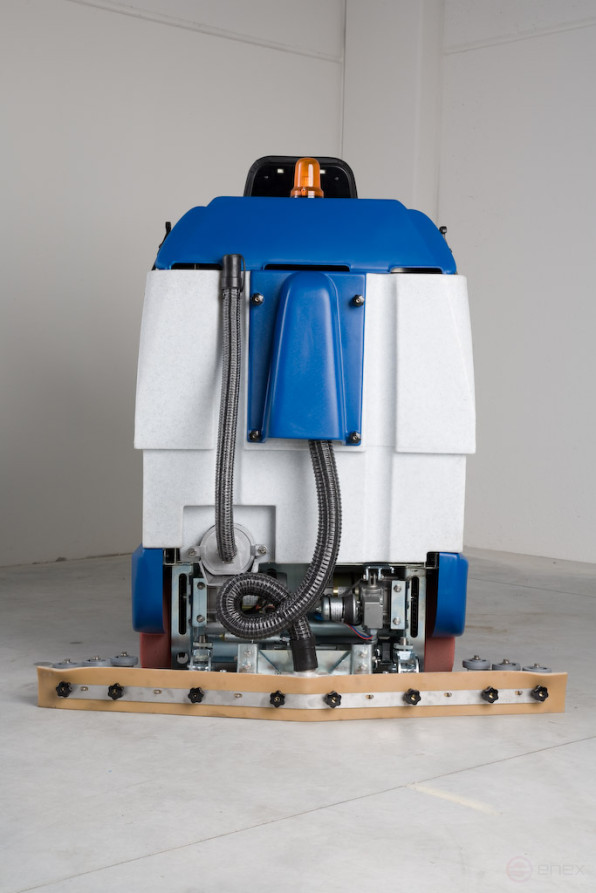

The width of the cleaning area is1000-1080 mm, and the width of the suction beam —1300 mm, which provides optimal coverage for maneuverability, while maintaining the compactness of the machine.

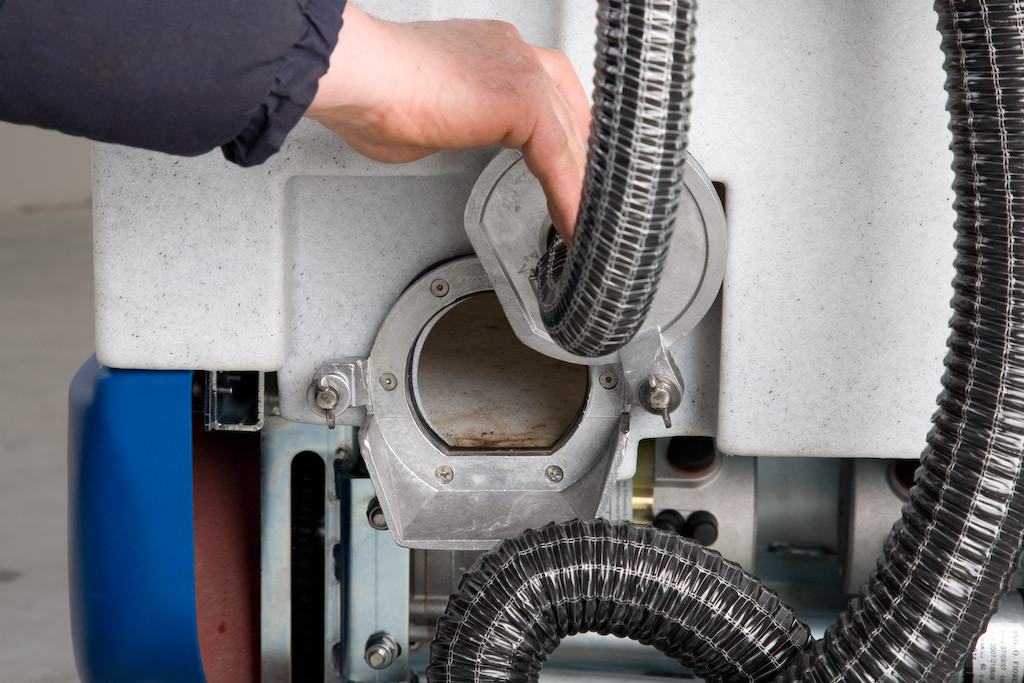

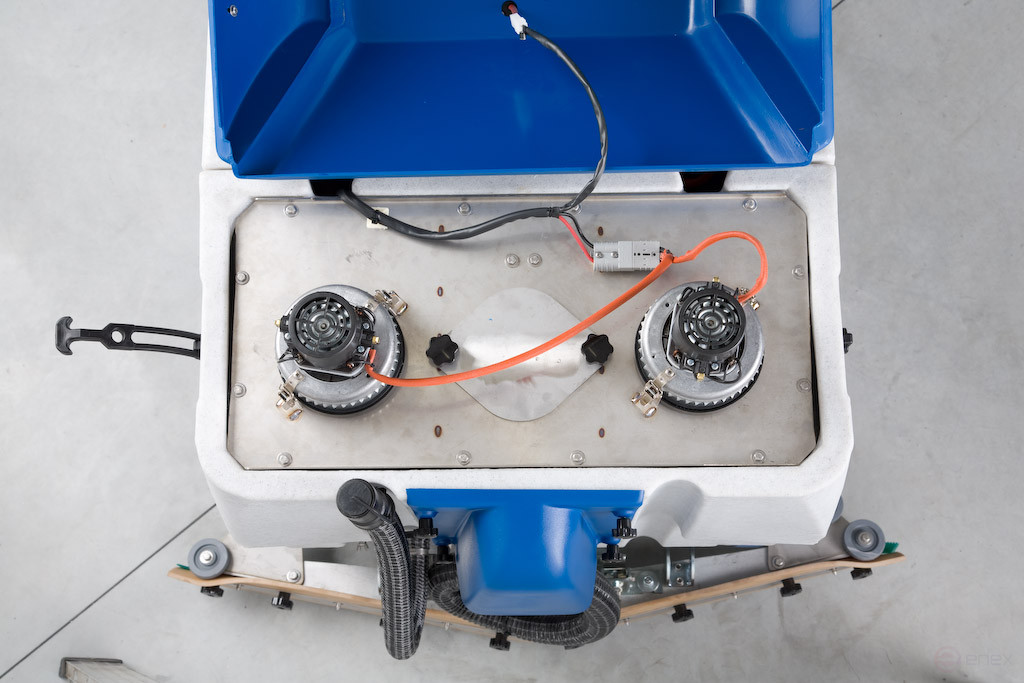

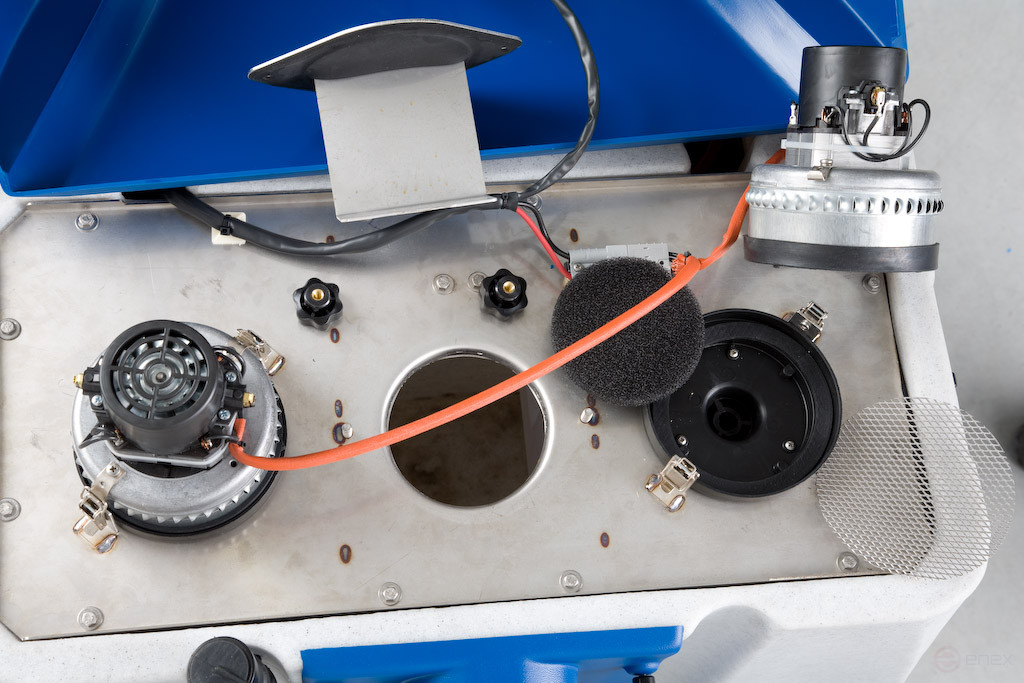

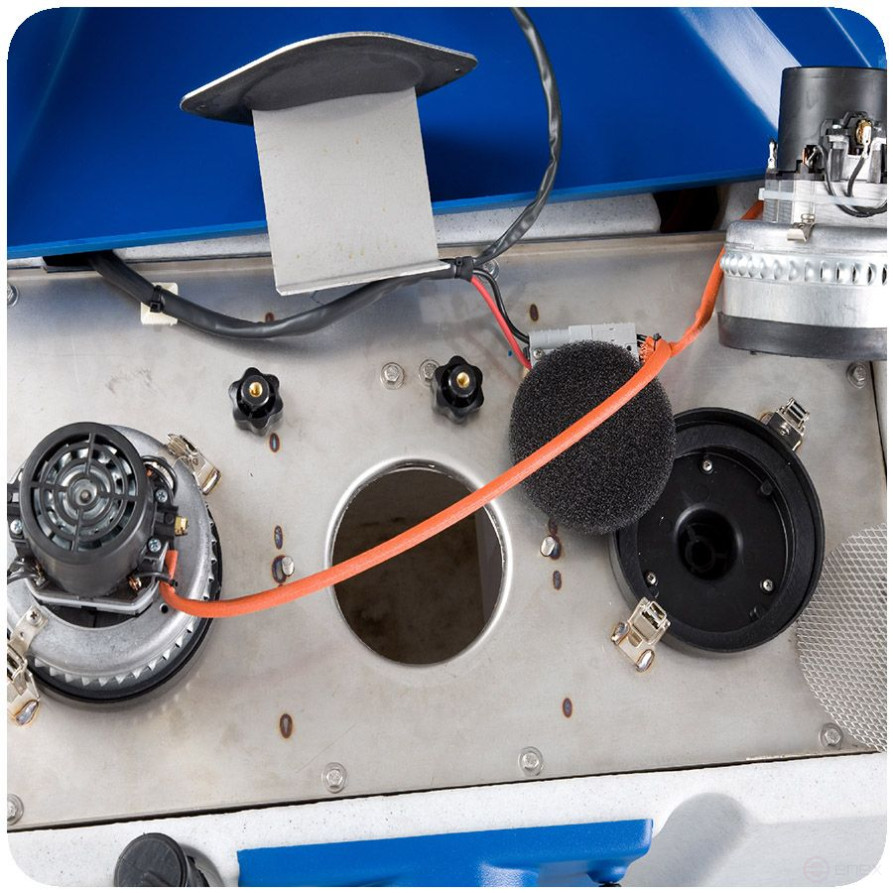

To collect the contaminated liquid, a system withtwo vacuum turbines with a total power of up to 1600 wattsis provided, creating a high vacuum (upto 206 mbar) and ensuringminimal residualsurface moisture after passage.
Chassis and controls

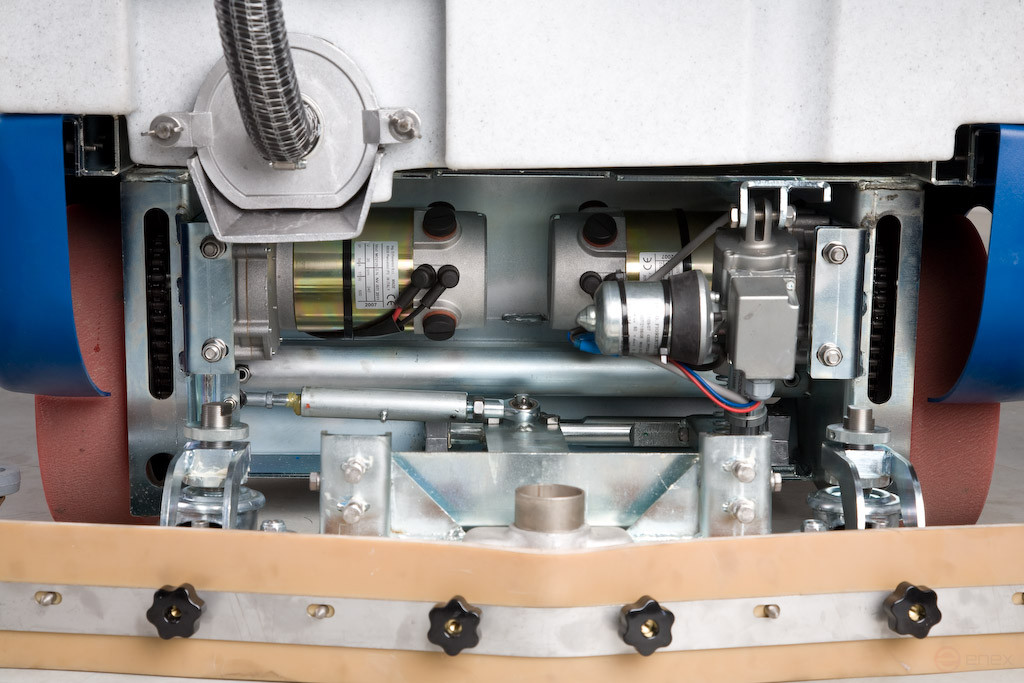

The machine is driven bya rear-wheel drive with two geared motors(one for each wheel). This scheme ensures stable movement on slippery surfaces and safe operation on ramps and slopes upto 15%. In the event of a failure of one engine, the machine retains the ability to move on the second, which makes it highly reliable in operation.

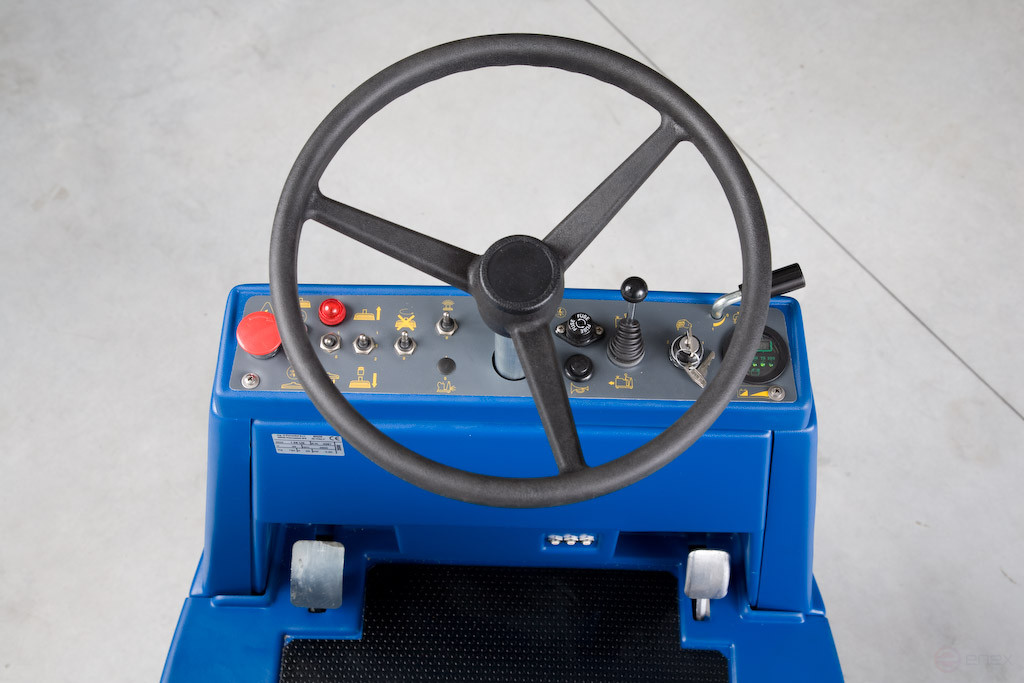

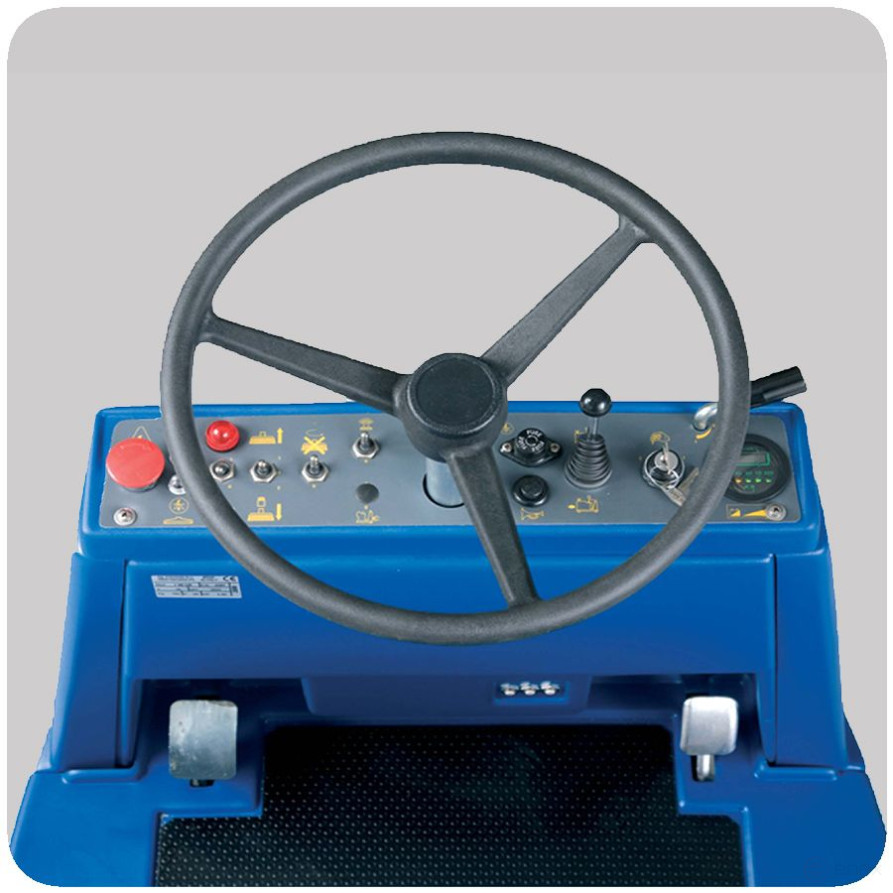

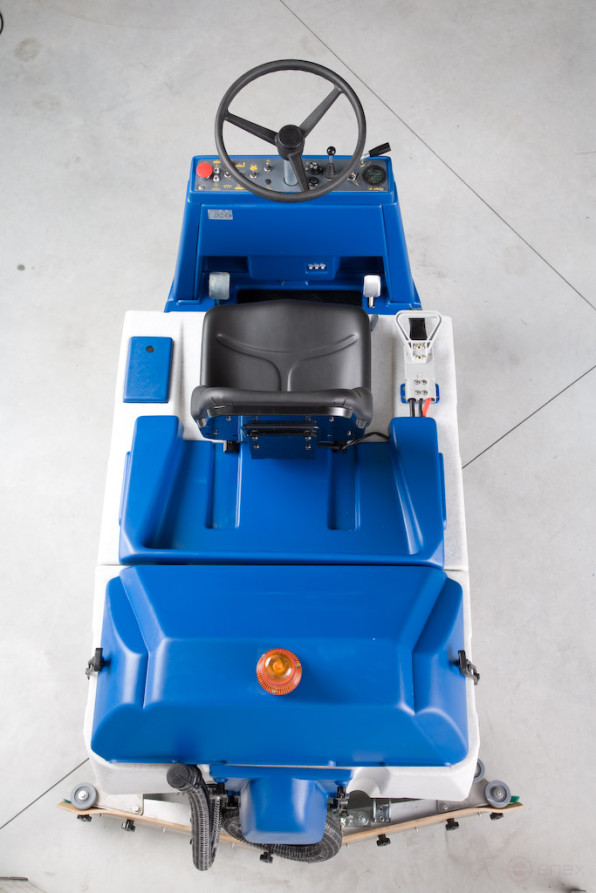

The operating speed is continuously adjustable from0 to 10 km/h. All functions are controlled by theintuitive operator panel, which displays operating modes, battery level, brush condition and diagnostic system.
Tanks and battery system

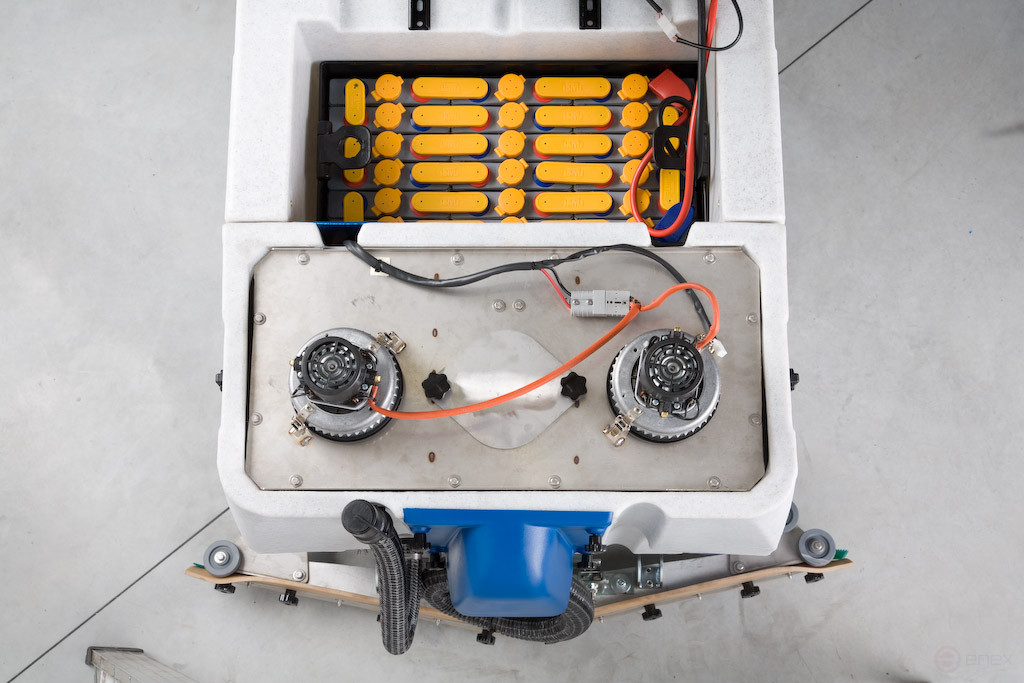

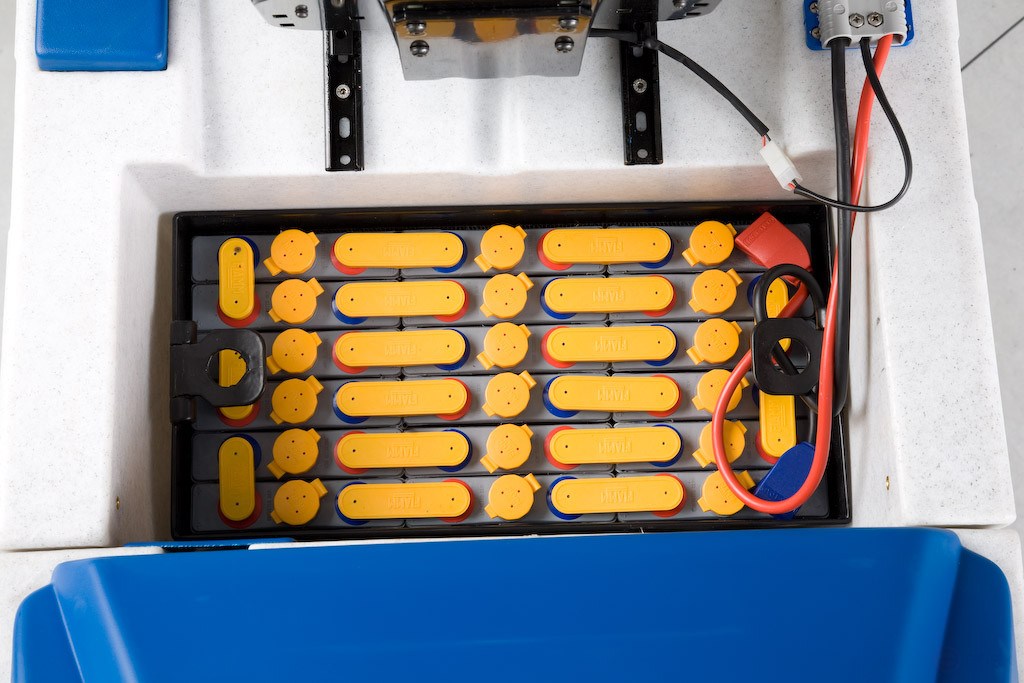

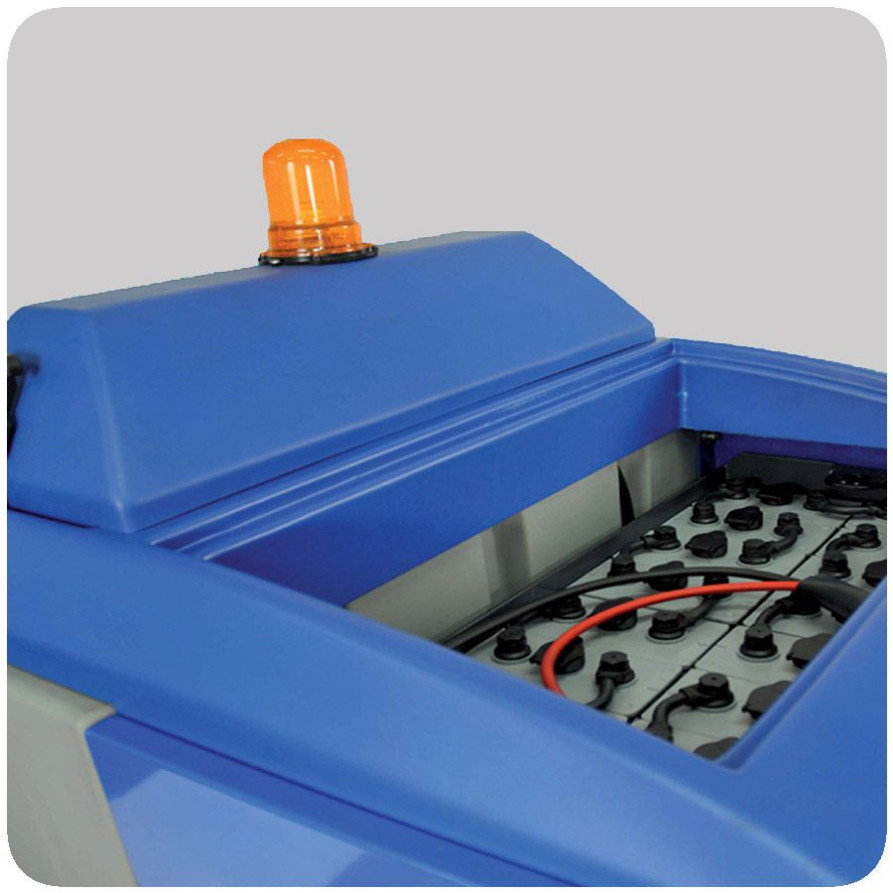

The machine is equipped with two separate tanks: for clean water —210-270 l, for dirty water —210-270 liters, which allows you to work for a long time without stopping. The power supply is provided by a rechargeable battery36 Vcapacity280-320 Ah(lithium versions up to400 Ah).
The battery life isup to 9 hours, depending on the selected mode and the condition of the floor. Charging is performed from an external automatic charger included in the package.
Dimensions and technical data
- The overall dimensions of the machine are1800×1000×1460 mm, weight with batteries — about790 kg.
- The turning radius isabout 2,400 mm, which provides excellent maneuverability even in confined spaces.
- The noise level during operation does not exceed65-70 dB, which allows the equipment to be used in rooms with high demands on acoustic comfort.
Configuration and options
The standard package includes:
- Three nylon disc brushes;
- Suction beam 1300 mm;
- Automatic charger;
- Electric drives for lifting/lowering brushes and beams;
- A system for diagnosing the condition of nodes.
Optionally, the machine can be equipped with:
- A sweeping and suction devicewith a cylindrical brush and a garbage container.;
- With pneumatic wheels and seasonal tires;
- Pre-sweeping system;
- Support for lithium batteries.
Advantages of the model
- Proven reliability: operation in Russia for more than 15-20 years;
- High autonomy and productivity — up to10,800 m2/hour;
- Compact at high power;
- Convenient control and adjustment of the clamping pressure;
- Easy access to the main nodes for maintenance;
- The ability to quickly replace three brushes without tools;
- Easy to repair and low cost of ownership.
Guarantee
Warranty period —24 months(or12 months / 2000 operating hourswhen delivered in an industrial configuration), subject to compliance with the maintenance regulations.
