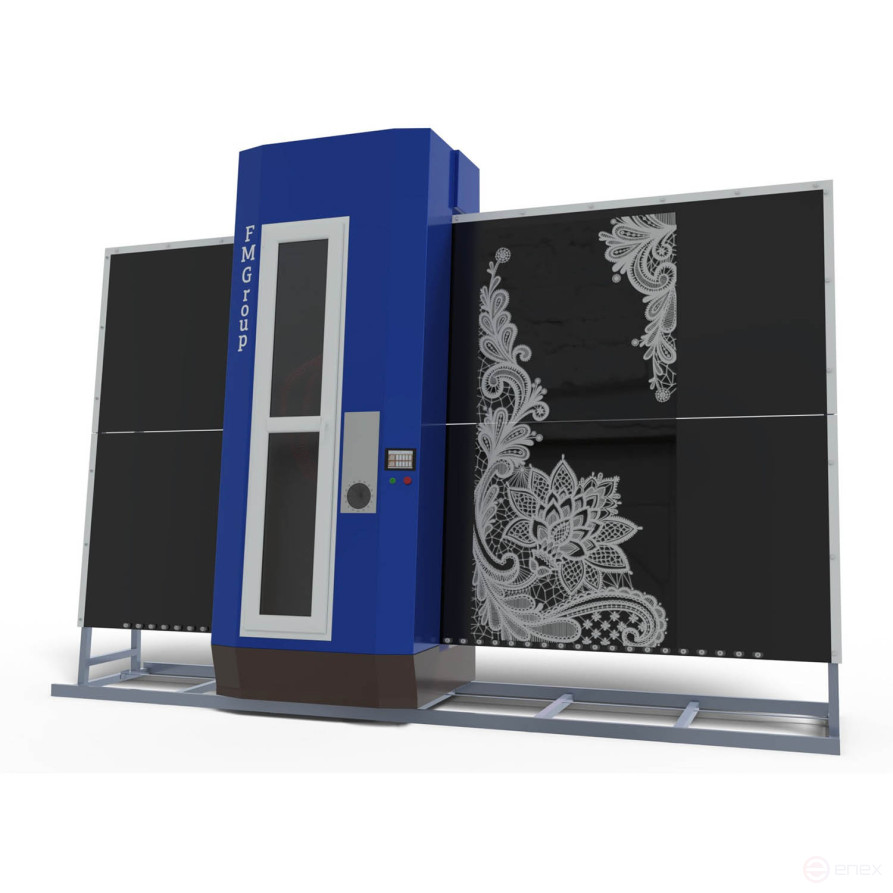

ARPU-5022 sandblasting plant for glass
Russia
Russia
Description
Automated sandblasting plant ARPU-5022 Premium is an installation of increased productivity. The sandblasting plant for glass processing ensures high processing speed, cleanliness and cost-effectiveness of production. Unlike the younger models of the FMGroup brand sandblasting units, it is equipped with not two, but three ejectors. One ejector for a handgun.
Structurally, the machine consists of the following elements — a bed, a movable cabin, a filter and ventilation system and an automatic control system. The bed combines a support wall, side elements and a base with two guides, along which a trolley with a cabin and an assembly compartment moves. The front side of the support wall is covered with an elastic material. Each installation is equipped with pallets for collecting abrasive.
The sandblasting chamber for glass processing is equipped with a large viewing window, as well as a work area illumination system, which allows for visual control of the process.
Design features and equipment:
- Powerful welded steel bed and guide rails. Which guarantees the operation of the machine for 15 years.
- The movable working chamber eliminates the possibility of damage to the back of the workpiece.
- The cabin design prevents the ingress of abrasive and glass dust outside the work area.
- The bubbling system does not allow the abrasive to stick.
- Original ejector type cameras. Ejector chambers have a dual drive, increasing the service life and stability of operation.
- Toothed drive belts.
- Brush dust removal zones.
- Air aspiration and recovery system.
- Self-cleaning filter elements.
- Contactless sensors.
- Panel industrial logic controller LSD display-touch-screen.
- Multi-zone processing.
- Archive with drawings.
Advantages:
- The constancy of parameters such as the distance from the nozzle to the surface of the workpiece, the right angle between the longitudinal axis of the nozzle and the surface of the workpiece, as well as the rate of discharge of the abrasive, the operation of the fan and the bubbling system guarantees the stability of high quality processing. All parameters are set from the touch-screen panel.
- Flexible control system for processing modes during continuous operation.
- The possibility of using both film and metal reusable templates.
- Thin materials do not deform during processing. It is possible to process bent glass.
- The working parts are placed outside the cabin and are not exposed to abrasive.
- The absence of static.
- Free access to all nodes and aggregates.
- Visual control of the treated surface.
- The lighting system of the work area.
- Boron carbide nozzles. The service life is up to 1000 hours.
- Ejector chambers have a dual drive, increasing the service life and stability of operation.
- The system of forced dust removal from the work area.
- Air aspiration and recovery system.
- Repeated use of the abrasive. Permanent separation of glass dust from abrasive material. A new abrasive is added if necessary.
- The consumption of abrasive is reduced, which allows the use of fine aluminum oxide.
- The bubbling system.
- All equipment is supplied assembled and ready for operation, you need to plug it into a 220 V outlet and supply air.
- For transportation, it fits in a Gazelle, we can take over the organization of delivery to the client.
Specifications:
- The maximum height of the workpiece, mm - 2650
- The maximum length of the workpiece, mm - 5000
- Thickness, mm - 3-40
- Productivity, sq.m/h - 18
- Processing area, mm - 2200*5000
- Dust protection - 3 levels
- Multi-zone processing - 10 zones
- Number of ejector chambers, pcs - 3
- Power supply - 220 V, 50 Hz,1 phase
- Air pressure, bar - 6-8
- Power, kW - 2.2
- Overall dimensions (L*W*C), mm - 6000*2000*3300
- Weight, kg - 950
