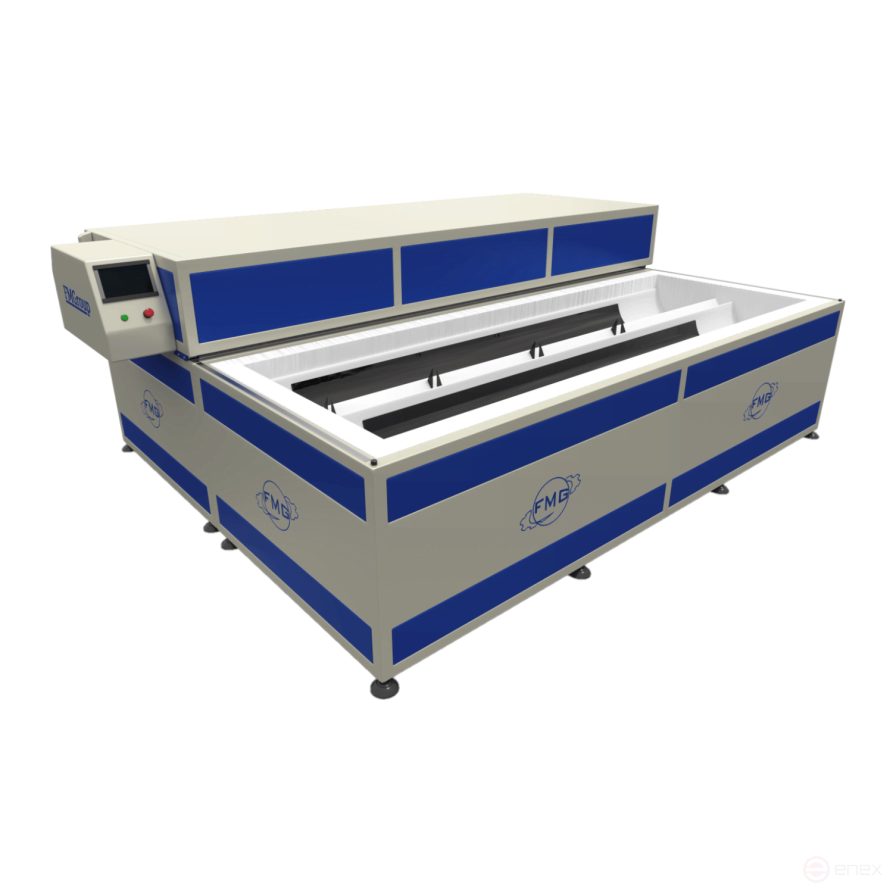

Glass grinding furnace PGM-3111
Russia
Russia
Description
Glass molting furnace PGM-3111.
For the production of ground glass, fusing, stained glass.
Design features and configuration:
- Three-block design: two molding chambers and a movable heating thermomodule.
- The supports of the molding chambers are adjustable.
- Thermal insulation (lining) allows you to withstand an operating range of up to 900 C.
- Closed-type heating elements.
- Low-inertia thermocouples "open junction".
- Removable protective covers.
- Original pneumatic cylinders.
- The regulator of the mechanical lifting of the thermal module.
- Specialized carriages for moving along guide rails.
- The control panel is a DELTA Touch Screen PLC.
Advantages:
- The dual layout of the working chambers increases productivity.
- Continuous mollification cycle.
- Universal shaping matrices (radius does not matter).
- Forming matrices are available and can be easily changed when switching to another radius.
- The possibility of grinding glass in bundles (2-3 pieces each).
- A guarantee of high quality, accuracy and repeatability.
- Preservation of the chemical composition of the glass (after grinding it can be cut, it will not split).
- The possibility of repeated mollification.
- No bubbles in the finished glass.
- The thermomodule opens automatically when the set temperature is reached.
- The process does not require the constant presence of an operator.
- Scale shedding from heating elements is excluded.
- Easy replacement of heating elements, no need to cool the oven.
- Smooth lifting and lowering of the thermal module.
- Adjustment of the gap between the thermal module and the working chamber.
- Algorithms for temperature control and retention.
- The absence of sudden temperature changes.
- A library of mollification modes.
- The possibility of bending the polished and drilled glass.
- The possibility of bending several glasses in a pack.
- The configuration of the equipment based on the customer's area and performance.
- Easy to maintain.
- The ability to connect to a PC.
- The possibility of manufacturing fusing and stained glass windows.
Main Features:
- Number of working chambers - 2
- The size of the working chambers L*W*H, mm - 3100*1100*500
- Installed capacity, kW - 40-45
- Supply voltage - 380 V, 3 phases
- Number of heaters, pcs - 48
- Heater type - Infrared (closed quartz)
- Temperature control system - Microprocessor-based six-channel controller with LED display
- The ability to connect to a PC is available
- Air pressure, atm - 6
- The maximum heating temperature, ℃ - 900
- Operating temperature, ℃ - 650
