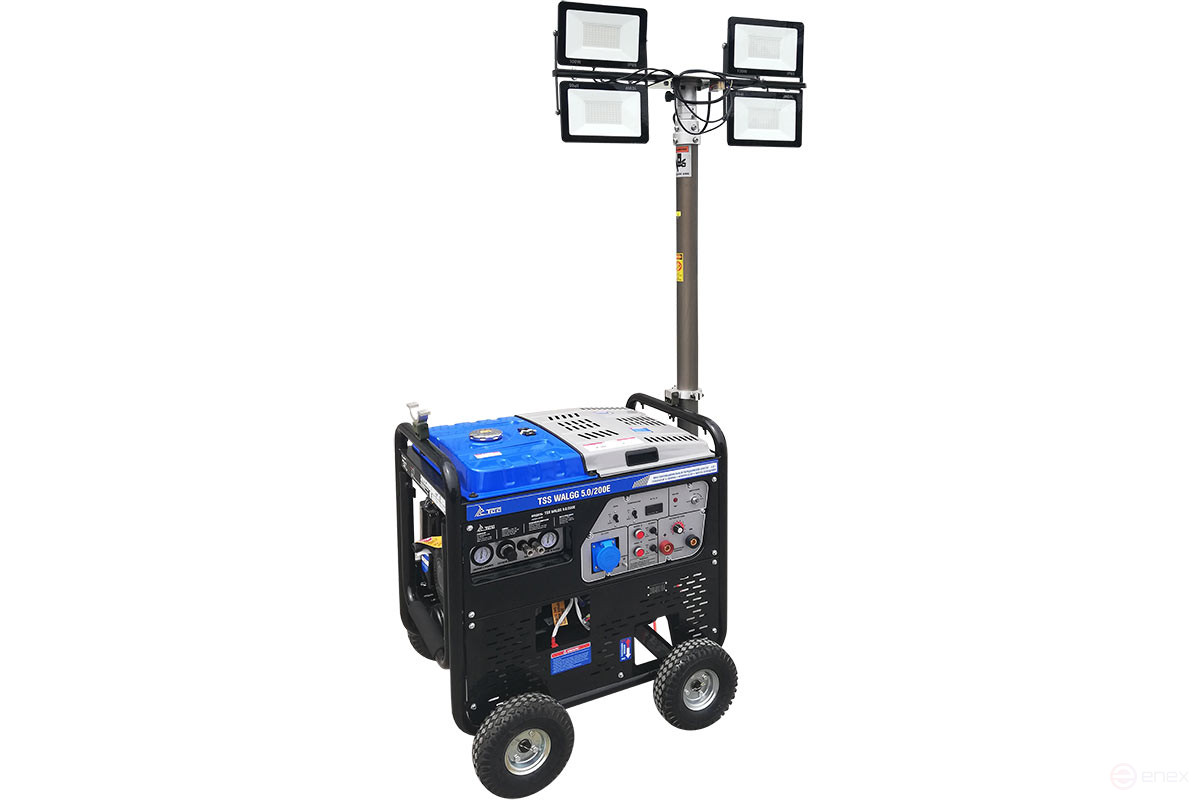

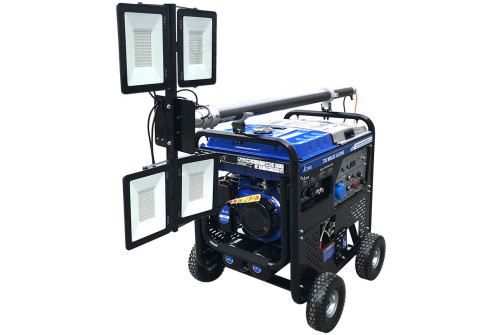

Multifunctional mobile unit 4 in 1 TSS WALGG 5.0/200E
Russia
Russia
Description
A versatile compact model that combines the most frequently used functions in repair and construction. The power supply, welding station, air compressor and lighting mast are all in one device that has no analogues on the market. Easy movement and control. Modern design. High quality of assembly and components. The unit is designed for long and comfortable operation.
ELECTRIC POWER GENERATOR:
- Alternating current with a voltage of 230V and a frequency of 50 Hz.
- The rated output power is 5 kW.
- Stable operation of the generator at t° -15 + 40.
- High-quality sinusoid current, stable voltage and frequency.
- A 32A power outlet and plug are included.
- The mains fuse.
- Simultaneous operation with compressor and lighting mast.
THE AIR COMPRESSOR:
- The volume of the receiver is 20 liters.
- Capacity of 100 l/min.
- The maximum pressure is 8 bar.
- Adjustment of the output pressure from 0-8 bar.
- Two outlets with quick-release hose connection
- Pressure relief safety valve
- Condensate drain valves from the receiver
- Instant launch
- To get started, you just need to connect the air supply hoses using the BRS, set the required pressure and turn on the compressor.
- Simultaneous use with an outlet and a lighting mast is acceptable.
WELDING POST:
- Manual direct current arc welding.
- Smooth adjustment of welding current 50-200 A.
- Easy ignition and welding with an electrode of 1 – 5 mm.
- High-quality voltage characteristic.
- The welding current with stepless adjustment up to 200 A allows for long-term (PV-50%) welding with a 4 mm electrode without overloading or overheating the generator.
- Power sockets of the SKRP-50 type for connecting a welding cable with a diameter of 25-70 mm.
- Simultaneous operation with the lighting mast is possible.
LIGHTING MAST:
- The maximum lifting height of the mast is 4.5 m. The lifting time is 30 seconds.
- You can turn on 2 or 4 lamps at the same time.
- Adjust the direction of the light in all directions along the vertical and horizontal axes.
- Automatic lifting and lowering of the mast using a compressor
- Fixation at any height.
- The mounting system prevents the mast from tipping over or wobbling during operation.
- Compact design. The mast is folded vertically and horizontally.
- The full deployment and launch time is 1 minute.
- Simultaneous use with any other functions of the unit is possible.
Security guarantee:
The equipment is manufactured in accordance with the requirements of the European standard EN 60974-1:2012 for the design and safety of arc welding power supplies. Complies with the requirements of the technical regulations of the Customs Union TR CU 004/2011 "On the safety of low-voltage equipment" and TR CU 020/2011 "Electromagnetic compatibility of technical means".
Quality control:
All assembled devices are subject to mandatory inspection at the factory, and then, before shipment to the buyer, they are checked at the TSS Group warehouse by the OTC controller. Double quality control eliminates possible factory defects.
Specifications:
- The type of welding current is constant
- Welding current, 50 - 200 Amperes
- Electrode diameter, 1.6 - 5 mm
- No-load voltage, at 75
- Electric power, kW 5
- Rated power, kW 5
- Rated power, kVA 5
- Maximum power, kW 5.5
- Maximum power, 5.5 kVA
- Engine type Petrol, 4-stroke, OHV, single cylinder
- Engine Model Senci SC420
- Engine power, kW/hp 9.2/12.5
- Recommended oil type 10W-30
- Crankshaft rotation speed (rpm) 3600
- Fuel type gasoline
- Fuel consumption l/hour 3.3
- Fuel tank capacity (L) 30
- Air cooling system
- The type of start is Manual/electric starter
- Installed battery Ah/V 18/12
- There is a battery charging unit
- Number of phases 1
- Power factor 1
- Voltage (V) 230
- Frequency, Hz 50
- Rated current (A) 21.7
- AVR voltage regulator, electronic, automatic
- Monitoring devices Voltmeter, frequency, operating hours, fuel level, low oil pressure sensor
- Automatic protection is available
- There is a low oil pressure stop
- Number of sockets 230V/32A
- Capacity, l/min 100
- Pressure, 8 bar
- Execution is Open
- Noise level (dB/7m) 75
- Degree of protection IP23
- Weight, kg 165
- Overall dimensions (L; W; H; mm) 1850x760x1110
- Gross weight, kg 170
- Package dimensions (L;W;H; mm) 860x600x800

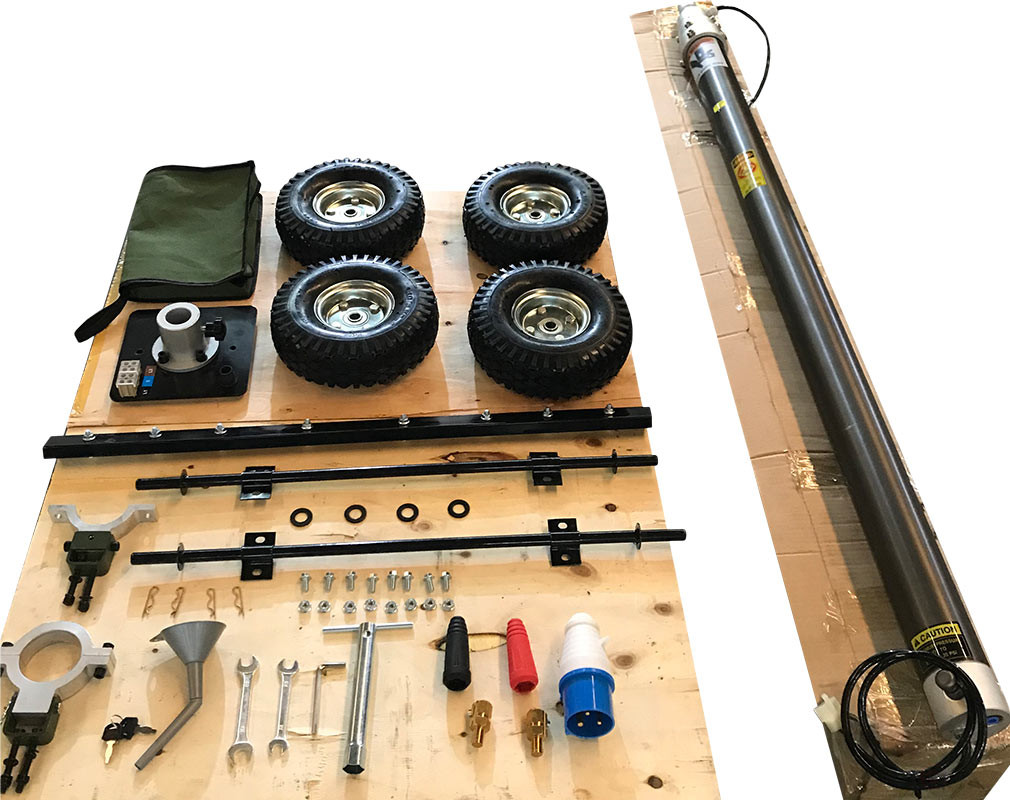

Package Contents:
- Telescopic mast
- A shelf for fixing lamps
- Transport wheels
- Tool Kit
- Welding cable plugs - 2 pcs
- Network plug
- User Manual
- Warranty card
Characteristics
General Specifications
Russia
Russia
Dimensions of product
Specifications
The method of bringing the generator engine into working condition.
- Manual start requires physical efforts of the operator
- The electric starter is started by turning the key or pressing
- Automation (ATS) turns on the generator independently when the main network is turned off
The method of bringing the generator engine into working condition.
- Manual start requires physical efforts of the operator
- The electric starter is started by turning the key or pressing
- Automation (ATS) turns on the generator independently when the main network is turned off
