Ermenrich NetGeeks NP45 Multifunction Cable Tester
Russia
China
Description

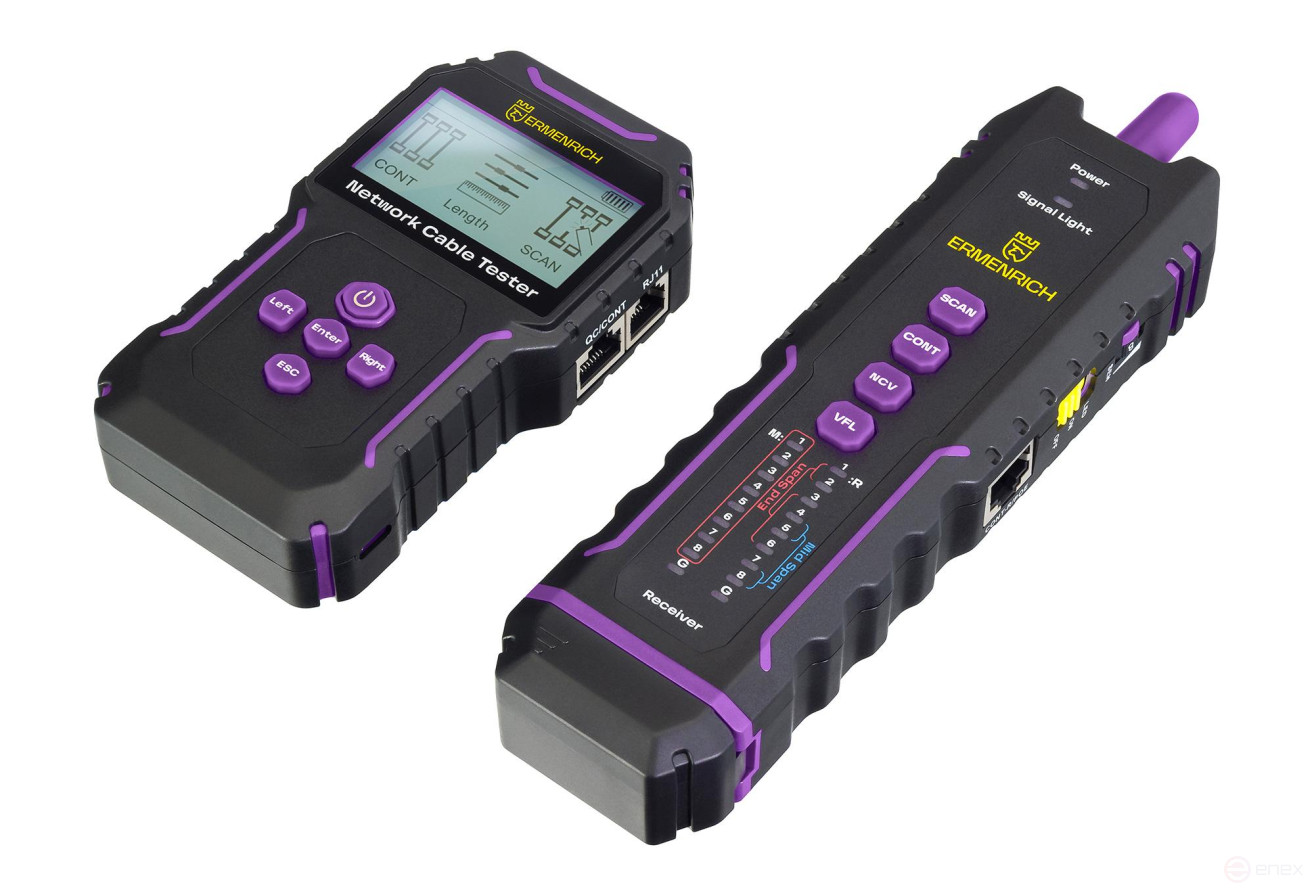

The Ermenrich NetGeeks NP45 multifunction cable tester is used to determine the parameters of the telephone and computer network, as well as to search for a twisted pair. With this tool, you can measure the length of the cable, find damage, breaks and short circuits, check the quality of the connector crimping, and much more. The tester is useful for specialists working in the field of installation and repair of various twisted pair networks in industrial, office and home environments.
Ermenrich NetGeeks NP45 is suitable for basic network testing and detection of breaks, short circuits and crossed pairs, measuring the distance to problems (the maximum length of the tested cable is 600 meters). The cable length is determined using the TDR method - pulse reflectometry – in the range from 2.5 to 200 meters. Additional functions include NCV (safe contactless voltage detection), VFL (highlighting cable damage during its gradual study), PoE test (determining the type and location of power equipment on the line; suitable for standard (IEEE 802.3af/at) and non-standard types).

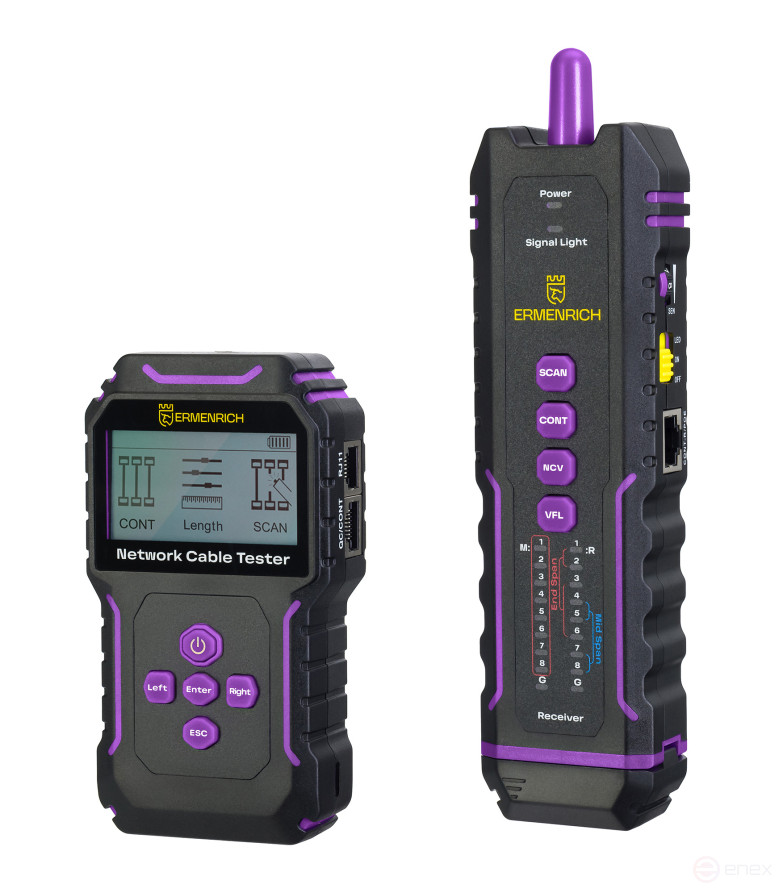

The package includes a transmitter, receiver, crocodile clip, patch cords. Both the transmitter and receiver are powered by the built-in battery.
Main Features:
- Port Flash function for detecting the network port with the connected cable on the router/switch
- The continuous operation time of the transmitter at full charge is 15 hours, and the receiver is 10 hours.
- RJ11 and RJ45 patch cords included
- Measuring cable length in the range from 2.5 to 200 m by TDR method
- Search and detection of cable breaks and damages with determination of the distance to them

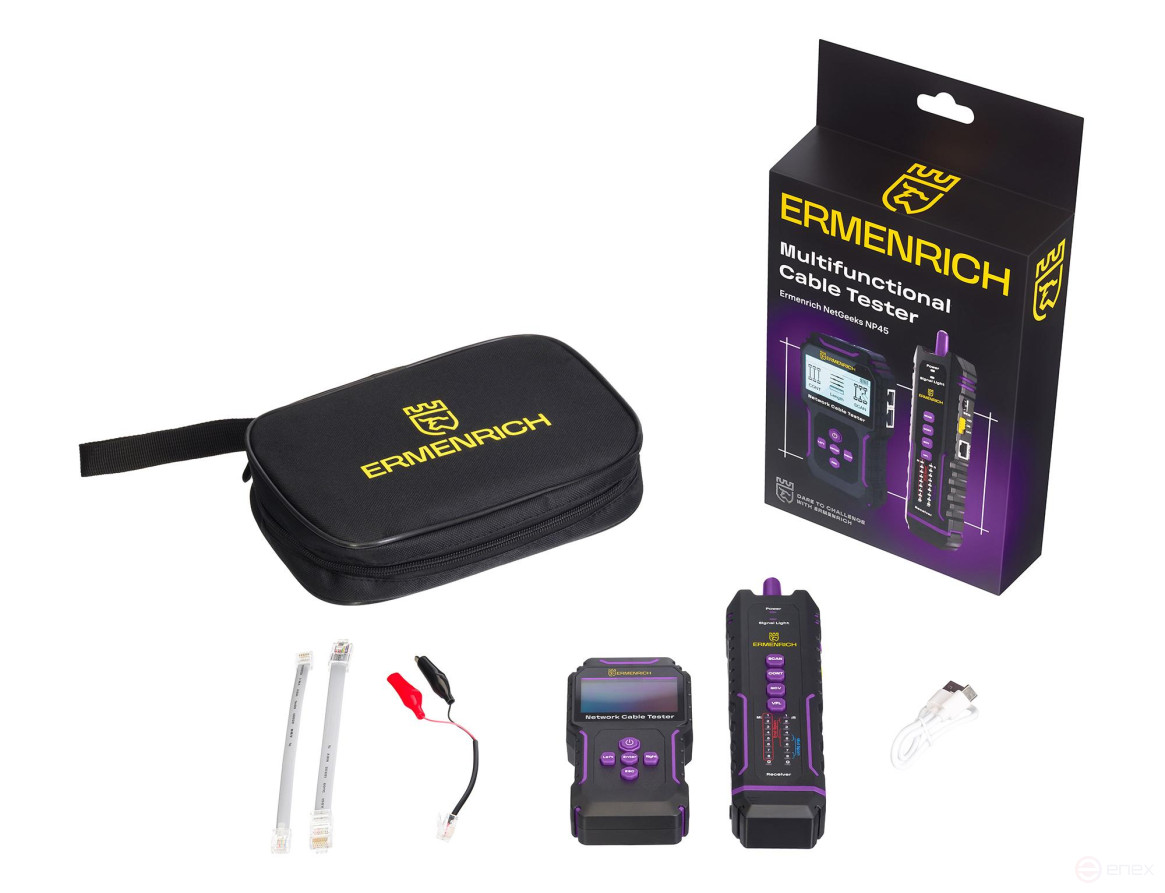

Equipment:
- The transmitter
- The receiver
- RJ11 Patch cord
- RJ45 Patch Cord
- Crocodile Clip
- USB Type-C Cable

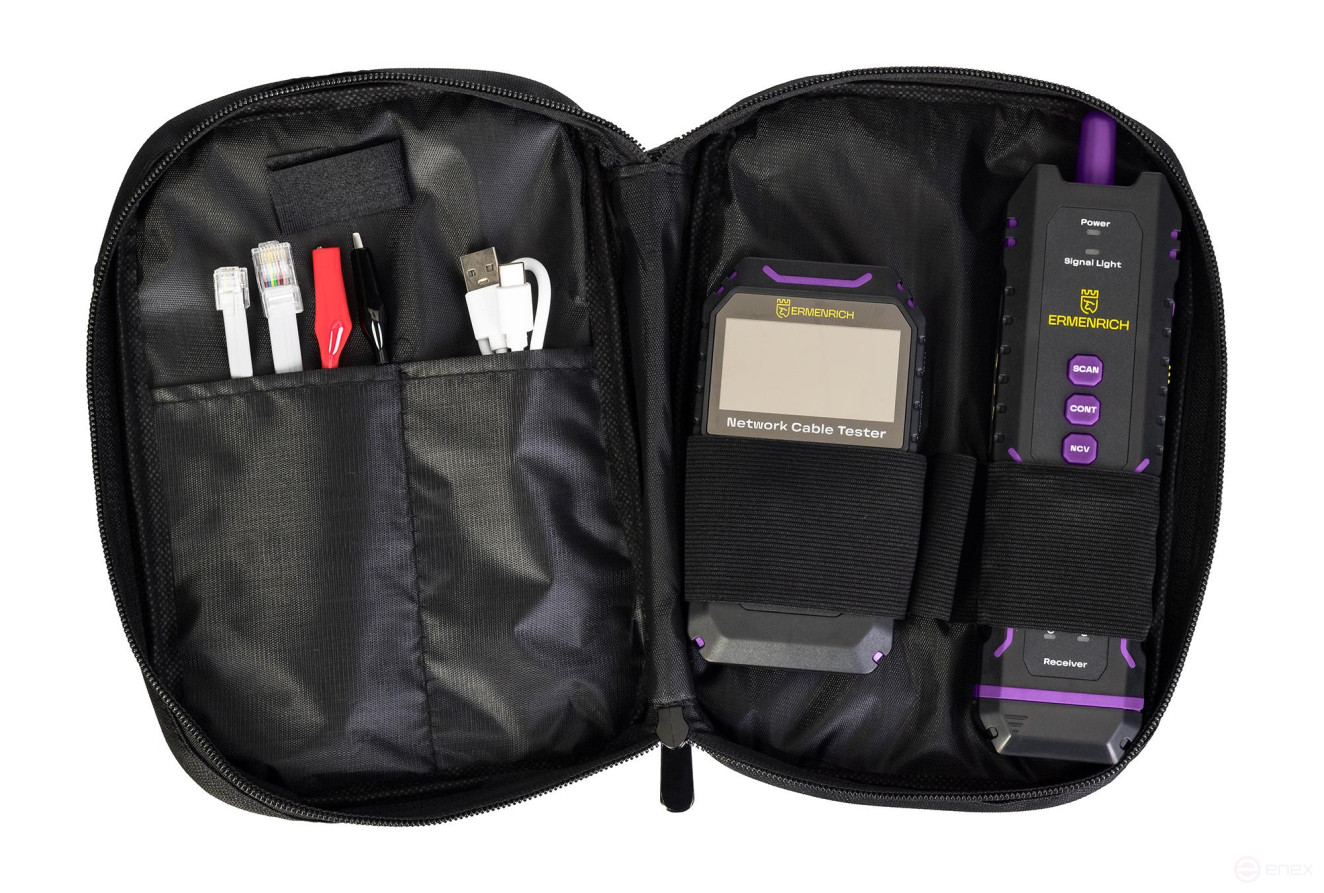

- Bag
- Operating instructions and warranty card
Specifications:
- EAN: 5905555023168

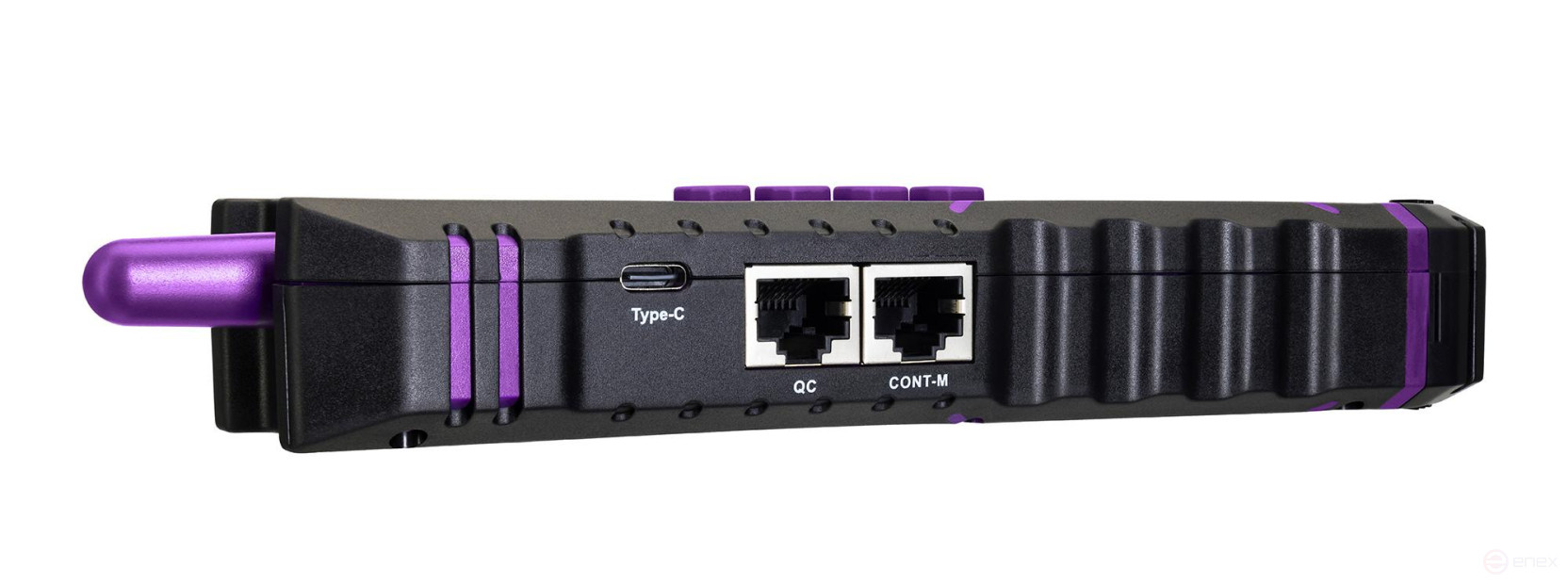

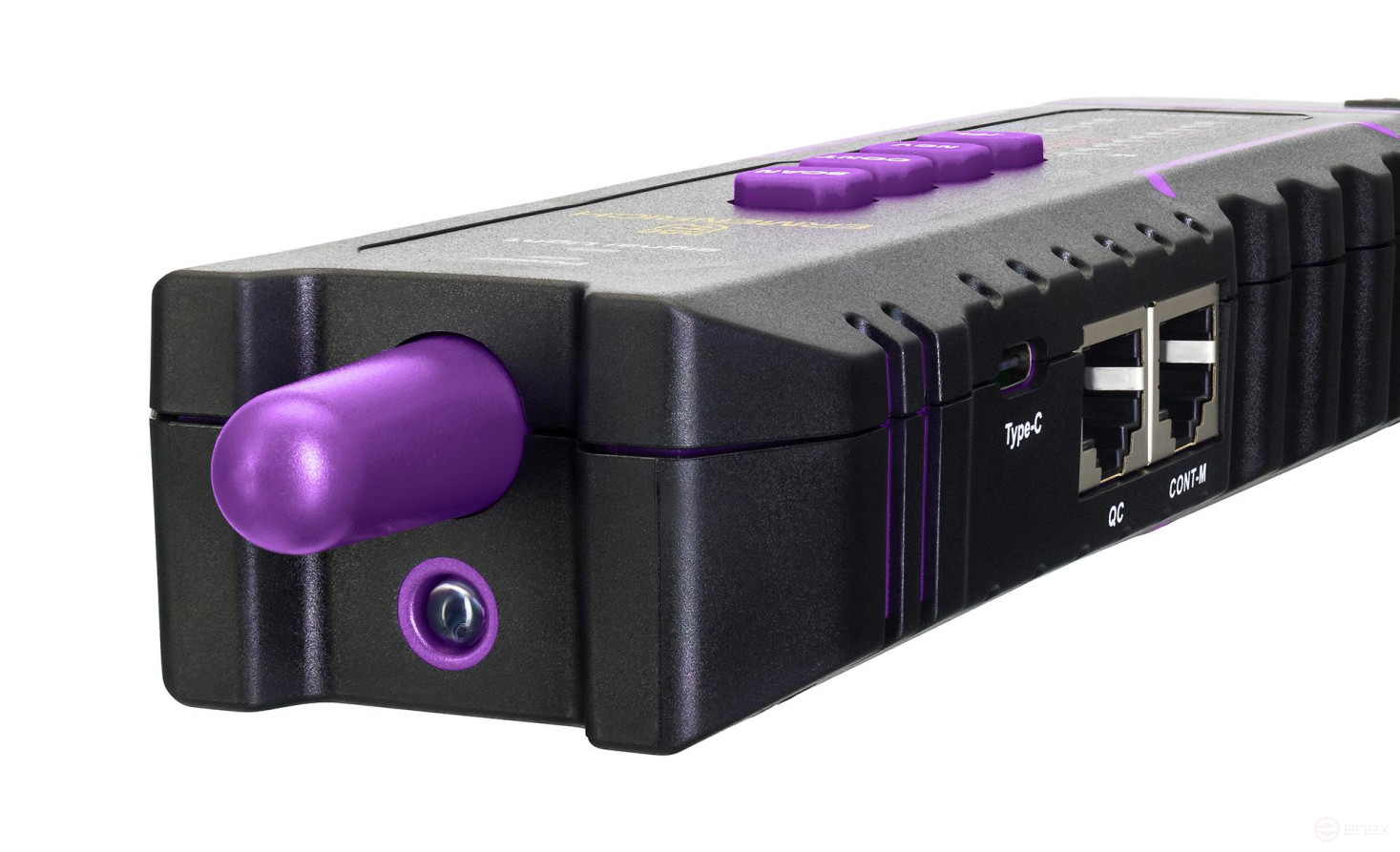

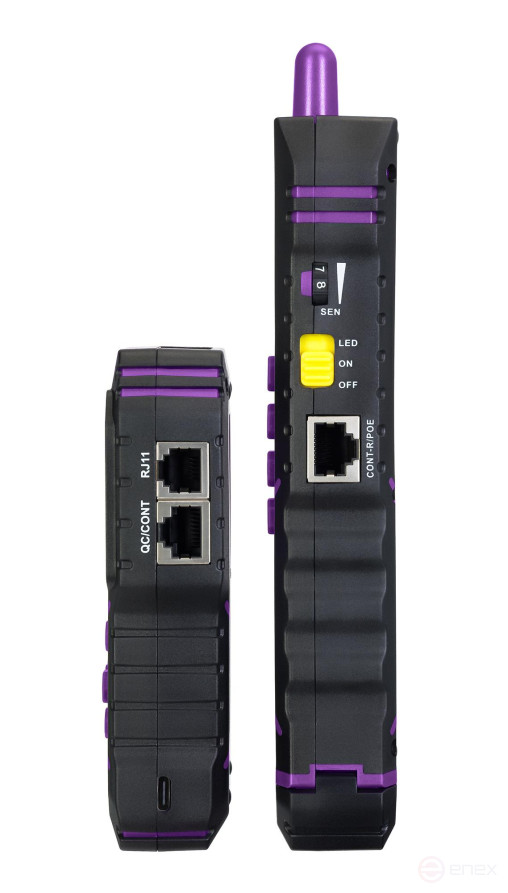

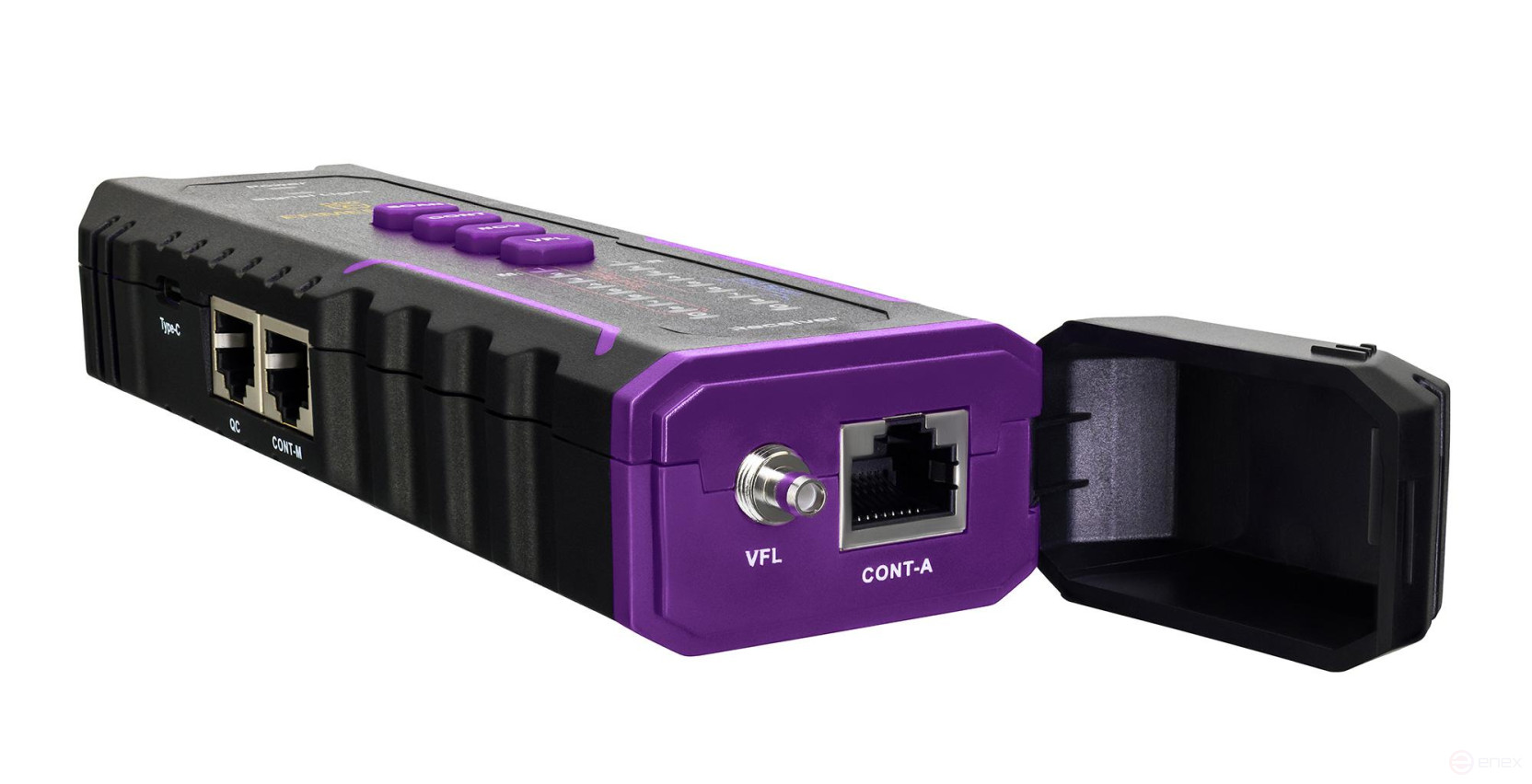

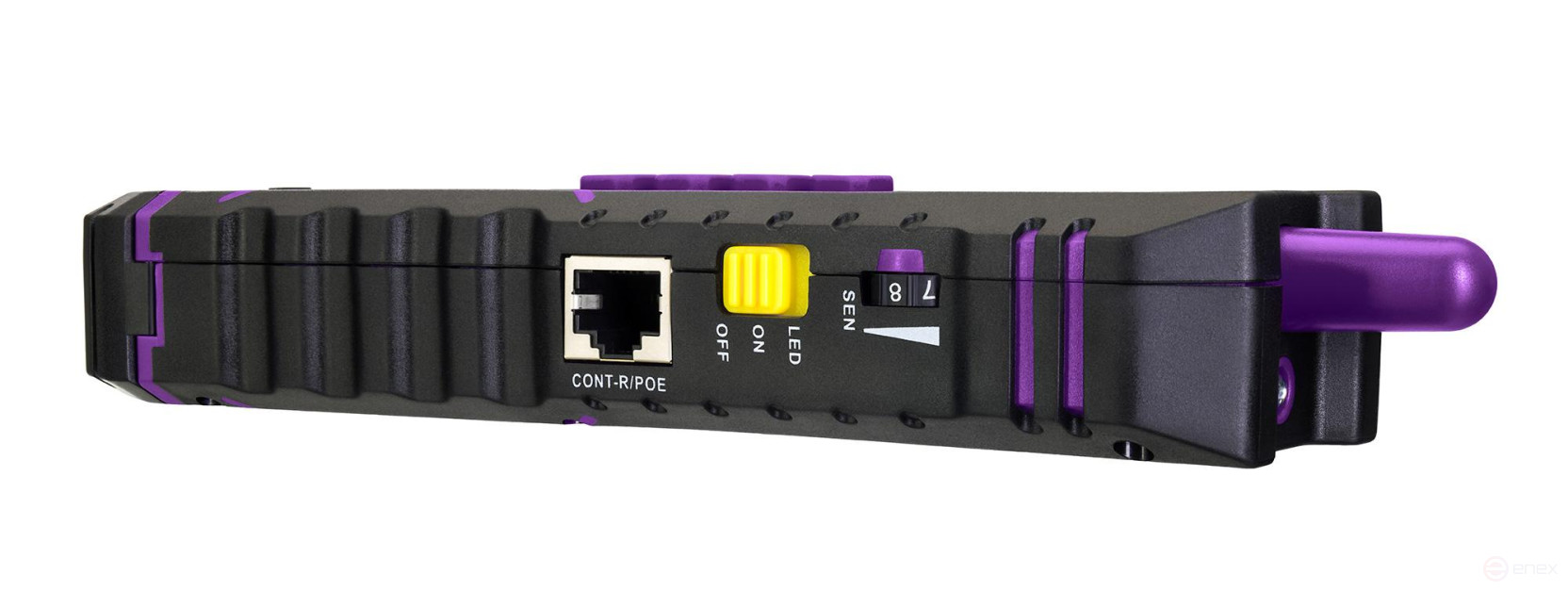

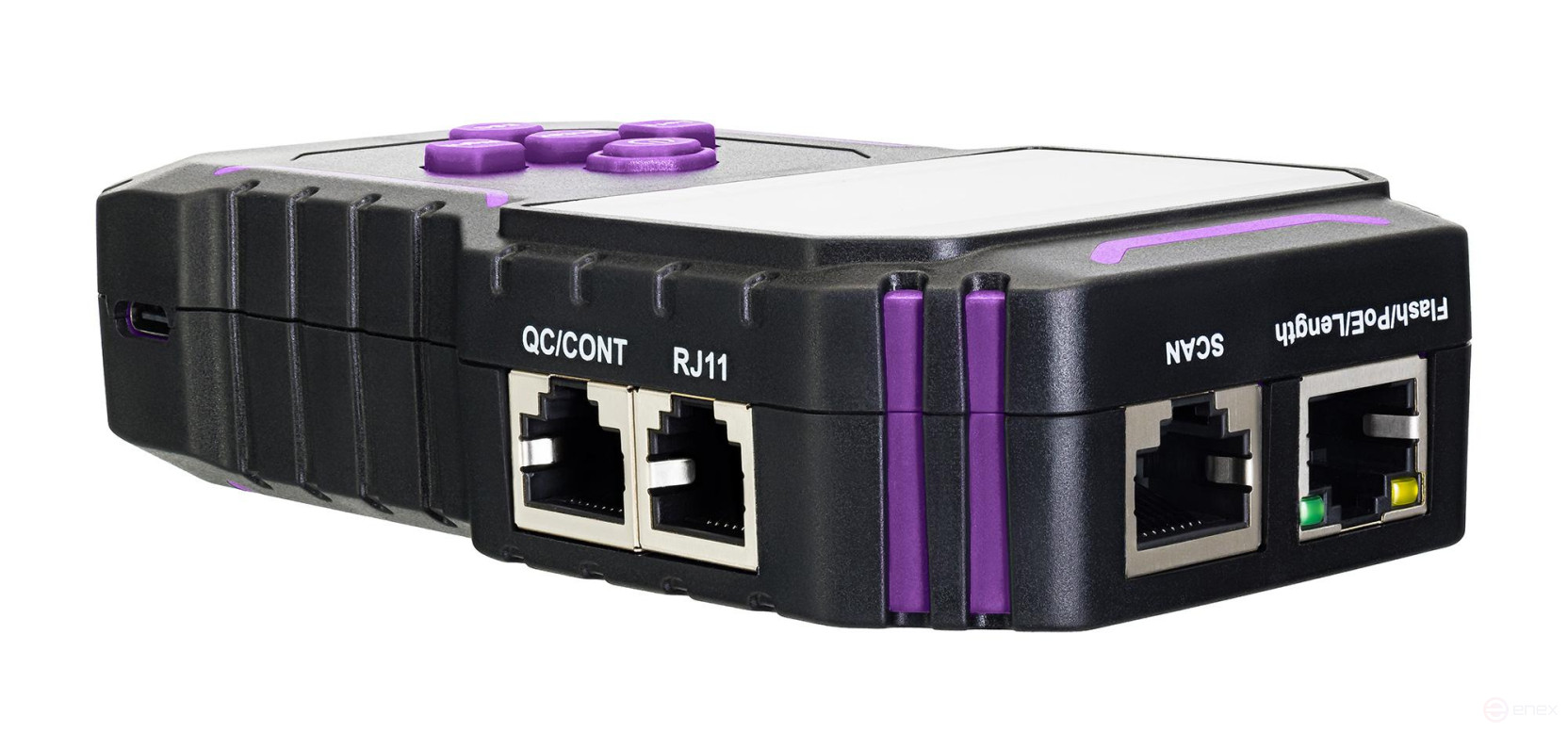

- Ports: QC, RJ45 (Cont-A), RJ45 (Cont-M), RJ45 (Cont-R/PoE), Type-C, VFL
- Types of cables tested: network STP/UTP of categories 5E/6/6A
- Maximum length of the tested cable, m: 600
- Cable length measurement: yes
- Checking the serviceability of the cable: yes
- Checking the serviceability of the cable: + (open, short circuit, crossed pairs)
- Flash Indicator function (Port Flash): Yes
- Flash Display function (Port Flash): +, (full duplex/half duplex, auto-negotiation/non-auto-negotiation, 10/100/1000 Mbps)
- Connector Crimping Quality Control (QC): yes
- Cable Tracing: Yes
- PoE Test: Yes
- Polarity detection: Yes
- Visual Fault Detection (VFL) function: Yes
- Measurement method: Pulse reflectometry (TDR)
- Units of measurement: meters/yards, foot
- Measuring range, m: 2.5 — 200
- Measuring the distance to the cliff: yes
- Short circuit distance measurement: yes
- Calibration: +
- Minimum cable length for calibration, m: 10
- Definition of the type of supply equipment (PSE): non-standard, standard (IEEE 802.3af/at)
- Power equipment location detection (Mid-span/End-span): yes
- Power measurement range, W: 5 — 60
- Maximum operating current, mA: 100
- Protection: Input voltage: 60V
- Display: LED
- Display resolution, pixels: 128x64
- Display backlight: Yes

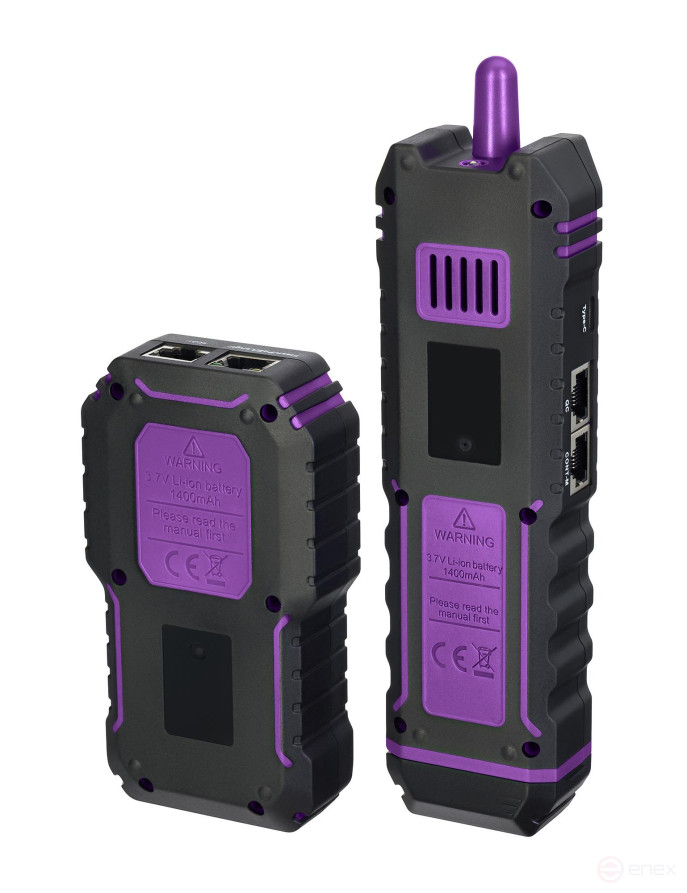

- Power supply: 1400 mAh lithium polymer battery, 3.7V
- Battery life, hours: 10
- Low battery indicator: Yes
- Auto power off: 15 min, 30 min, 60 min
- Operating temperature range, °C: -10 — 60
- Operating humidity range, %: 20...70
- Adjustable sensitivity: yes
- Non-contact voltage detection (NCV): Yes
- Flashlight: Yes
- Types of cables detected: network STP/UTP of categories 5E/6/6A, telephone, electric
