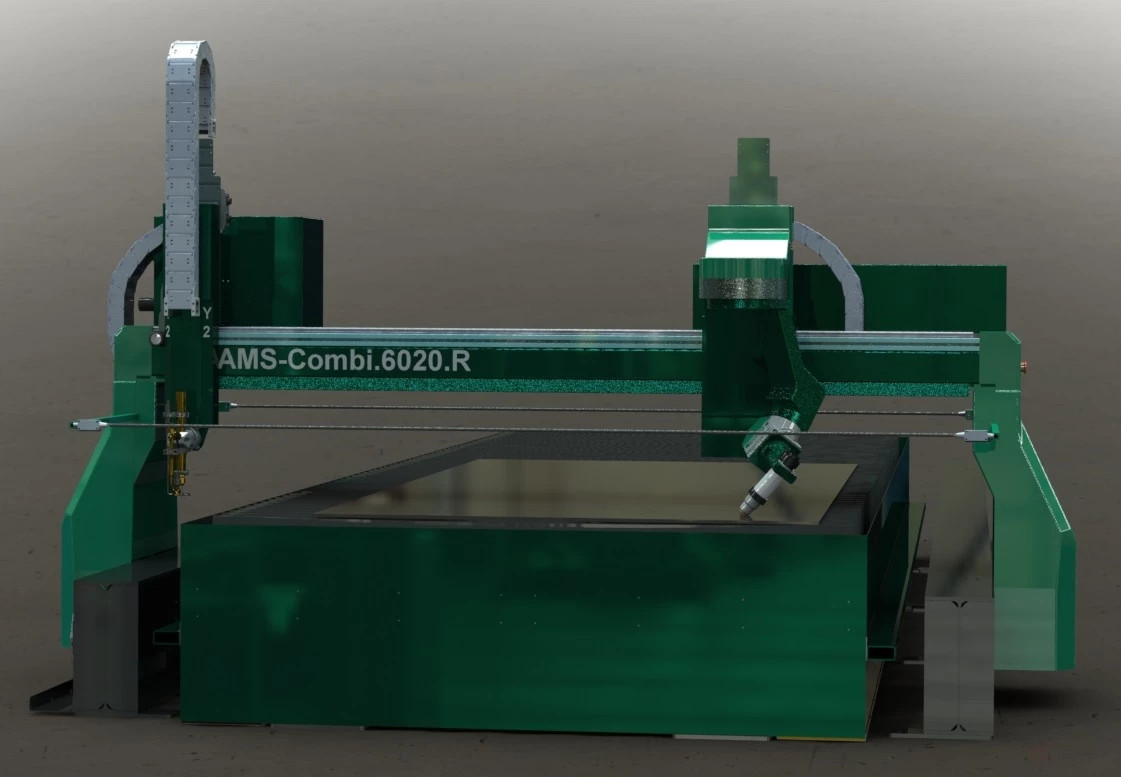

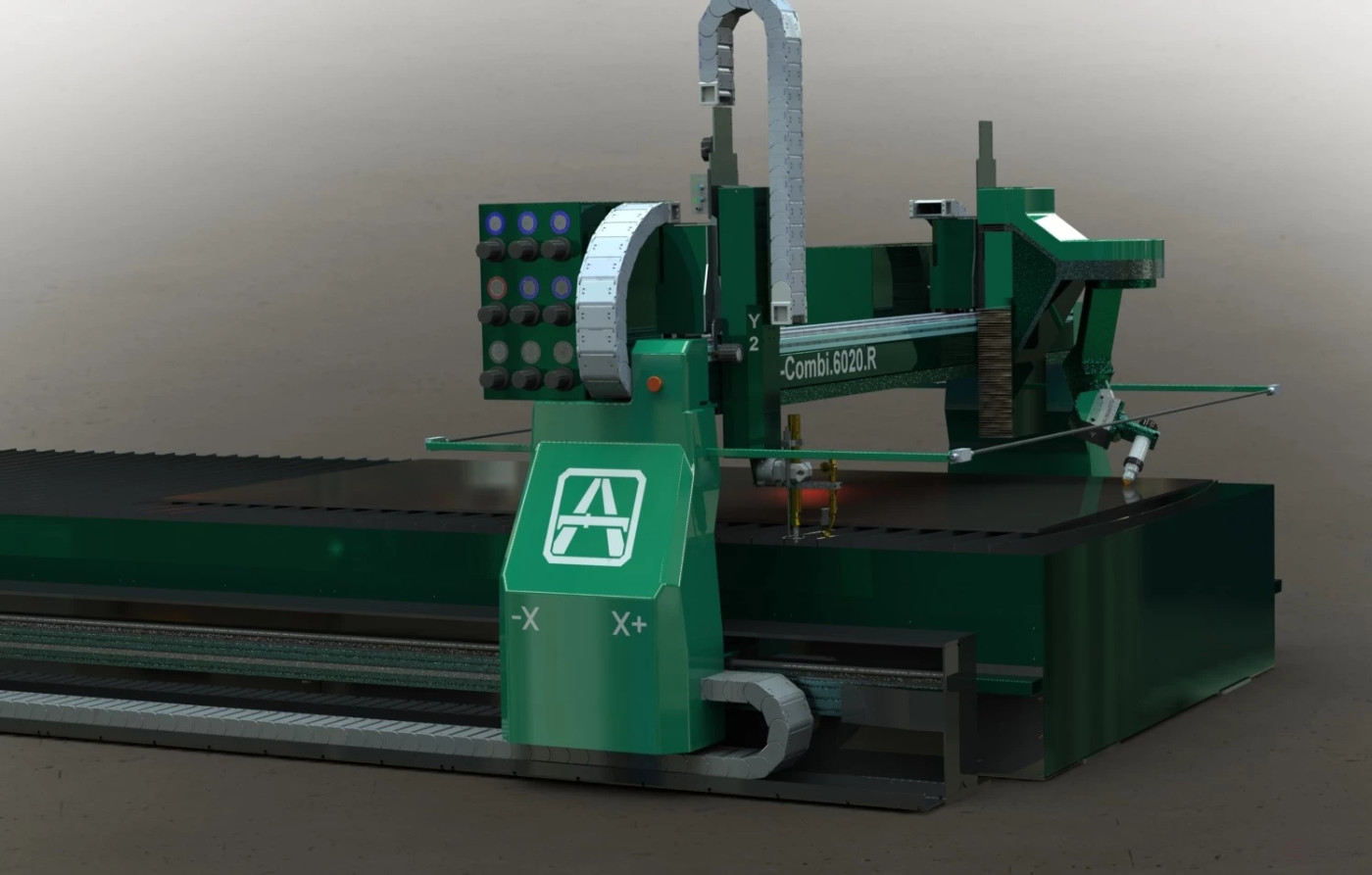

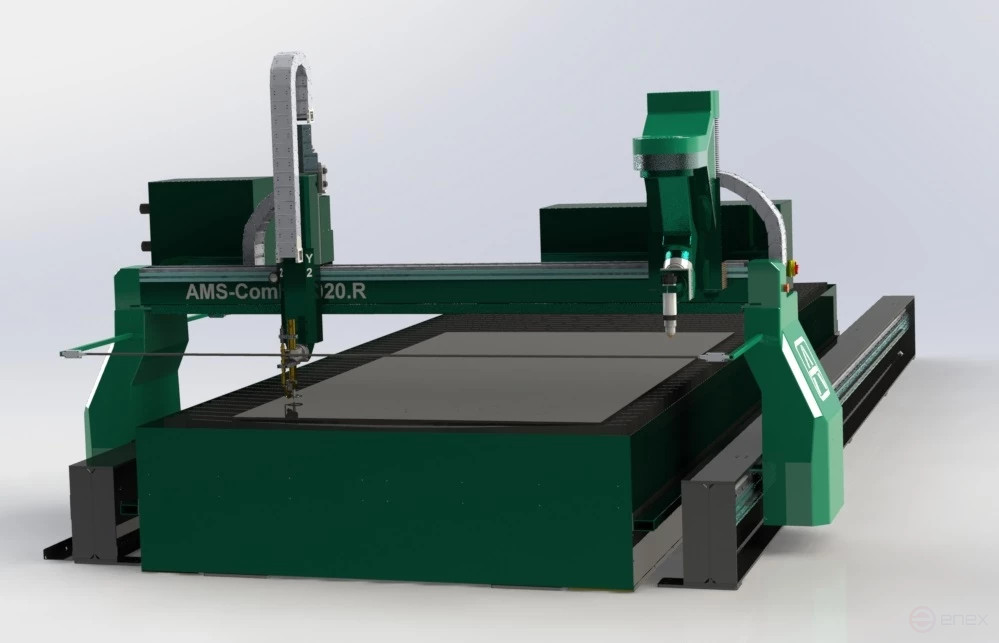

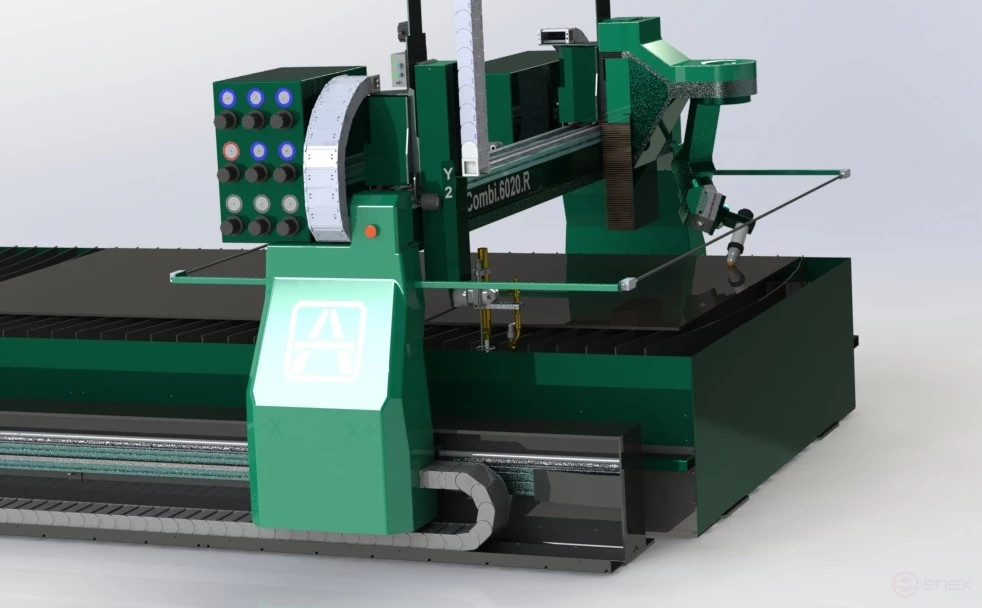

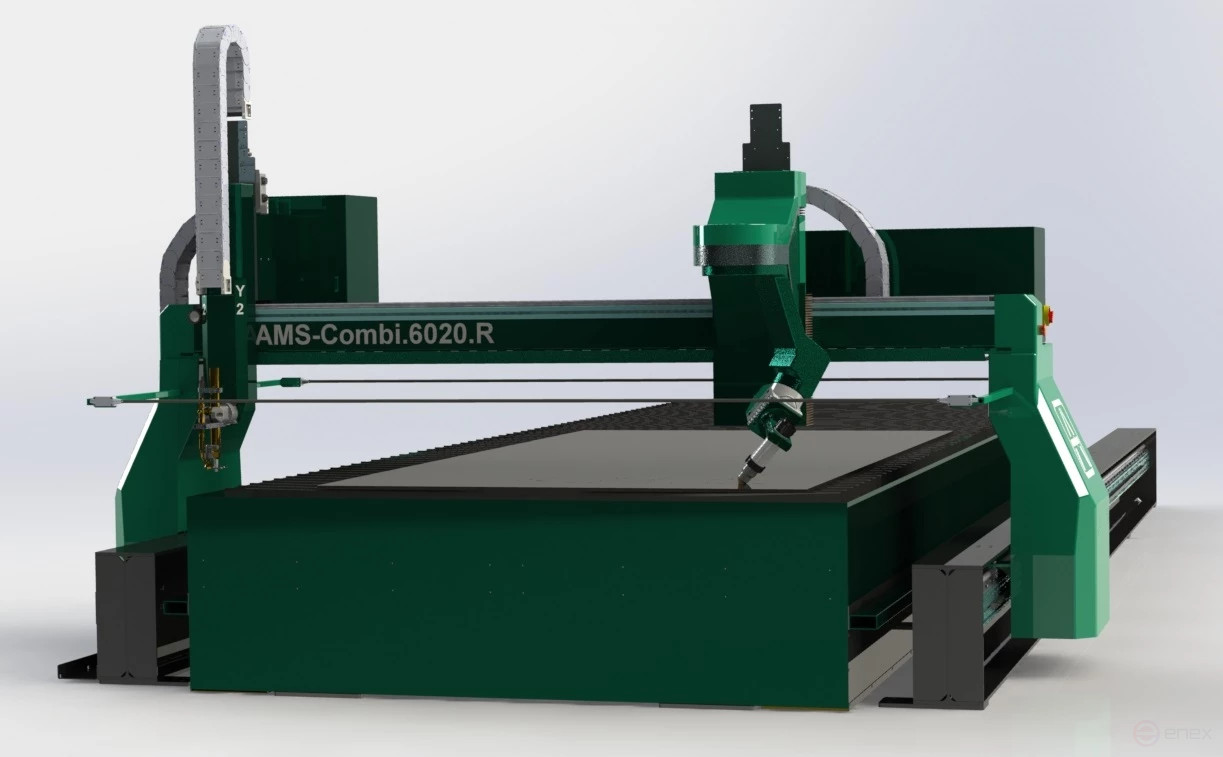

Thermal cutting Machine AMS-Combi.3D.6020
Russia
Russia
Description
The AMS-Combi.3D.6020 thermal cutting machine is designed as a reliable professional machine that allows you to process the widest range of sheet metal, with high speed and good edge quality, while obtaining a curved chamfer (3D metal cutting), which eliminates the need for additional preparatory operations before welding workpieces.
The AMS-Combi.3D.6020 thermal cutting machine is based on our flagship model of thermal cutting machines, the AMS-Plasma.6020 plasma cutting machine. Based on this excellent development, all other industrial-grade thermal cutting machines manufactured by us are made, such as the plasma cutting machine "AMS-Plasma.3D.6020", multifunctional thermal cutting machines "AMS-Combi.6020.1" and "AMS-Combi.6020.2", multifunctional thermal cutting machines and sheet processing "AMS-SuperCombi.6020", oxygen cutting machine "AMS-Oxy".
The thermal cutting machine "AMS-Combi.3D.6020" is designed as a high-end equipment for producing workpieces with high speed and good edge quality. The machine has two calipers, plasma and gas, each with its own Y-axis drive. The plasma support has a rotary head that allows you to cut a curved chamfer at an angle of +/- 45° (3D cutting). This machine has the index "Combi.3D.6020", where "Combi" means the presence of two or more sheet processing technologies, "3D" means the presence of a support with a rotary head for cutting curved chamfers, and "6020" means the cutting area in decimeters.
Main advantages:
- Highest production performance:This is achieved by obtaining cut-out parts with already prepared welding chamfers from the AMS-Combi.3D.6020 machine, which significantly saves labor and, in general, greatly increases the final speed of assembly and welding of products.
- Low operating costs:the machine design, the quality of its manufacture, the quality of the materials and components used, thoughtful ergonomics and ease of maintenance - all this increases the reliability of our equipment, reduces maintenance time and other downtime, which clearly affects the overall reduction in operating costs.
- Two cutting technologies (plasma + gas):optimize power consumption – plasma cuts small and medium thicknesses of metals, gas – medium and thick. This combination of technologies makes it possible to equip the machine with a plasma cutting machine of medium power, which means a low price.
- One semi-automatic gas console for both plasma and gas cutting:allows you to centrally set the parameters of technical gases for both plasma and gas cutting.
- Ideal industrial design and high "thoughtfulness" of the machine design:fully meets modern ergonomic requirements, requirementsSSBTand the level of modern industrial design.
- The use of the best technical solutions and optimal components in terms of price/quality ratioallowed us to create equipment with high performance at an affordable cost.
- High movement dynamics:increases the overall productivity of the machine.
- Full compliance with the requirements of GOST standards, TR CU:guarantees high reliability and safety of equipment
- Technical and operational documentation prepared in accordance with GOST:helps in the proper operation and maintenance of equipment, including maintenance, routine maintenance, etc.
- High maintainability:we value our Customers, we look forward and think about how our machine will behave after prolonged harsh operation, and how it will be serviced after the warranty period expires.
- High potential for modernization and upgrade:you can install a pipe cutting module, or install a laser marker or a pneumatic marker, you can install a drilling support, either individually or all together – and then the machine turns into a SuperCombi sheet processing unit.
- Sectional ventilated cutting table:with a large number of exhaust zones, which increases the efficiency of the exhaust and reduces energy costs.
- Advanced personnel safety system:in addition to the standard safety system (locking at the extreme points of the position, the presence of emergency stop mushrooms on the portal consoles, remote control and on the CNC rack), the machine has a switchable safety barrier in front of and behind the portal. When this barrier is triggered, the operation of the machine is blocked. This barrier is used to protect the operator or auxiliary worker when he is on the exhaust table.
- The possibility of installing a video camera to broadcast the cutting image to the monitor of the CNC rack.
Technical specifications:
- The accuracy class of the machine according to GOST5614-74 is not worse - the First
- Repeatability, mm/m, not worse - 0.1 (0.2)
- Maximum cruise speed on the X-Y axes (m/min/ mm/s) - 30/500
- Cutting technology - Plasma, gas
- The possibility of cutting a curved chamfer is available
- Curved chamfer cutting with a gas cutter - Yes, optional
- Thickness range of the processed sheet, mm, gas cutting - 5/300
- The type of drives used along the X and Y axes is an AC servo (with feedback)
- The type of torque transmission along the X-axis is Two-way torque transmission, straight-toothed rack
- The type of torque transmission along the Z-axis is a ball-screw transmission
- Blocking the operation of the MTR when the cutter collides with an obstacle - There is
- Blocking the operation of the MTR in case of violation of the security barrier - There is
- The number of 8-hour shifts per day is 3
- Positioning accuracy according to GOST 5614-74, mm/m - 0.35
- Accuracy class of cut-out parts according to GOST 14792-80, not worse - 1
- Additional processing technology - No
- Chamfer cutting angle - +/-45°
- Thickness range of the processed sheet, mm, plasma cutting, with punching/from the edge of the sheet - 1-32/100
- The distance of the cutter from the surface of the sheet is constant, automatically stabilized
- The type of gearboxes used along the X and Y axes is Planetary, high-precision
- The type of torque transmission along the Y-axis is a straight toothed rack
- The type of torque transmission along the Z axis is a stepper drive
- Operating conditions according to GOST15150-90 - UHL4
- Supply network voltage, V - 380
Package contents:
Basic equipment of the thermal cutting machine"AMS-Combi.3D.6020"
- Right rail track with cable-carrying chain (flexible cable channel) of the portal – 1 set;
- Left rail track – 1 set;
- Portal with drives and a cable-carrying chain (flexible cable channel) of calipers – 1 set;
- Plasma cutting support with rotary head – 1 set;
- Gas cutting support – 1 set;
- Semi-automatic gas console "AMS-SAGC.3";
- CNC system model "AMS-CNC.Plasma.3D" based on NC221 - 1 kit;
- Cable and wire products of the machine;
- Exhaust cutting table for metal cutting model "AMS-ET4" – 1 set.
