Small plasma cutting machine "AMS-Plasma.3015"
Russia
Russia
Description

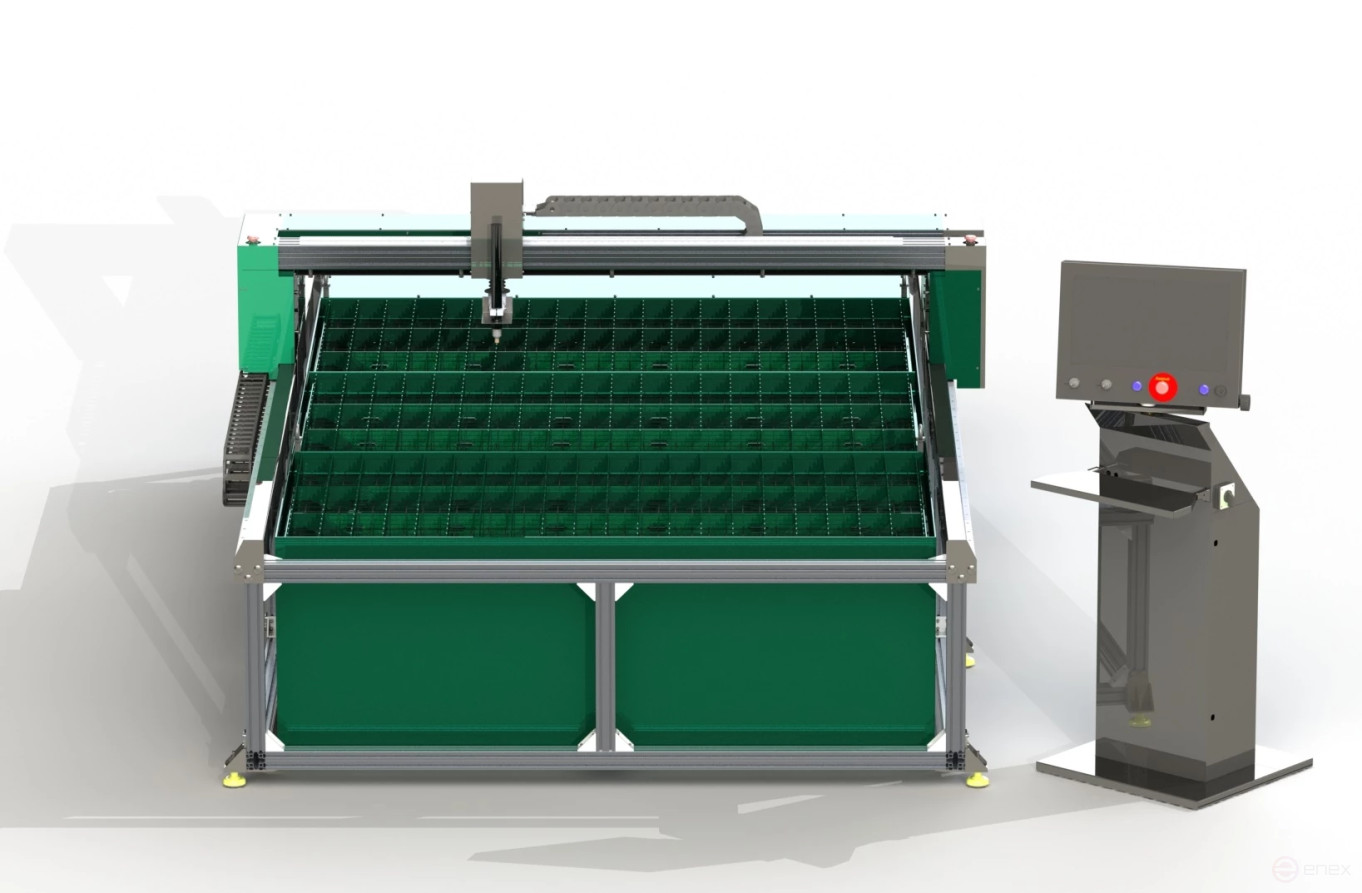

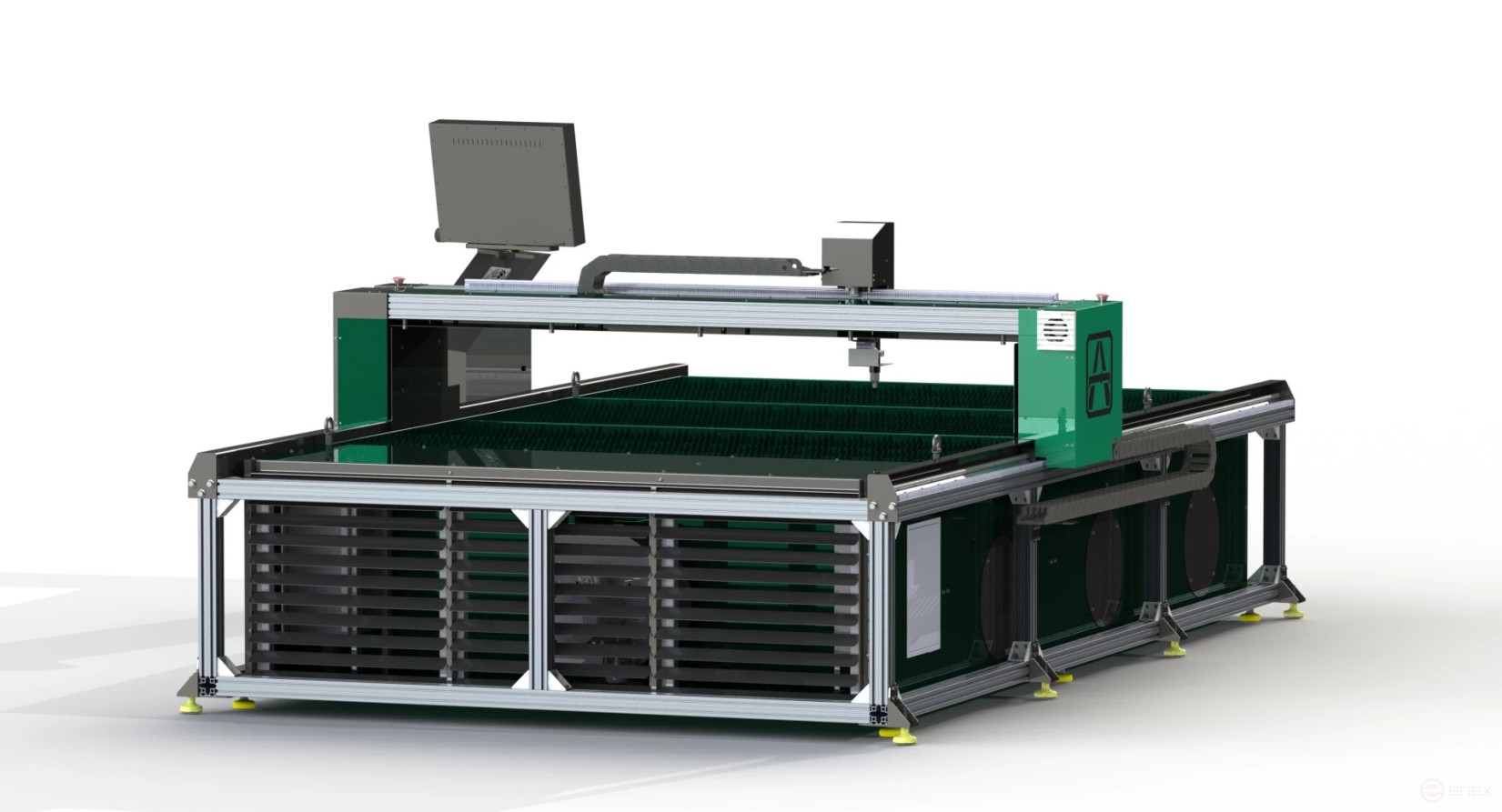

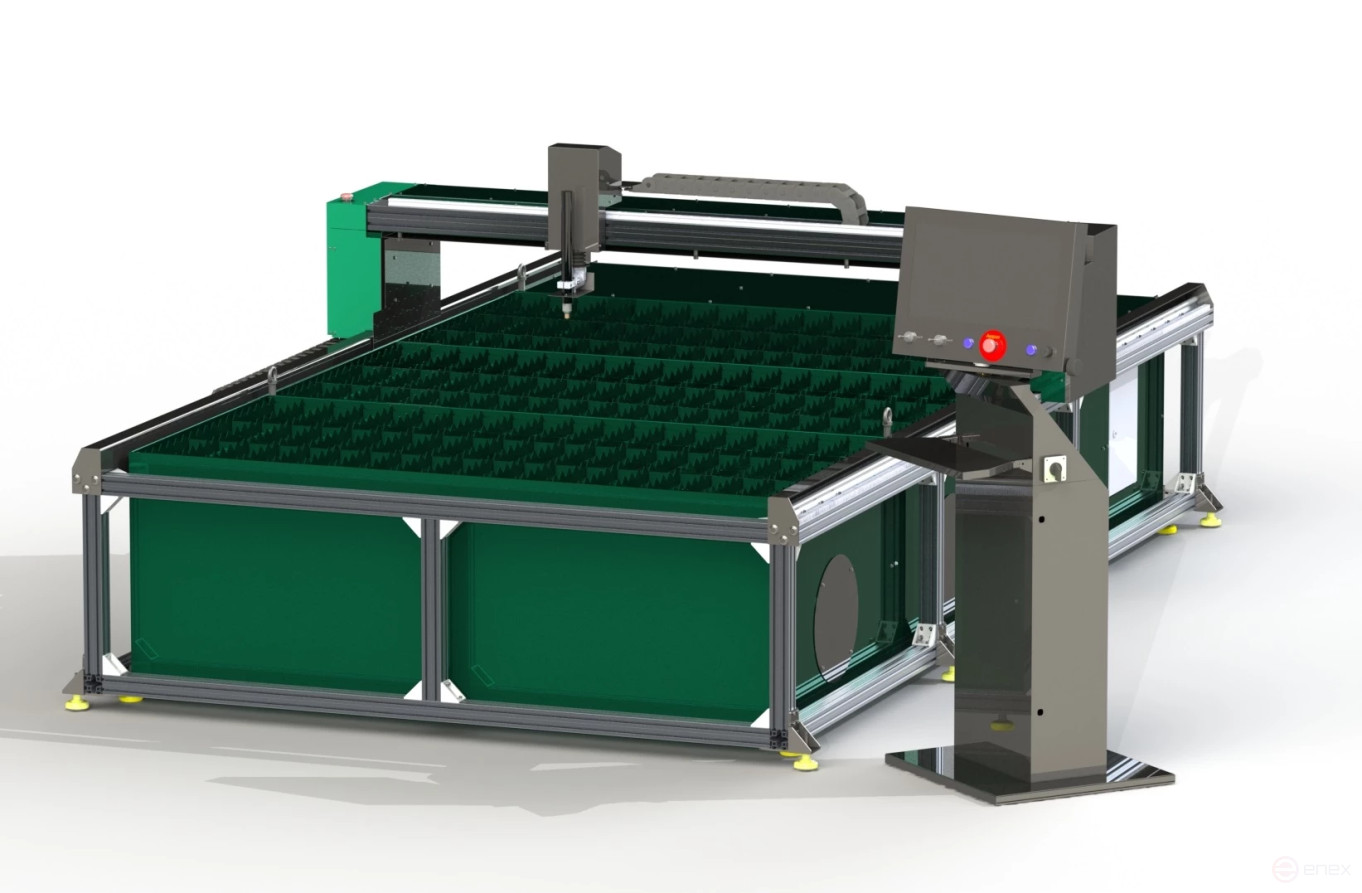

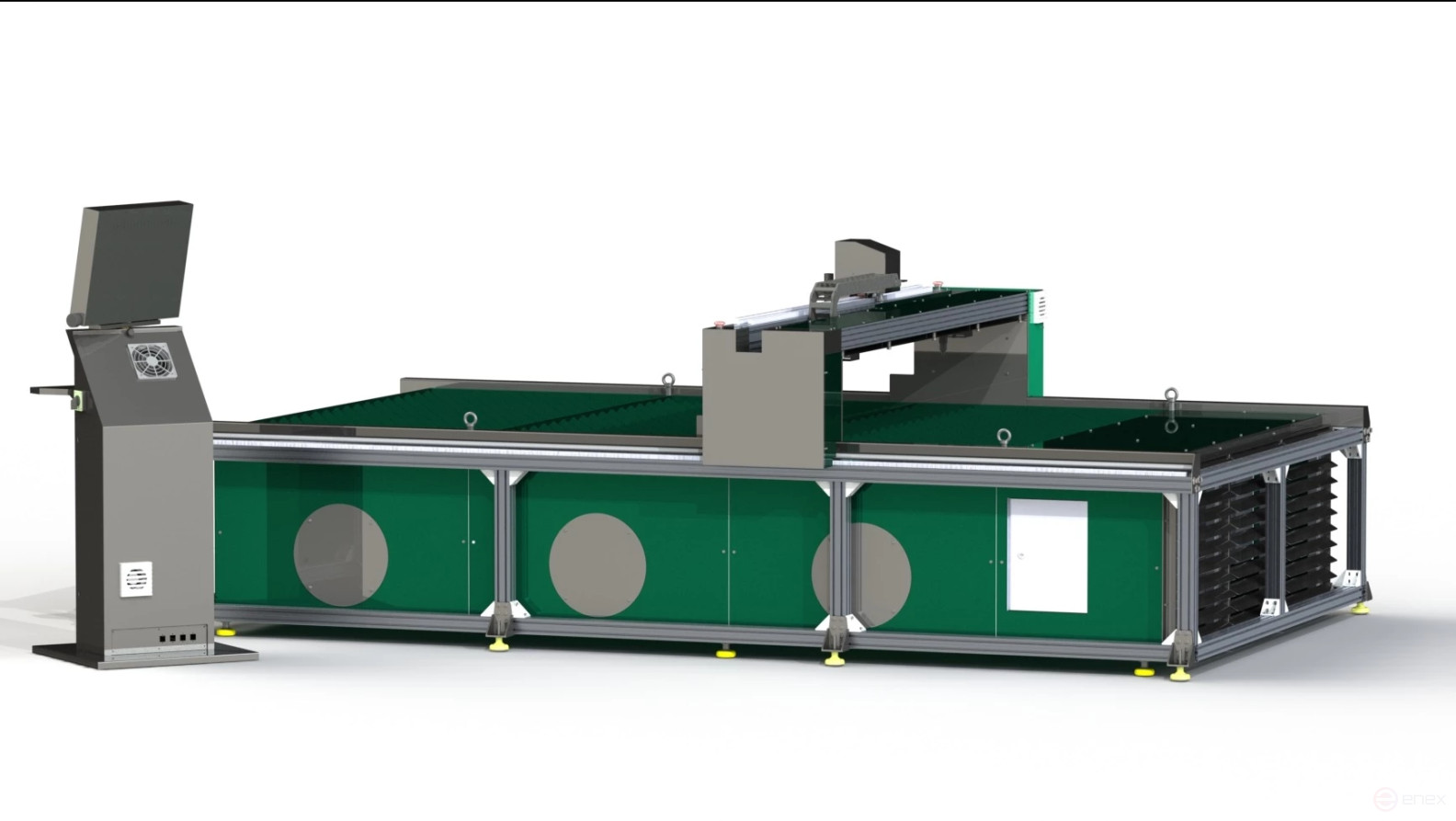

The small plasma cutting machine "AMS-Plasma.3015" is a compact and reliable CNC plasma cutting machine for sheet metal. With a cutting area of 3.1 x 1.6 m, it has an open design and is an ideal solution for companies engaged in the production of metal structures and in need of a small but reliable and nimble plasma cutting machine.
The AMS-Plasma.3015 differs significantly from our flagship model, the AMS-Plasma.6020 general industrial CNC plasma cutting machine, as the AMS-Plasma.3015 is designed primarily for small industries and small work sites.
The design of the AMS-Plasma.3015 plasma cutting machine developed by the engineers of A.M.S. JSC reliably protects the rail guides of the portal from any unintentional impacts by foreign objects, from sparks and drops of molten metal.
The exhaust table with integrated filter ventilation system makes the machine "AMS-Plasma.3015" completely independent of external ventilation systems. At the same time, the exhaust table is mechanically separated from the coordinate system of the machine, so the shocks and shocks that are inevitable when laying the sheet, excavating parts and crates do not affect the design of the coordinate table, its accuracy and reliability.

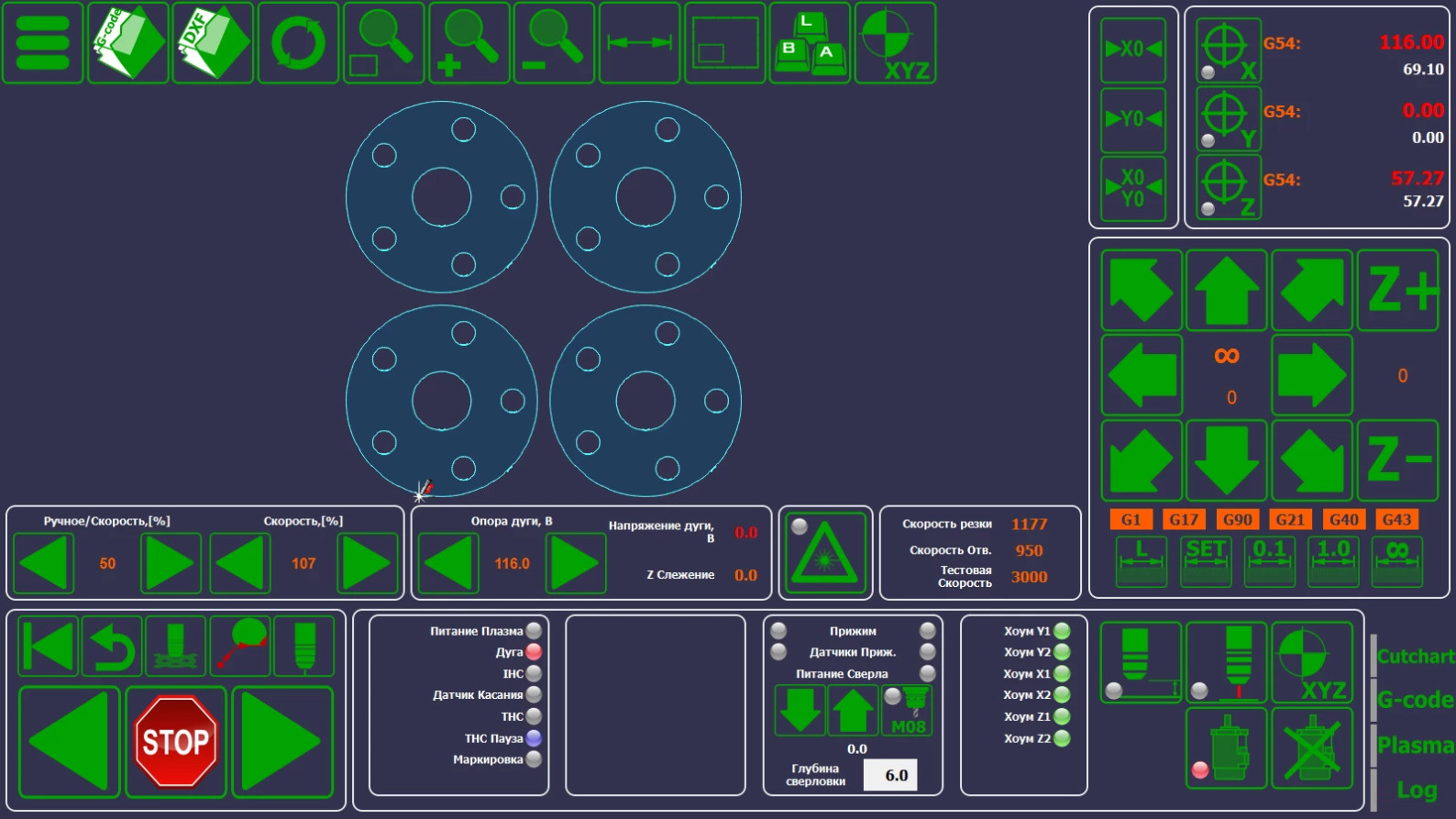

The Russian-language CNC system of the thermal cutting machine "AMS-Plasma.3015" has an intuitive user interface. Such a CNC system makes AMS-Plasma.3015 easy to use even for beginners, and the technical documentation for the machine, prepared in accordance with GOST, greatly facilitates the operation of our equipment.
With its high precision and reliable operation, our thermal cutting machine helps you get the job done quickly and efficiently, delivering superior results every time.
Technical specifications:
- The accuracy class of the machine according to GOST5614-74 is not worse - the First
- Repeatability, mm/m, not worse - 0.2
- Maximum cruising speed on the X-Y axes (m/min / mm/s) - 20/333
- Cutting technology - Plasma
- Thickness range of the processed sheet, mm, plasma cutting, with punching / cutting from the edge - 1-32/100
- The type of drives used along the X and Y axes is a servo-step drive (with feedback)
- The type of torque transmission along the X-axis is Two-way torque transmission, straight-toothed rack
- The type of torque transmission along the Z-axis is a ball-screw transmission
- Blocking the operation of the MTR when the cutter collides with an obstacle - There is
- Blocking the operation of the MTR in case of violation of the security barrier - No
- The number of 8-hour shifts per day is 2
- Positioning accuracy according to GOST 5614-74, mm/m - 0.35
- Accuracy class of cut-out parts according to GOST 14792-80, not worse - 1
- Additional processing technology - No
- Cutter distance from the sheet surface - Constant, automatically stabilized
- The type of gearboxes used on the X and Y axes is not. Direct drive.
- The type of torque transmission along the Y-axis is a straight toothed rack
- The type of Z-axis drives used is a stepper drive
- Operating conditions according to GOST15150-90 - UHL4
- Supply network voltage, V - 220
