Autonomous traction winch LTA-5-2 with two capstans, petrol-powered Honda GX390, 5000 kg MALIEN
Russia
Russia
Description
The LTA-5-2 autonomous traction winch with a gasoline drive and two horizontal traction friction drums (capstans) is designed to move cargo along a horizontal surface, pull cables and other types of work in the absence of power supply.

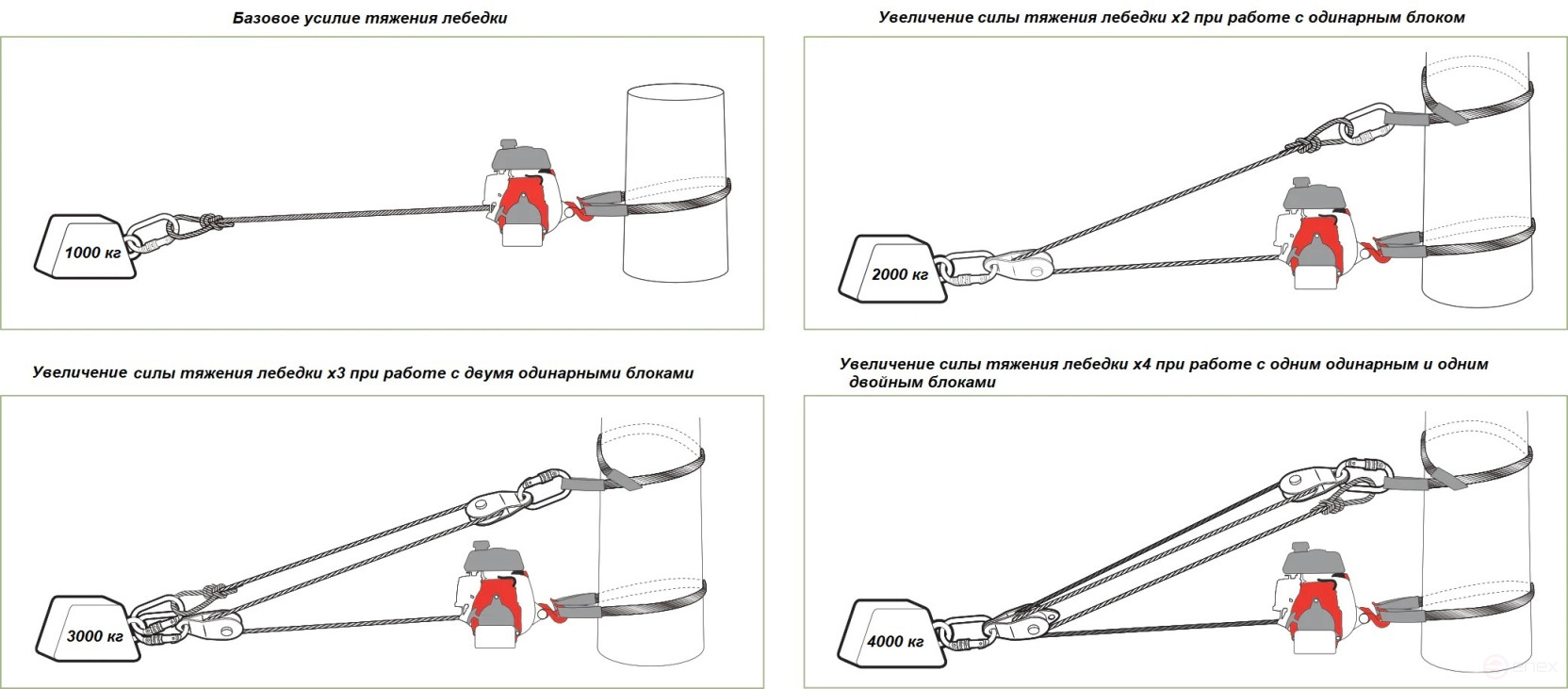

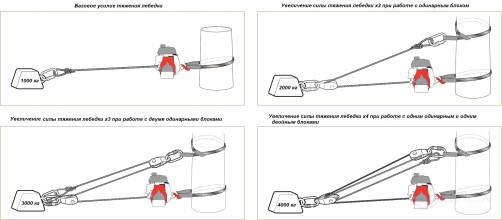

The maximum basic gravity of the winch is 5,000 kg, but it can be increased by 2, 3, 4 or even 5 times if one or more mounting blocks (a polispast system) are used in working with the winch.
The two traction drums (capstans) of the cable winch have special grooves for the leader cable with a diameter of up to 18 mm, which creates a separate, reliable installation of the coils of the leader cable on the drums and protects the leader cable from slipping on the drums.
The LTA-5-2 winch has high power, is easy to use, has right and left rotation and two lifting speeds.
Unlike the standard model of the LTA-5 gasoline winch with one capstan, the speed of selecting the leader cable in this model is significantly higher.
The principle of operation of the winch is "capstan" - this means that when working with a winch, you can use a cable of any length and carry cargo over any distance.

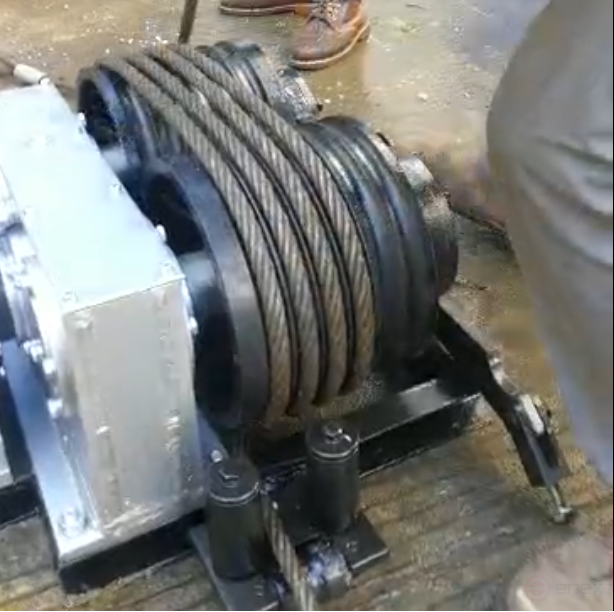

Working with traction capstan winches is not very difficult: the traction rope (preferably synthetic) is wrapped around the working shaft (capstan) of the winch in several turns (usually 3-5 turns), depending on the pulling force, then the rotation of the winch shaft starts and the operator, pulling or lowering the cable, adjusts the weight of the load. To start pulling, it is enough for the operator to apply force on the cable of 12-20 kg. We recommend using a special stand with a drum to wind the pull-out leader cable.
Usually, a capstan cable winch is attached to a reliable support (foundation, tree, or other fixed solid base) using synthetic or steel slings. For this purpose, the winch is equipped with special eyelets for anchoring. We recommend using slings with a breaking load 2-3 times higher than the maximum pulling force of the cable winch.
When choosing a capstan winch for laying cables or carrying cargo, we recommend using simple calculations:
The total weight of the load x K = the required pulling force of the winch, where K is the coefficient taking into account the moment of starting and the coefficient of friction. When moving cargo on a solid surface of the earth by dragging K = 1.5. When moving the load on the water and the weight of the cable on the rollers K = 1.2.
The LTA-5-2 self-contained gasoline winch is used only for horizontal lifting in the basic configuration. This type of winch is not designed for vertical lifting and lowering of cargo.
Specifications:
- Number of gears for gravity 2
- Braking speed, m/min. downshift: 10m/min, upshift: 20m/min.
- Operating temperature, -20°....+40
- Overall dimensions of the product in the package /without packaging, LxWxH, mm 1150x600x600/1100x550x520

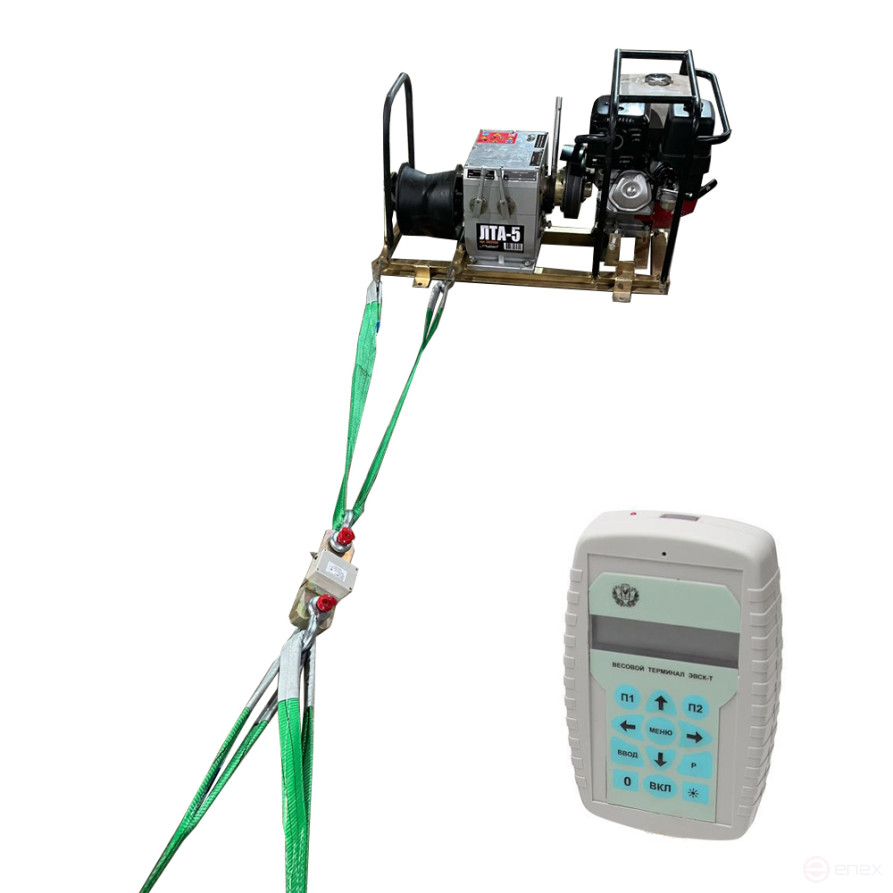

- Control of the pulling force using an electronic EDR dynamometer (not included in the delivery package, to be purchased separately)
- Traction force, kg reduced gear: 5000 kg, increased gear: 1800 kg

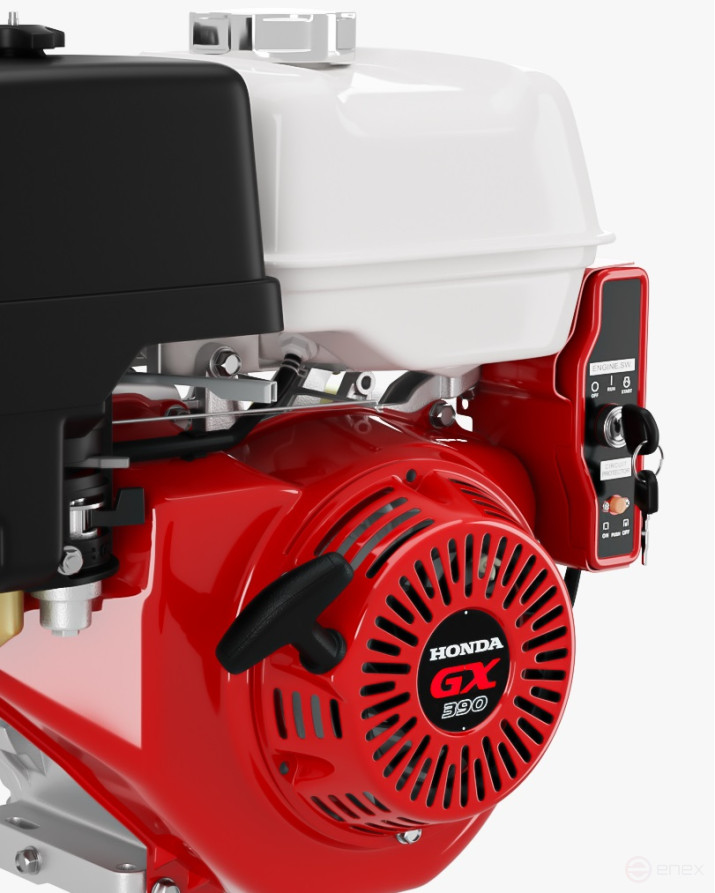

- Engine air-cooled 4-stroke gasoline engine "Honda" GX390
- The warranty period of storage is 5 years
- The warranty period is 1 year.
- Gas tank capacity, l 6.1
- The net power of the engine is 8.7 kW (11.7 hp) / 3600 rpm
- Fuel gasoline AI-92, AI-95
- Fuel consumption 3.7 l/h at 3600 rpm
- Recommended engine oil is SAE 10W-30, 20W, 30W or other semi-synthetic engine oil
- Recommended oil in the gearbox is TEP-15 transmission oil
- Oil volume in the crankcase, l 1.1
- The oil volume in the winch gearbox is 2.5 liters (approximately 1/3 of the gearbox volume)
Characteristics Autonomous traction winch LTA-5-2 with two capstans, petrol-powered Honda GX390, 5000 kg MALIEN
