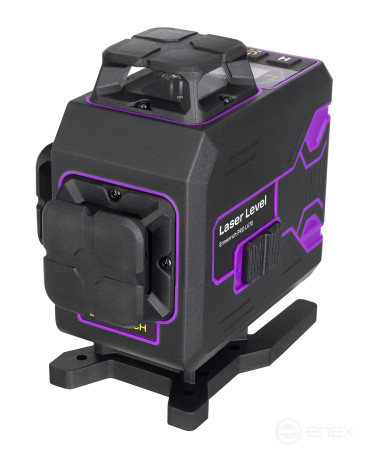

Ermenrich PRO LV70 Laser level
Russia
China
Description
The Ermenrich PRO LV70 laser level is an accurate, convenient and compact tool designed for professionals and home craftsmen. With its help, you can easily perform marking when laying tiles and laminate, installing partitions, laying communications, leveling walls, installing doors and windows, and solving other construction and repair tasks. The device projects 16 bright green lines, forming 2 horizontal and 2 vertical planes with full 360° coverage. The lines remain clear at a distance of up to 30 meters from the surface. For the best visibility of the projection, it is recommended to work indoors or outdoors in cloudy weather.
For different tasks, the Ermenrich PRO LV70 has several operating modes related to both the appearance of the laser projection and its "behavior". For example, the pulse mode allows you to use the level in conjunction with a laser receiver (to be purchased separately), which registers flashes and increases the working distance, and the flickering line function helps to achieve optimal visibility in difficult conditions. The brightness of the projection can be adjusted – a total of 4 levels of settings are available to the user. Changing the glow intensity to a softer one helps save battery power, which is important when working away from power sources for a long time. And if a specialist needs to mark at an angle, it is enough to disable the self–leveling function - the device will keep the set slope and will not try to correct it.
It is also important to mention the extended Ermenrich PRO LV70 package, which includes the most necessary fasteners: an adjustable L-shaped bracket with magnets – for reliable installation of the level on any metal surface and vertical (up / down), horizontal (from wall / to wall) movement, as well as horizontal rotation in the plane; microlift – for fine-tuning the vertical position of the device; metal plate with screw holes. All accessories and the device itself are neatly placed in a soft case with individual compartments, which ensures their safe transportation and storage.
The compact body and weight of just over 500 grams make the Ermenrich PRO LV70 mobile and easy to carry. When working alone or on a large site, you can control the device not only manually, but also from the remote control (included) at a distance of up to 10 meters. The built-in LCD screen displays the tilt angle and charge level, which makes it easier to monitor the operation and condition of the device.
The level is powered by a removable 2600 mAh lithium-ion battery (2 pcs included), which is charged via a USB Type-C cable and a power adapter – recommended 5V/2 A. The remote control is powered by 1 CR2032 battery. When fully charged, depending on the selected operating mode, the device will last from 8 to 26 hours. The level housing has only basic protection from dust and moisture, so it is better not to expose the device to rain or heavy dust – careful treatment will prolong its service life.
Main Features:
- Projection view – 16 green lines; 2 horizontal and 2 vertical planes with 360° sweep
- A complete set of fasteners for different occasions: magnetic L-shaped bracket, microlift, metal plate; standard 1/4" thread for installation
- Level operation mode selection: pulse, flickering lines, tilt operation, self-leveling
- A convenient remote control with a range of up to 10 meters is included.
- The ability to influence the operating time of the device by selecting one of 4 projection brightness modes – from soft to strong glow
- The compact body has a convenient shape and low weight – the key to comfortable transportation and carrying.
- A soft case with individual compartments for safe storage of the level and accessories.
Equipment:
- Laser level
- Remote control
- Laser Target Plate
- Lifting platform (microlift)
- Magnetic L-shaped bracket
- Metal plate
- USB Type-C Cable
- 2600 mAh Li-ion battery – 2 pcs.
- Soft case with zipper
- Operating instructions and warranty card
Specifications:
- EAN: 5905555026312
- Laser level type: 16 lines (4D)
- Horizontal scan angle, °: 360
- Number of horizontal planes: 2
- Number of vertical planes: 2
- Vertical scan angle, °: 360
- Accuracy: ±1.5mm at 5 m
- Accuracy: ±1.5mm at 5 m
- Operating range: up to 30 m
- Laser beam color: Green
- Laser beam color: Green
- Automatic leveling system: Yes
- Compensator operating range, °: 3±1
- Compensator lock: Yes
- Tilt operation mode: yes
- Pulse mode: Yes
- Flickering line mode: Yes
- Tripod Mount/Adapter: Standard 1/4" mount
- Magnetic mount: Yes
- Power source: Mains charging via USB Type-C (optional AC adapter required), Remote control: 1 CR2032 battery (not included), Level: Removable 2600mAh lithium-ion battery, 7.4V (included)
- Brightness adjustment: Yes
- Low battery indicator: yes
- Battery life, hours: 8 - 26
- Laser class: 2
- Wavelength, nm: 505-550
- Remote control: Yes
- Remote control operation distance, m: 10
- Frequency of operation of the remote control, MHz: 2.4
- Operating temperature range, °C: -10-50
Characteristics
General Specifications
China
Russia
Dimensions of packaged product
Specifications
This parameter shows how many laser lines or dots the device can project at the same time. The more beams there are, the less you have to move the level to mark the room.
-
1-2 rays: Classic "cross" (vertical and horizontal). It is ideal for everyday tasks: to hang a shelf, a painting or to paste wallpaper.
- 3-5 beams: Allow additional marking of plumb points (floor/ceiling) and right angles. It is convenient for installation of partitions. 8-12 rays (3D): Project closed 360° lines on all axes. They allow you to work in the entire room at once, they are indispensable when filling the floor and installing stretch ceilings.
- 16 beams (4D): Maximum configuration with two horizontal planes (top and bottom). The lower beam runs as close to the floor as possible, which is convenient for laying tiles.
This parameter shows how many laser lines or dots the device can project at the same time. The more beams there are, the less you have to move the level to mark the room.
-
1-2 rays: Classic "cross" (vertical and horizontal). It is ideal for everyday tasks: to hang a shelf, a painting or to paste wallpaper.
- 3-5 beams: Allow additional marking of plumb points (floor/ceiling) and right angles. It is convenient for installation of partitions. 8-12 rays (3D): Project closed 360° lines on all axes. They allow you to work in the entire room at once, they are indispensable when filling the floor and installing stretch ceilings.
- 16 beams (4D): Maximum configuration with two horizontal planes (top and bottom). The lower beam runs as close to the floor as possible, which is convenient for laying tiles.
- Vertical / Horizontal: The basic option for simple tasks (mounting shelves, leveling paintings).
- Scan angle (e.g. 100° or 240°): Indicates the length of the line. The larger the angle, the less you need to rearrange the device to capture adjacent walls.
- 360° (circular marking): The line runs around the entire perimeter of the room. This allows you to work in the entire room at once without turning the level. Ideal for stretch ceilings and floor screeds.
- Points (up/down/ forward/sides): Called a "plumb line". They are used to transfer labels from the floor to the ceiling (for example, when installing lamps) or to quickly arrange partitions at right angles.
- Vertical / Horizontal: The basic option for simple tasks (mounting shelves, leveling paintings).
- Scan angle (e.g. 100° or 240°): Indicates the length of the line. The larger the angle, the less you need to rearrange the device to capture adjacent walls.
- 360° (circular marking): The line runs around the entire perimeter of the room. This allows you to work in the entire room at once without turning the level. Ideal for stretch ceilings and floor screeds.
- Points (up/down/ forward/sides): Called a "plumb line". They are used to transfer labels from the floor to the ceiling (for example, when installing lamps) or to quickly arrange partitions at right angles.
