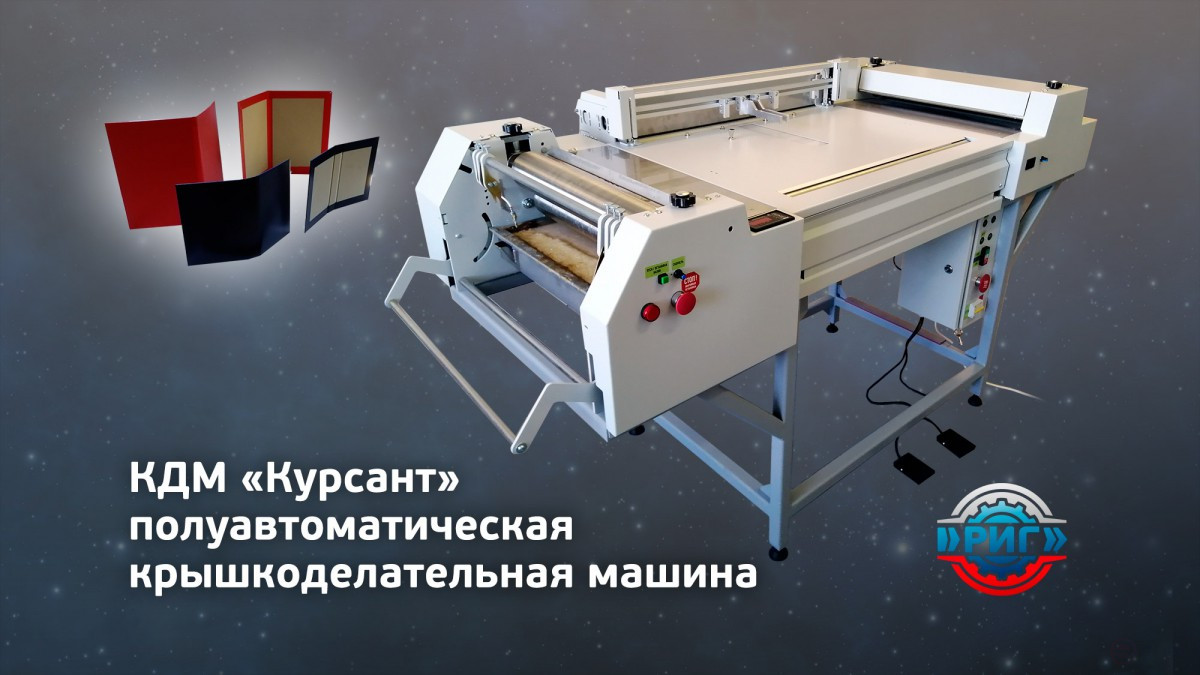

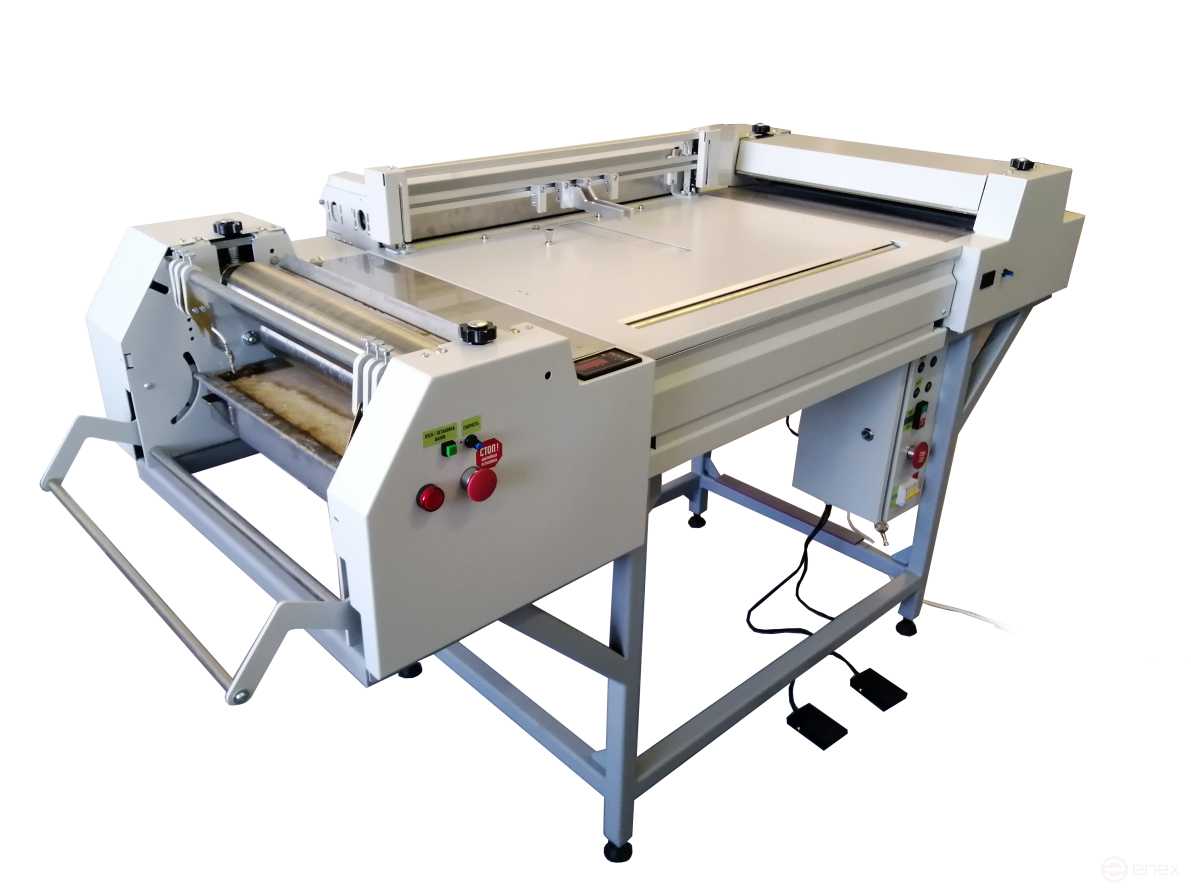

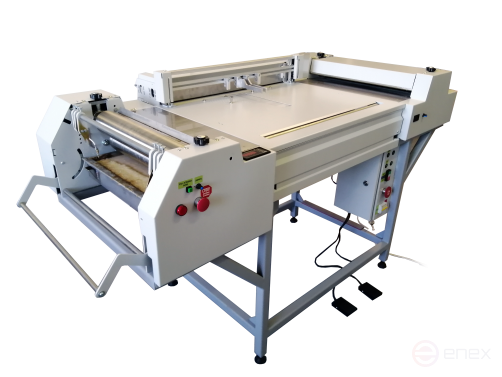

Lid-making machine KDM Kursant-500
Russia
Russia
Description
The KDM Kursant lid-making machine is developed and manufactured by RIG LLC.
The KDM Cadet is a semi-automatic lid-making machine with a high degree of automation and ergonomics, and is also manufactured in accordance with GOST R 51205-98.
KDM Kursant is designed for the production of small and medium-sized editions, allows you to produce a full range of cashing work, as well as hardcover work.
The KDM Cadet machine has a high degree of automation and ergonomics:
- automatic stops of the liner (bookbinding material)
- automatic stops of cardboard (bookbinding cardboard)
- a node for automatic bending of the edges of the binding cover
- a node for mechanical bending of the edges of the binding cover (important in the presence of cutter errors, non-standard orders, small-format products)
- automatic stacking of finished products (no time is wasted on warehousing finished products, the machine operator does not stop working when another employee takes finished products from him for subsequent technological operations)
- adjusting the speed of the adhesive shafts (usually operators work at high speed, but when making adhesives, especially small-format ones in products such as certificates, diplomas, etc. operators install for convenience of work and the exclusion of defects low speed)
- illumination of precise positioning (important when assembling digital prints, when the liner is printed on a digital printing press)
- built-in vacuum (no compressor is needed, as well as quiet operation of the machine, which allows it to be used in office premises)
- is equipped initially with both turn-around and pass-through pens (turn-around pens are relevant when it is necessary to obtain a liner with with glue up, products such as book covers, and passageways are relevant for interior gluing when it is required to receive products such as certificates and diplomas with glue down).
The Cadet KDM is designed in such a way that, due to the ergonomics of the process, it ensures high productivity, while the machine is structurally designed in such a way that the operator constantly monitors the quality of the products produced.
The 220V single-phase power supply of the machine, with a heating consumption of up to 2 kW, allows it to be operated in office premises.
At the end of the work shift, cleaning the car takes 1-2 minutes.
All these advantages of KDM Kursant provide high productivity, reduce operator errors and fatigue, and minimize maintenance time (setting up the machine for 1-2 minutes, cleaning the machine for 1-2 minutes).
Moreover, due to the fact that low-skilled personnel are often used in printing houses, the following protection systems are implemented in the machine:
- a system to protect the adhesive shafts from chipping when foreign objects enter.
- the system of protecting the necks of the adhesive shafts from bending the necks (important when winding the liner on the shaft or foreign objects: keys, bolts, watches, scarves, etc.).
- the technology of protecting the surface of calendering shafts.
- technology to protect automation from surges in the electrical network.
Technical specifications:
The minimum thickness of the cardboard side (automatic valve bend) mm - 1
- Gluing unit (width) mm - 520
- Assembly table (format) mm - 600*860
- Number of stops pcs - 2
- The width of the stops is mm - 7
- Additional stops - any width is an option
- Reverse feathers - yes
- Passing feathers - yes
- Automatic control of cardboard stops (electric pedal) - yes
- Automatic control of the liner stops (electric pedal) - yes
- Operator's hands-free function - Yes
- Magnetic side stop of the liner - yes
- Automatic valve closure unit - yes
- Mechanical valve closure unit - yes
- Illumination of the precise positioning of the spine - yes
- Vacuum plug-in/unplugged - yes
- Illumination of the operator's workplace is an option
- Two-channel glue temperature control system - yes
- Adjustment of the applied adhesive layer - yes
- Storage system (shelf) - optional
- Tilt-adjustable calender output table - optional
- The maximum length of the closed liner edge is 700
- Calendering unit (width) mm - 520
- Minimum product size (mechanical valve bend) mm - 50*50
- Minimum product size (automatic valve bend) mm - 100*100
- The maximum product size (mechanical valve bend) is 500*700 mm.
- The maximum length of the mechanical bend of the valve is 700 mm.
- Recommended valve width (mechanical valve bend) mm - from 8 mm
- Recommended valve width (automatic valve bend) mm - from 18 mm
- Working with hot glue - yes
- Working with cold glue - yes
- The recommended temperature range of hot glue is degrees Celsius - 0 - 75
- Power supply standard 220 V - yes
- Modular design is an option
