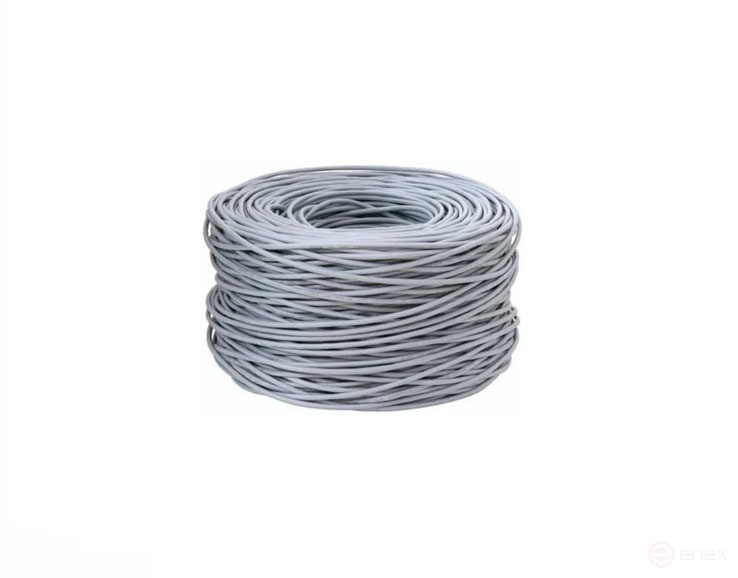

UTP 4 CAT5E 24AWG Cu Ripo Plus Twisted Pair Cable, 50m,Fluke test 0.46 (upc.50m)
Russia
China
Description
Ripo Plus UTP cable 4 pairs, Cat.5e (Class D), 24AWG, 100 MHz, single-core, BC (pure copper), internal, PVC ng(B), gray, Fluke test - pass, upk.50m
Single-wire twisted pair UTP 4 CAT5E 24AWG Cu Ripo Plus Fluke test 0.46 (indoor) with a length of 50 m is used for laying local computer networks in apartments, small houses and offices. It is a four-pair copper cable without shielding, so it is suitable for use in conditions of low electromagnetic radiation. The category corresponds to 5E with a frequency of up to one hundred megahertz.
The cores are protected from the effects of extraneous electrical impulses that reduce the signal quality by means of a dielectric polyethylene casing. It has an increased density, and also has the additional function of distinguishing wires due to the multicolored winding. The UTP marking indicates the number of pairs, and the AWG marking indicates the diameter in inches. The product complies with ISO/IEC 11801 and TIA/EIA-568-A standards.
The cable may have a PVC protective sheath with the addition of chalk, which provides easy separation of wire sections during installation. Thanks to this component, it breaks off well. The protection prevents the veins from rubbing and breaking from mechanical influences, has low flammability characteristics, prevents the penetration of moisture and dust, which preserves the strength of the joints and the purity of the signal.
Basic properties:
- The conductor is a copper (Cu) wire
- The diameter of the conductor is 24 AWG
- Overall diameter (size) cable length – 4.2 mm
- The thickness of the outer shell of the polymer is 0.8 mm.
- Color – grey
- Color code of this cable according to GOST 28763 - GY (color gray)
- Single-core cable (solid)
- The common name is UTP (without a screen)
- ISO/IEC 11801 - U/UTP designation (no common screen and no screen for pairs)
- Breaking thread – high-strength nylon
- Category: 5e
- Bandwidth, MHz: 100
- Number of pairs: 4
- Conductor Material: Copper
- Conductor diameter, mm: 0.46 ± 0.01 mm
- Conductor insulation material: High density polyethylene (HDPE)
- Outer shell material: Polyvinyl Chloride (PVC)
- Application: For internal gaskets
- Shell Color: Grey
- Breaking thread: Yes
- Bending radius during laying, D: At least 8
- Bending radius during operation, D: At least 4
- Tensile force, H: Not more than 80
- Tensile strength, H: Not more than 400
- Impedance, Ohms: 100±15
- " Supported applications: 10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLAN, TR-4, TR-16 Active, TR-16 Passive"
- Packaging: Individual - cardboard box / 2 packages in a common box
- Warranty: 15 years
The manufacturer reserves the right to change the appearance and characteristics of the product without reducing its consumer properties.
Electrical characteristics:
- Max. conductor resistance at 20C< 9.5ohms/100m.
- The resistance imbalance is 5%.
- Wave resistance - 100 +/- 15 Om.
- The capacitive imbalance of the pair with respect to the ground is 330 pF/100 m.
When laying this type of cable, it is necessary to carefully monitor the bending radius, which should not exceed eight diameters. If this rule is violated, wire damage and interference may occur. The distance from the signal source is unlimited, the transmission is perfectly preserved throughout the entire length.
As for stripping the wire during installation, there are no specific requirements for how many millimeters of braid to leave when attaching the cable to the switches. But you need to remember that the maximum preservation of the protective casing allows you to ensure the reliability of the nodes.
Characteristics
General Specifications
China
Russia
Dimensions of packaged product
Specifications
- 1 and 2 pairs are commonly used for telephone communication and legacy low-speed networks
- 4 pairs are the standard for building modern computer networks and connecting the Internet
- Multi-pair cables (from 10 to 24 pairs) are used for trunk lines and connection of server equipment
- Affects the bandwidth and maximum data transfer rate
- Determines the thickness of the cable and the complexity of the installation work
- 1 and 2 pairs are commonly used for telephone communication and legacy low-speed networks
- 4 pairs are the standard for building modern computer networks and connecting the Internet
- Multi-pair cables (from 10 to 24 pairs) are used for trunk lines and connection of server equipment
- Affects the bandwidth and maximum data transfer rate
- Determines the thickness of the cable and the complexity of the installation work
