Twisted Pair Cable FTP 4 RIPO CAT 5E 24 AWG Cu 305 m
Russia
China
Description
Single-wire twisted pair FTP 4 pairs RIPO CAT 5E 24 AWG Cu 305 m (indoor) is used for laying indoor wires for various local systems: computer, telecommunications, telephone, security, Internet and video surveillance. It is a multi-core shielded 5E copper cable consisting of four pairs. They are connected in pairs and packed in a protective shell. Additionally, a polyethylene casing is used to insulate each wire. It is painted in different colors to mark the wires. The polyethylene braid protects against the formation of stray electric and magnetic pulses, as well as from damage due to mechanical influences, pressure, kinks.
This simple device provides good data transmission at low cost and is in great demand for the installation of internal networks. For example, providers include wiring in service packages without significantly increasing their prices, attracting customers with a free connection. In communication systems, this type of wire is valued for the fact that, due to the shielding and protection of polyethylene, it allows you to maintain a clear signal that is not affected by stray currents and electromagnetic radiation.
The wire is easy to install - universal 8P8C connectors are suitable for it, with which it is quickly crimped without special tools. To do this, you must have eight contacts and an RJ-45 plug (8P8C). The design ensures a strong connection and minimizes interference at an impressive transmission distance due to the screen.
Main features:
- Simultaneous use of four pairs allows for data transfer speeds of up to 100 Gbit/sec (1000 Mbit/sec).
- Color code of this cable according to GOST 28763 - GY (color gray)
- Single-core cable (solid)
- The common name is FTP (with a screen)
- The designation according to ISO/IEC 11801 - F/UTP (there is a common foil screen, there is no screen for pairs)
- Has high strength
- Category: 5e
- Bandwidth, MHz: 100
- Number of pairs: 4
- Conductor Material: Copper (Cu)
- Conductor Type: Single Core
- Conductor diameter, mm: 0.46 ± 0.01 mm
- Conductor insulation material: High density polyethylene (HDPE)
- Outer shell material: Polyvinyl Chloride (PVC)
- Application: For internal gaskets
- Shell Color: Grey
- Protective film: Polyester (PET)
- Breaking thread: Yes
- Common screen design: AL/PET/AL
- Running weight, kg/km: 20.6
- Bending radius during laying, D: At least 8
- Bending radius during operation, D: At least 4
- Tensile force, H: Not more than 80
- Maximum allowable voltage: 80 V
- Wave resistance, Ohms: 100±15
- Compliance with standards: Meets the requirements of the following standards: ISO/IEC 11801, EN 50173 and TIA/EIA-568
- "Supported applications: 10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T
- ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive"

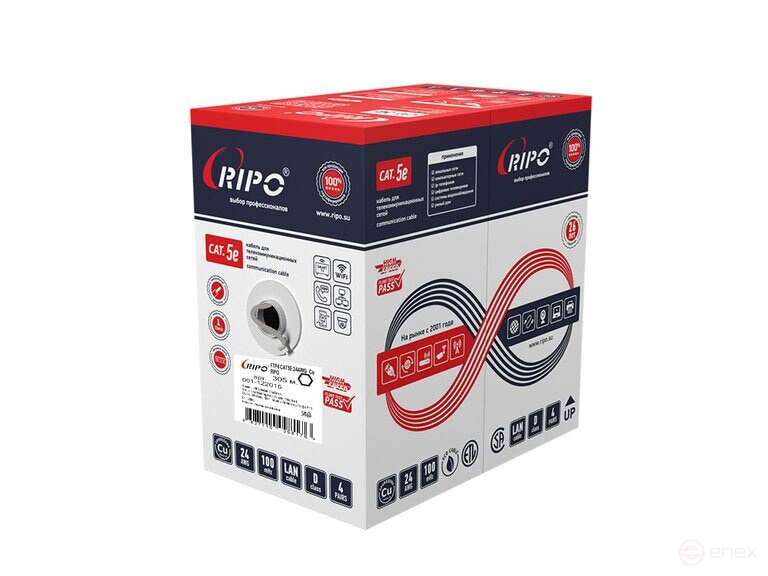

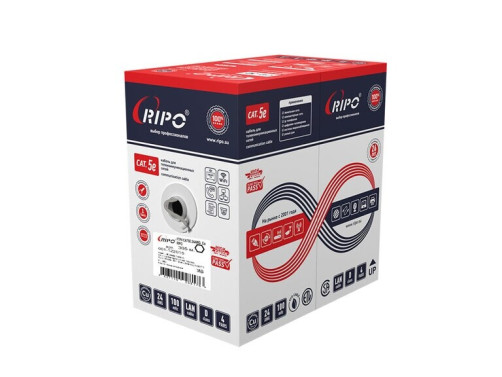

- Packaging: Individual - cardboard box / 2 packages in a common box

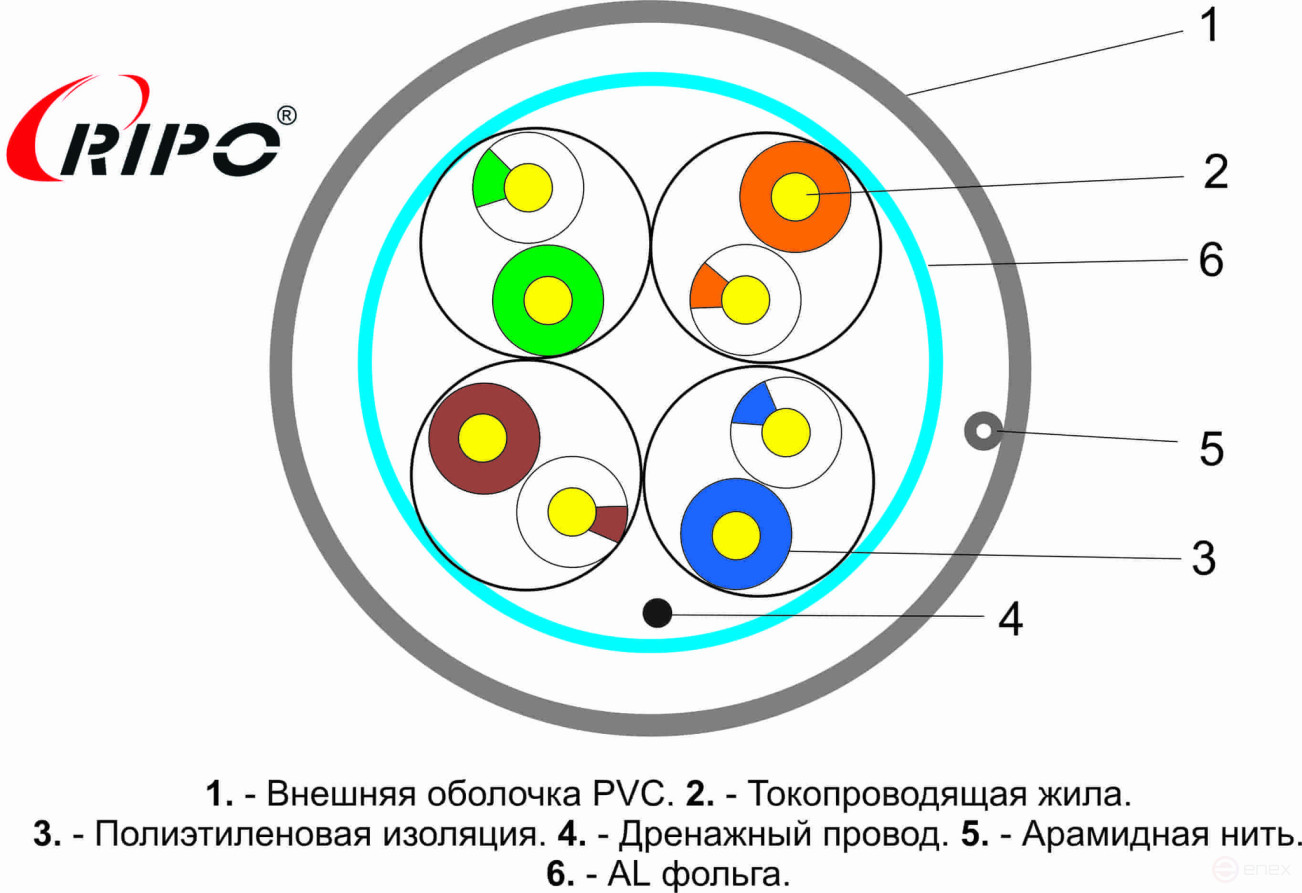

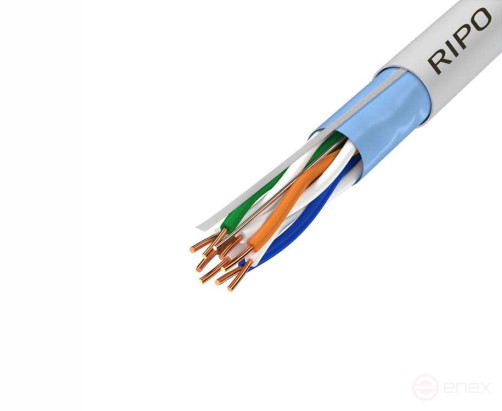

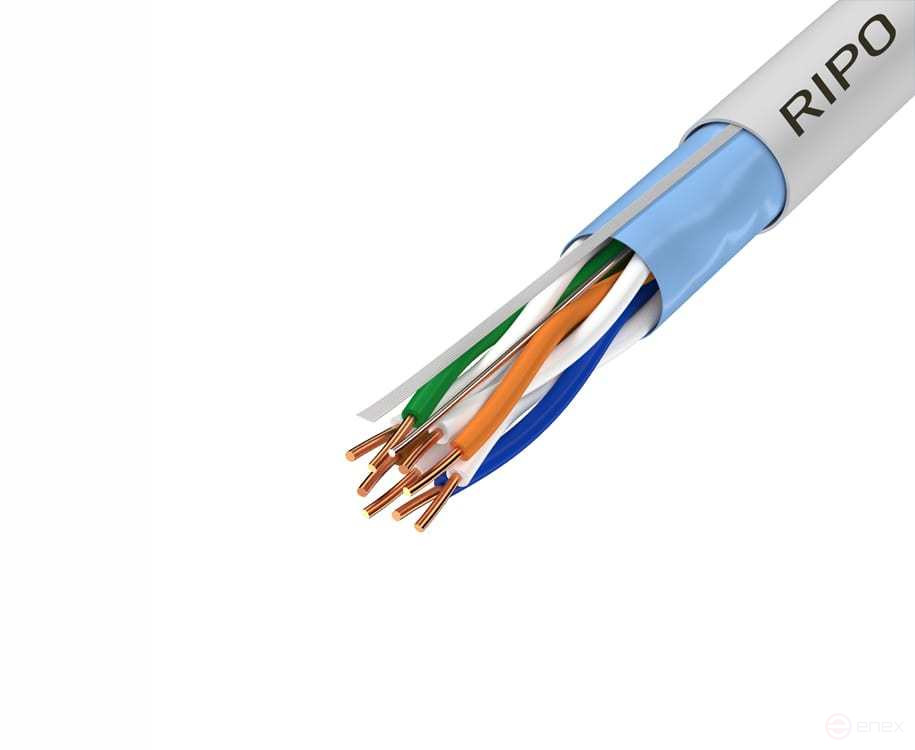

Construction:
- The conductor is a soft wire made of annealed electrolytic copper.
- The diameter of the conductor is 24 AWG.
- The insulation thickness is 0.2 mm.
- The outer shell is polyvinyl chloride.
- The insulation type is high–density polyethylene.
- The screen is aluminum, spirally wound with an overlap of 5 mm.
- The total diameter of the cable is 5.4 mm.
- The thickness of the outer shell is 0.4 mm.
Specifications:
- The frequency range is up to 100 MHz.
- The electrical capacity of the pairs is not more than 56 nF/km.
- The resistance of the conductive core is not more than 96 ohms/km.
- The insulation resistance of the conductor is at least 5 GOm/km.
Installation features
Professional recommendations when laying this twisted pair are compliance with the permissible bending value. It is necessary to keep within a given radius so that the wire braid remains intact and the signal transmission quality is maintained. The bend should not exceed eight diameters. It also requires careful attention to the absence of defects and ruptures of the protective shell and screen.
Another nuance is how much the cable will be stripped when connected to the connector. This remains at the discretion of the master who performs the installation, but experts advise to preserve the shell as much as possible so that the wire in this place does not become more vulnerable to external influences, is not damaged due to kinks, pressure, humidity. It will also protect the signal from extraneous impulses that will cause interference.
It should be borne in mind that tension affects the proper functioning of the cable, its safety and the duration of its service life. It should not be stretched too much, so that gaps do not form over time.
Characteristics
General Specifications
China
Russia
Dimensions of packaged product
Specifications
- 1 and 2 pairs are commonly used for telephone communication and legacy low-speed networks
- 4 pairs are the standard for building modern computer networks and connecting the Internet
- Multi-pair cables (from 10 to 24 pairs) are used for trunk lines and connection of server equipment
- Affects the bandwidth and maximum data transfer rate
- Determines the thickness of the cable and the complexity of the installation work
- 1 and 2 pairs are commonly used for telephone communication and legacy low-speed networks
- 4 pairs are the standard for building modern computer networks and connecting the Internet
- Multi-pair cables (from 10 to 24 pairs) are used for trunk lines and connection of server equipment
- Affects the bandwidth and maximum data transfer rate
- Determines the thickness of the cable and the complexity of the installation work
