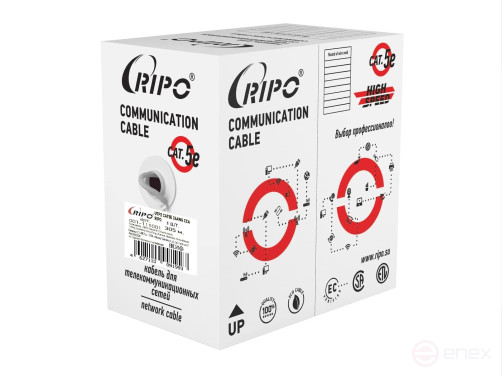

UTP2CAT5E 24AWG CCA RIPO Cable(200m)
Russia
China
Description
UTP 2 RIPO CAT 5E 24 AWG CCAis a twisted pair cable, unshielded, 2–pair, made of copper-plated aluminum, classified according to the improved category 5E (frequency band up to 100 MHz). Each core is insulated with a dielectric layer – high-density polyethylene with a color difference.
application
This UTP cable is used when installing networks at home, as well as small networks in small offices. It is mainly used in rooms where the impact of third-party electromagnetic radiation will be minimal.
Each bay has a length of 305 meters. The UTP cable designation consists of the type, indication of the category and structure of the core (the number of pairs and the diameter of the conductive core in mm). If the cable has cores according to the American inch diameter standard, then the AWG number is often indicated instead of the diameter (the number 24 corresponds to the core diameter of approximately 0.51 mm). The outer shells of cables can be made of various materials, including non-combustible ones. The most typical shell for horizontal cables is a tube made of gray polyvinyl chloride plastic with the addition of chalk for better breaking off during cutting.
The requirements for specific UTP cables are set out in the manufacturers' documentation. However, the main parameters must comply with the requirements of ISO/IEC 11801 and TIA/EIA-568-A standards.
features
- Color code of this cable according to GOST 28763 - GY (color gray)
- Single-core cable (solid)
- The common name is UTP (without a screen)
- The ISO/IEC 11801 - U/UTP designation (there is no common screen and no screen for pairs)
- Has a high strength
- The design of the unshielded UTP cable is made of the following materials:
- several pairs of conductive cores
- internal protective insulation,
- external insulating protective shell. - Transmits a signal at a speed of up to 100 Mbit/s over distances of up to 90 meters without loss of quality.
- Outer shell Material: Polyvinyl Chloride (PVC)
- Application: For internal gaskets
- Shell Color: Grey
- Protective film: -
- Breaking thread: Yes
- Wave resistance, Ohms: 100±15
- Compliance with standards: Meets the requirements of the standards: TIA/EIA-568
- Supported Applications: 10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T
- ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive
- Temperature ranges, With: Storage from -20 to +60. The gasket is from 0 to +50. Operation from -20 to +60
- Length, m: 305
- Packaging: Individual - cardboard box / 2 packages in a common box
- Warranty: 1 year
The manufacturer reserves the right to change the appearance and characteristics of the product without reducing its consumer properties.
ELECTRICAL CHARACTERISTICS
- Max. resistance of the conductor at a temperature of 20C < 9.5 ohms/100m
- Resistance imbalance - 5%
- Wave resistance - 100 +/- 15 Om
- Application: indoor
- Cable Category: 5E
- Data transfer rate, (Mbit/s): 100
- Conductor Material: Copper Clad Aluminum (CCA)
- Number of pairs: 2
- Conductor Material: CCA
- The capacitive imbalance of the pair with respect to the ground is 330 pF/100m
INSTALLATION FEATURES
The most important rule when installing a category 5e utp cable is that the twisted pair must withstand the minimum and necessary permissible bending radius, which should be eight external diameters of the cable itself. If the bending becomes stronger, then this can lead to the fact that external interference to the signal may increase and the cable sheath may collapse.
During the installation of a shielded twisted pair cable, it is recommended to carefully monitor the integrity of the screen located along the entire surface of the cable length. There are no specific requirements for the permissible maximum length of the twisted pair to which the cable sheath must be removed during installation.
There is an opinion that every installer, guided by his common sense, can remove the cable sheath himself for as long as the correct termination of cable pairs requires. But still, when solving the wiring of a twisted pair, it is necessary to take into account the above recommendations for the installation of a category 5e twisted pair UTP cable.
