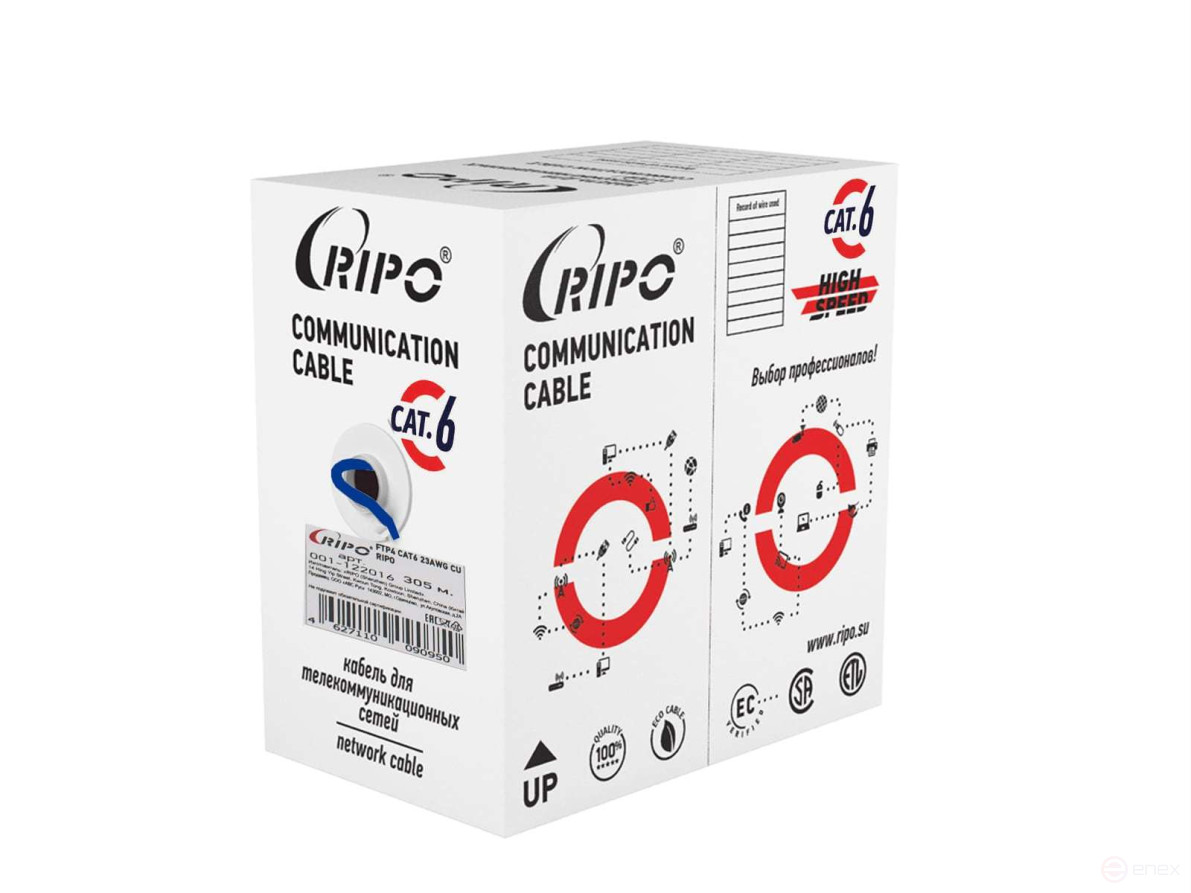

UTP 4 CAT6 23AWG Cu RIPO Cable (305 m)
Russia
China
Description
UTP4 CAT6 23AWG Cu RIPO –unshielded, single-core, copper, 4-pair, classified under improved category 6 (frequency band 250 MHz). Each conductor is insulated with high-density polyethylene with color identification. In the middle of the cable there is a cross–shaped separator - separator.
Application
This UTP cable is used when installing networks at home, as well as small networks in small offices. It is mainly used in rooms where the impact of third-party electromagnetic radiation will be minimal.
Each bay has a length of 305 meters. The UTP cable designation consists of the type, indication of the category and structure of the core (the number of pairs and the diameter of the conductive core in mm). If the cable has cores according to the American inch diameter standard, then the AWG number is often indicated instead of the diameter (the number 23 corresponds to the core diameter of approximately 0.57 mm). The outer shells of cables can be made of various materials, including non-combustible ones. The most typical shell for horizontal cables is a tube made of gray polyvinyl chloride plastic with the addition of chalk for better breaking off during cutting.
The requirements for specific UTP cables are set out in the manufacturers' documentation. However, the main parameters must comply with the requirements of ISO/IEC 11801 and TIA/EIA-568-A standards. The signal transmission rate is 10 Gbit/s (up to 55 meters).
Construction
- The conductor is a wire made of soft annealed electrolytic copper.
- The diameter of the conductor is 0.57mm (23AWG).
- The outer shell is polyvinyl chloride.
- The insulation of the cores is polyethylene.
- The insulation thickness is 0.2 mm.
- The total diameter of the cable is 6.2mm.
- The outer diameter of the shell is 0.35 mm.
- There is a breaking cord.
- Operating temperature -50 °C.. + 60 °C.
- The length of the wire on the bay is 305m.
- The operating environment is indoor.
Electrical characteristics
- The spark test is 2.5 kV.
- The resistance at a frequency of 0.772-110 MHz is 85-115 ohms.
- The resistance imbalance is 5%.
- The capacitive imbalance of the pair with respect to the ground is 330 pF/100m.
- The maximum working capacity is 5.6 nF/m.
Installation features
The most important rule when installing a category 6e utp cable is that the twisted pair must withstand the minimum and necessary permissible bending radius, which should be eight external diameters of the cable itself. If the bending becomes stronger, then this can lead to the fact that external interference to the signal may increase and the cable sheath may collapse. During the installation of a shielded twisted pair cable, it is recommended to carefully monitor the integrity of the screen located along the entire surface of the cable length. There are no specific requirements for the permissible maximum length of the twisted pair to which the cable sheath must be removed during installation. There is an opinion that every installer, guided by his common sense, can remove the cable sheath himself for as long as the correct termination of cable pairs requires. But still, when solving the wiring of a twisted pair, it is necessary to take into account the above recommendations for the installation of a category 6e twisted pair UTP cable.
