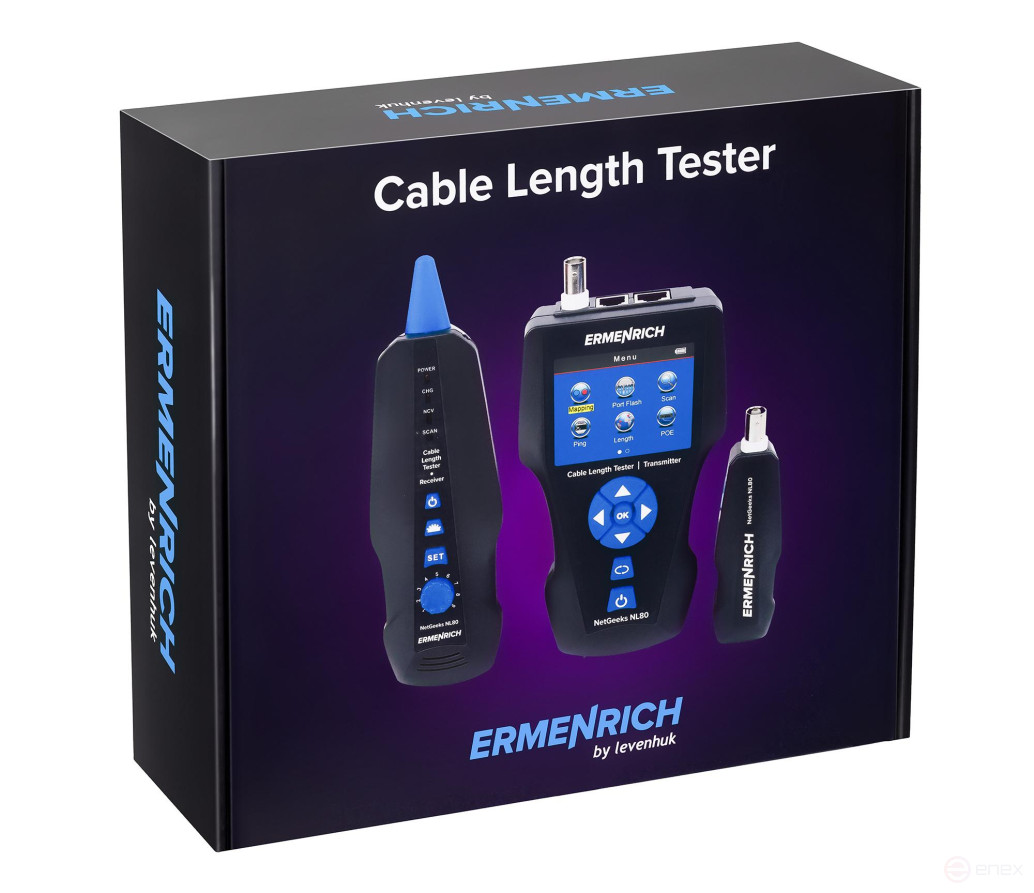

Ermenrich NetGeeks NL80 Cable Length Meter
Russia
China
Description
A compact device for measuring cable lengths up to 1 km, as well as for diagnosing cable lines: searching for breaks, short circuits, crossed, split and inverted pairs. It allows you not only to detect the location of an open or short circuit, but also to determine at what distance it is located. There are functions for searching and tracing the desired cable in the bundle (flashing indication), determining the port to which the cable is connected, as well as testing the Ethernet connection (PoE test) and data transfer rate (PING test). The received data is displayed on a color LCD display with a resolution of 320x240 pixels.
The meter works with network cables of categories 5E/6/6A/7, electrical, telephone and others having a metal conductor. Measurements are carried out using the pulse reflectometry method. The device can be calibrated for maximum accuracy. Protection against electromagnetic interference is provided. The device is powered by an 1800 mAh lithium rechargeable battery. The transmitter operates without recharging for up to 20 hours, and the receiver for up to 50 hours. There is a power-saving function: when idle, the meter automatically turns off.
Main features:
- Working with cables up to 1000 m long
- Detection of breaks, short circuits and measurement of distances to problem points
- Search for crossed, split, inverted pairs
- Connection port detection, flashing indication
- Checking the status of the Ethernet network (PoE test)
- Internet connection speed detection (PING test), IP address assignment
- Saving the received data to a memory card

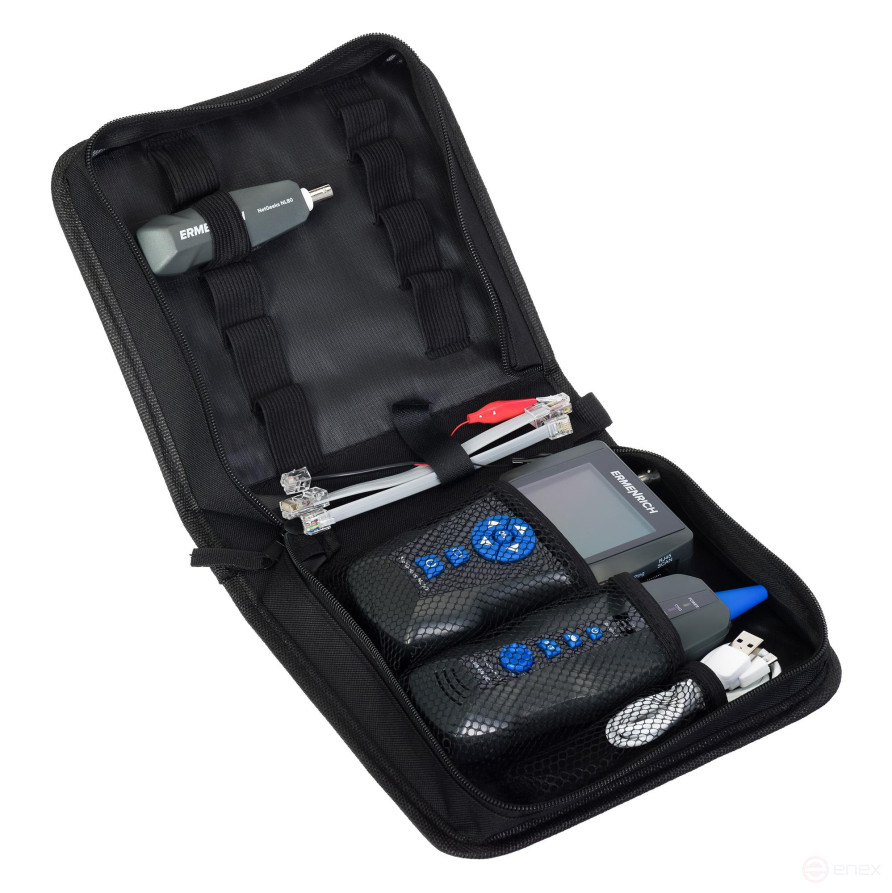

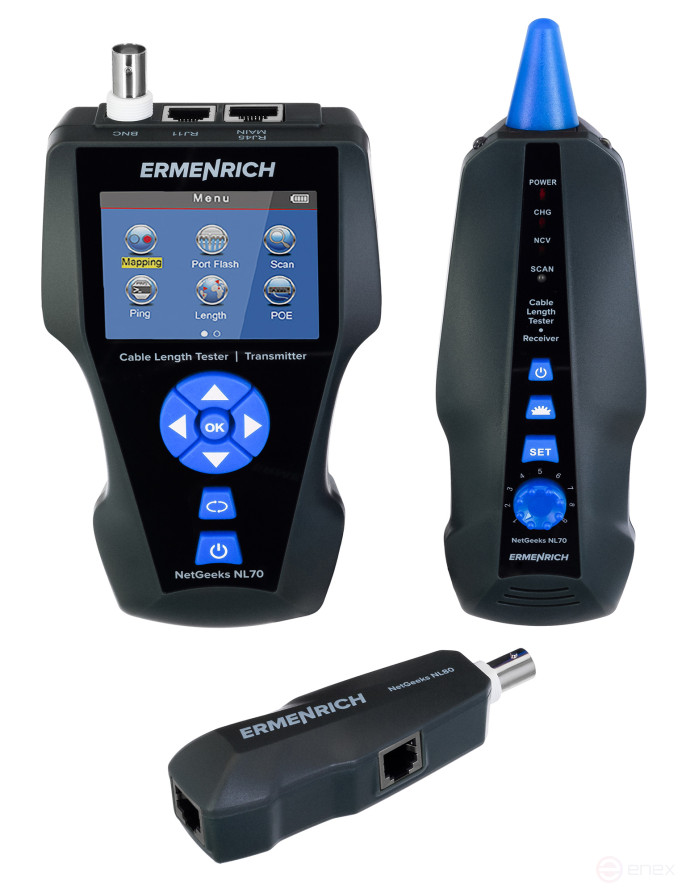

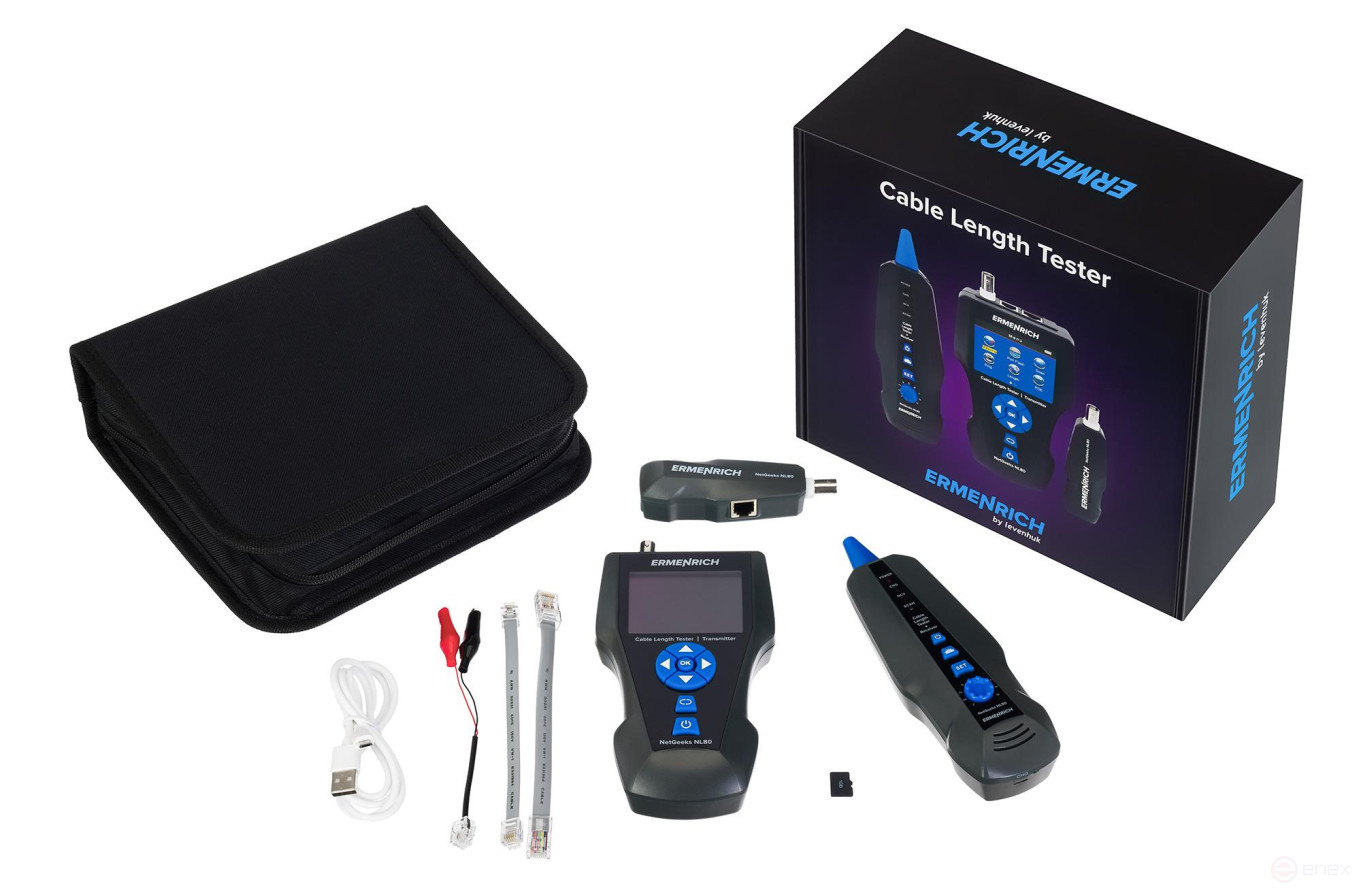

Equipment:

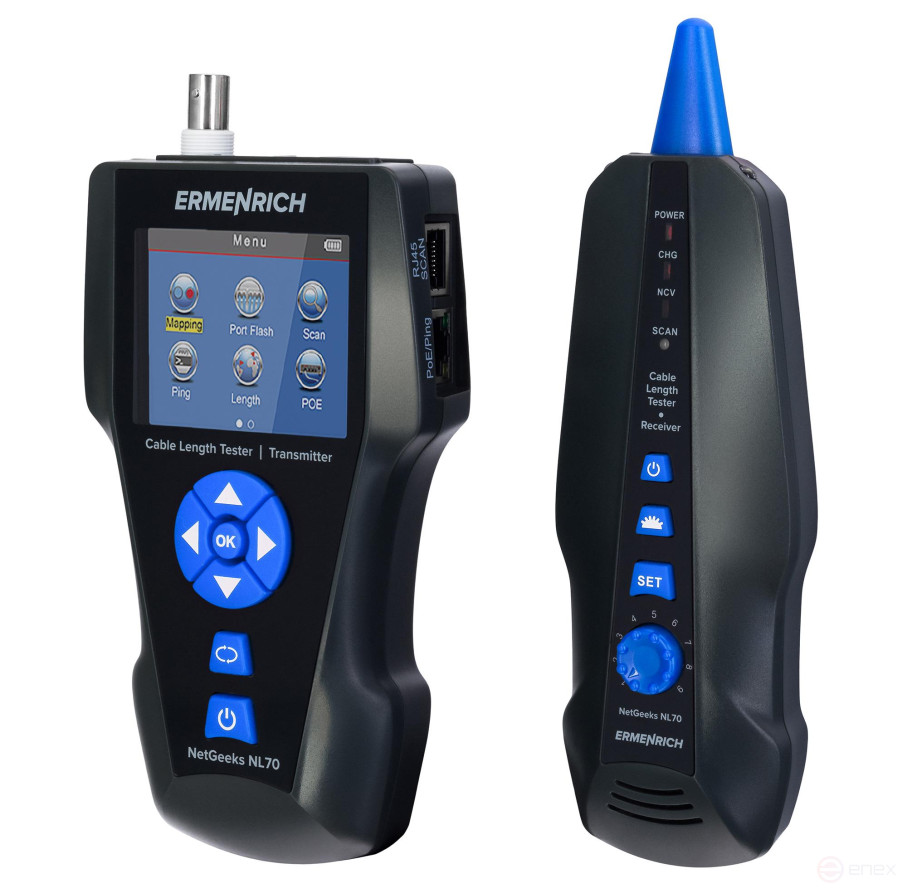

- The transmitter

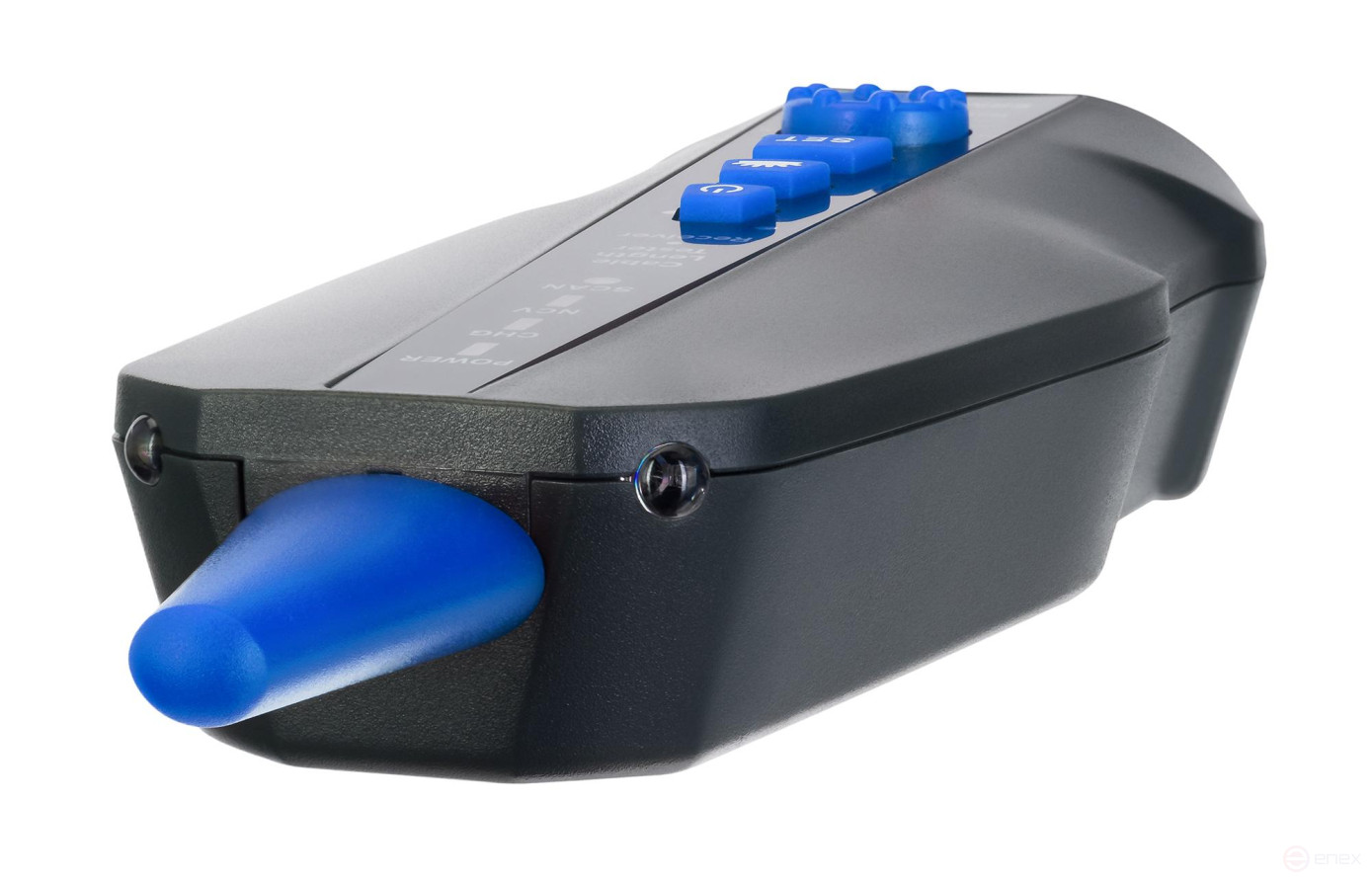

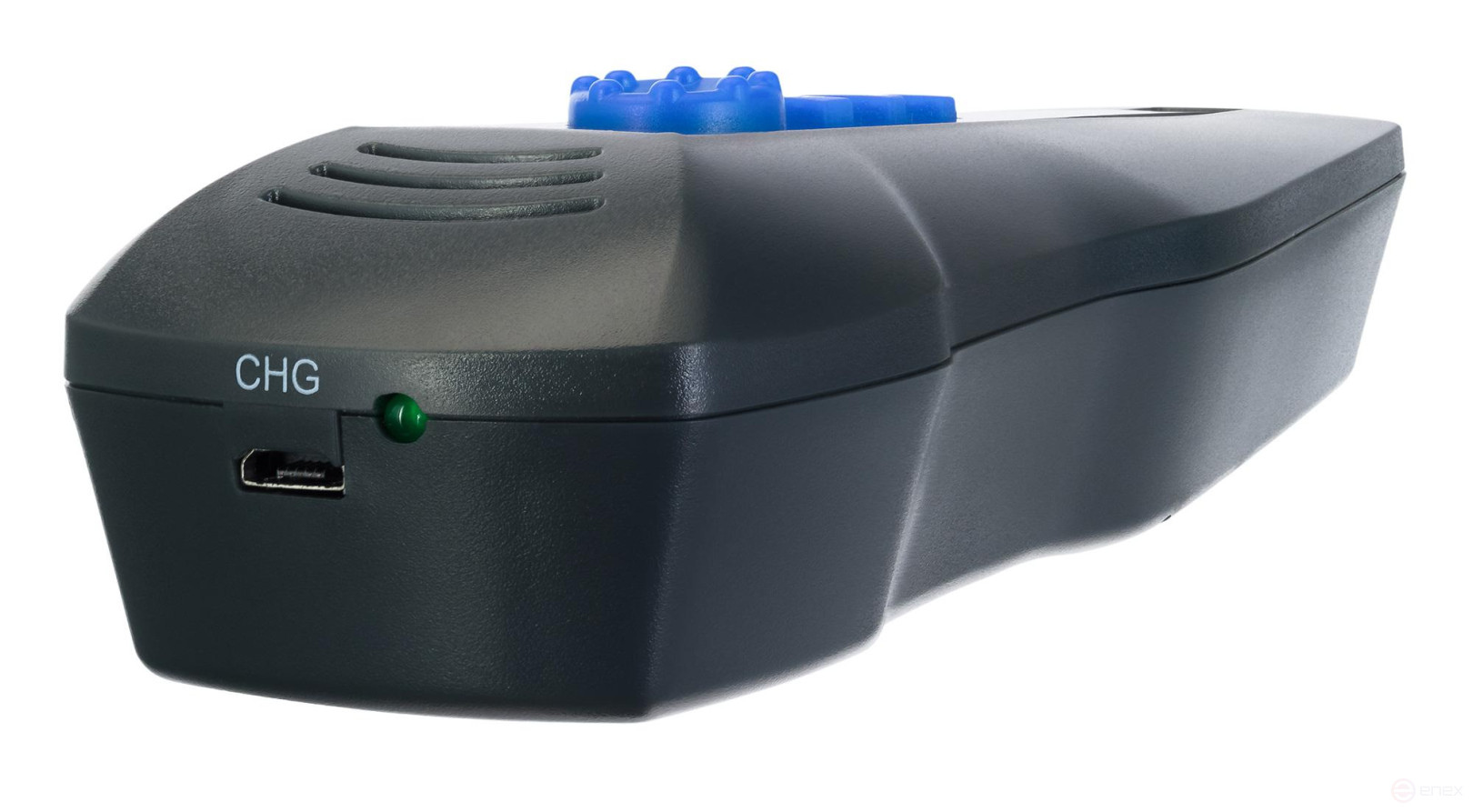

- The receiver
- Remote module
- RJ11 Patch cord
- RJ45 Patch Cord
- Crocodile clip type
- DC Cable
- microUSB Cable
- Bag
- Memory card
- Operating instructions and warranty card
Specifications:
- EAN: 5905555026442

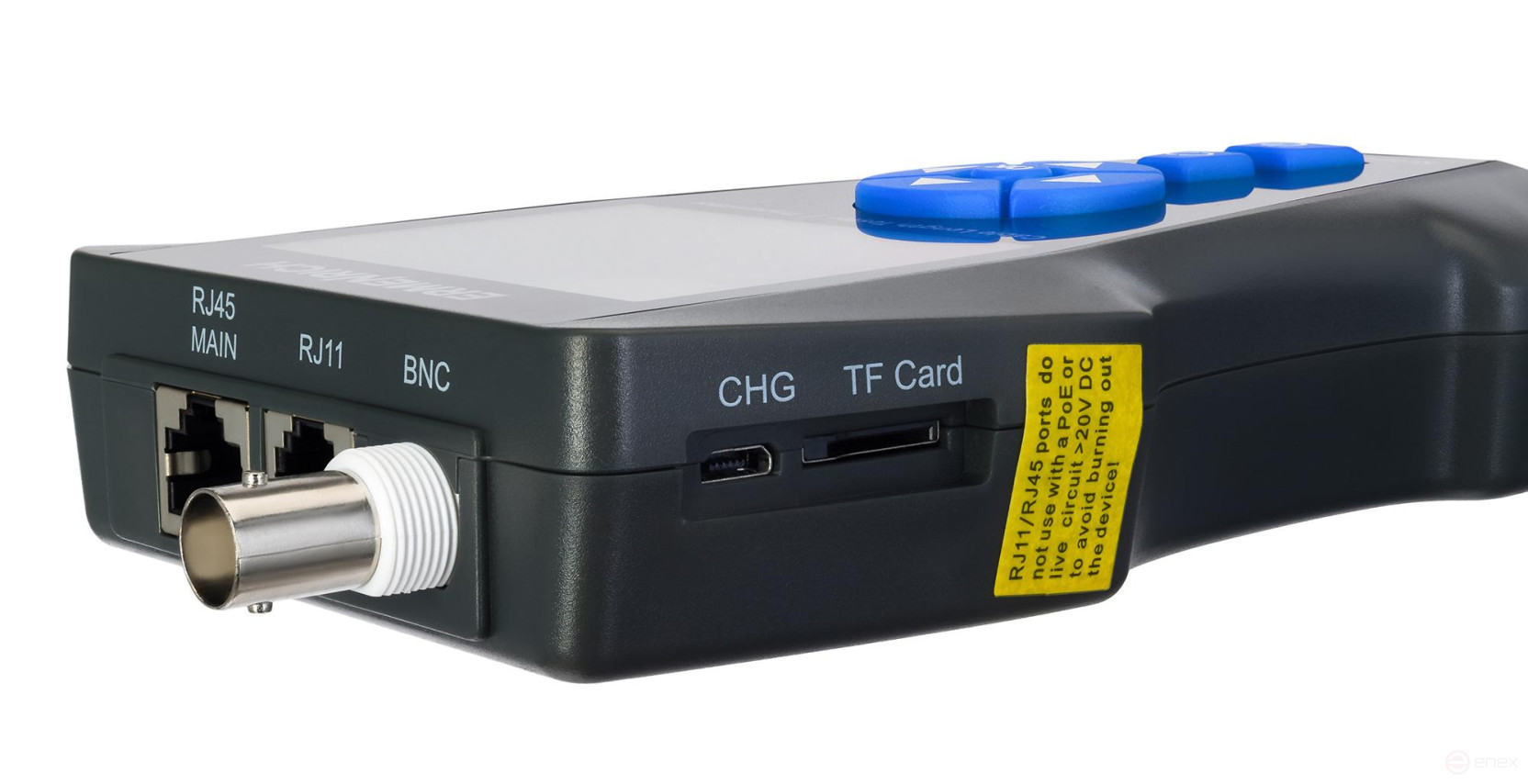

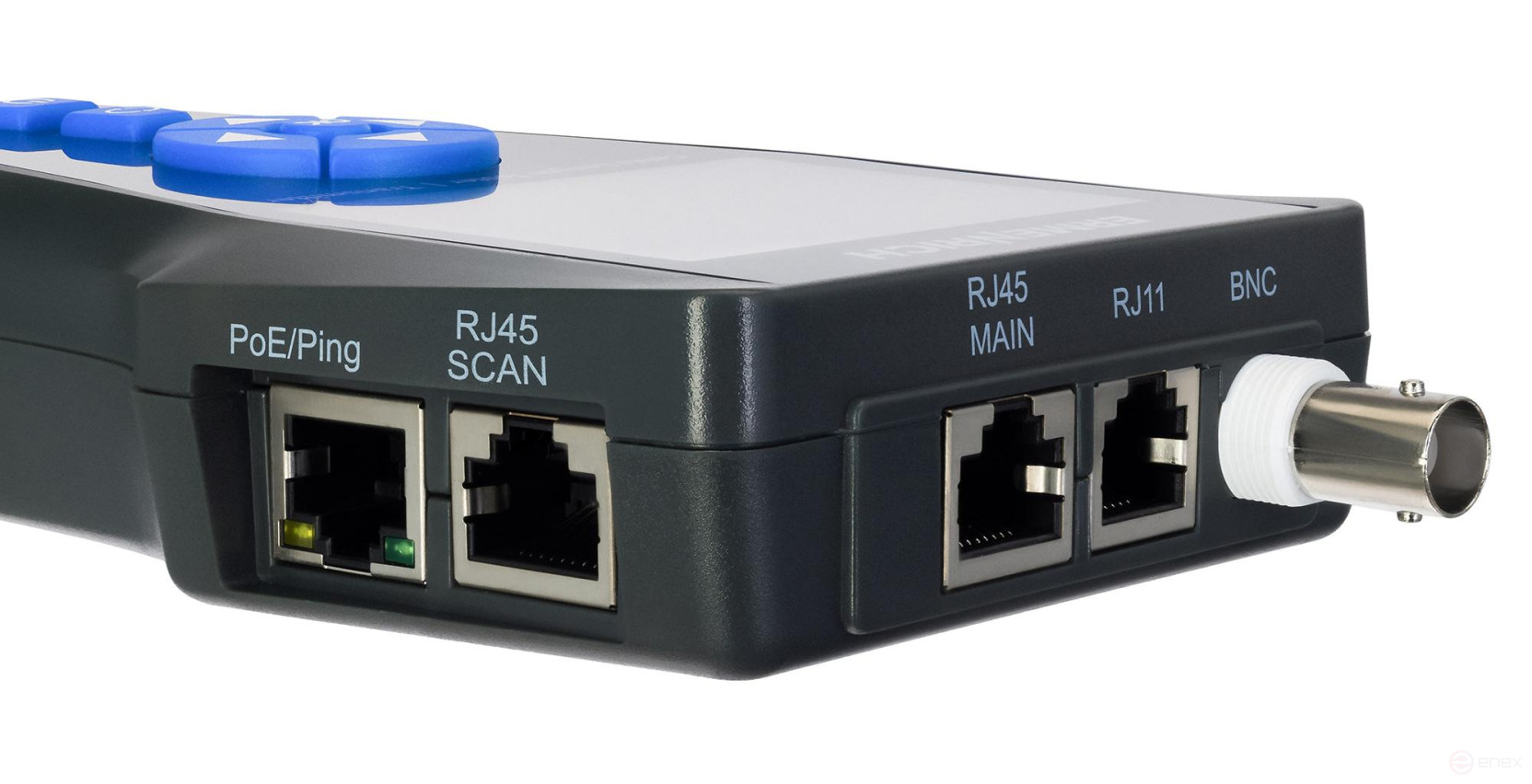

- Ports: BNC, RJ11, RJ45, microUSB
- Types of cables tested: coaxial, network STP/UTP of categories 5E/6/6A/7, telephone, electric
- Cable length measurement: yes
- Checking the serviceability of the cable: yes
- Cable health check: + (open, short circuit, crossed pairs, inverted pairs, crosstalk)
- Flashing function (Port Flash): Yes
- Flash indicator function (Port Flash): +
- Cable Tracing: Yes
- Anti-interference: Yes
- PoE Test: Yes
- PING test: yes
- Measurement method: Time domain pulse reflectometry (TDR)
- Units of measurement: meters/yards, foot
- Measuring range, m: 0 — 1000
- Error: 3% (±0.5m)
- Measuring the distance to the cliff: yes
- Short circuit distance measurement: yes
- Calibration: +
- Minimum cable length for calibration, m: 20 (50 m cable is recommended)
- Calibration error, %: 2 (±0.5 m)
- Maximum operating current, mA: <100
- Protection: input voltage: 48 V, current: 5 mA
- Data transfer: +, up to 50 memory slots (*.txt format)
- Display: LCD, color
- Display diagonal, inches: 2.8
- Display resolution, pixels: 320x240
- Display backlight: Yes
- Power supply: 3.7V, 1800 mAh, charging via DC adapter 5 V, 1 A (not included) and microUSB cable (included)
- Battery life, h: 50
- Low battery indicator: Yes
- Auto power off: 120 min, 15 min, 30 min, 60 min
- Operating temperature range, °C: -10... +60
- Operating humidity range, %: 20...70
- Adjustable sensitivity: yes
- Non-contact voltage detection (NCV): Yes
- Flashlight: Yes
- Types of cables detected: coaxial, network STP/UTP of categories 5E/6/6A/7, telephone, electric
