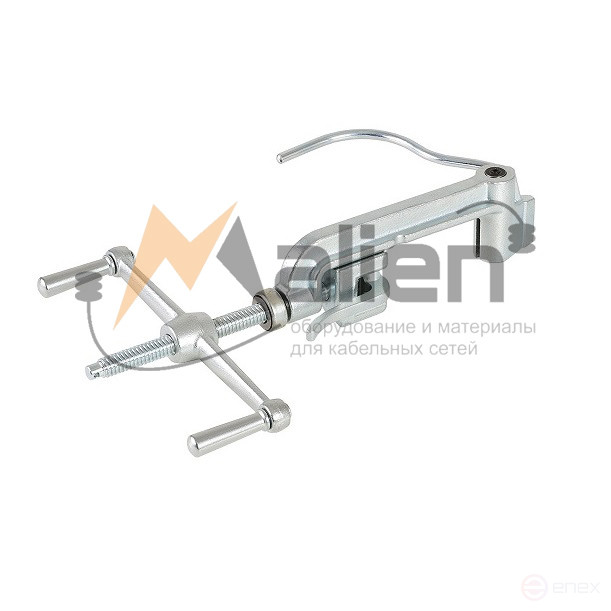

MVT-003 steel belt tensioning and cutting tool with MALIEN screw mechanism (tensioning pliers)
Russia
Russia
Description

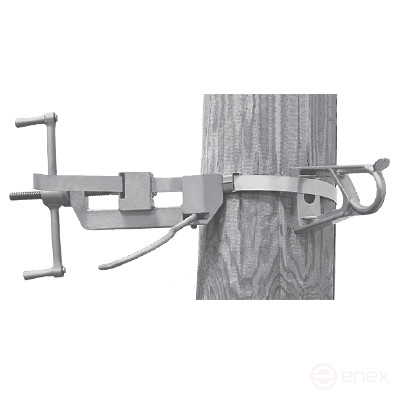

Tool for tension and cutting of steel tape (tension pliers) The MVT-003 with a MALIEN screw mechanism is used to tighten metal tape when mounting mounting units on wooden, concrete or metal supports.
The MVT-003 MALIEN tension pliers are equipped with a special knife for cutting the mounting tape.

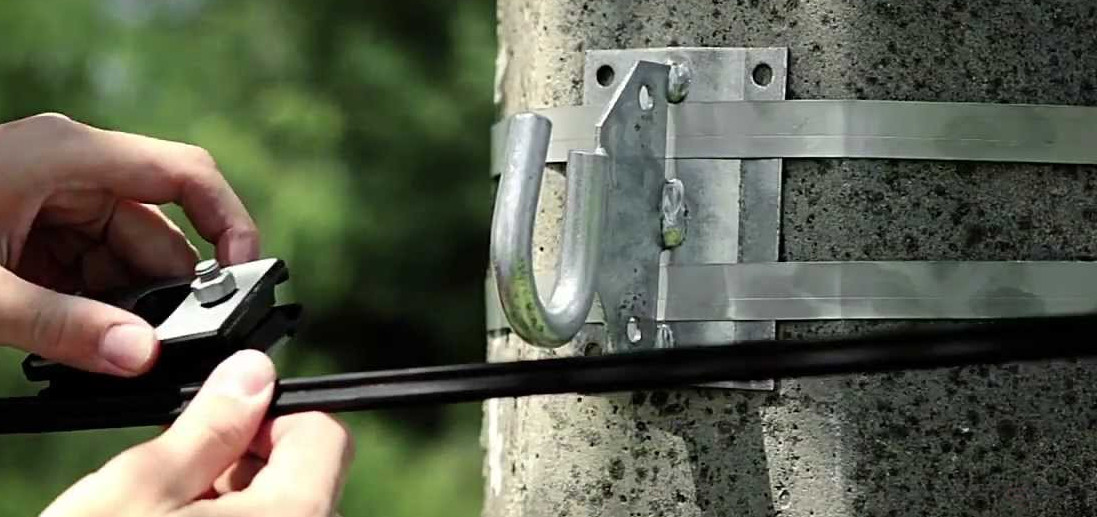

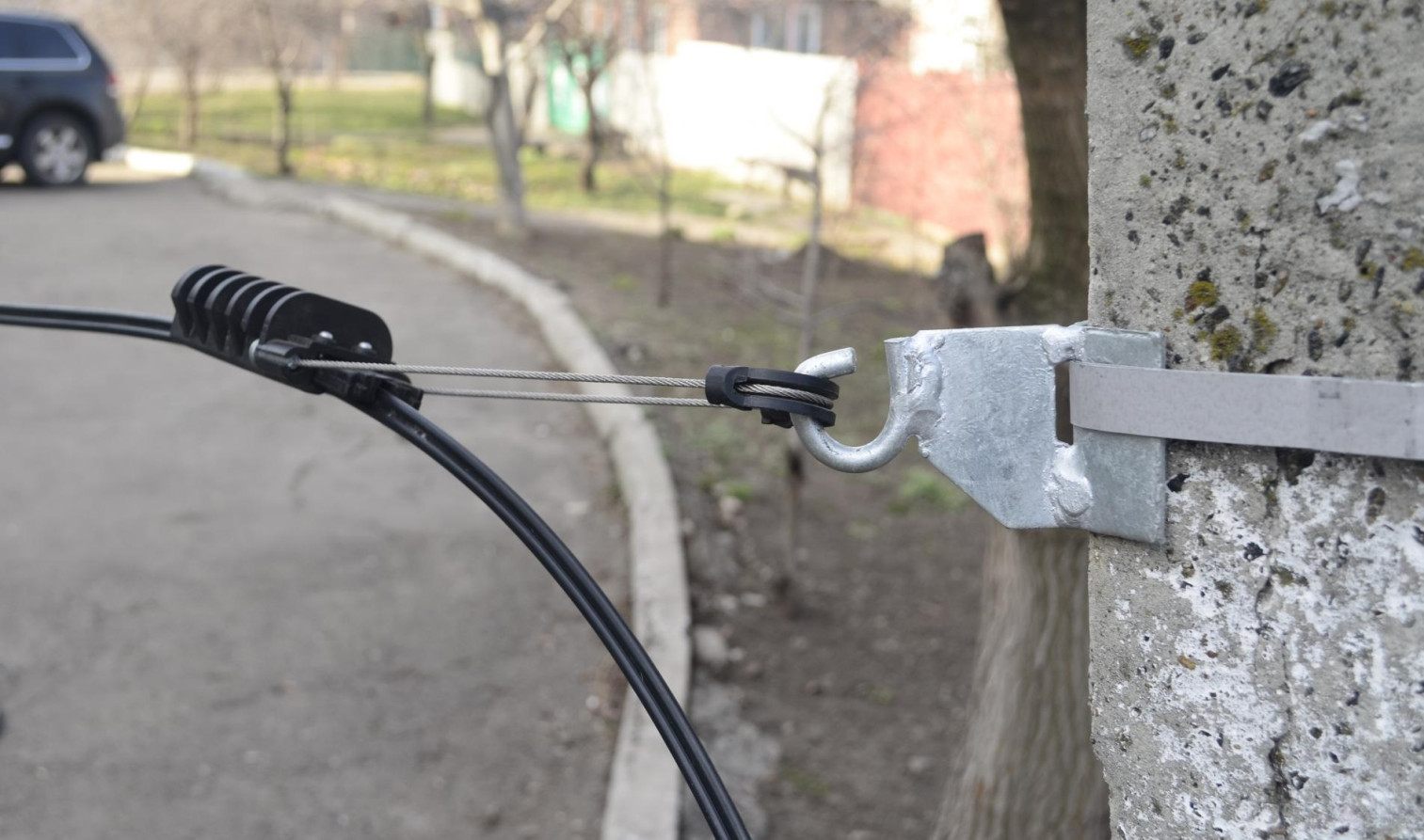

This tool is most often used to stretch the mounting tape when mounting various anchor brackets, hooks for fixing CIP, cable wiring on metal, wooden or reinforced concrete supports. Quite often, you can see a support with a switch or an accounting board attached to it using a tape attachment unit made with this particular tool – tension pliers (or, simply, a tape tightening machine).
In the example, to attach the anchor bracket to a reinforced concrete or wooden support, the following are used: a tensioning fastening unit, stainless steel mounting tape LM-2007 MALIEN, a mounting clip (mounting lock) for the B-20 tape (one for each piece of tape) and, in fact, the tool itself – tensioning pliers.
The short order of work:

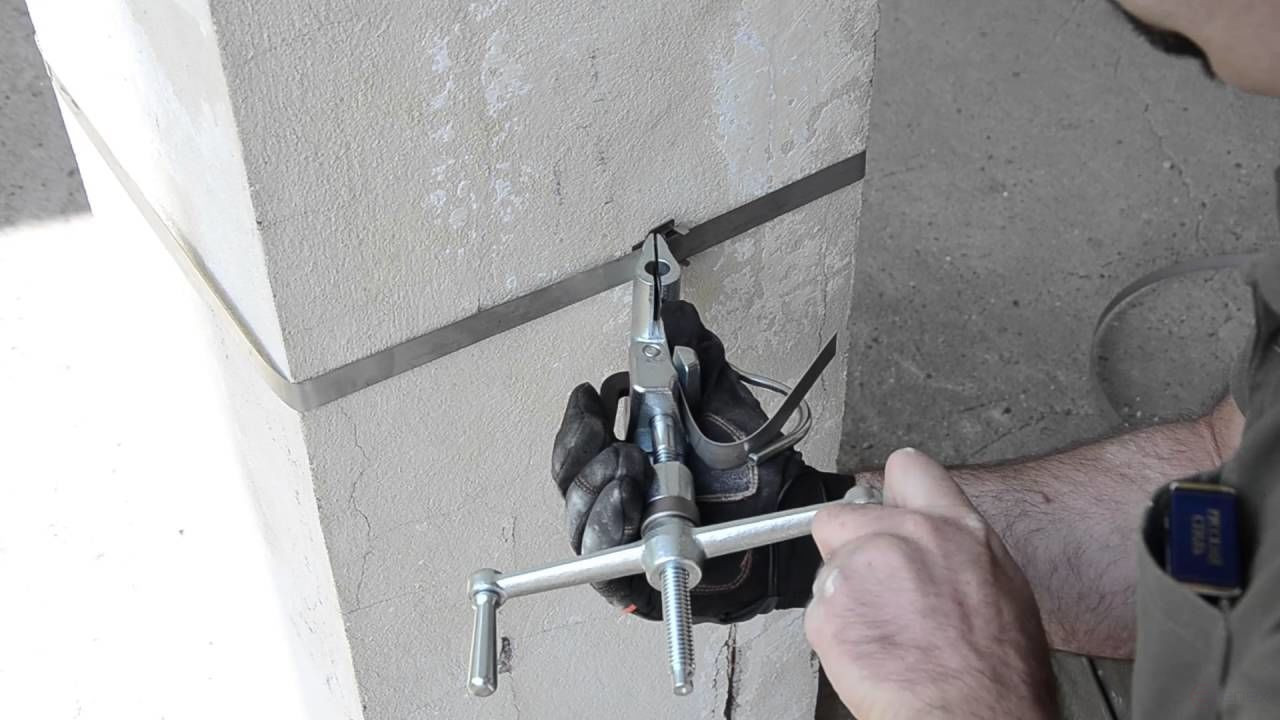

First of all, it is necessary to measure the required length of the tape (you can simply wrap it around the support, see Fig.) and cut it using a tensioner knife. Next, after passing one end of the mounting tape through the mounting clip on the side of the teeth by 3-5 cm, bend the clips under the shackle. The second end of the mounting tape wrapped around the support should be brought under the staple shackle so that it is on top of the first end of the mounting tape that was previously threaded. The resulting loop of tape on the support must be tightened manually and its free end inserted into the slots of the clamp and the knife of the pliers, after removing their levers. By rotating the flywheel around the support, tighten the tape, ensuring its proper tension and secure mounting of the bracket on the support. Bend the tape, moving the tool towards the staples, after a little bit (half a turn of the flywheel counterclockwise will be quite enough) loosening the tape and cutting off the tool with a knife (to do this, pull its lever away from the body until it stops). The last one is fixing the end of the mounting tape. Having bent the tendrils of the staple, hammer them with a hammer, thus securely fixing the tape mounting bracket
Advantages of MBT-003:
- special hardening of the clamping block and knife;
- anti-corrosion surface treatment;
- reliable, durable construction
Characteristics MVT-003 steel belt tensioning and cutting tool with MALIEN screw mechanism (tensioning pliers)
General Specifications
Russia
Russia
Specifications
