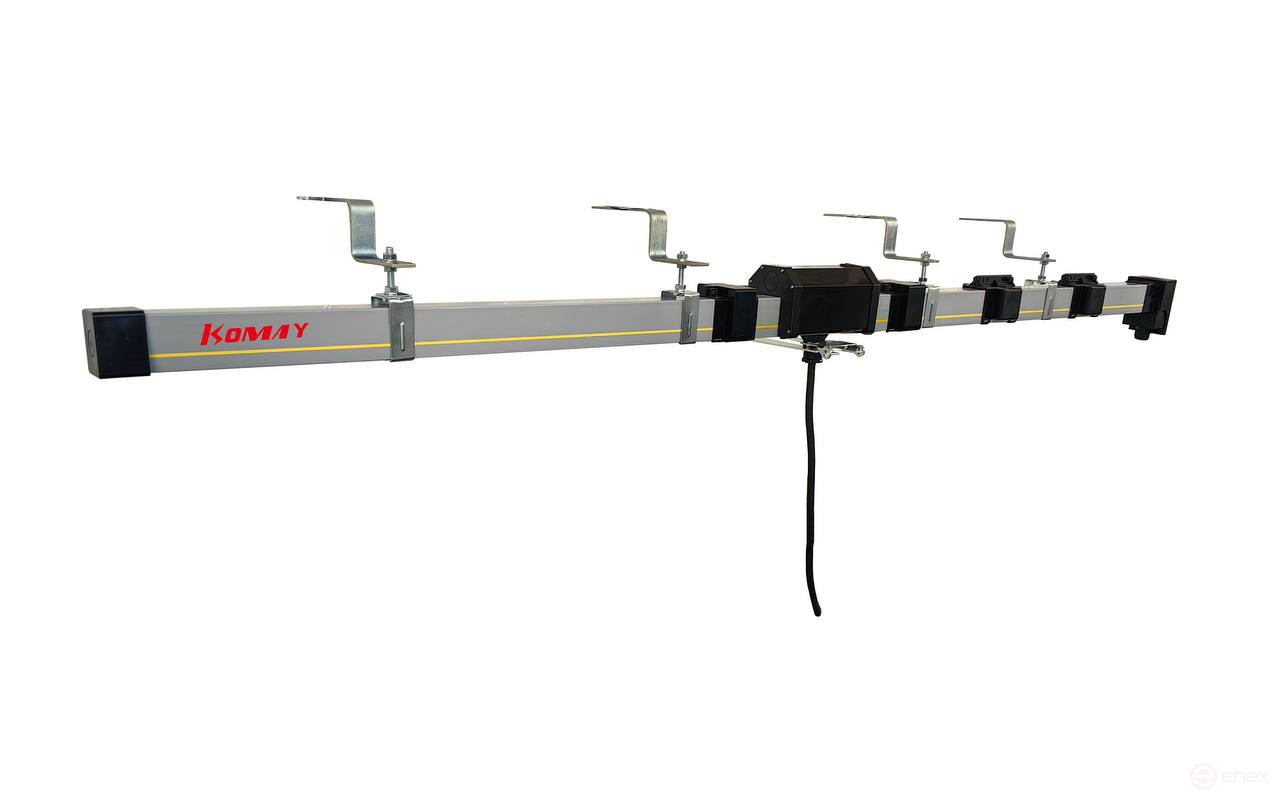

HFP 52-5-25/120A Trolley Busbar (4 m long sections)
Russia
Description
The closed multi-pole current supply system Powerail is a contact-protected power line (IP23) for use inside buildings and outdoors. They are conductive lines in a rigid PVC housing with a transverse copper section for a rated current of 35A-240A.
The current collectors installed in the ball bearing are guided by the housing.
The main thing is transmitted by carbon brushes with a spring drive.
NERR type: without sealing tape, with factory-installed flat copper tape and bolt-operated plug connectors.
Type NFR-B: for R2800 mm, with factory-installed flat copper strip and screw connectors.
Approved and included in the list: CCC, ISO90001 and CE.
Technical Characteristics:
Electrical properties:
- Max. current - 240A
- Max. voltage 690V
- Dielectric strength 30-40kV/mm
- Resistivity 5h1015 Ohms
- Surface resistance 1013 Ohms
- Leakage resistance STI600-2.7
Mechanical properties:
- Bending strength 75 N/mm2±10%
- Tensile strength 40 N/mm2±10%
Temperature range:
- Standard housing -20°C to +70°C
- High temperature housing 10°C to +115°C
- Low temperature housing -40°C to +80°C
Flammability:
- Fire-resistant B1
- Self-extinguishing Class B1-without flammable particles, self-extinguishing
Chemical resistance:
+45°With Gasoline, Oil, Grease, Sulfuric acid 50%, Caustic soda 25% and 50%, Concentrated hydrochloric acid.
Body
Plastic housing for 3-4 conductors. The standard section is 4 m. Other sections are available. The grounding wire is marked with an international color code. Phase reversal is prevented by the design of the current collector and housing.
Connections
Through plastic plugs.
Channel Sets
Linear power supply or terminal power supply
Suspensions
There are standard brackets for attaching the power bus to the crane beams. Power tire with sliding and fixed suspensions. The standard distance between the suspension points for indoor and outdoor use. Installation: 1200 mm.
Compensation sections
Compensation sections are necessary to compensate for various expansions between copper conductors and steel or concrete structures at different temperatures without interrupting the power supply.
Anti-condensate areas:
These sections are used to transfer power to open areas to avoid condensation. The power bus is not electrically separated.
Power zones and switches
For the power supply for work areas and transmission, see details.
Partitioning
The air gap between the sliding lines is 5 mm to ensure that the current collector can pass through the gap. It is also available as an insulating part (35 mm). In this case, the insulating element is longer than the carbon one, and each section of the power cable can be separated electrically, for example, for control.
Current collectors
The current collectors are made of reinforced fiberglass, which gives high strength and less weight.
Copper-graphite brushes installed in current collectors are equipped with springs that maintain the same brush pressure on the copper cores of the busbar housing. Current collectors are equipped with cables of a certain length, hinged or flexible spring pushers. Dual current collectors are characterized by a higher current strength.
