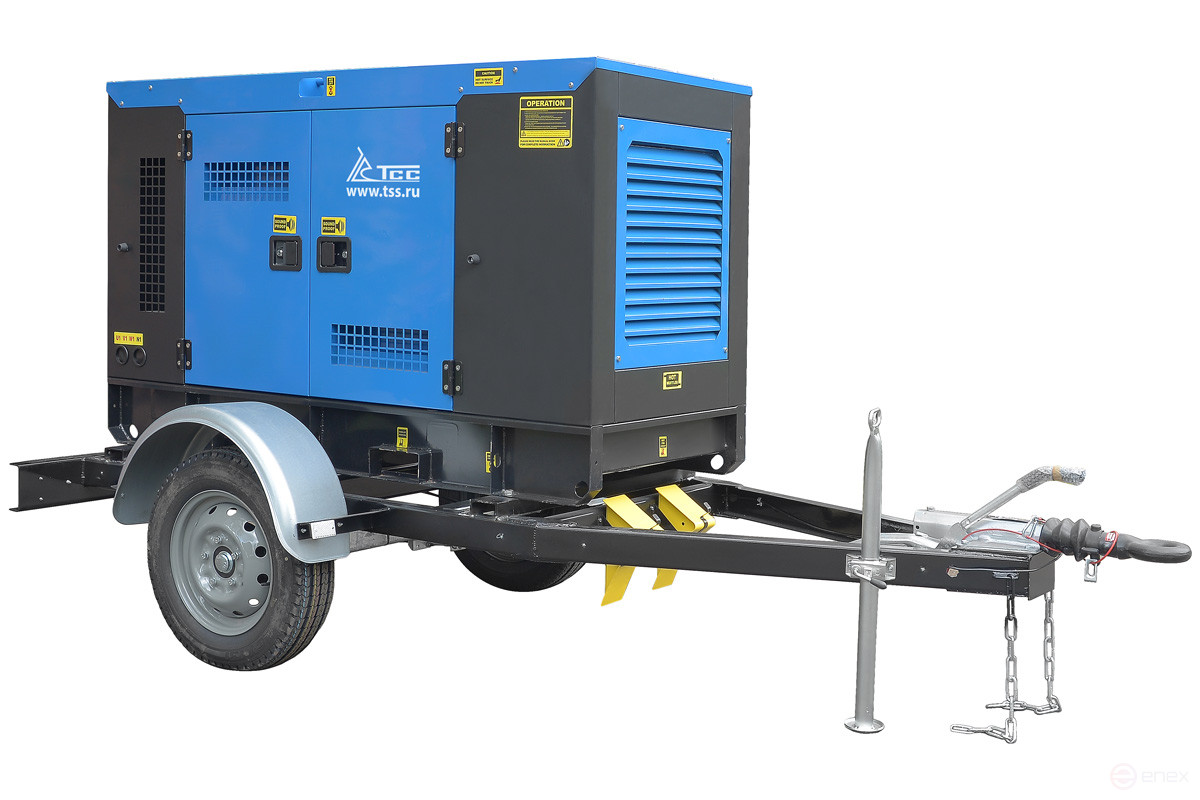

Diesel generator TSS ED-120-T400 in a noise-proof casing on a trailer
Russia
Russia
Description
The 120 kW mobile diesel generator for the TSS Standart TTD 170TS STMB reserve of the TSS Standart series is mass-produced in Russia, at the facilities of the modern production complex of the TSS group of companies. It is designed to supply three-phase electric current with a voltage of 400 V to any consumer facilities with a rated power of 120 kW (150 kVA) and a maximum power of 132 kW (165 kVA).
For almost 30 years, TSS Group has been designing and manufacturing backup diesel generators for customers in Russia, Belarus, Kazakhstan, Kyrgyzstan, Armenia, Uzbekistan and other republics of the former Soviet Union, which has allowed it to accumulate significant experience in meeting the needs of a wide range of consumers.
Inexpensive TSS Standard series diesel generators are designed to meet typical backup power supply requirements and are most often supplied to the following facilities:
- Cottage settlements;
- Shift settlements;
- Shops and shopping malls;
- Construction sites;
- Manufacturing enterprises;
- Agro-industrial enterprises.
Advantages of the model:
This model of a diesel power plant was originally designed for maximum efficient operation in the backup power supply mode. This is important because the DSU for the reserve is the most popular and widespread option for the operation of this equipment. The specifics of operating the generator set in standby mode are that the station is not in operation for most of its service life, but only stands on duty. According to the accumulated feedback from real customers of this equipment, interruptions in the main power supply networks occur no more than 2-3 times a year, but according to the standards or conditions of the facility's operation project, a diesel generator of the appropriate capacity must be involved in the electrical system. It follows from this that the most important advantage of a backup diesel generator, after reliability, is its low cost.
The TSS Standart backup DES has a full set of significant advantages, including:
- high reliability (which is confirmed by a long warranty period);
- low cost (relative to stations of other series of similar capacity);
- certified for use in the countries of the Eurasian Union;
- affordable technical support and an extensive network of authorized service centers;
- The motor resource of the TSS Standard DSU is 8000 hours before major repairs.;
- inexpensive and affordable consumables and spare parts with fast delivery to any locality of the Eurasian Union;
- Each DES undergoes a mandatory load test in the factory laboratory, and the results are attached to the package of accompanying documents.
The basis of the generator set is a simple and reliable TSS DIESEL TDK 132 6LT diesel engine
This engine is designed exclusively for use as part of a diesel power plant and is fully optimized for this specific task, which allows you to use its resource with maximum efficiency. TSS Diesel models are assembled on modern robotic lines of advanced enterprises in China, just as engines of leading European, American and Japanese brands are produced.
This line of engines uses technologies and structural elements of the previous generation, which allows, firstly, to save money (after all, we are talking about backup DGS, which are not often switched on), and secondly, it is a proven design that has undergone many upgrades and achieved a high level of reliability. The cast iron cylinder block, reliable turbochargers of the air intake system, simple and reliable injection pumps, a lubrication system based on publicly available engine oils, and conventional antifreeze in the cooling system – all this makes the engines of this series extremely easy to operate and maintain.
Separately, it should be noted that the engines are manufactured on European production lines, specifically for TSS Group, under the terms of ODM contracts. Detailed technical specifications of a specific engine from this diesel power plant are given in the table on this page.
TSS SA-120 industrial synchronous Generator is a three–phase current with excellent characteristics
The TSS SA industrial brushless alternator is used in all model lines of TSS diesel generator sets, including premium-level models designed for continuous power supply to the most responsible consumers, such as healthcare facilities, data centers, telecommunications centers, continuous production and others. Despite the fact that the DGU TSS Standard series is designed to solve redundancy problems, the synchronous generators used in these models meet the highest electrical standards without compromise. TSS SA generators are manufactured by order of TSS, at advanced specialized enterprises in China, as well as engines, on the terms of ODM contracts. All serial models of TSS alternators are provided with protection class IP21(IP23) and insulation degree H, which is the industry standard for similar products of almost any brand used for typical generation tasks. The design of the TSS SA three-phase electric generator uses a very reliable and simple SHUNT type winding excitation system that fully meets all standard requirements applicable to electrical equipment of this class.
A typical SHUNT system includes the following components and uses the following principles:
- an automatic voltage regulator (AVR) is connected to the power rails of a synchronous generator;
- The voltage is measured on the power rails of the synchronous generator;
- AVR (auto voltage regulator) produces provides generation and regulation of the excitation current of the windings, focusing on the output voltage of the alternator;
The use of simple and proven solutions in the TSS SA industrial synchronous generator ensures high reliability and stable performance under all normal operating conditions of the equipment. The generator is capable of withstanding overloads of up to 150% of the output current for 30 seconds without negative consequences.
TSS Standard Diesel Generator Control Panel
The TSS Standart power plant control cabinet is located on the supporting frame and provides convenient access to the controller in all versions of the diesel generator. Inside there is an automatic protection system for the generator set. Electrical energy consumers are connected to the input terminals of the automatic protection device.
On the front panel of the control cabinet there are controls and visual controls for the operation of the generator set. The control panel of the diesel generator is equipped with a graphic display with Russian language and is convenient to operate under any operating conditions.
The controls allow you to start and stop the DGU in manual mode. The control system automatically stabilizes the output parameters of the electric power and maintains stable operation of the generator set under variable external electrical load.
The protection of electrical circuits from overload and short circuit is also carried out automatically. The basis of the automation system of the generator set is a digital controller, where the display shows basic information about the operation of the generator set.
The TSS Standard diesel power plant uses Lovato Electric controllers (Italy), which provide comprehensive monitoring of key operating parameters and flexible control in all operating modes.
The controller is configured in the factory to maximize the potential of the diesel engine and synchronous generator, but it can also be programmed after installation at the customer's facility.
Lovato RGK600- A diesel power plant control controller developed and manufactured by the Italian company Lovato Electric. It has a large number of settings and allows you to effectively manage various modes of operation of DES.
A fully Russian-language interface and a user-friendly graphical screen that displays the main performance indicators of the equipment. It has connectors for connecting various expansion modules that add new control capabilities to the generator equipment.
TSS Group is an official certified partner of Lovato Electric and has a staff of trained specialists to work with controllers of this brand.
Important- The engineering divisions of the TSS Group's production complex continue to work to improve the characteristics of the model, aiming to increase the reliability of the installation and reduce its cost. In this regard, the manufacturer reserves the right to make changes to the design of the installation, both minor and leading to changes in its weight and size characteristics. Be sure to check the compliance of the characteristics of the purchased diesel power plant when placing an order.
Specifications:
- Rated power, kW - 120
- Rated power, kVA - 150
- Maximum power, kW - 132
- Maximum power, kVA - 165
- The power factor is 0.8
- Voltage (V) - 400/230
- Number of phases - 3
- Frequency, Hz - 50
- Rated current (A) - 216
- Cooling system volume (L) - 32
- Fuel tank capacity (L) - 240
- Fuel consumption at 50% capacity l/h - 16.5
- Fuel consumption at 75% capacity l/h - 25
- Fuel consumption at 100% capacity l/h - 33
- Autonomous operation at 75% load without refueling (h) - 12
- Degree of automation - 1 (manual start-up)
- Emergency stop system - Yes
- Fuel level sensor - Yes
- Installed battery Ah/V - 2*80/24
- Design - Noise-proof cover on the trailer
- Silencer - industrial
- Overall dimensions (L; W;H; mm) - 3060x1200x1600
- Engine manufacturer - TSS Diesel
- Engine - TSS Diesel TDK 132 6LT
- Maximum engine power, kW - 145.2
- Engine displacement (L) - 7.01
- Oil system capacity (L) - 17
- Generator power, kW - 120
- Generator efficiency, % - 94
- Voltage adjustment accuracy (±%) - 1
- Weight, kg - 2000
- Complete set - muffler, fuel tank, battery, control panel with digital panel, oil and coolant locking station
- Warranty period (months) - 24 months/1000 operating hours
Characteristics
General Specifications
Russia
Russia
Dimensions of product
Specifications
A characteristic that determines the type of voltage generated and compatibility with electrical appliances.
- One phase (220 V) is used for household appliances
- Three phases (380 V) are required for high-power industrial equipment
- Affects the load connection scheme
A characteristic that determines the type of voltage generated and compatibility with electrical appliances.
- One phase (220 V) is used for household appliances
- Three phases (380 V) are required for high-power industrial equipment
- Affects the load connection scheme
