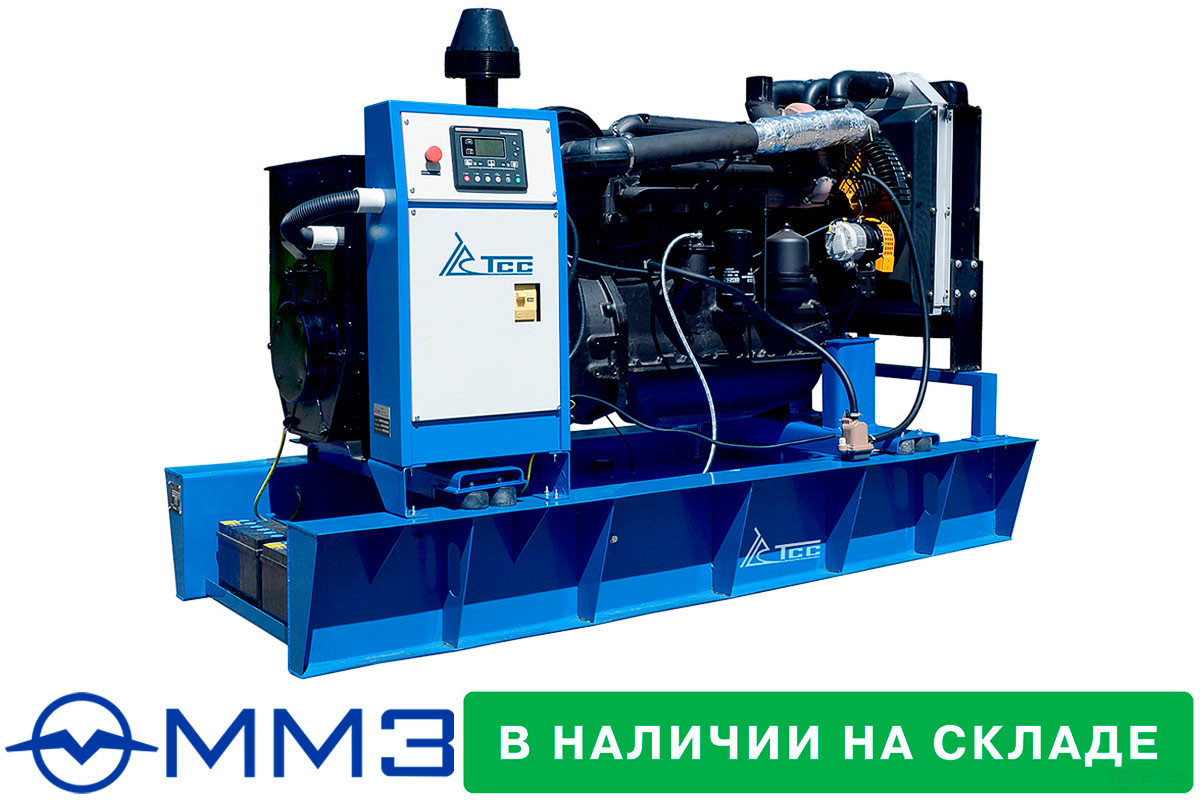

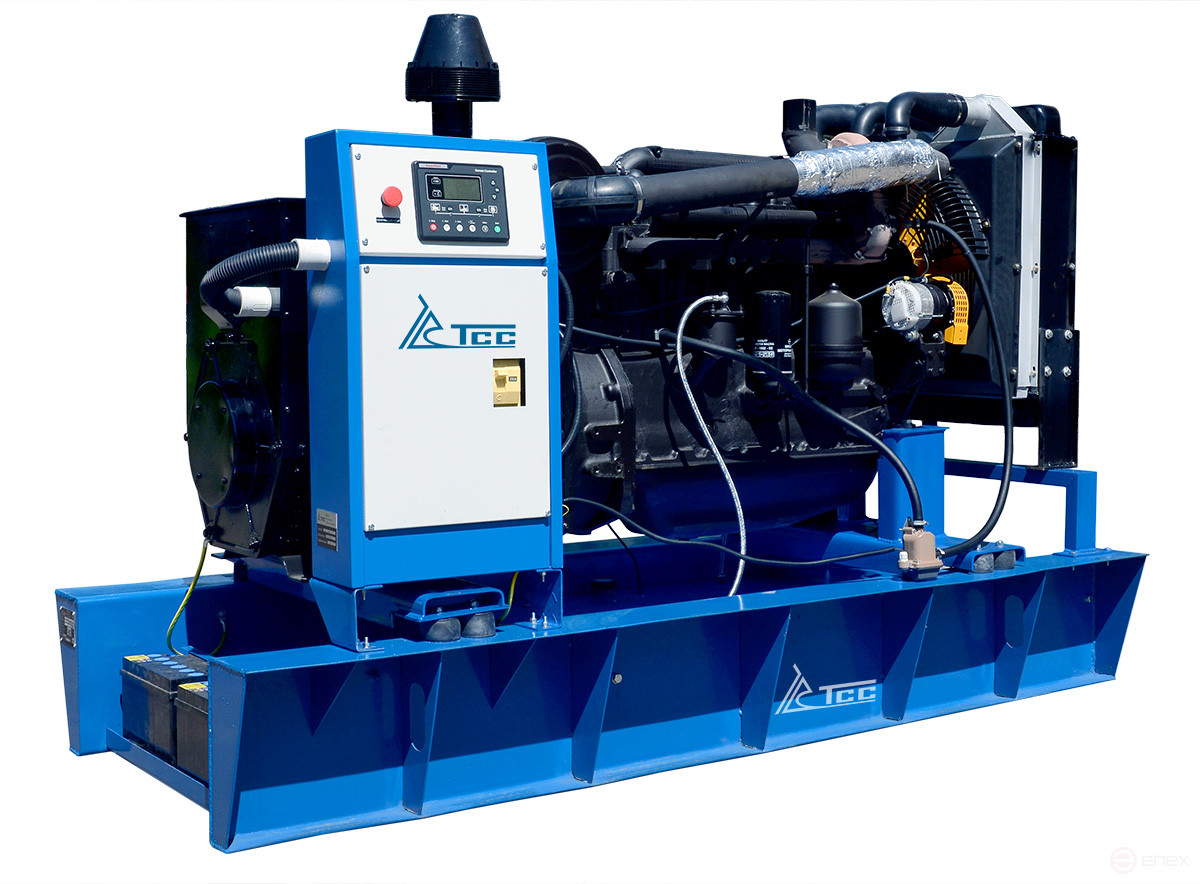

Diesel generator TSS AD-100S-T400-1RM1 (Mecc Alte)
Russia
Russia
Description
The Russian diesel power plant TMm 110MC of the TSS Slavyanka series is produced at a modern production complex. It is extremely easy to operate, designed both for use as backup and main sources of electricity, with a rated power of 100 kW (125 kVA) and a maximum power of 110 kW (140 kVA).
Diesel power plants of the TSS Slavyanka series are recommended for power supply of shift settlements, drilling rigs, logging enterprises, electric grid facilities, housing and communal services, construction and repair sites.
The TSS Slavyanka series of Russian-made diesel power plants is produced using common MMZ (Minsk Engine Plant) engine models, which are highly maintainable in all conditions and are well known to Russian diesel mechanics. Unlike Chinese, European and American engines, this model is maintainable in the field, which makes it very popular for shift settlements, drilling and other remote facilities.
Advantages of the TMM diesel power plant with MMZ engine:
- Maximum maintainability in all conditions, including field conditions;
- The most affordable spare parts, compared to engines of other brands;
- DSU TSS Slavyanka series can be equipped with autorun (AVR) and synchronization systems.;
- Short payback period, combined with low operating costs;
- Compatible with domestic engine oils;
- Adaptation to the quality of Russian diesel fuel;
- 10,000 hours – service life before major repairs.
MMZ D-266.4-38 engine:
- MMZ engine (Minsk Engine Plant), characterized by high maintainability in all conditions;
- maximum power 123 kW;
- 4 cylinders, inline cylinder arrangement;
- the cooling system is liquid;
- 4.75 liters - engine displacement;
- The speed control is mechanical;
- The recommended engine oil type is SAE 15W40/10W30.
Synchronous Generator Mecc Alte ECP32-2M/4 SAE 3/11.5 (84 kW):
- maximum power 108kW;
- the MAUX excitation system;
- EFFICIENCY 94%;
- insulation class/degree of protection H/IP21(23).
TMm 140MC diesel generator control system:
As a basic design, diesel generators of the TSS Slavyanka series are equipped with Lovato RGK-600 control controllers. Lovato controllers have been designed taking into account all the latest achievements of science and technology in order to be used in generator sets with the function of voltage monitoring in the power supply network.
Main parameters:
- display of the main technical parameters of the DSU;
- multilingual interface, including Russian, for managing the work of the DSU.
According to the customer's technical specifications, DGS of this series can be equipped with controllers manufactured by SmartGen, ComAp, DeepSea and other manufacturers.
Specifications:
- Rated power, kW - 100
- Rated power, kVA - 125
- Maximum power, kW - 110
- Maximum power, kVA - 138
- Power factor - 0.8
- Voltage (V) - 400/230
- Number of phases - 3
- Frequency, Hz - 50
- Rated current (A) - 180
- Cooling system volume (l) - 18
- Fuel tank capacity (L) - 395
- Fuel consumption at 50% capacity l/h - 15.2
- Fuel consumption at 75% capacity l/h - 22.7
- Fuel consumption at 100% capacity l/h - 30.3
- Autonomous operation at 75% load without refueling (h) - 17
- Degree of automation - 1 (manual start-up)
- Emergency stop system - yes
- Fuel level sensor - yes
- Installed battery Ah/V - 2*90/12
- Execution - Open
- Silencer - industrial
- Radiator dimensions (rast. from the floor, H, W, mm) - 800x800
- Overall dimensions (L; W; H; mm) - 2700x1140x1540
- Engine - MMZ D-266.4-38
- Maximum engine power, kW - 127
- Number of cylinders - 6
- Engine displacement (L) - 7.12
- Oil system capacity (L) - 18
- Generator power, kW - 100
- Generator efficiency, % - 92.9
- Voltage adjustment accuracy (±%) - 1
- Weight, kg - 1620
- Frame height (mm) - 250
- Warranty period (months) - 24 months/1000 operating hours
