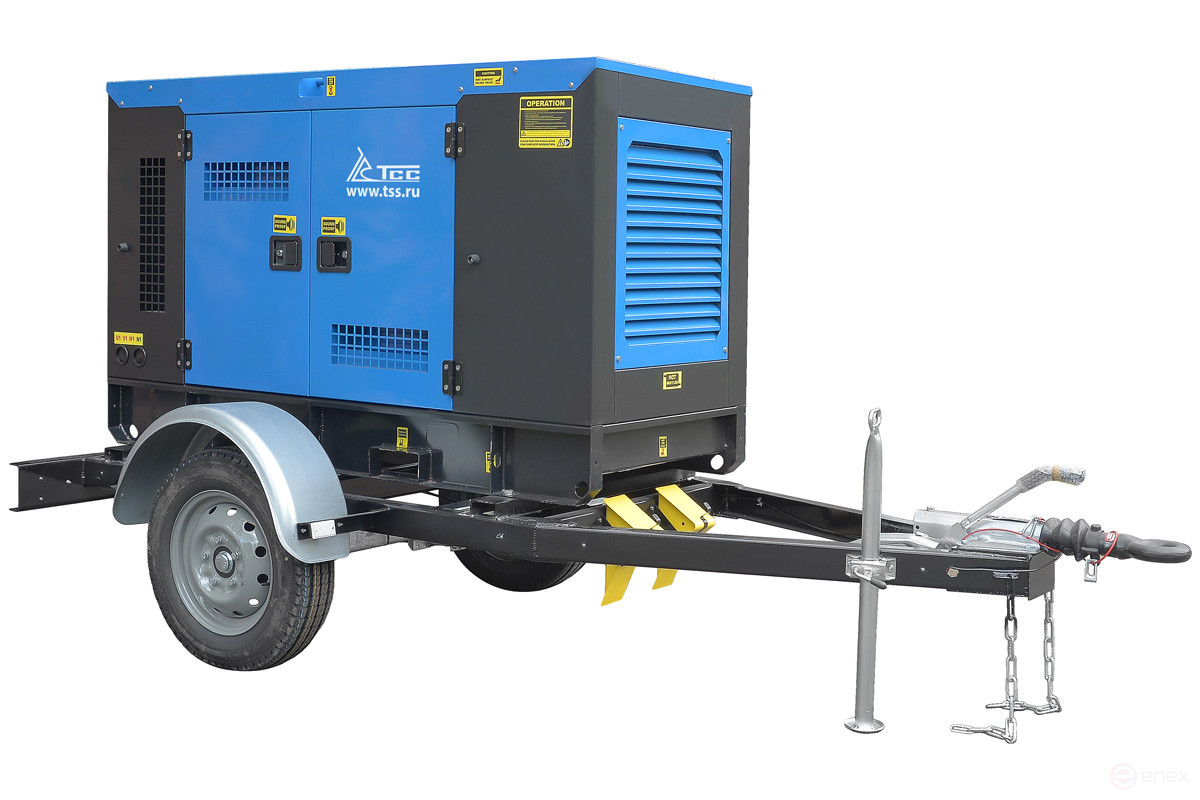

Diesel generator on the chassis of TSS ED-300-T400-2RKM5 PROF
Russia
Russia
Description
The impressive advantages of a mobile power station with a 300 kW TSS Prof AVR are fully revealed during long-term operation in the mode of the main power supply source, when fuel consumption, reliability, duration of service intervals, and adaptability to load reception come to the fore. TSS TTSt 420TS STAMB PROF was designed by TSS Group Engineering center specialists with full consideration of the needs of domestic customers and operating conditions. The TSS Prof series is a real and affordable alternative to European diesel generators of the middle and upper price ranges, which is in no way inferior to the equipment of famous brands, but at the same time has a much lower cost.
The technological capabilities of the TSS Group's production complex make it possible to mass-produce modern models of generator sets with quality that meets global industry standards, which is documented by certificates from such leading developers as Moteurs Baudouin (France), Yuchai (China), Weichai (China), Sincro (Italy), Mecc Alte (Italy) and others.
The TTSt 420TS STAMB PROF is a ready-made energy solution for building reliable power supply systems for the most critical facilities, including continuous cycle production facilities, healthcare and educational institutions, enterprises in various industries, shopping and entertainment centers, and hotel complexes.
Advantages:
- The ability to use the Prof series DGU in long-term and continuous operation mode;
- Modern high-tech engines assembled at robotic enterprises in China;
- The possibility of execution according to the 2nd, 3rd degree of automation and parallel operation of several DGS;
- The service life before major repairs is more than 13,000 operating hours.;
- Compatible with domestic engine oils;
- Availability of components and assemblies during maintenance;
- High performance characteristics;
- Low specific fuel consumption;
- Extended warranty for up to 3 years.
TSS Diesel TDP 320 6LTE Diesel Engine (Steyr Technology)
The engine is designed specifically for generation and optimized for maximum efficiency when operating at 1,500 revolutions per minute, necessary to generate alternating electric current with a frequency of 50 Hz, used in many countries around the world, including Russia, Belarus, Kazakhstan, Kyrgyzstan and Armenia. The engine has an inline design of 6 cylinders and is equipped with an electronic speed control, which allows its operation in parallel, as part of a scalable energy complex.
- The engine was developed with the participation and technology of AVL (Austria) and Southwest Research Institute (USA) companies;
- Excellent price-quality ratio.
- maximum power 352 kW;
- 6 cylinders, inline cylinder arrangement, 4-stroke;
- turbocharged and intercooled air intake system;
- 11.596 liters - engine displacement;
- electronic speed control.
Synchronous generator 300 kW TSS SA-300 - high quality electric current
The synchronous three-phase brushless generator is designed for use in diesel and gas piston generator sets focused on power supply to the most critical facilities that are sensitive to the characteristics of the supplied current. The voltage autoregulator (AVR) used in its design ensures an adjustment accuracy of 0.5%, the housing and the protection class of the windings correspond to IP 21. This is a reliable and unpretentious single-column generator, which has been used for decades as part of TSS diesel generator sets.
Mobile Power Plant Management System with AVR 300 kW TTSt 420TS STAMB PROF
The Lovato RGK600 European controller provides reliable integrated control over a variety of parameters of a running diesel generator set, providing maximum efficient control over the entire range of available operating modes. The Russian-language interface of the control panel is intuitive and has an optimal layout of controls.
The Italian company Lovato Electric is a recognized leader in the development and mass production of industrial electronics and control system controllers. TSS Profs are available ready-to-use with a fully factory-configured control system that maximizes the potential inherent in the engine and generator.
Equipping a 300 kW TTSt 420TS STAMB PROF mobile diesel power plant with the 2nd degree of automation (starting in automatic mode)
The power plant on a chassis with an AVR of 300 kW TSS TTSt 420TS STAMB PROF is equipped in accordance with the requirements of automation of the second degree, which implies the integration of additional subsystems that significantly expand the possibilities of autonomous operation of a diesel power plant. The AVR (automatic reserve input) unit provides autorun of the DES in the event of a power outage of the main power supply network and stops when the power supply from the main source is resumed. All load switching between power sources is performed automatically, without the participation of management personnel. The electric heating system of the engine block ensures that the DSU is always ready to start, even in the cold season, using an external power supply network as a power source. The on-board battery automatic charging module maintains the constant availability of starter batteries throughout the entire period of equipment operation.
Design features of a diesel power plant in a soundproof casing TTSt 420TS STAMB PROF.
The noise-proof casing is a significant step forward, providing the diesel generator with new properties and expanding its operational capabilities. The inner surface of the casing is covered with a sound-insulating material that can withstand harsh operating conditions for a long time and significantly reduces the noise level from a running power plant. The casing design includes a special noise reduction chamber, which additionally reduces the noise level. Noise-proof casings are often referred to as Super Silent on imported DGU, which means "very quiet", and there is also a variant name for this design, "euroskin", but as a rule, we are talking about the same DGU design. Equipment equipped with a noise-proof casing can be located in the immediate vicinity of urban buildings. The diesel power plant in a noise-proof casing is equipped with eye bolts in the upper part for easy movement by a crane and slots for a forklift in the lower part of the structure.
Advantages of mobile DSU TSS TTST 420TS STAMB PROF
The ability to move quickly along highways, implemented in this version, allows you to deliver the source of the main or backup power supply to the customer's facility in the shortest possible time. A diesel power plant in a casing is installed on a car or tractor trailer corresponding to its weight and size characteristics, and the speed of movement is limited only by a set of traffic rules in force at the time of use. Single-axle or two-axle trailers used for the production of TSS Prof mobile power plants are supplemented with special vibration dampers that help reduce vibrations from operating equipment, as well as reduce the impact on equipment when moving over road bumps.
Specifications:
- Rated power, kW - 300
- Rated power, kVA - 375
- Maximum power, kW - 330
- Maximum power, kVA - 413
- The power factor is 0.8
- Voltage (V) - 400/230
- Number of phases - 3
- Frequency, Hz - 50
- Rated current (A) - 540
- Cooling system volume (l) - 66
- Fuel tank capacity (L) - 1000
- Fuel separator - yes
- Fuel consumption at 50% capacity l/h - 38
- Fuel consumption at 75% capacity l/h - 56
- Fuel consumption at 100% capacity l/h - 73
- Autonomous operation at 75% load without refueling (h) - 14.3
- Degree of automation - 2 (auto-start)
- Emergency stop system - yes
- Fuel level sensor - yes
- Installed battery Ah/V - 2*150/12
- Design - noise-proof cover on the trailer
- Silencer - industrial
- Radiator dimensions (rast. from the floor, H, W, mm) - 400, 1030x1323
- Overall dimensions (L;W;H; mm) - 5500x2060x3045
- Engine manufacturer - TSS Diesel
- Engine - TSS Diesel TDP 320 6LTE (Steyr Technology)
- Maximum engine power, kW - 352
- Engine displacement (L) - 11,596
- Oil system capacity (L) - 28
- Generator power, kW - 300
- Generator efficiency, % - 94
- Voltage adjustment accuracy (±%) - 1
- Weight, kg - 3920
- Complete set - muffler, fuel tank, battery, control panel with digital panel, oil and coolant locking station
- Frame height (mm) - 360
- Warranty period (months) - 36 months/2000 operating hours
